Window fastener 3308

3308-31-38/CP

+

5
arrow_selector
close

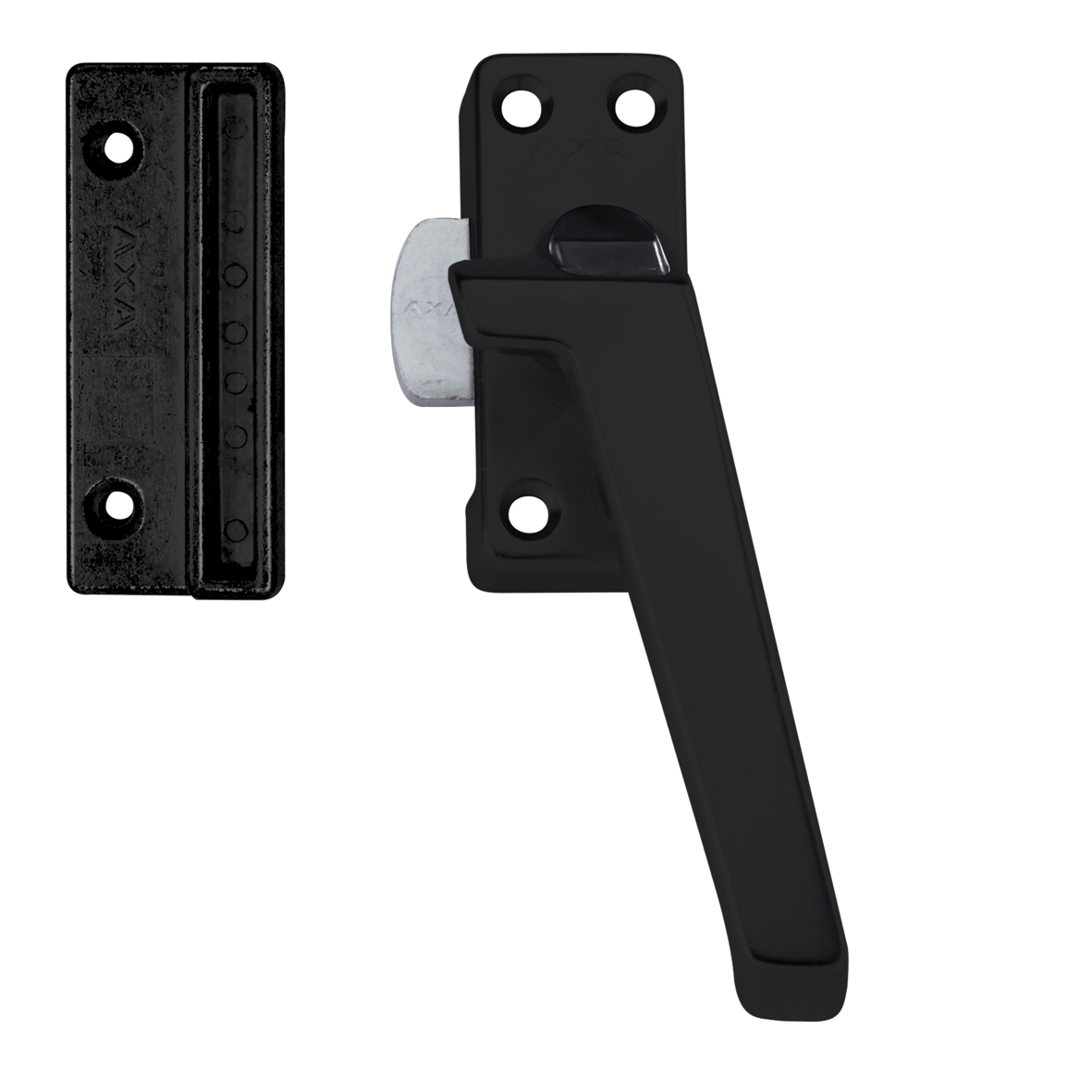

The AXA 3308 window fastener features a ventilation cam and a release knob provides increased burglar-resistance.

  • sturdy window fastener
  • with a release knob for locking
  • with a cam for optimal ventilation
  • simple assembly
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 3.5 x 20 mm screw pieces
Commercial information
expand_more
Type 3308
Use for casement windows and doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 132 mm
Product Width 65 mm
Product Height 40 mm
Direction of rotation right outward-opening
Bolt type standard bolt
Bolt catcher surface-mounted striker
Locking mechanisme push button
Material Aluminum
Finish Polished anodised F8, black
Material 2 Synthetic
Finish 2 Black
Assembly information
expand_more
Including Mounting Material False
Mounting length 132 mm
Required depth wood frame 31 mm
Window/door mounting width requirement 44 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 3.5 x 20 mm screw pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249355894
Weight small package 0.264 kg
Dimensions small package 205 x 85 x 60 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249355900
Weight bulk package 2.31 kg
Dimensions bulk package 355 x 180 x 125 mm
