Washer plate 3319

3319-80-64
arrow_selector
close

Washer plate for window fastener types 3320, 3319 and 3318.

  • increased the casement stay over the weatherstrip
  • solid construction
Specifications Downloads Technical drawings Alternative products
Commercial information
expand_more
Type 3319
Use in combination with casement fastener 3320, 3319 and 3318
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 74 mm
Product Width 30 mm
Thickness 8 mm
Direction of rotation outward-opening
Material zamac
Finish Galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 69 gr
Pieces per small package 6 piece
EAN small package 8713249053745
Weight small package 0.44 kg
Dimensions small package 94 x 68 x 57 mm
Pieces per bulk package 48 piece
EAN bulk package 8713249053752
Weight bulk package 3.65 kg
Dimensions bulk package 200 x 150 x 120 mm

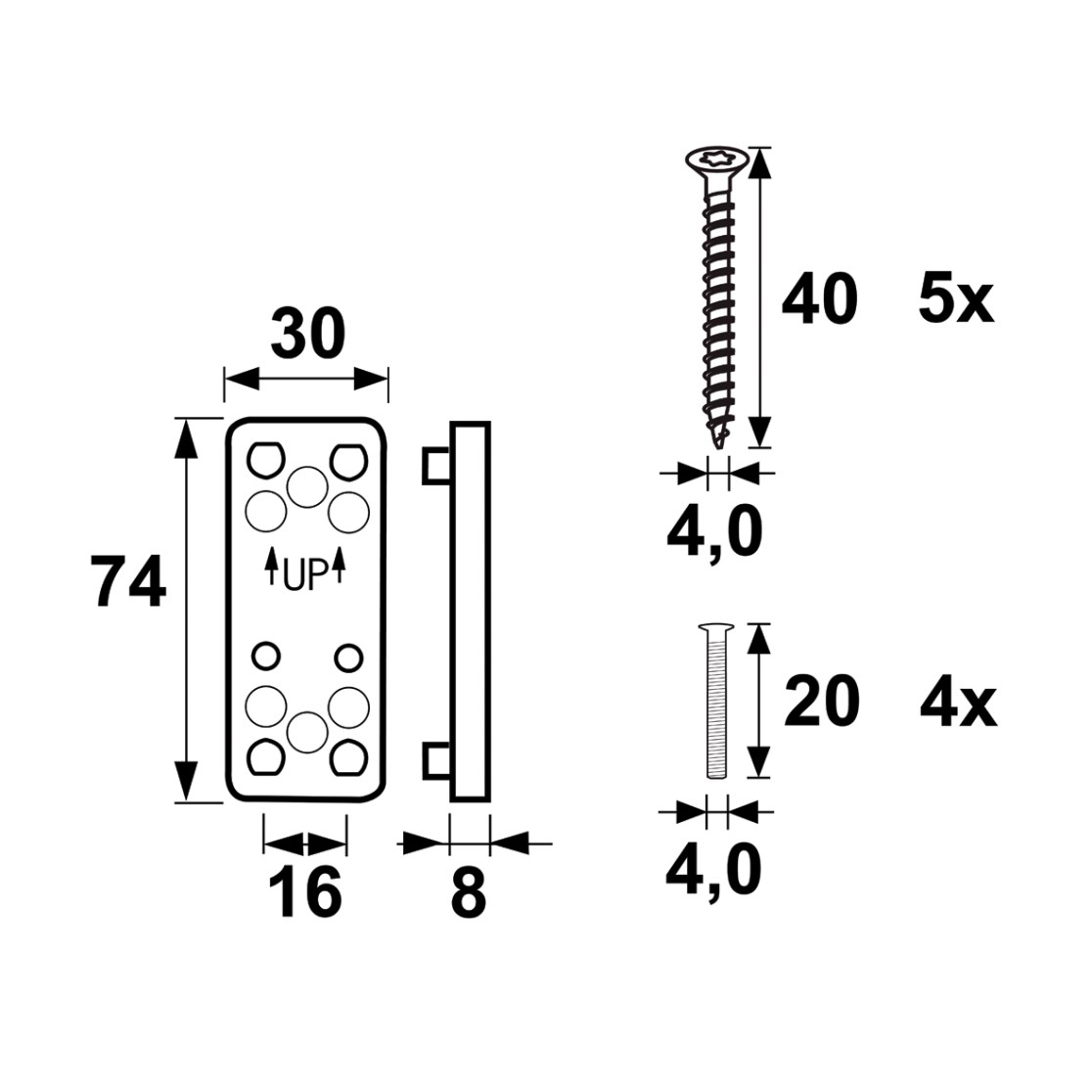

Technical drawings
Washer plate 3319
33198064

Alternative products
