Washer plate 3305

3305-60-95/E
arrow_selector
close

Washer plate for window fastener types 3309, 3308 and 3302.

  • increased the casement stay over the weatherstrip
  • solid plastic
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Commercial information
expand_more
Type 3305
Use in combination with casement fastener 3309, 3308 and 3302
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 76 mm
Product Width 32 mm
Thickness 6 mm
Direction of rotation outward-opening
Material Synthetic
Finish White
Assembly information
expand_more
Including Mounting Material False
Logistic information
expand_more
Product Weight 5 gr
Pieces per bulk package 300 piece
EAN bulk package 8713249073583
Weight bulk package 1.8 kg
Dimensions bulk package 390 x 200 x 120 mm

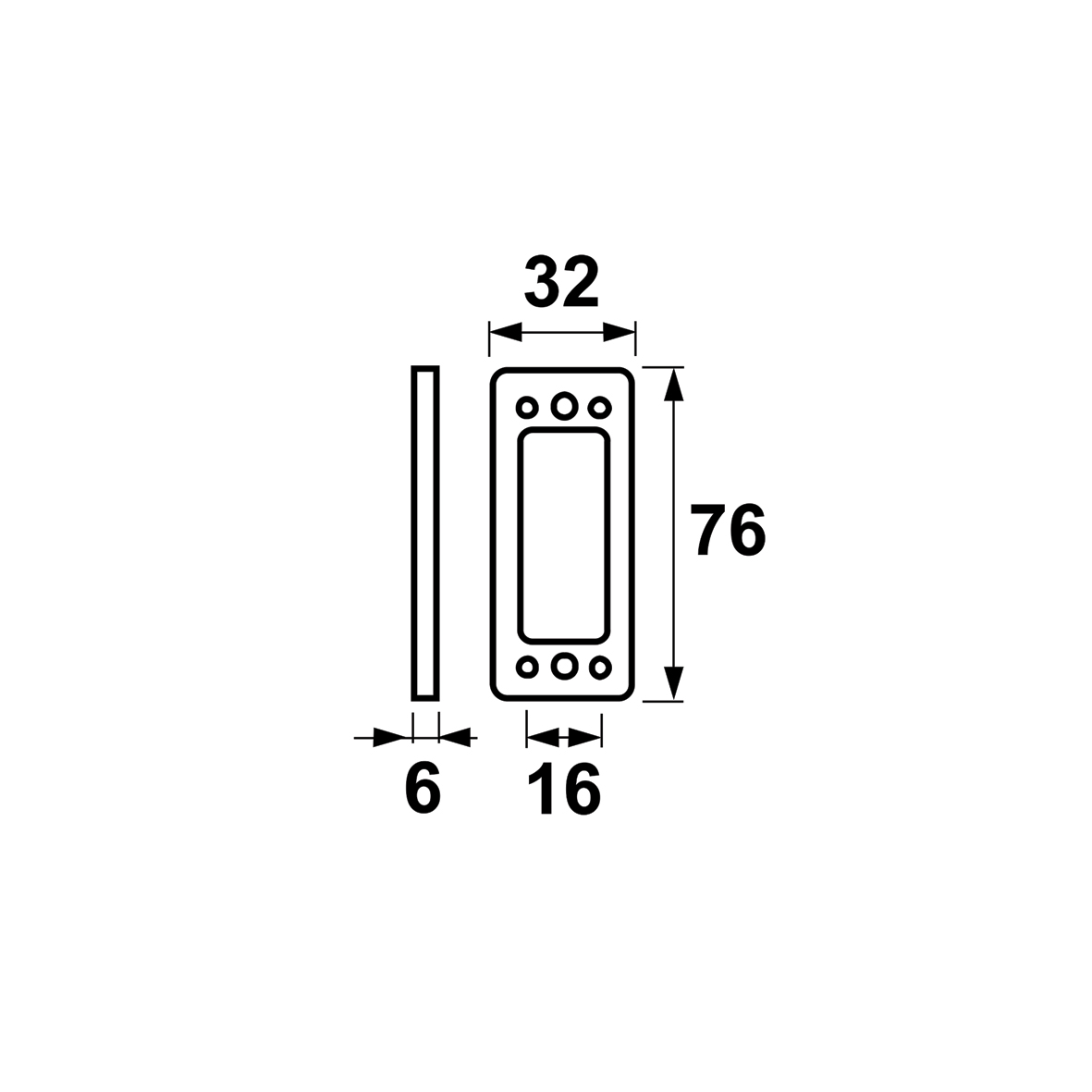

Technical drawings
Washer plate 3305
33056095E
