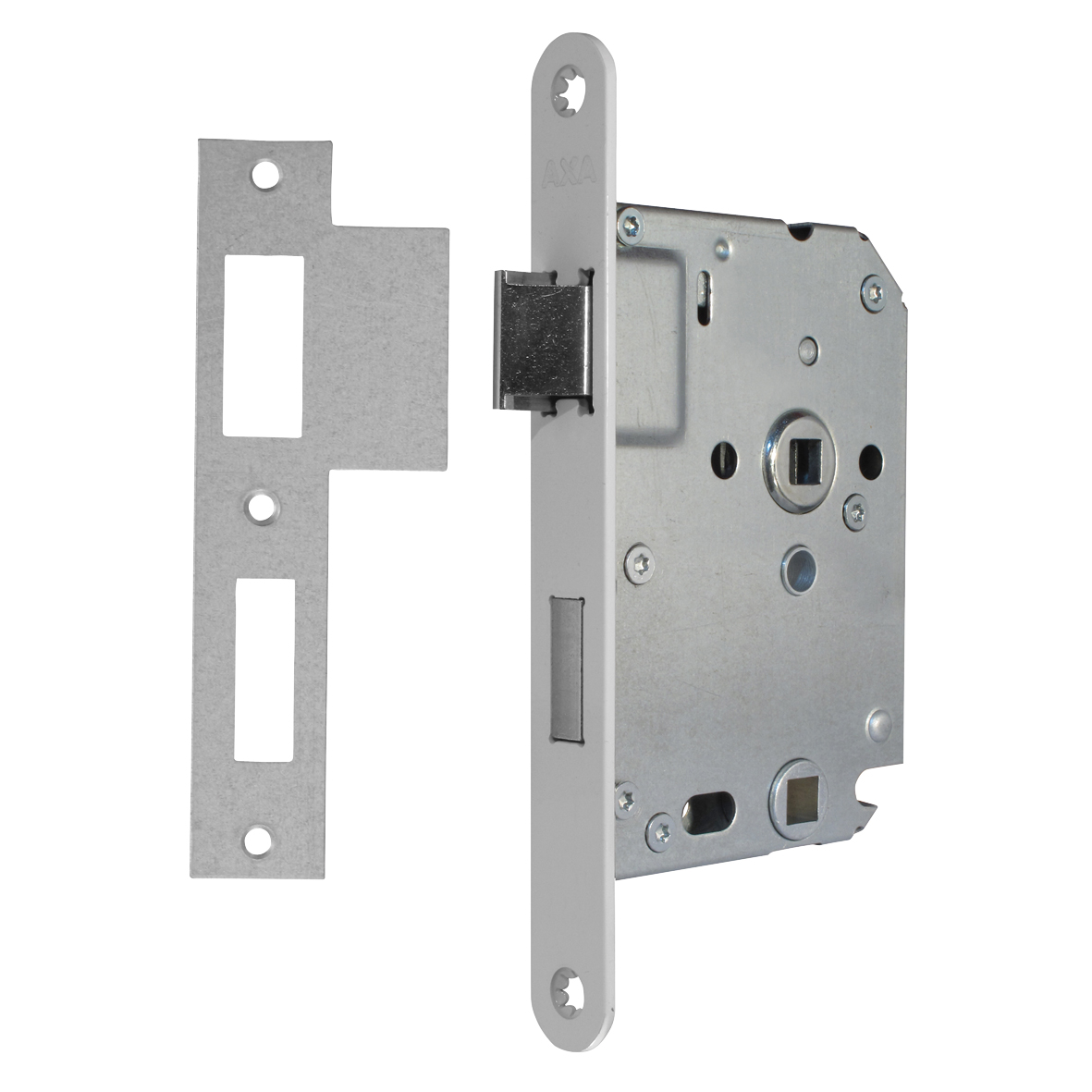

Toilet-bathroom lock 7165 TL63-8
7165-50-54/63BLUniversal toilet-bathroom lock for interior doors.
- with white faceplate
- quick reversible nickel-plated brass latch
- sturdy spindle mechanism
- inclusive striking plate and fastening materials
+
5
Universal toilet-bathroom lock for interior doors.
- with white faceplate
- quick reversible nickel-plated brass latch
- sturdy spindle mechanism
- inclusive striking plate and fastening materials
Specifications
Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Commercial information
Type 7165 TL63-8
Use for interior doors
Safety information
SKG No
Police Hallmark False
CE Applicable False

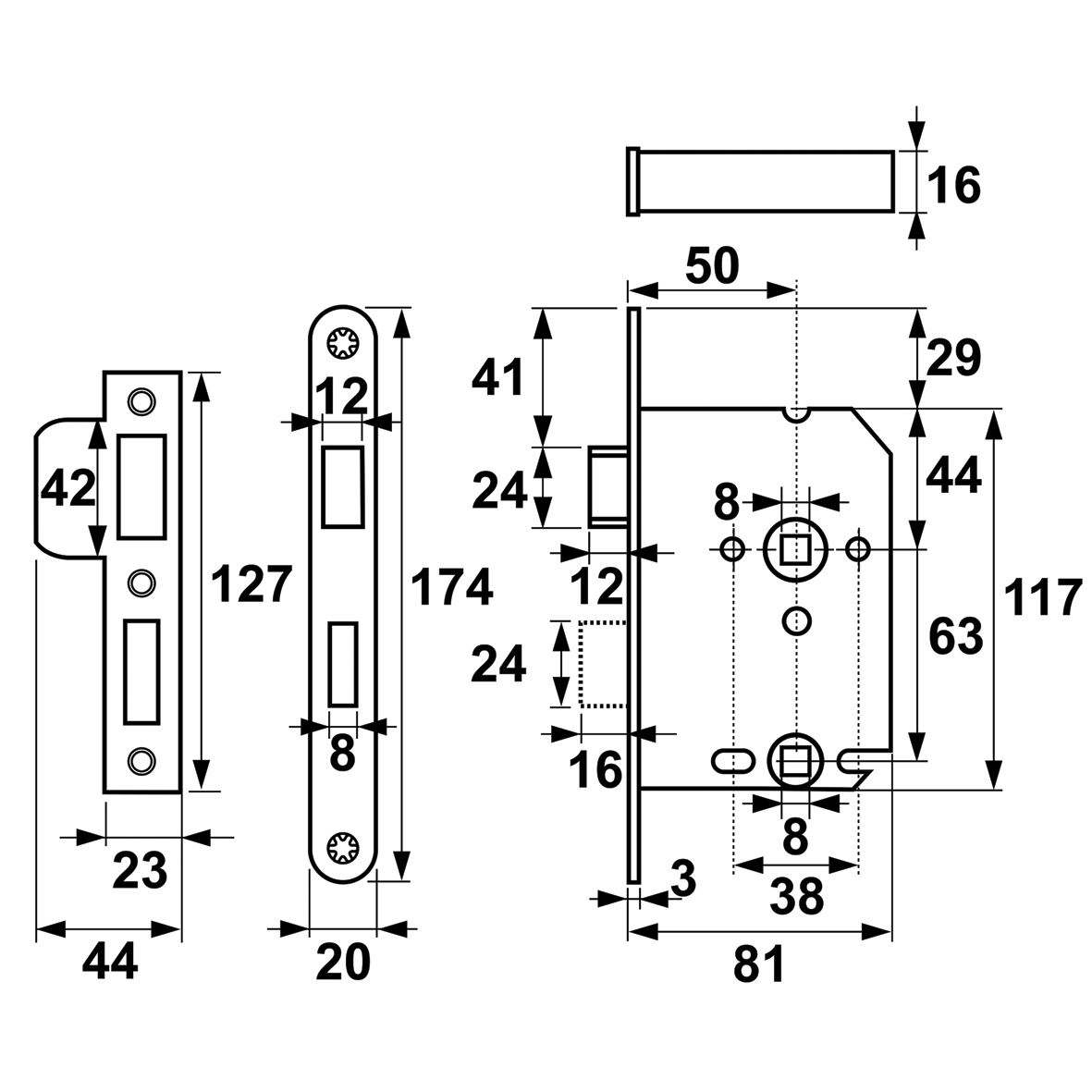

Technical information
Product Length 174 mm
Product Width 20 mm
Thickness 16 mm
Mounting depth 81 mm
Corner shape round corner

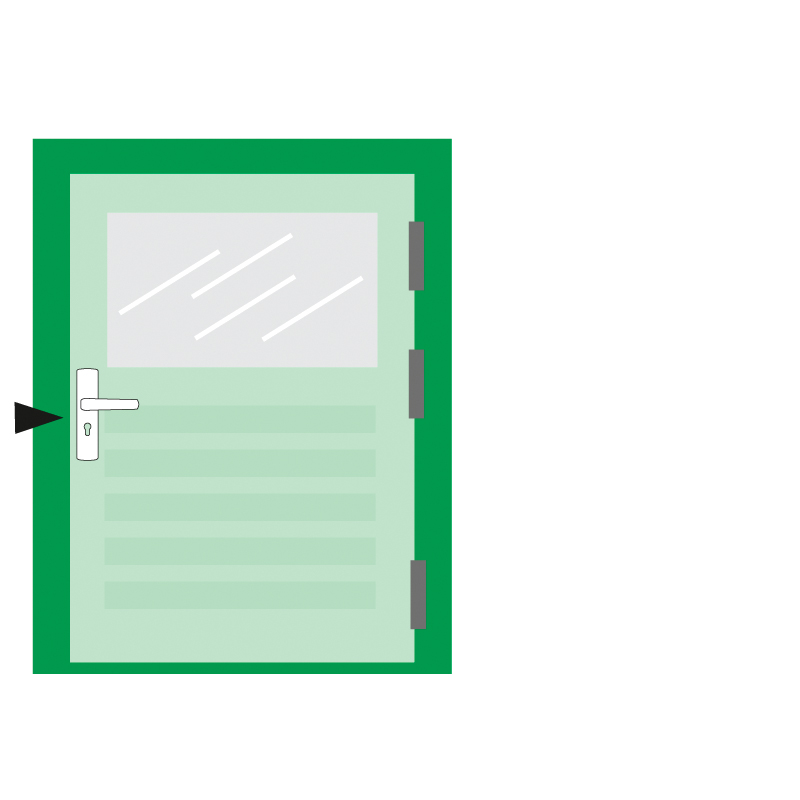

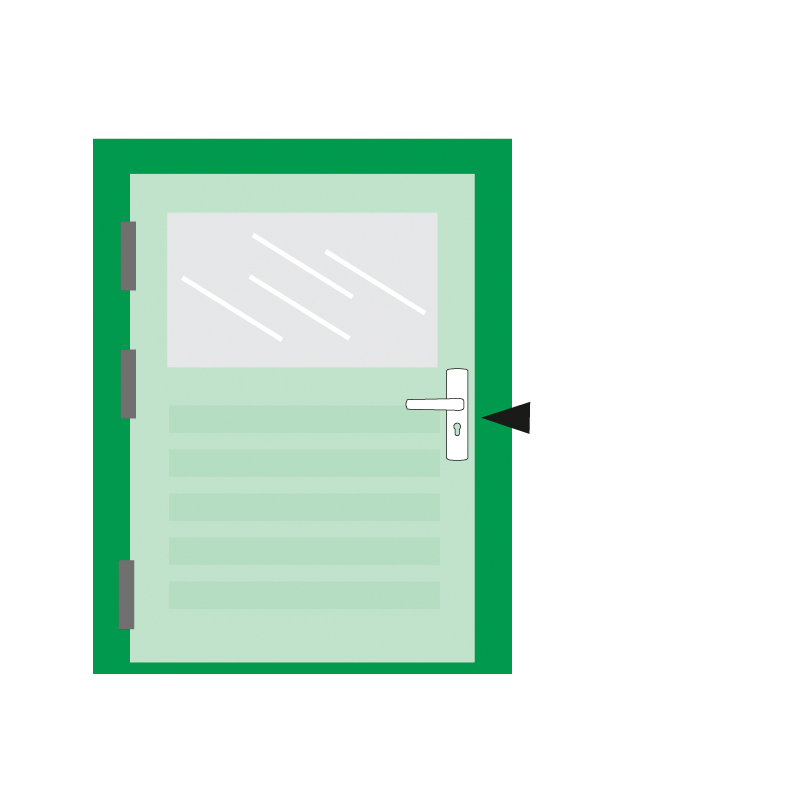

Direction of rotation DIN all directions
Bolt type dead bolt
Bolt catcher striking plate
Heart to heart size type handle hole - toilet operating hole (TL)
Backset 50 mm
Material Steel
Finish White lacquered
Material 2 Steel
Finish 2 Galvanized
Assembly information
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Logistic information
Product Weight 472 gr
Pieces per small package 1 piece
EAN small package 8713249222196
Weight small package 0.47 kg
Dimensions small package 275 x 134 x 30 mm
Pieces per bulk package 5 piece
EAN bulk package 8713249223797
Weight bulk package 2.55 kg
Dimensions bulk package 290 x 200 x 120 mm
Downloads
Main Image Environmental Product Declaration (EPD)Technical drawings

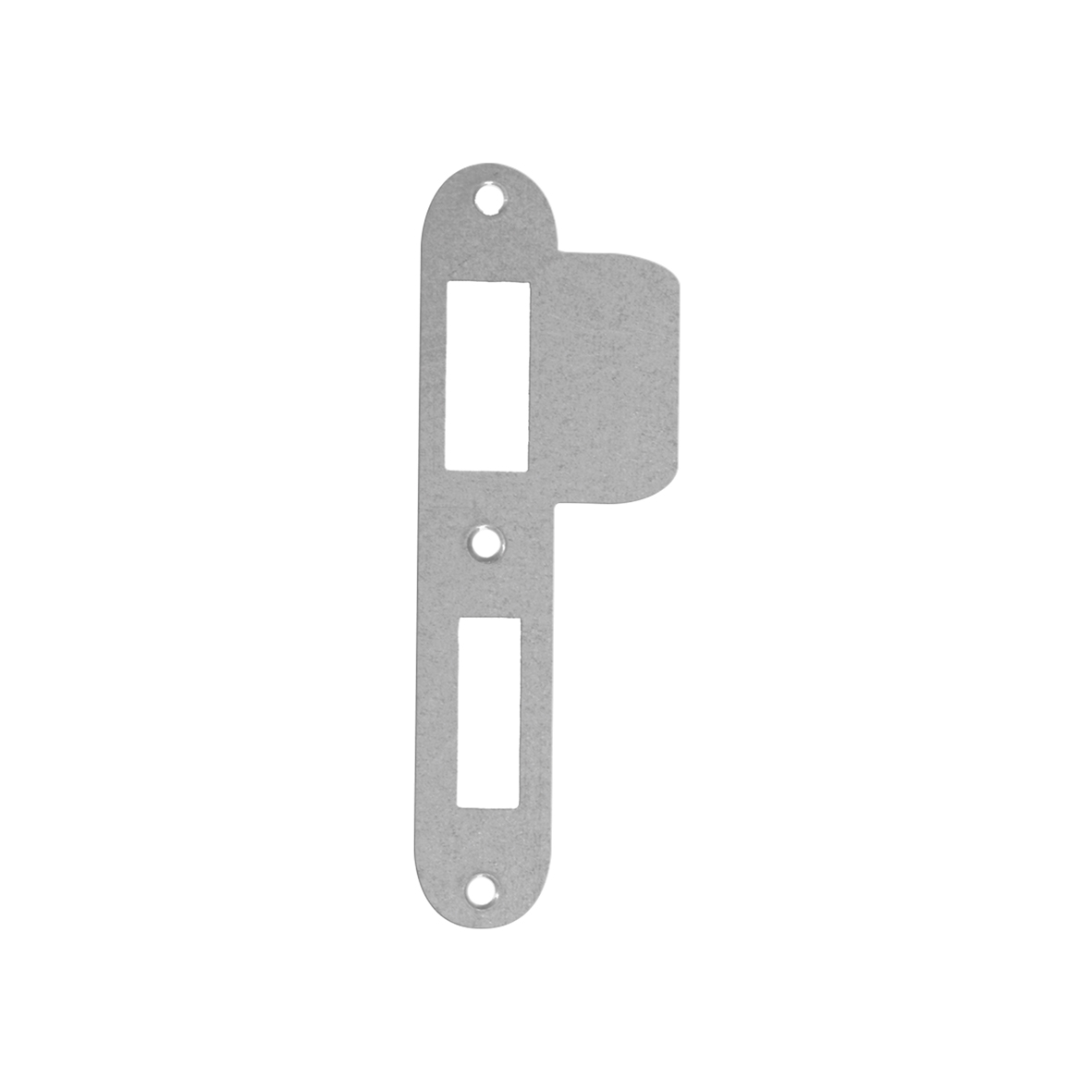

Associated products
