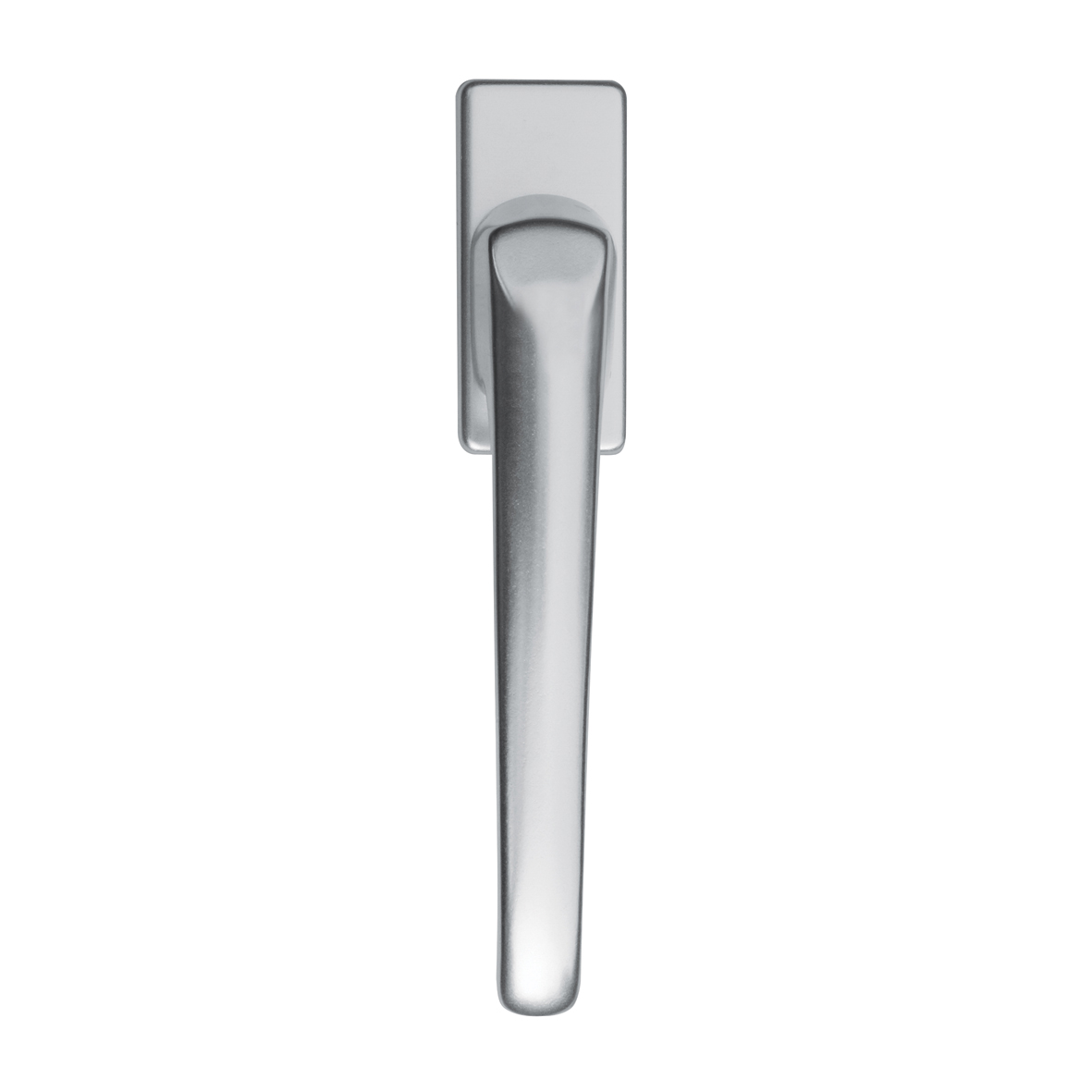

Tilt and turn window handle L

3351-10-91/E
arrow_selector
close

The AXA tilt and turn window handle guarantees the problem-free operation of tilt and turn windows.

  • no visible attachment points
  • easy to fit
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- M5 x 45 mm bolt: 2 pieces
Commercial information
expand_more
Type L
Use for tilt and turn windows
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 158 mm
Product Width 30 mm
Product Height 48 mm
Direction of rotation inward-opening
Spindle dimension 7 x 32 mm
Material Aluminum
Finish Anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- M5 x 45 mm bolt: 2 pieces
Logistic information
expand_more
Product Weight 153 gr
Pieces per small package 10 piece
EAN small package 8713249130712
Weight small package 1.61 kg
Dimensions small package 164 x 116 x 153 mm
Pieces per bulk package 60 piece
EAN bulk package 8713249130729
Weight bulk package 10.03 kg
Dimensions bulk package 390 x 320 x 180 mm

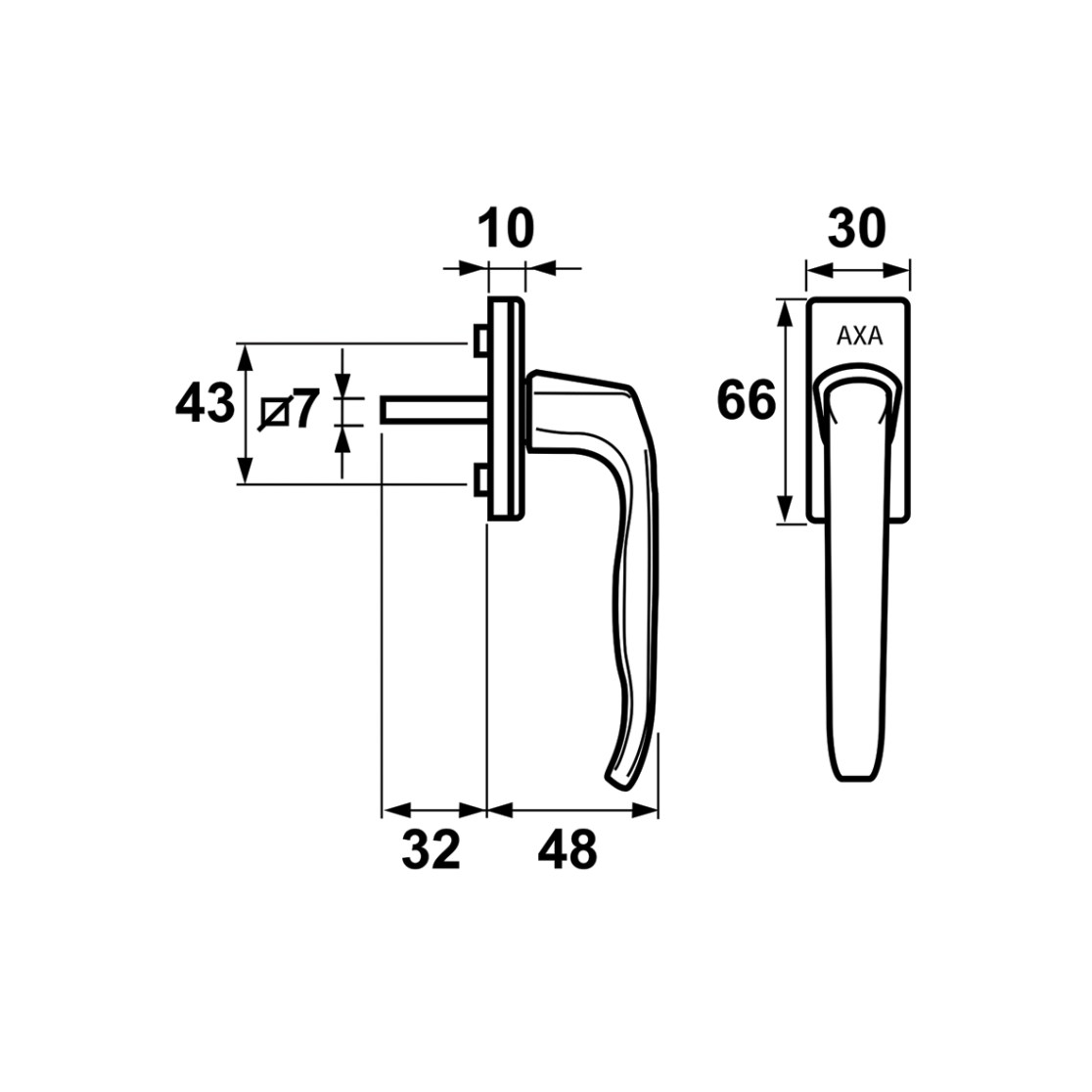

Technical drawings
