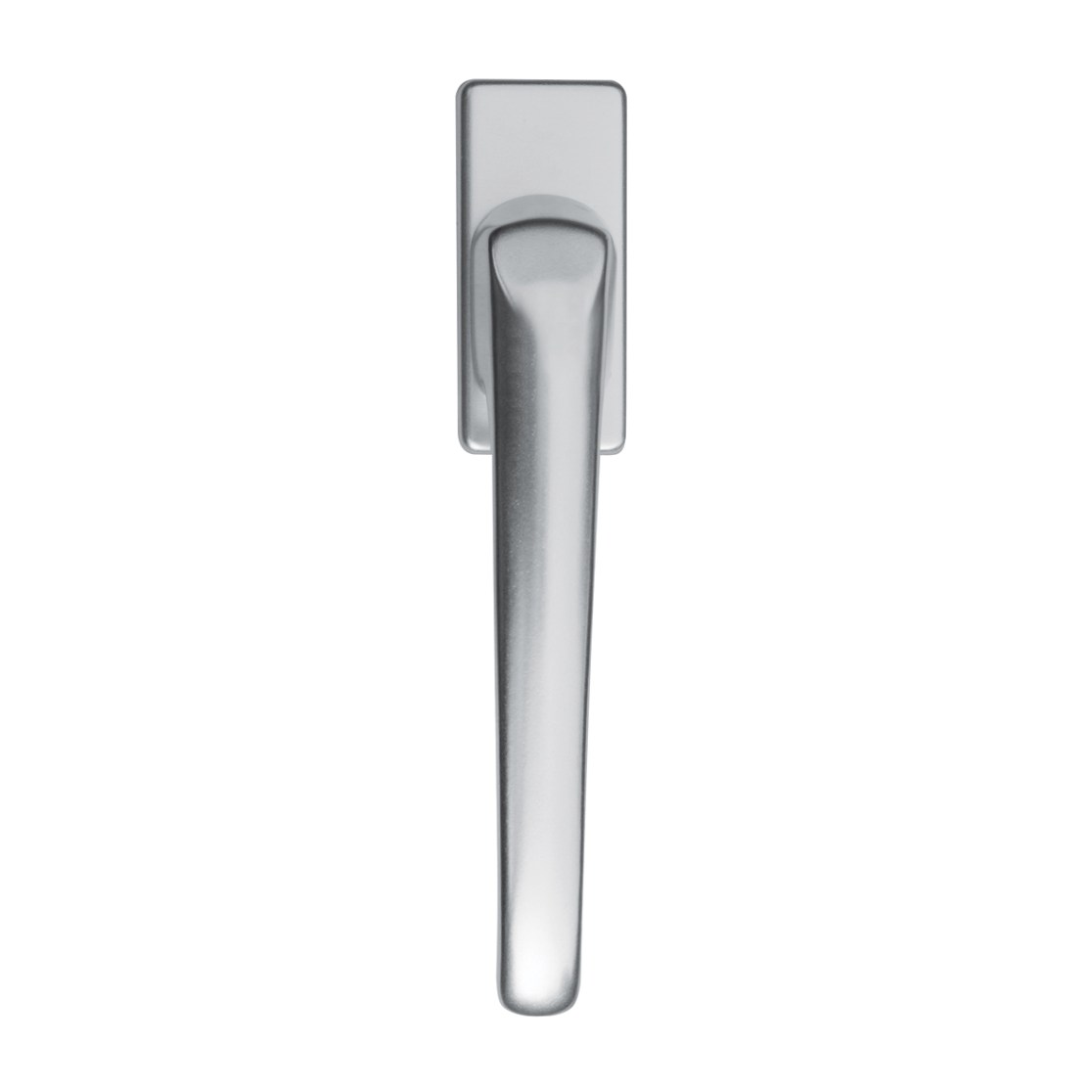

Tilt and turn window handle L

3351-10-38/BL
arrow_selector
close

The AXA tilt and turn window handle guarantees the problem-free operation of tilt and turn windows.

  • no visible attachment points
  • easy to fit
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- M5 x 45 mm bolt: 2 pieces
Commercial information
expand_more
Type L
Use for tilt and turn windows
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 158 mm
Product Width 30 mm
Product Height 48 mm
Direction of rotation inward-opening
Spindle dimension 7 x 32 mm
Material Aluminum
Finish Anodised F8, black
Assembly information
expand_more
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- M5 x 45 mm bolt: 2 pieces
Logistic information
expand_more
Product Weight 185 gr
Pieces per small package 1 piece
EAN small package 8713249269177
Weight small package 0.19 kg
Dimensions small package 215 x 95 x 37 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249269184
Weight bulk package 1.78 kg
Dimensions bulk package 390 x 200 x 120 mm

Technical drawings
Tilt and turn window handle L
33511038BL
