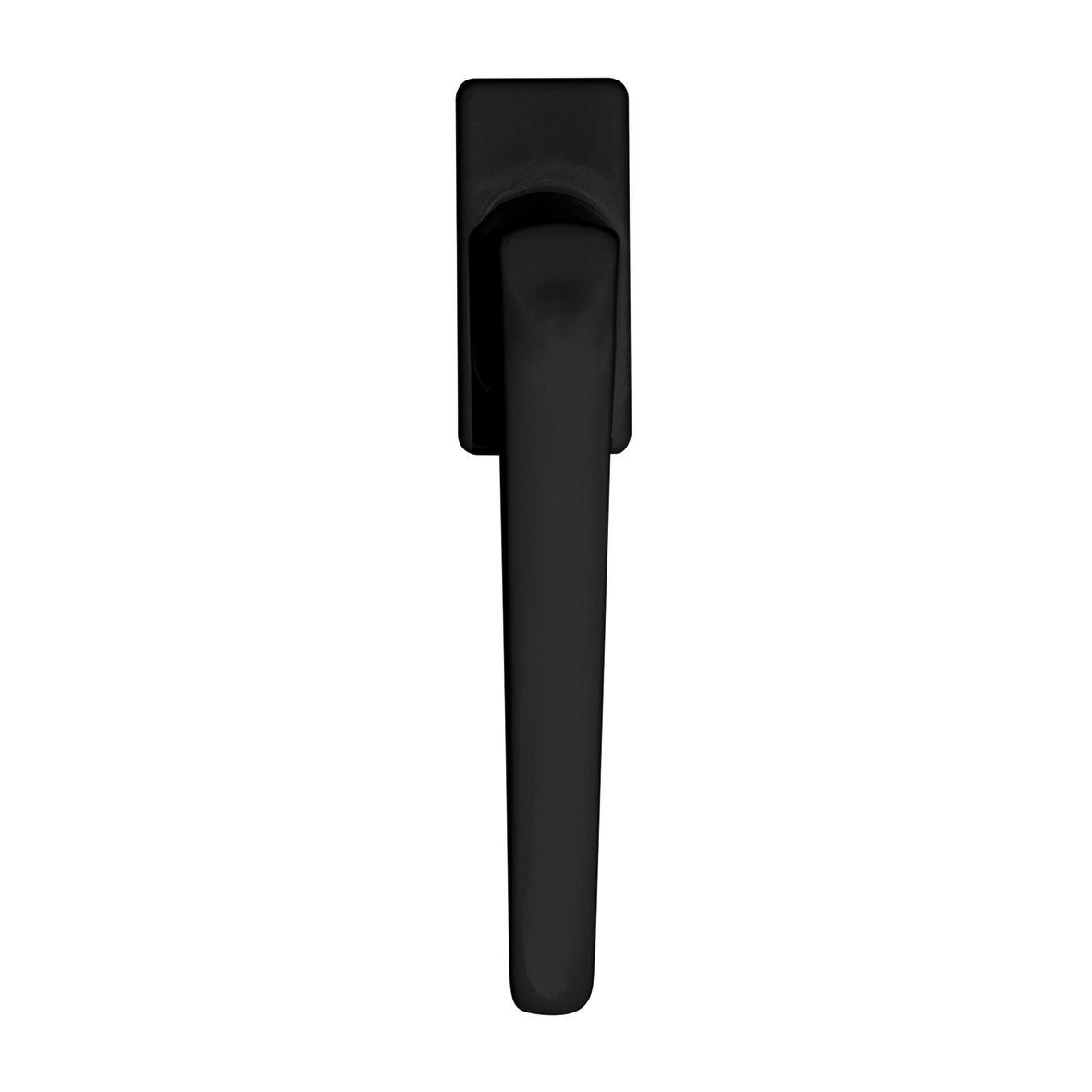

Tilt and turn window handle L
3351-10-38/EThe AXA tilt and turn window handle guarantees the problem-free operation of tilt and turn windows.
- no visible attachment points
- easy to fit
The AXA tilt and turn window handle guarantees the problem-free operation of tilt and turn windows.
- no visible attachment points
- easy to fit
Specifications
Recommended Mounting Materials
- M5 x 45 mm bolt: 2 pieces
- M5 x 45 mm bolt: 2 pieces
Commercial information
Type L
Use for tilt and turn windows
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
Product Length 158 mm
Product Width 30 mm
Product Height 48 mm
Direction of rotation inward-opening
Spindle dimension 7 x 32 mm
Material Aluminum
Finish Anodised F8, black
Assembly information
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- M5 x 45 mm bolt: 2 pieces
- M5 x 45 mm bolt: 2 pieces
Logistic information
Product Weight 153 gr
Pieces per small package 10 piece
EAN small package 8713249269474
Weight small package 1.61 kg
Dimensions small package 164 x 116 x 153 mm
Pieces per bulk package 60 piece
EAN bulk package 8713249269481
Weight bulk package 10.03 kg
Dimensions bulk package 390 x 320 x 180 mm
