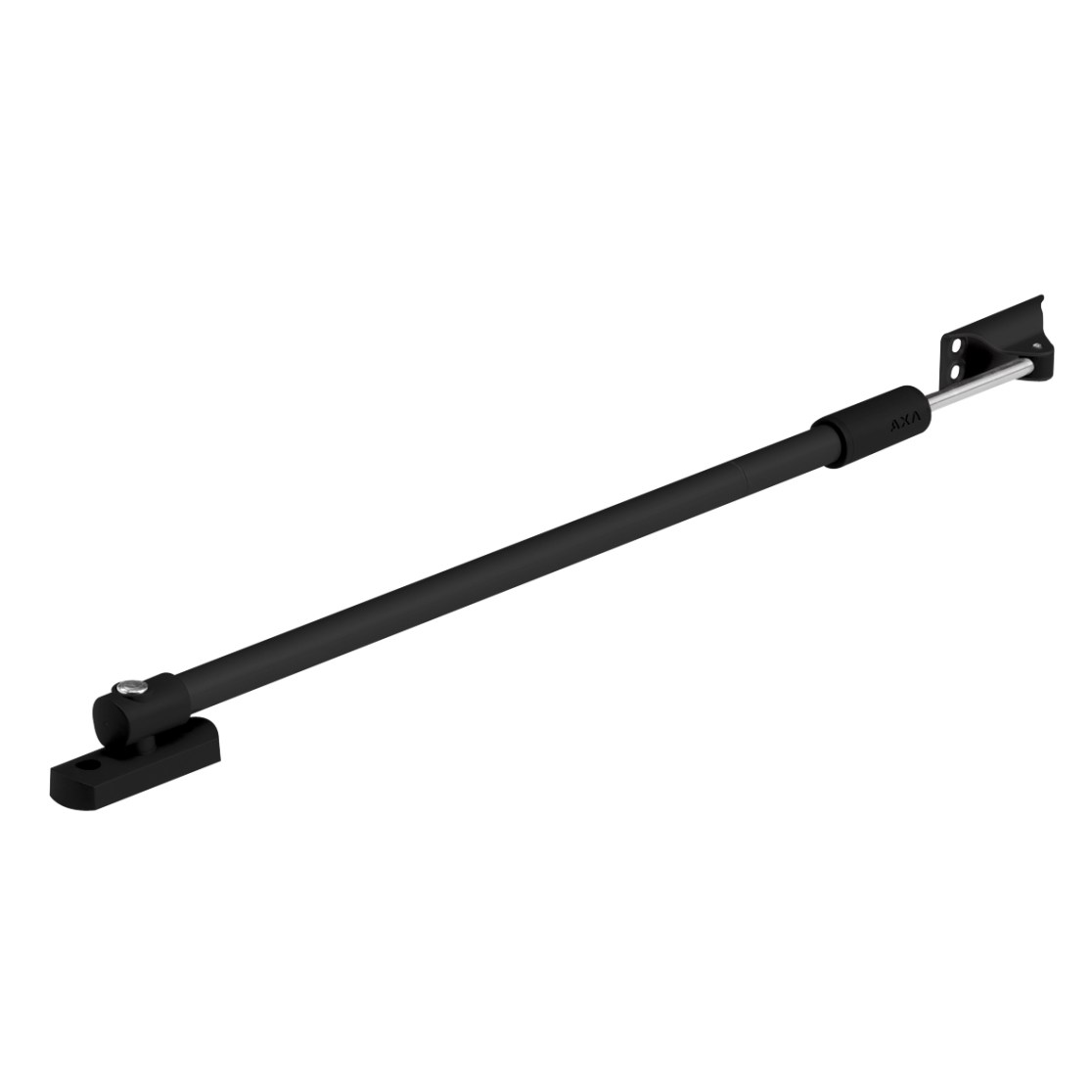

Telescopic stay 50EX

2845-00-61/E
arrow_selector
close

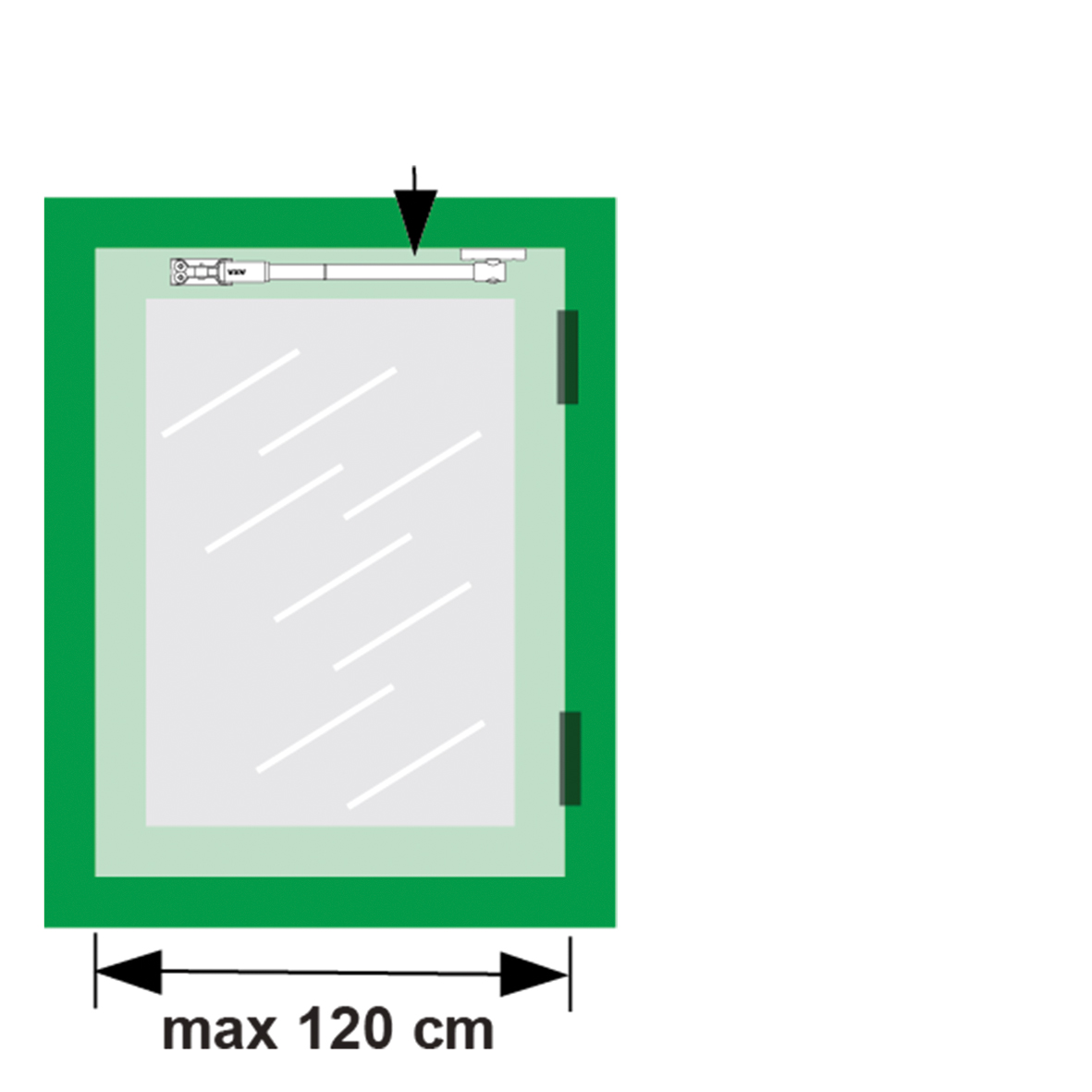

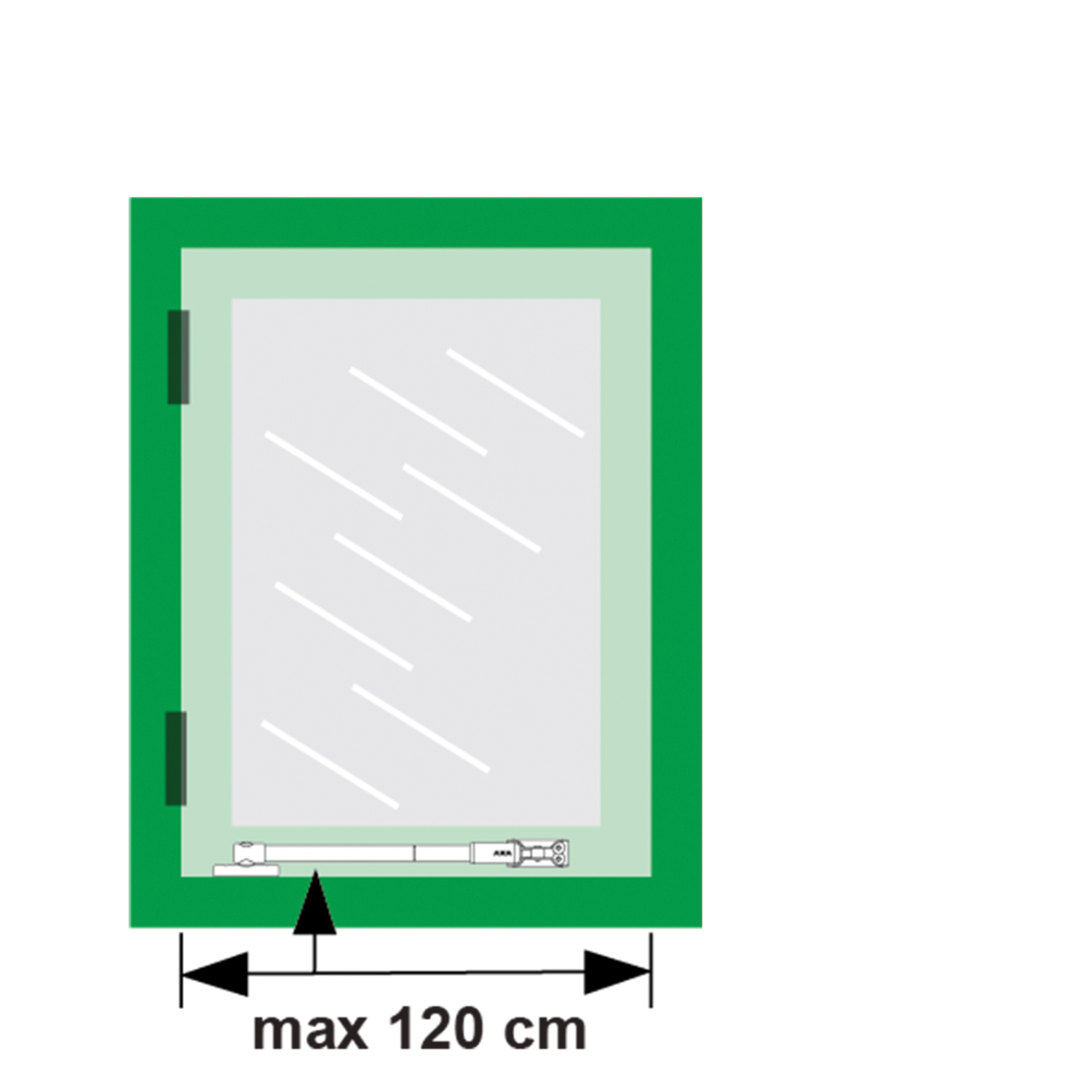

The 50 EX tele stay has variable ventilation positions, making it ideal for the operation of outward-opening casement windows and doors.

  • variable ventilation
  • does not take up any space inside when opening the window, because of which it can easily be combined with a fly screen, net curtains or window decoration
  • once the brake required has been set, this can be maintained for all ventilation positions

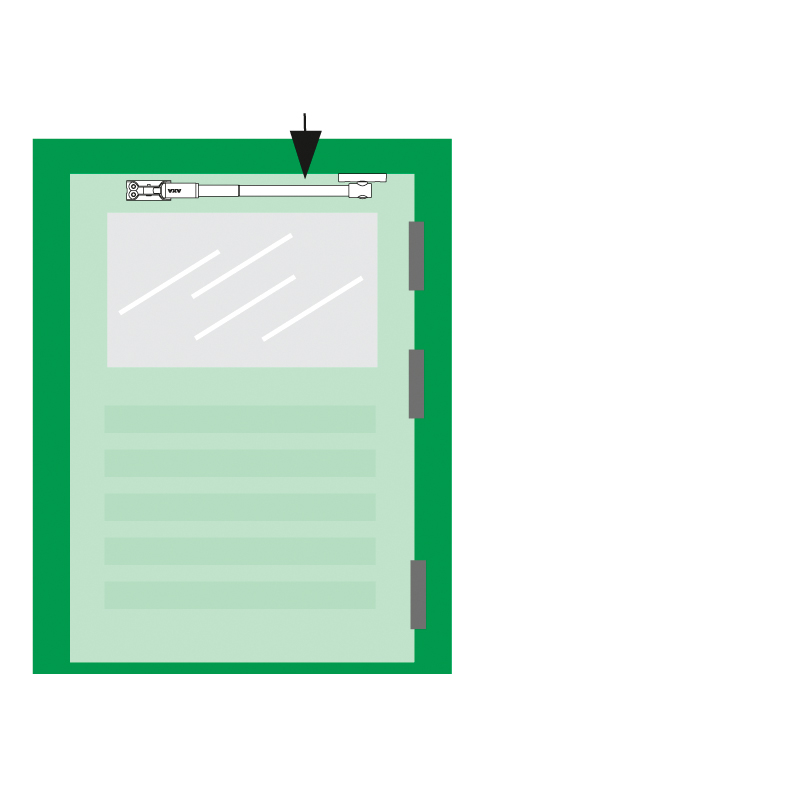

  • also possible to fit to the top edge of a casement window, because of which space is created on the bottom edge to hang out clothes or bedding, for example
  • simple assembly
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Commercial information
expand_more
Type 50EX
Use for hopper windows, top-hung windows and outward-opening casement windows and doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 516 mm
Product Width 71 mm
Product Height 37 mm
Direction of rotation outward-opening
Operation variable ventilation
Material Steel
Finish Aluline
Material 2 Synthetic
Finish 2 Aluline
Assembly information
expand_more
Including Mounting Material False
Mounting length 516 mm
Required depth wood frame 38 mm
Window/door mounting width requirement 40 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Logistic information
expand_more
Product Weight 473 gr
Pieces per small package 5 piece
EAN small package 8713249280547
Weight small package 2.62 kg
Dimensions small package 519 x 157 x 54 mm
Pieces per bulk package 30 piece
EAN bulk package 8713249280554
Weight bulk package 16.2 kg
Dimensions bulk package 530 x 320 x 171 mm

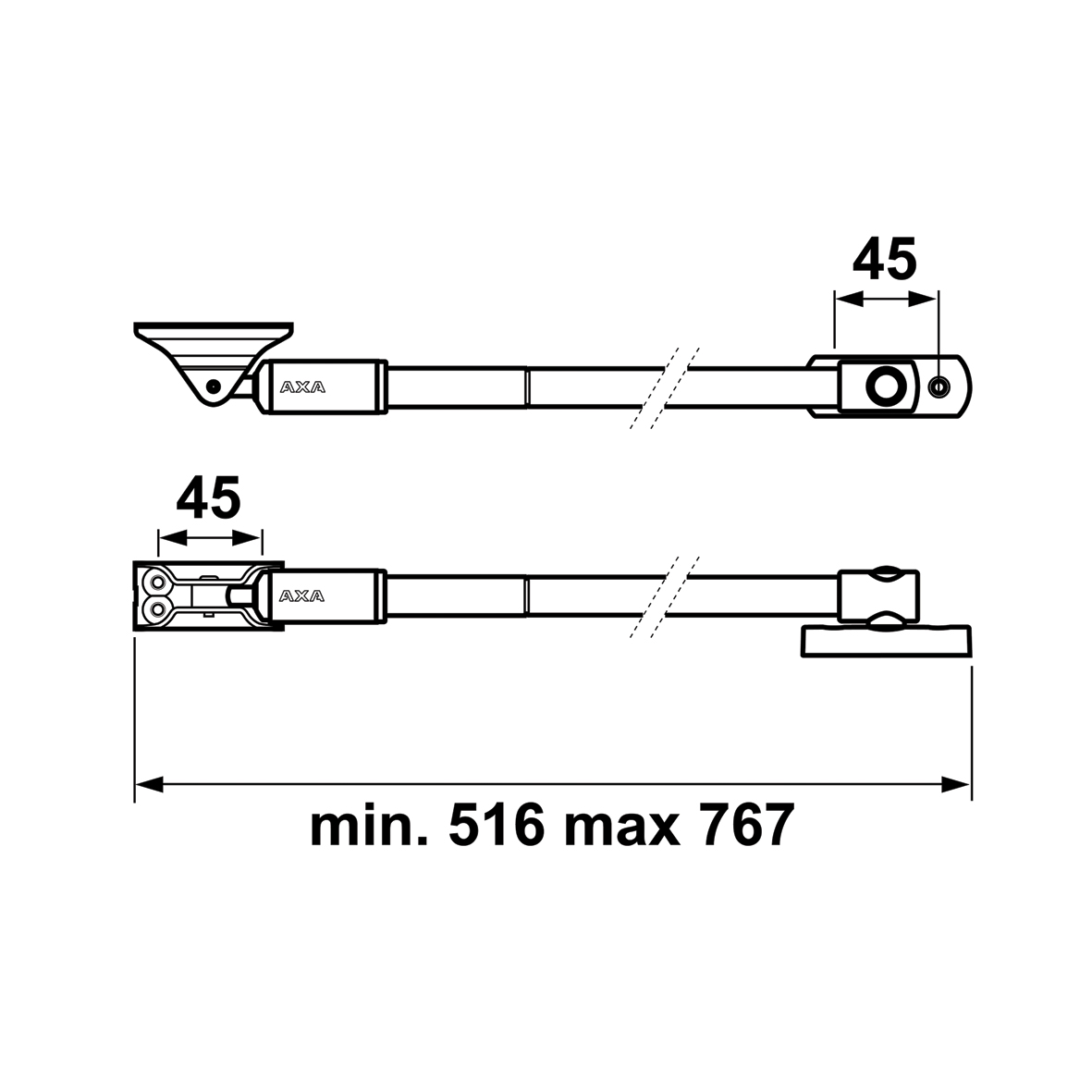

Technical drawings
Telescopic stay 50EX
28450061E
