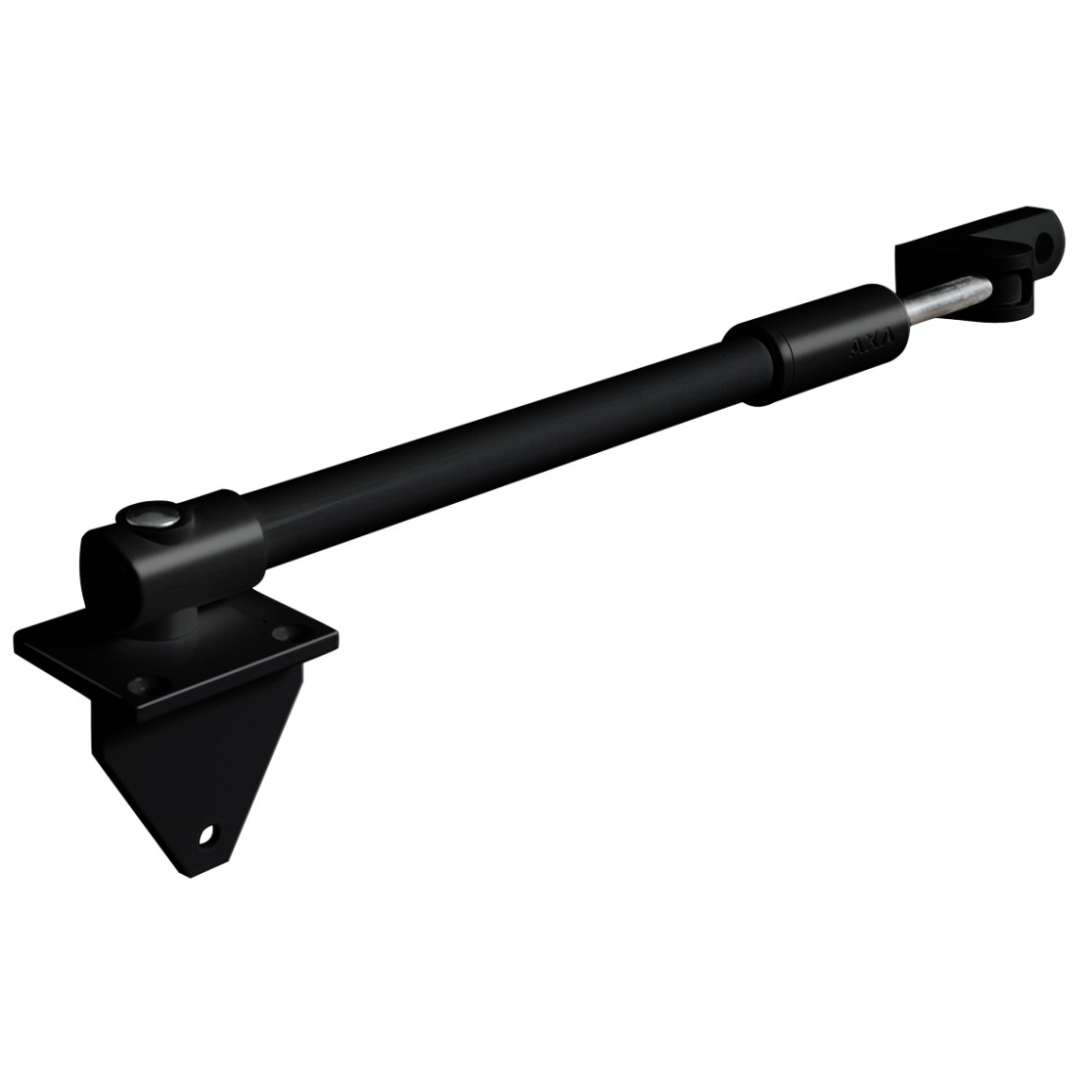

Telescopic stay 30EX-T

2825-03-56
arrow_selector
close

The 30 EX tele stay has variable ventilation positions, making it ideal for the operation of casement and hopper windows.

  • variable ventilation
  • once the brake required has been set, this can be maintained for all ventilation positions

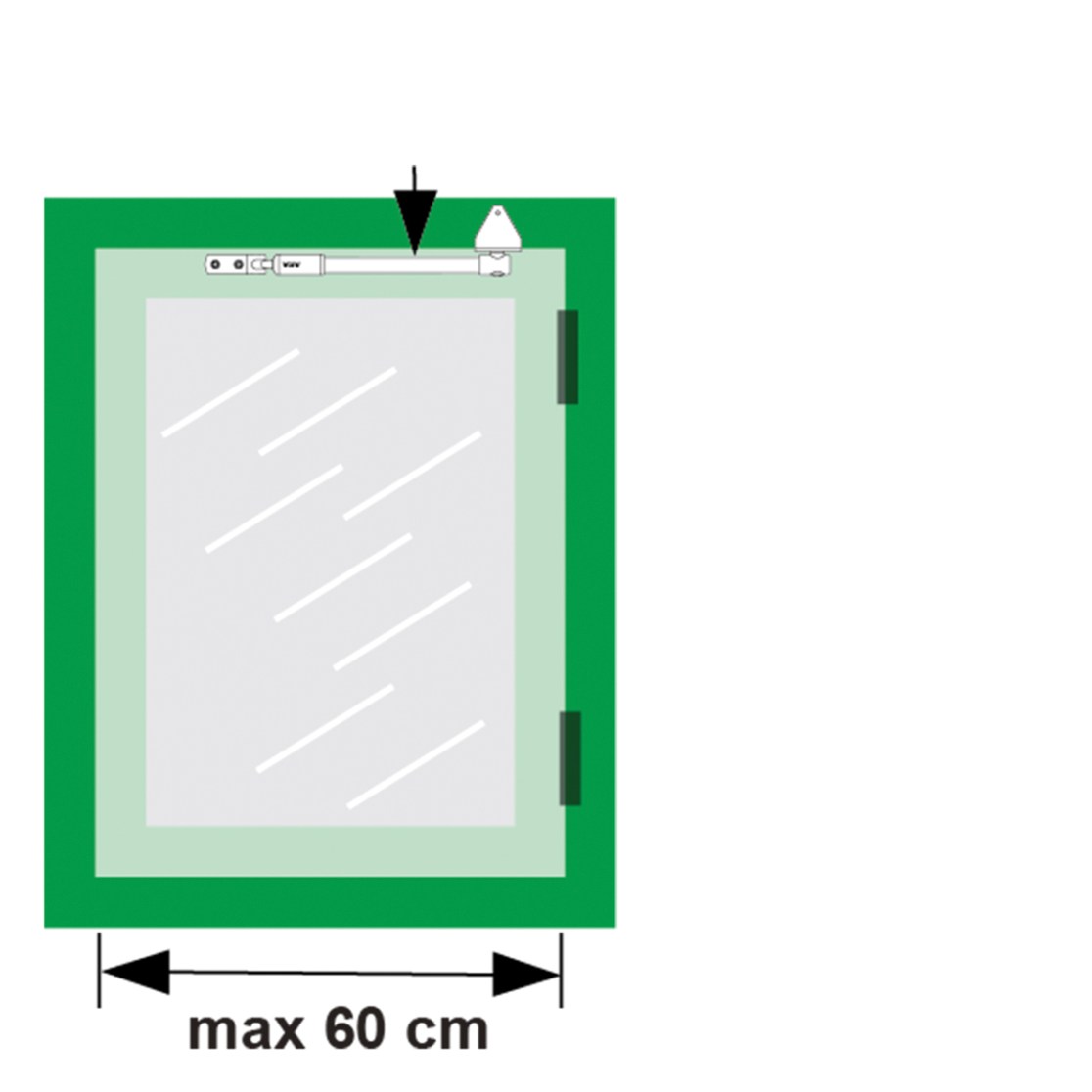

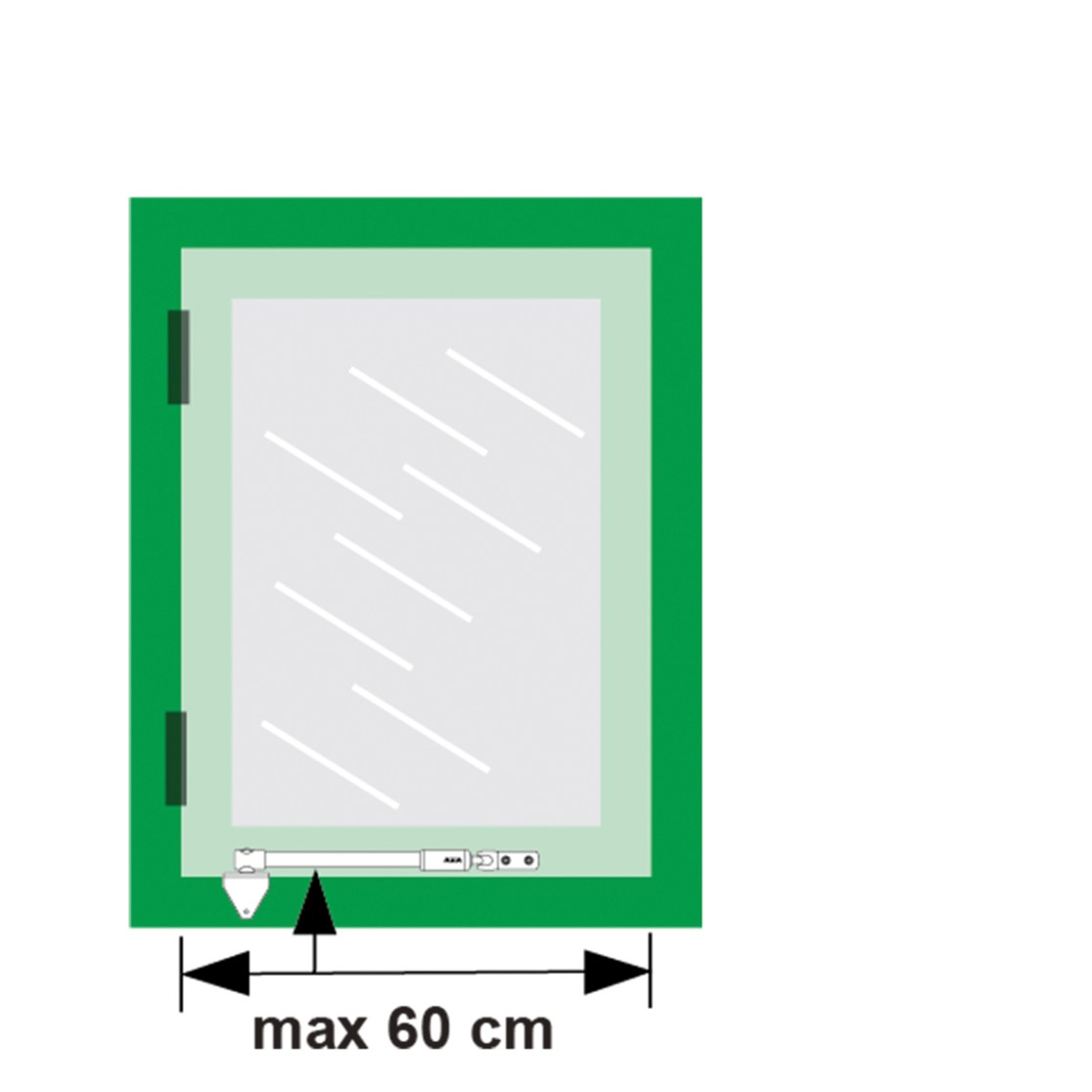

  • also possible to fit to the top edge of a casement window, because of which space is created on the bottom edge to hang out clothes or bedding, for example
  • simple assembly
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 5 pieces
Commercial information
expand_more
Type 30EX-T
Use for outward-opening casement windows, skylights and top-hung windows
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 348 mm
Product Width 50 mm
Product Height 76 mm
Direction of rotation outward-opening
Operation variable ventilation
Material Steel
Finish Black lacquered
Material 2 Synthetic
Finish 2 Black
Assembly information
expand_more
Including Mounting Material False
Mounting length 348 mm
Required depth wood frame 38 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 5 pieces
Logistic information
expand_more
Product Weight 321 gr
Pieces per small package 5 piece
EAN small package 8713249343617
Weight small package 1.77 kg
Dimensions small package 381 x 158 x 56 mm
Pieces per bulk package 30 piece
EAN bulk package 8713249343624
Weight bulk package 10 kg
Dimensions bulk package 390 x 320 x 180 mm

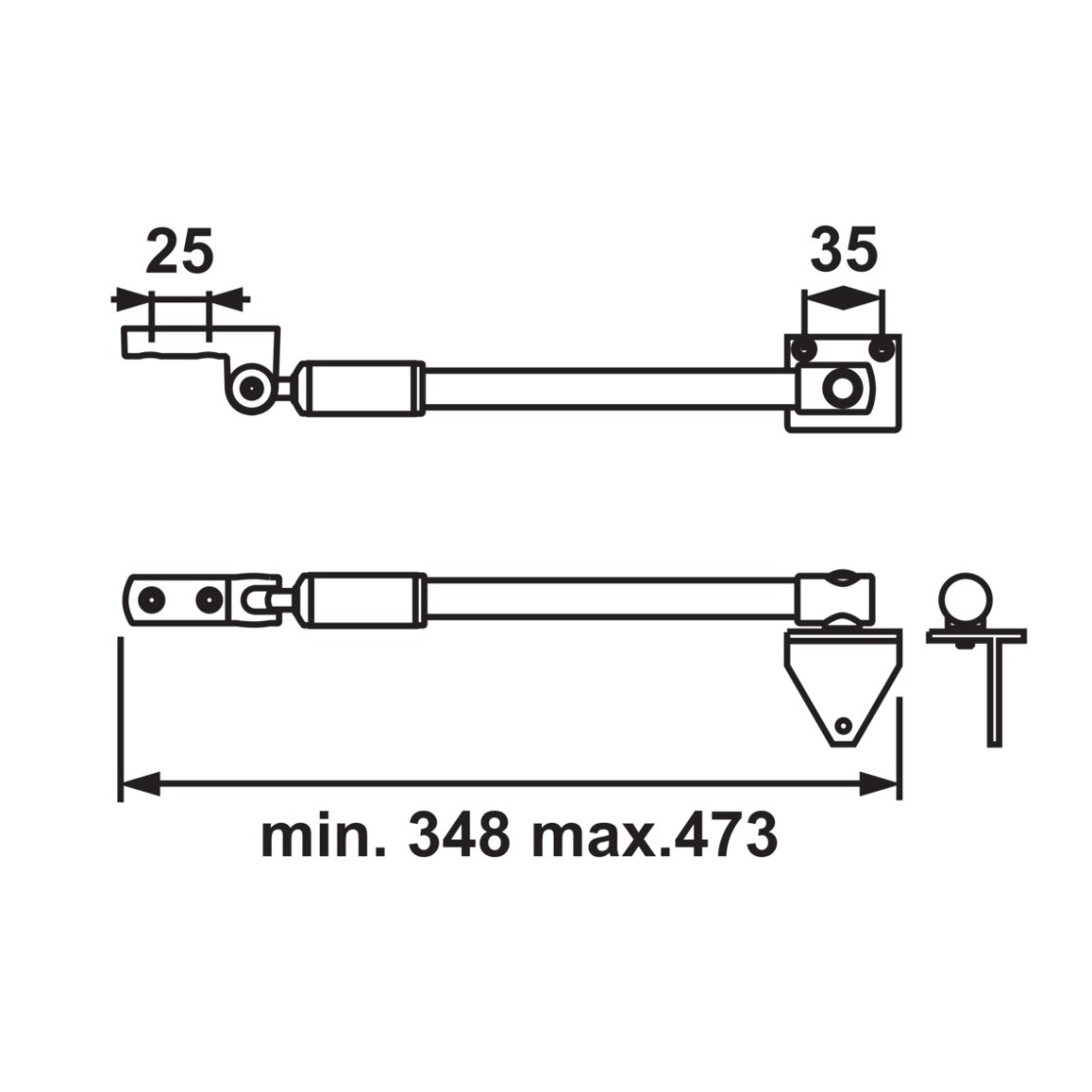

Technical drawings
Telescopic stay 30EX-T
28250356
