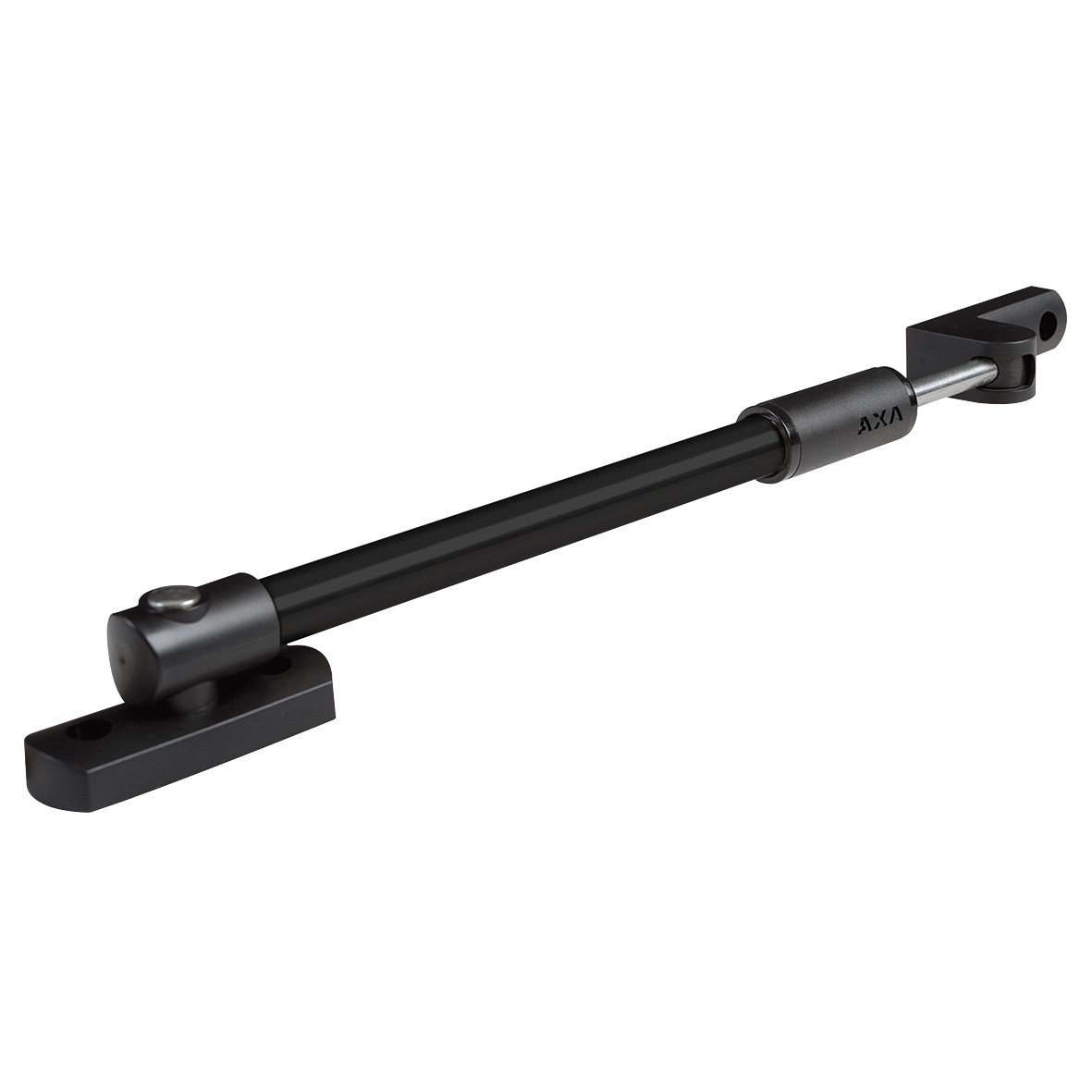

Telescopic stay 30EX

2825-00-56/BL

+

2
arrow_selector
close

The 30 EX tele stay has variable ventilation positions, making it ideal for the operation of casement and hopper windows.

  • variable ventilation
  • does not take up any space inside when opening the window, because of which it can easily be combined with a fly screen, net curtains or window decoration
  • once the brake required has been set, this can be maintained for all ventilation positions

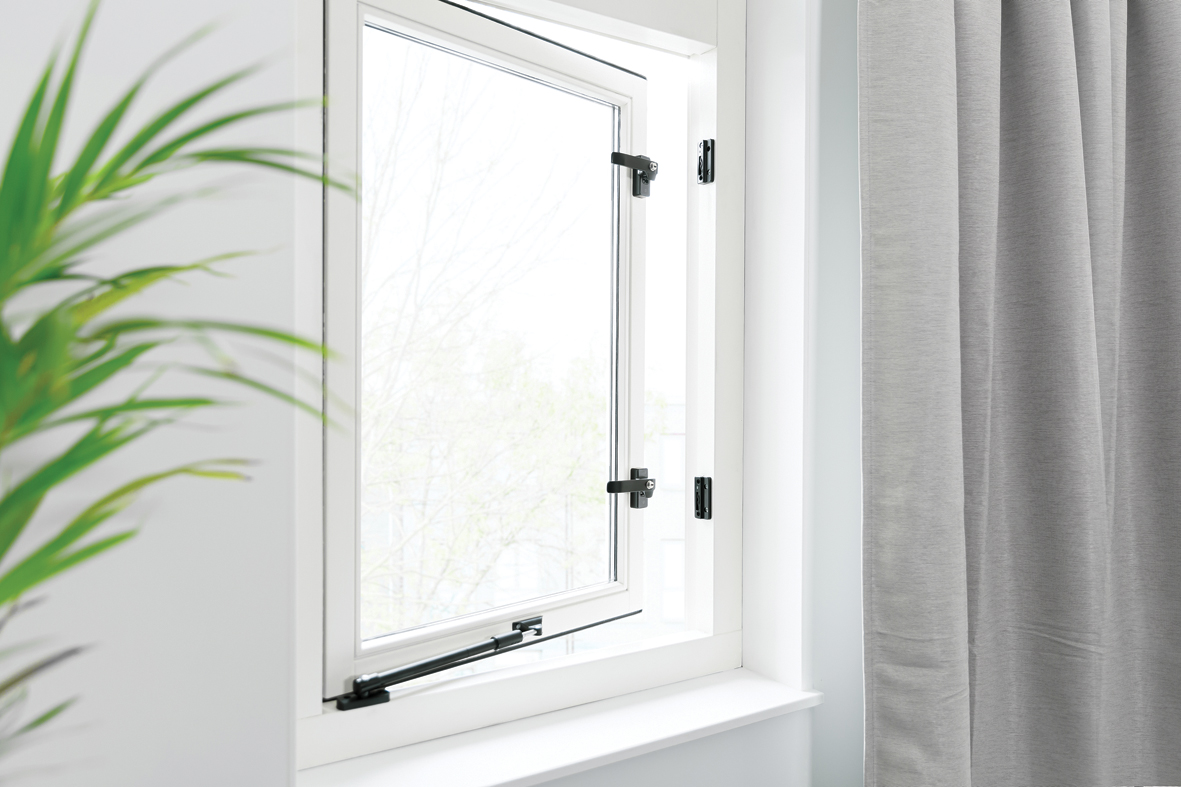

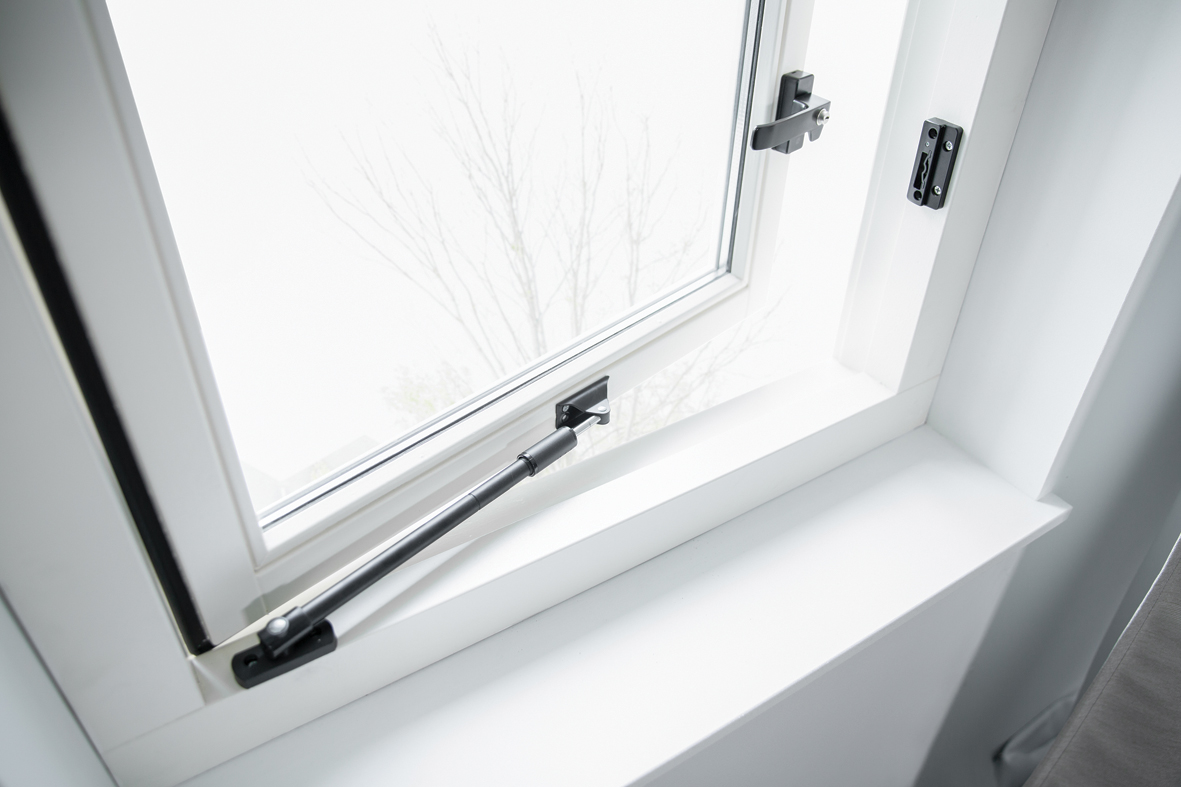

  • also possible to fit to the top edge of a casement window, because of which space is created on the bottom edge to hang out clothes or bedding, for example
  • simple assembly
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
Commercial information
expand_more
Type 30EX
Use for outward-opening casement windows, skylights and top-hung windows
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 348 mm
Product Width 71 mm
Product Height 37 mm
Direction of rotation outward-opening
Operation variable ventilation
Material Steel
Finish Black lacquered
Material 2 Synthetic
Finish 2 Black
Assembly information
expand_more
Including Mounting Material False
Mounting length 348 mm
Required depth wood frame 38 mm
Window/door mounting width requirement 35 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 351 gr
Pieces per small package 1 piece
EAN small package 8713249263809
Weight small package 0.351 kg
Dimensions small package 415 x 95 x 47 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249263816
Weight bulk package 3.15 kg
Dimensions bulk package 445 x 200 x 120 mm

Technical drawings
Telescopic stay 30EX
28250056BL
