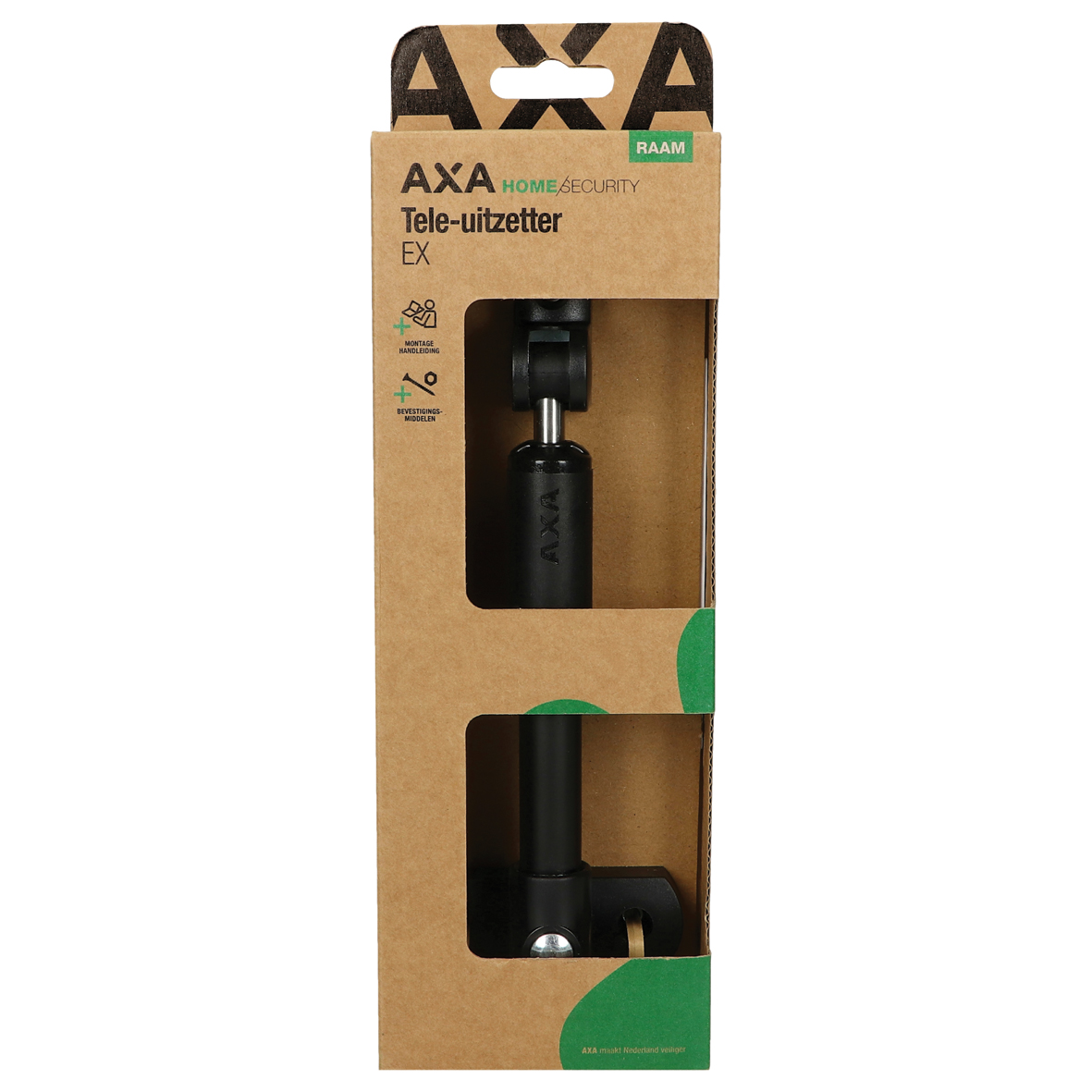

Telescopic stay 20EX

2815-00-81

+

3
arrow_selector
close

The 20 EX tele stay has variable ventilation positions, making it ideal for the operation of casement and hopper windows.

  • variable ventilation
  • does not take up any space inside when opening the window, because of which it can easily be combined with a fly screen, net curtains or window decoration
  • once the brake required has been set, this can be maintained for all ventilation positions
  • also possible to fit to the top edge of a casement window, because of which space is created on the bottom edge to hang out clothes or bedding, for example
  • stainless steel
  • simple assembly
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
Commercial information
expand_more
Type 20EX
Use for outward-opening casement windows, skylights and top-hung windows
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 239 mm
Product Width 71 mm
Product Height 37 mm
Direction of rotation outward-opening
Operation variable ventilation
Material Stainless steel
Finish Brushed
Material 2 Synthetic
Finish 2 Black
Assembly information
expand_more
Including Mounting Material False
Mounting length 239 mm
Required depth wood frame 38 mm
Window/door mounting width requirement 35 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 195 gr
Pieces per small package 10 piece
EAN small package 8713249122076
Weight small package 2.22 kg
Dimensions small package 519 x 157 x 54 mm
Pieces per bulk package 60 piece
EAN bulk package 8713249122083
Weight bulk package 13.8 kg
Dimensions bulk package 530 x 320 x 171 mm

Technical drawings
Telescopic stay 20EX
28150081
