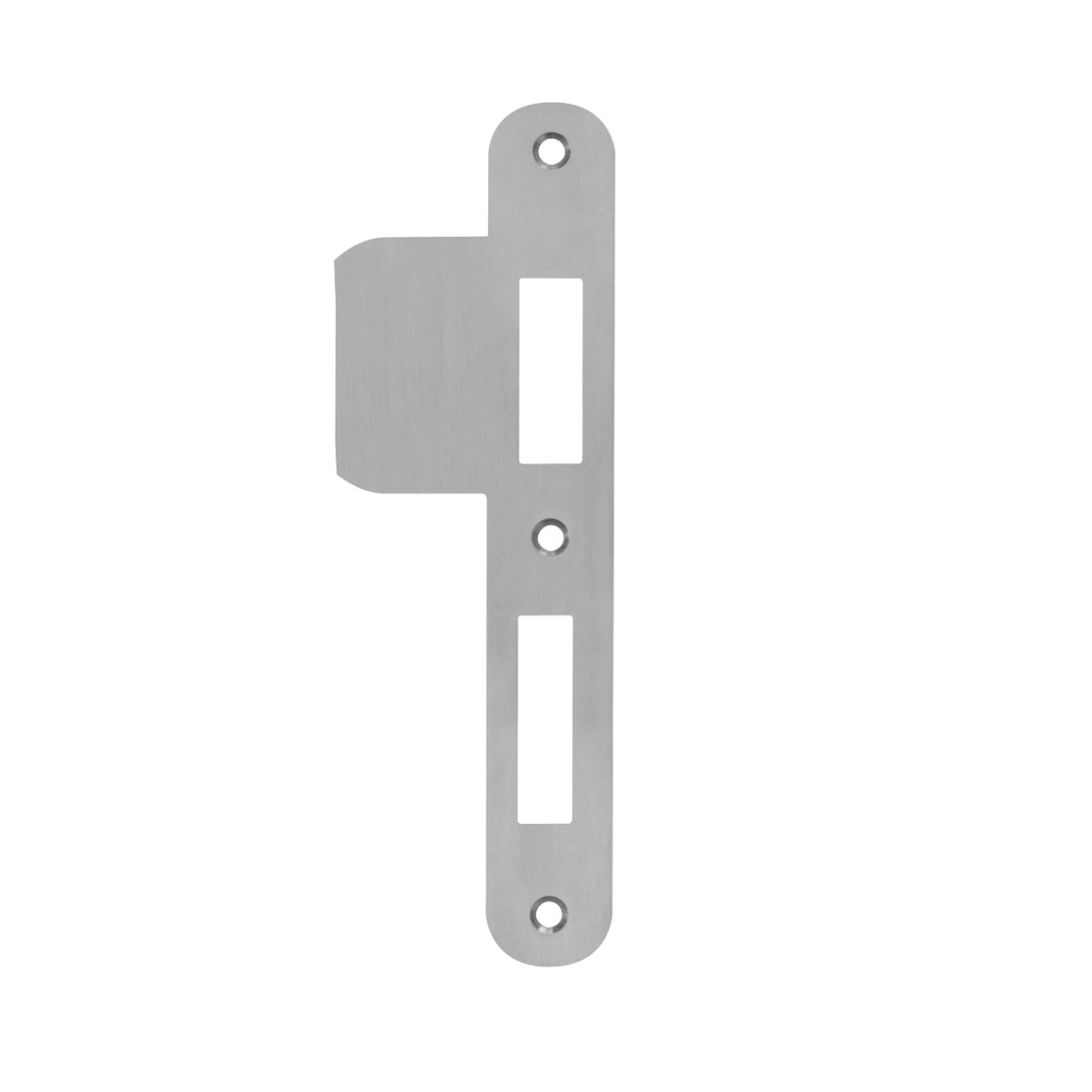

Striking plate security mortice lock 7425 PC72 DIN right

7425-25-81/72ER
arrow_selector
close

Stainless steel striking plate

  • to be combined with mortice lock 7420 or 7425
  • extended lip
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 45 mm screw: 3 pieces
Commercial information
expand_more
Type 7425 PC72 DIN right
Use for exterior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 192 mm
Product Width 25 mm
Thickness 1.5 mm
Corner shape round corner
Direction of rotation DIN DIN right
Heart to heart size type handle hole - Euro profile hole (PC)
Material Stainless steel
Finish Brushed
Assembly information
expand_more
Including Mounting Material False
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 45 mm screw: 3 pieces
Logistic information
expand_more
Product Weight 52 gr
Pieces per small package 10 piece
EAN small package 8713249197081
Weight small package 0.528 kg
Pieces per bulk package 100 piece
EAN bulk package 8713249250199
Weight bulk package 5.31 kg
Dimensions bulk package 181 x 81 x 100 mm

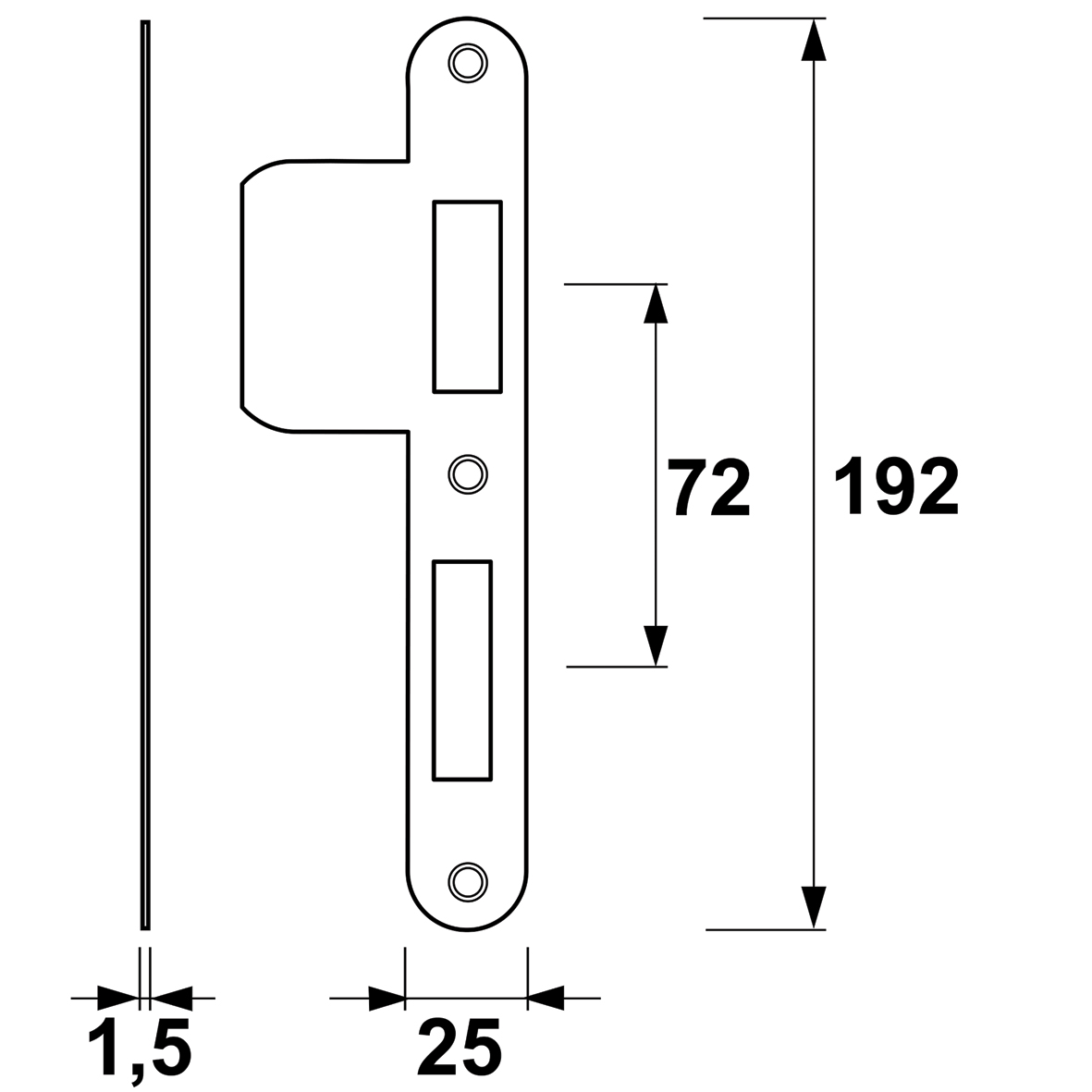

Technical drawings
Striking plate security mortice lock 7425 PC72 DIN right
7425258172ER

Alternative products

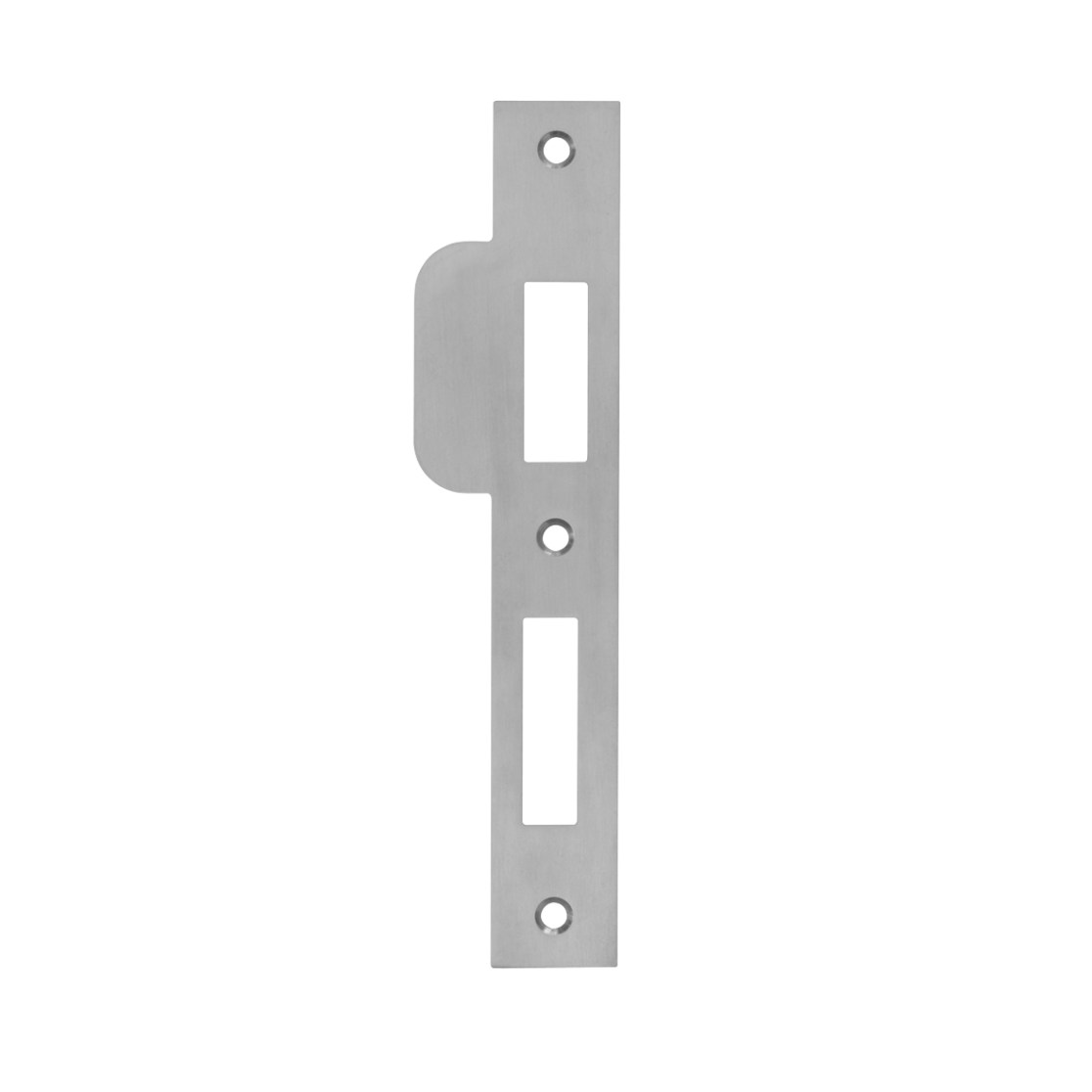

Striking plate security mortice lock 7420 PC72 DIN right

7420-10-81/72ER

Striking plate security mortice lock 7425 PC72 DIN right

7425-15-81/72ER
