Striking plate security mortice lock 7421 PC55 DIN right

7421-10-81/55ER
arrow_selector
close

Stainless steel striking plate

to be combined with mortice lock 7421 or 7426
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 45 mm screw: 3 pieces
Commercial information
expand_more
Type 7421 PC55 DIN right
Use for exterior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 196 mm
Product Width 29 mm
Thickness 1.2 mm
Corner shape right angle
Direction of rotation DIN DIN right
Heart to heart size type handle hole - Euro profile hole (PC)
Material Stainless steel
Finish Brushed
Assembly information
expand_more
Including Mounting Material False
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 45 mm screw: 3 pieces
Logistic information
expand_more
Product Weight 54 gr
Pieces per small package 10 piece
EAN small package 8713249169231
Weight small package 0.548 kg
Pieces per bulk package 100 piece
EAN bulk package 8713249250212
Weight bulk package 5.51 kg
Dimensions bulk package 181 x 81 x 100 mm

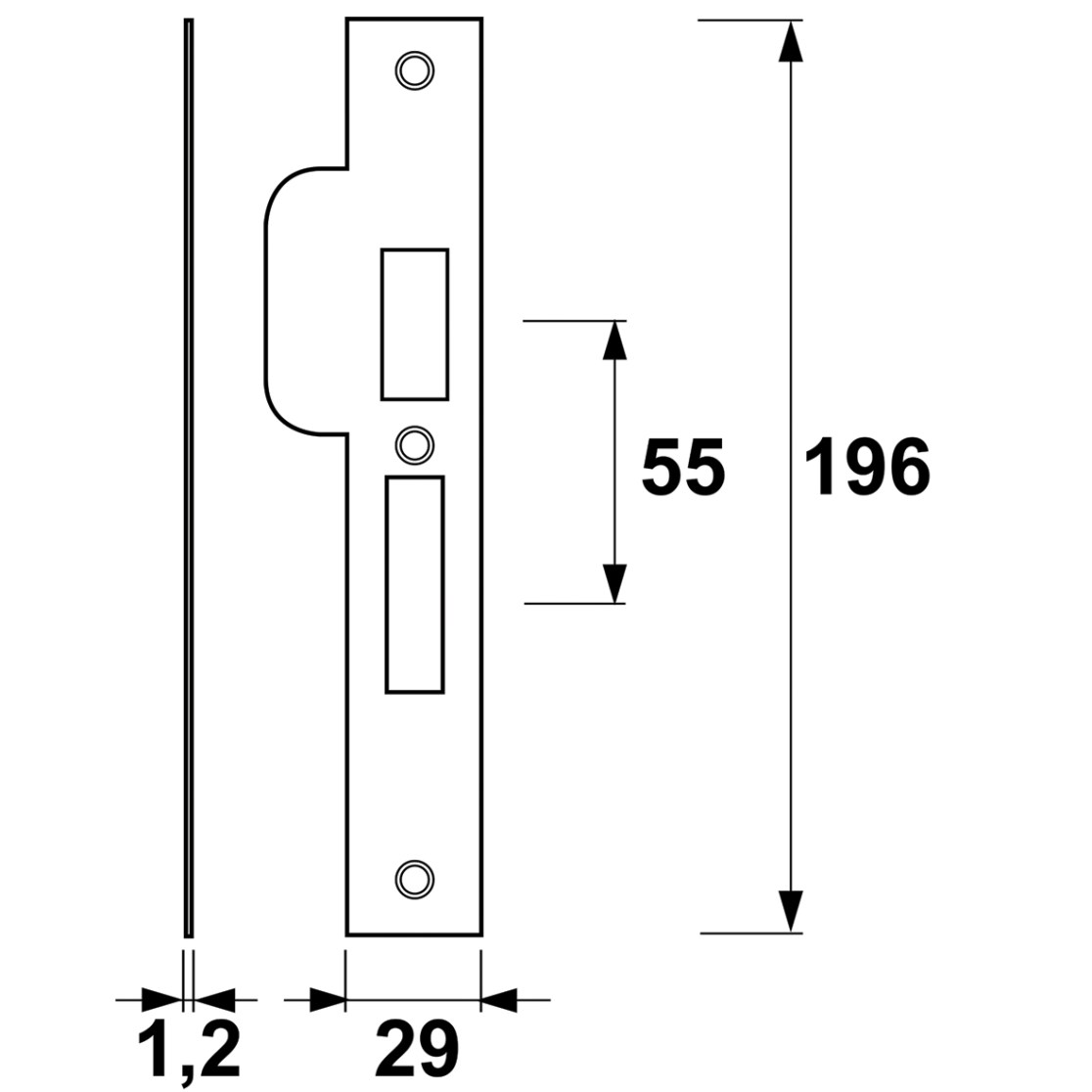

Technical drawings
Striking plate security mortice lock 7421 PC55 DIN right
7421108155ER
