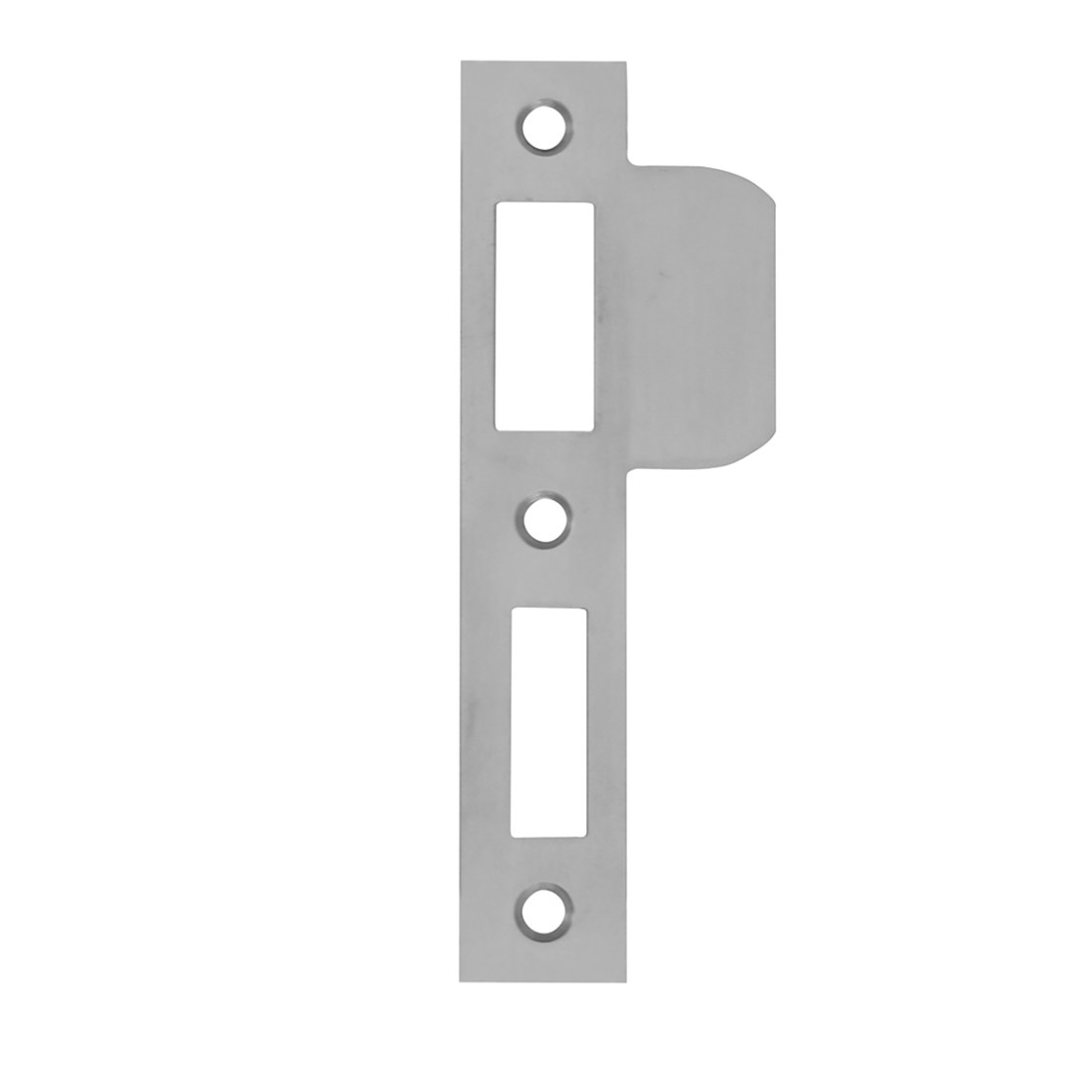

Striking plate security mortice lock 7410 PC55 DIN left

7410-15-81/55EL
arrow_selector
close

Stainless steel striking plate

possible to combine with mortice lock 7415
Specifications Downloads Technical drawings
Commercial information
expand_more
Type 7410 PC55 DIN left
Use for exterior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE certificate of conformity False
Technical information
expand_more
Product Length 127 mm
Product Width 23 mm
Thickness 1.2 mm
Corner shape right angle
Direction of rotation DIN DIN left
Heart to heart size type handle hole - Euro profile hole (PC)
Material Stainless steel
Finish Brushed
Assembly information
expand_more
Including Mounting Material False
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 45 mm screw: 3 pieces
Logistic information
expand_more
Product Weight 30 gr
Pieces per small package 10 piece
EAN small package 8713249169873
Weight small package 0.308 kg
Pieces per bulk package 100 piece
EAN bulk package 8713249250052
Weight bulk package 3.11 kg
Dimensions bulk package 181 x 81 x 100 mm

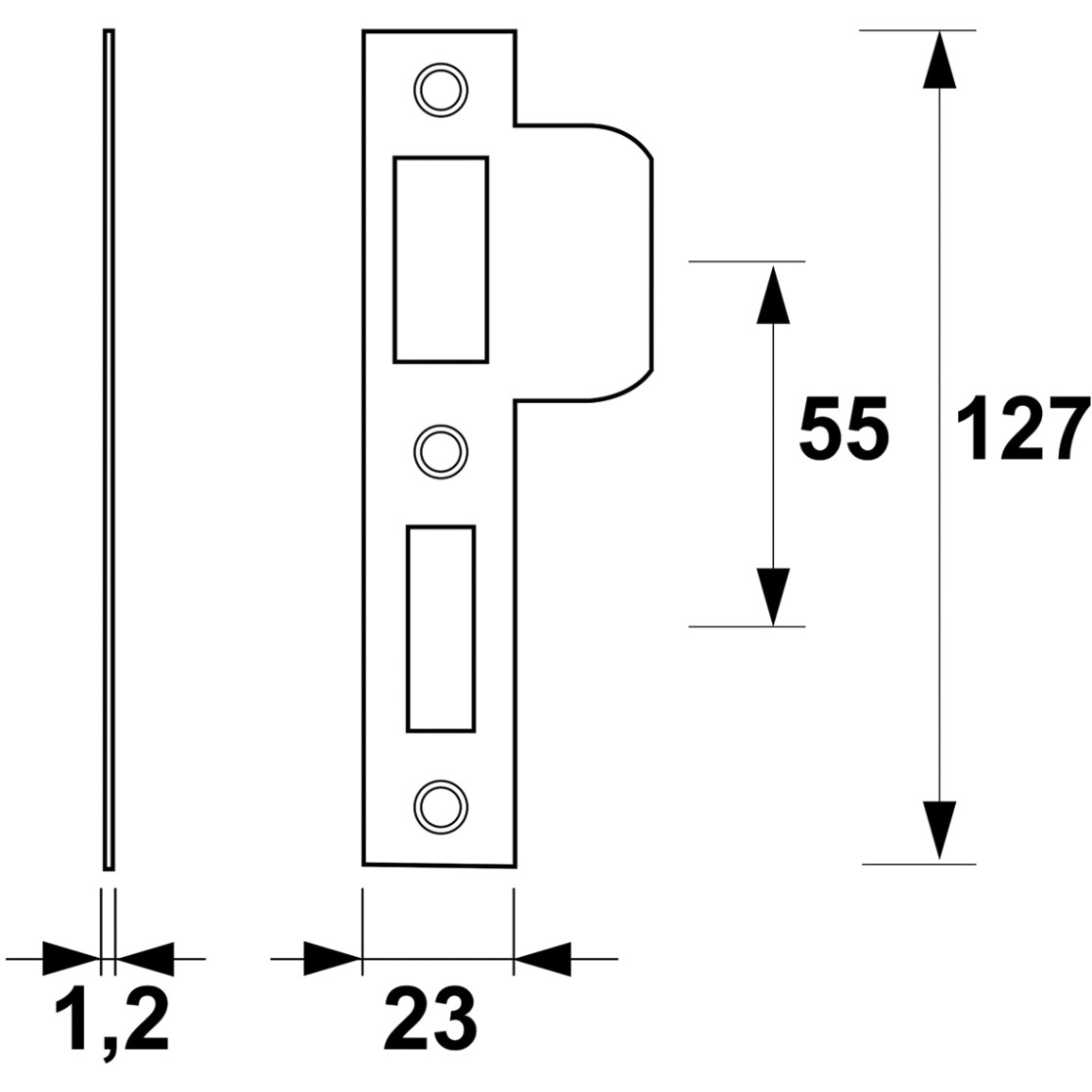

Technical drawings
Striking plate security mortice lock 7410 PC55 DIN left
7410158155EL
