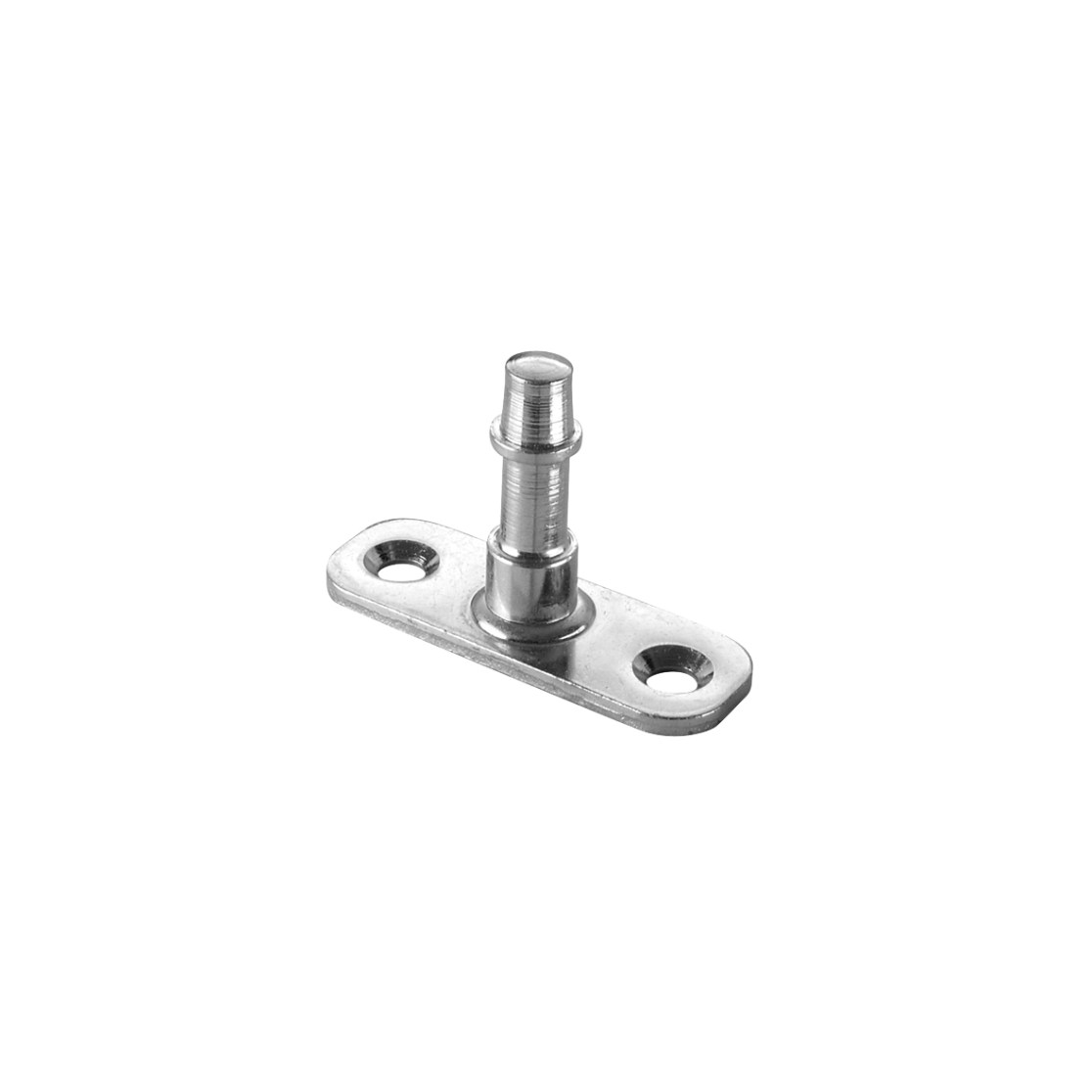

Stay pin Habilis HV

2465-18-22/E
arrow_selector
close

This stay pin is used in combination with the Habilis window stay

  • solid
  • wind-resistant
  • the stay cannot slip off the pin on windy days
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 30 mm screw: 2 pieces
Commercial information
expand_more
Type Habilis HV
Use used in combination with the Habilis window stay
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 50 mm
Product Width 19 mm
Product Height 32 mm
Direction of rotation outward-opening
Material Steel
Finish Galvanized
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 26 gr
Pieces per small package 50 piece
EAN small package 8713249084152
Weight small package 1.34 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 400 piece
EAN bulk package 8713249084169
Weight bulk package 10.93 kg
Dimensions bulk package 290 x 200 x 120 mm

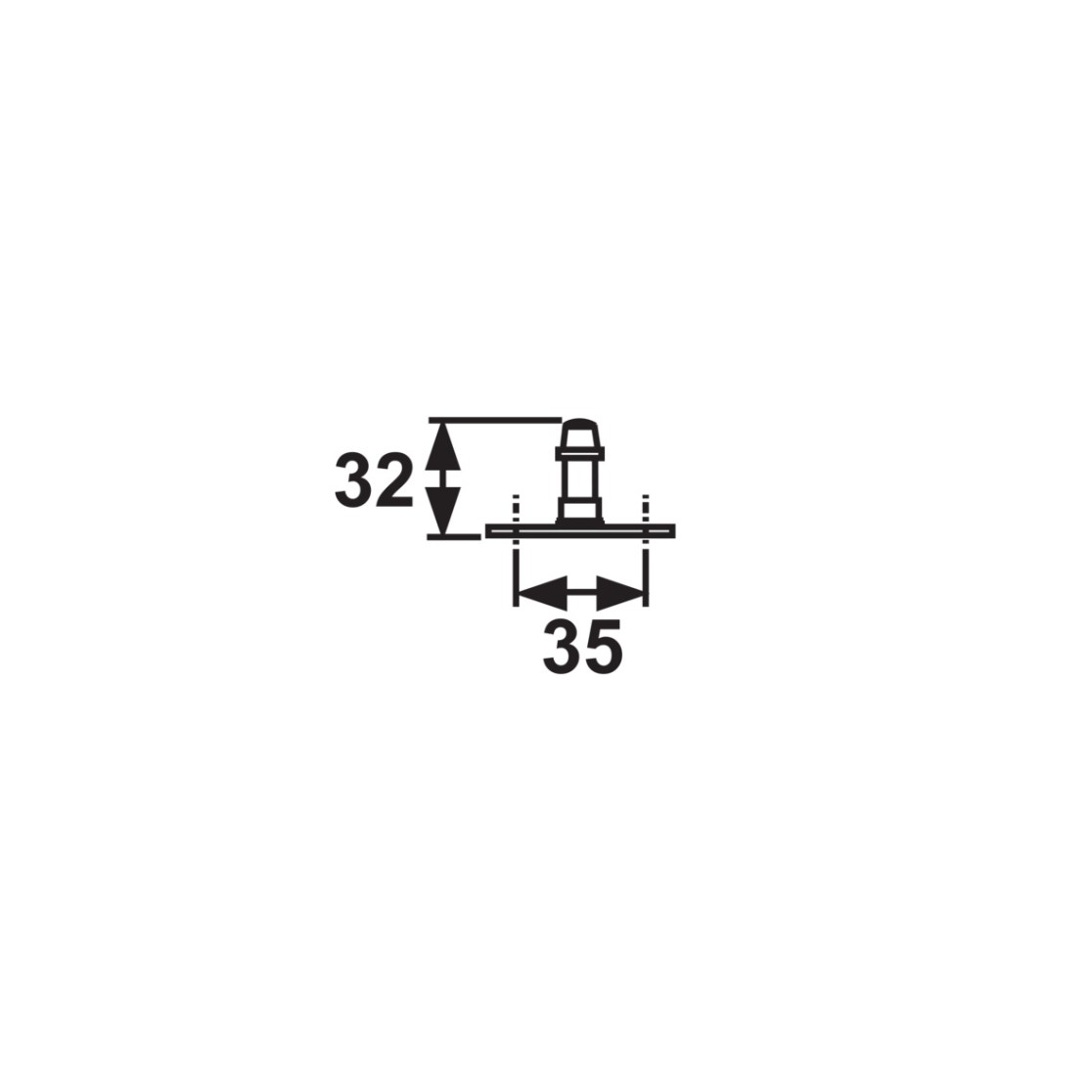

Technical drawings
Stay pin Habilis HV
24651822E
