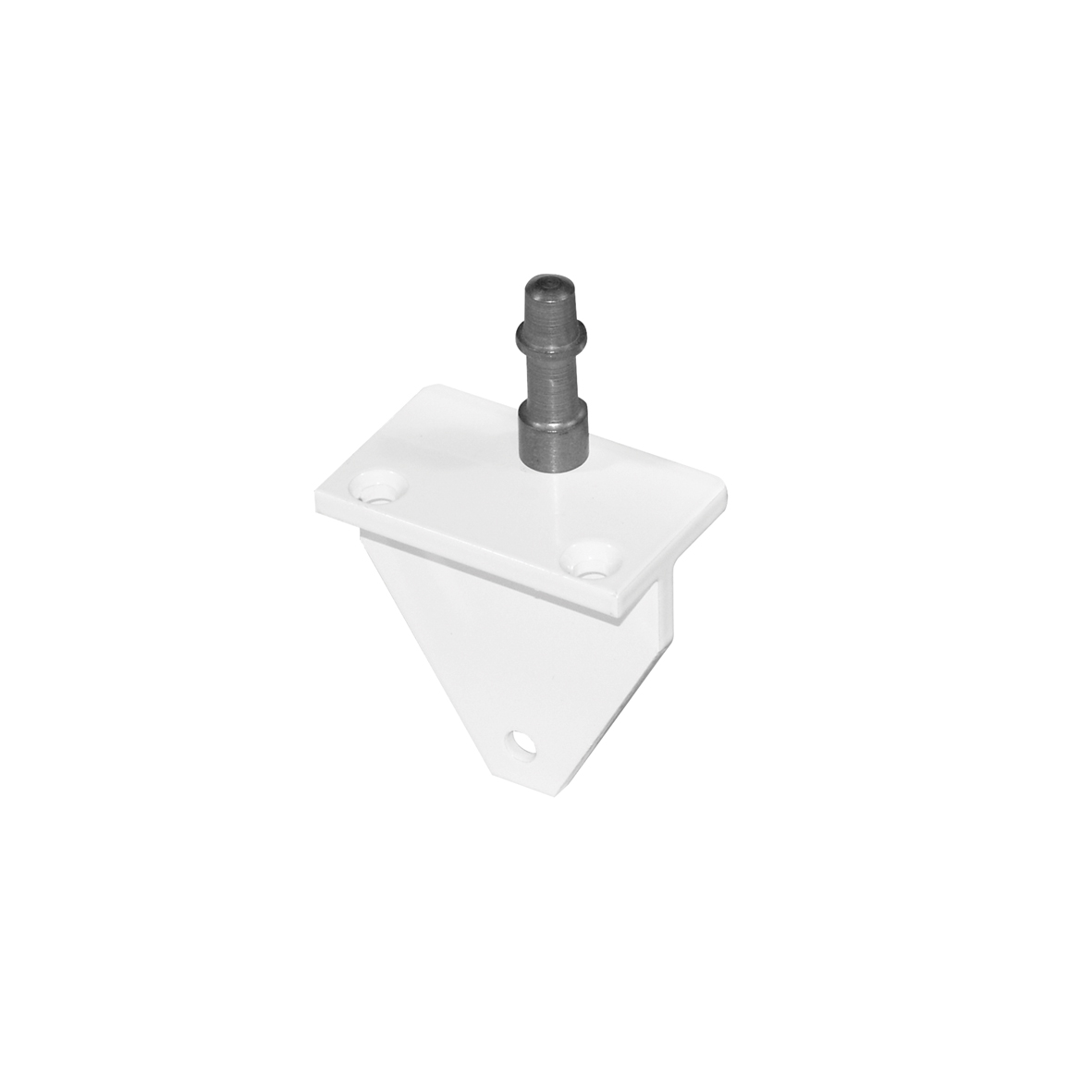

Stay pin Habilis HTH

2468-16-88
arrow_selector
close

This stay pin is used in combination with the Habilis window stay

  • solid
  • wind-resistant
  • the stay cannot slip off the pin on windy days
  • T-angle for plastic - and wooden frames
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 30 mm screw: 3 pieces
Commercial information
expand_more
Type Habilis HTH
Use used in combination with the Habilis window stay
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 50 mm
Product Width 25 mm
Product Height 57 mm
Direction of rotation outward-opening
Material Steel
Finish Galvanized
Material 2 Aluminum
Finish 2 White lacquered
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 3 pieces
Logistic information
expand_more
Product Weight 49 gr
Pieces per bulk package 100 piece
EAN bulk package 8713249048017
Weight bulk package 5.13 kg
Dimensions bulk package 390 x 200 x 120 mm

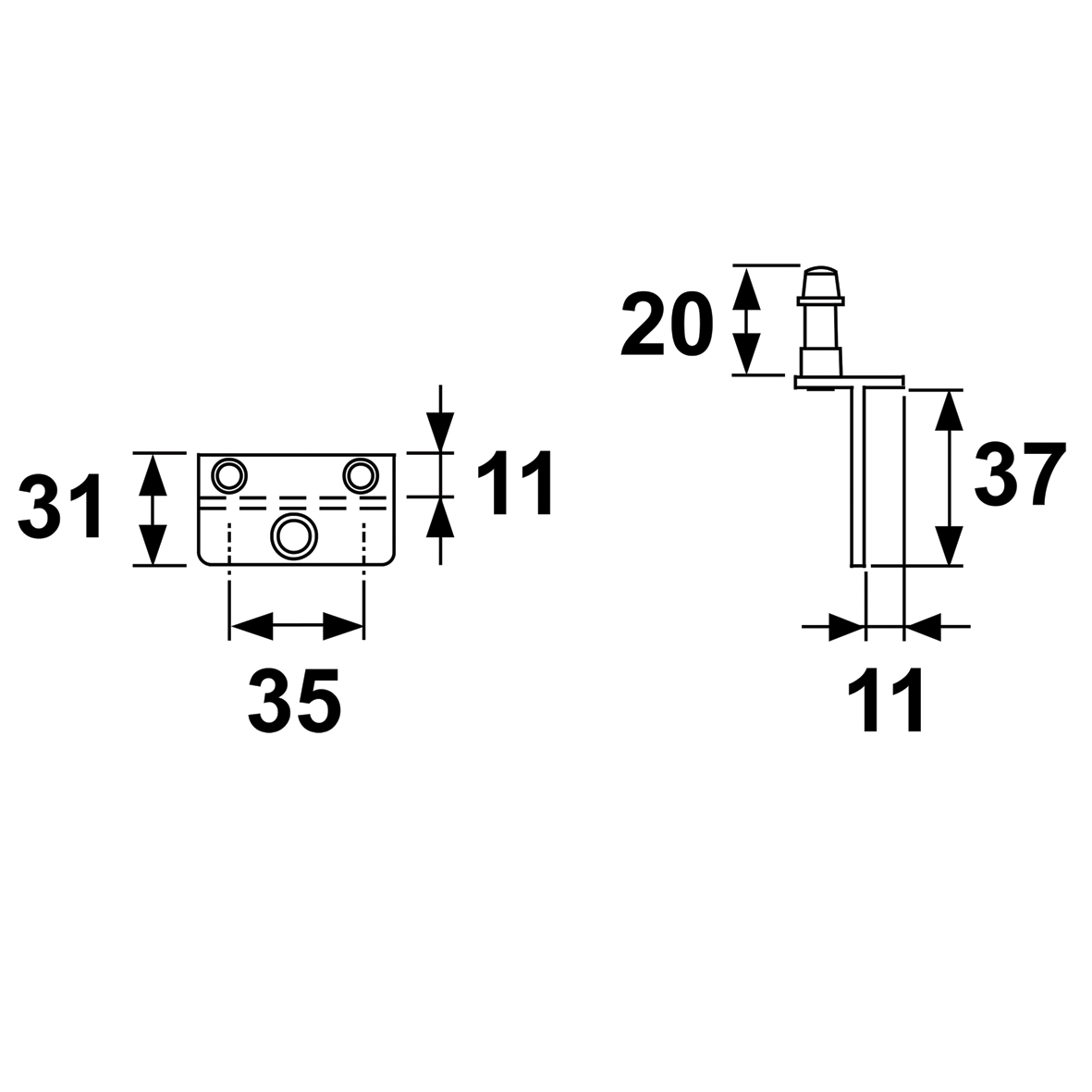

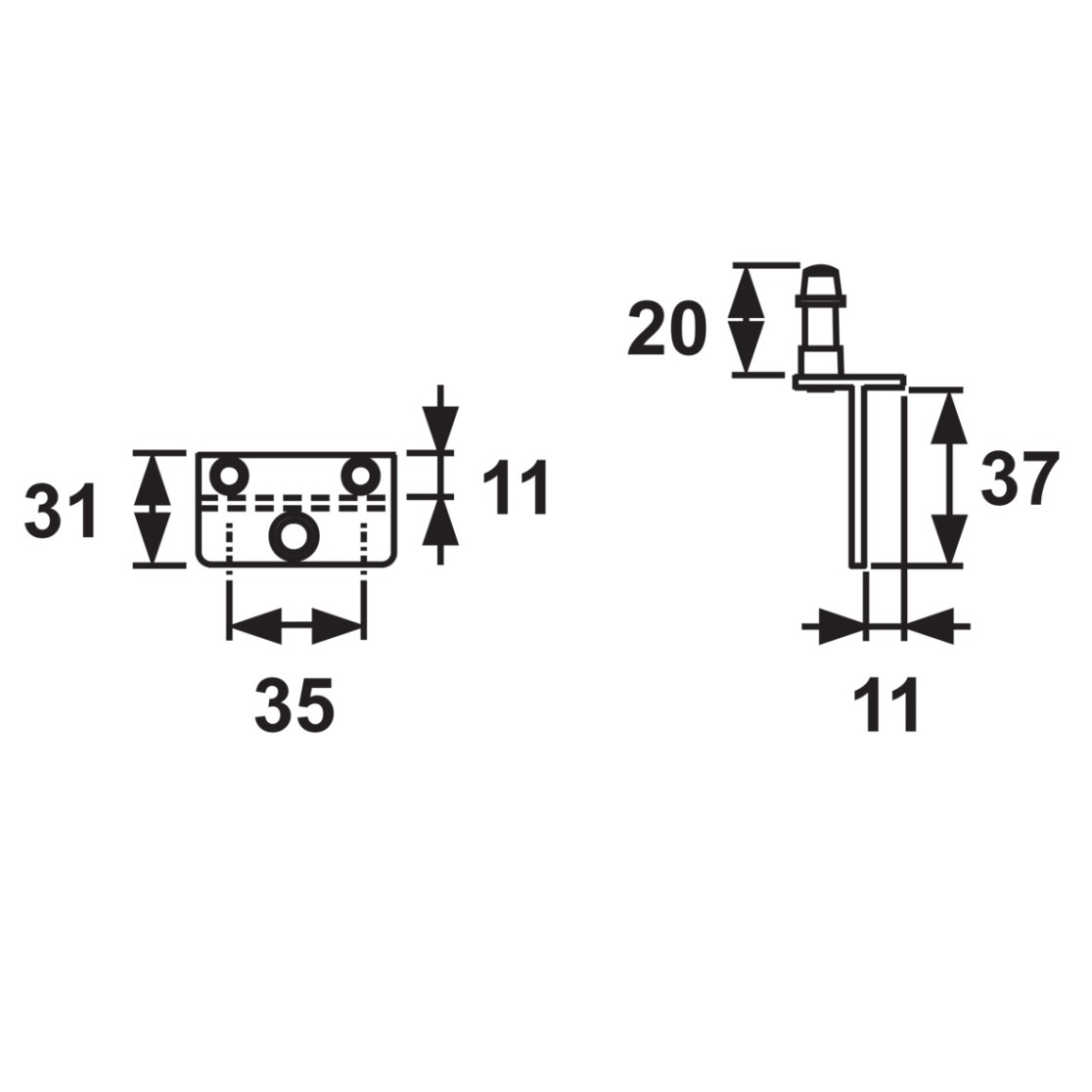

Technical drawings
Stay pin Habilis HTH
24681688
