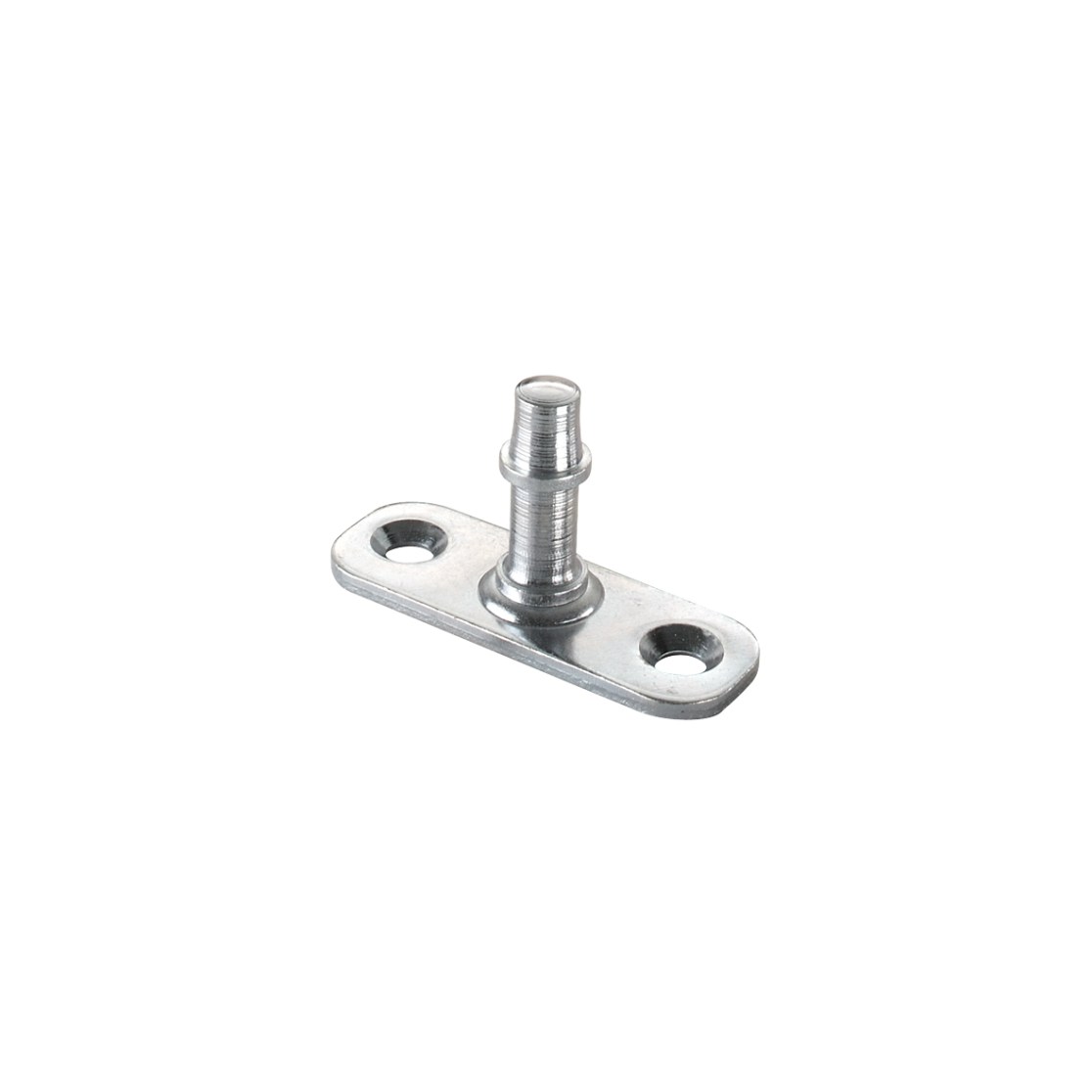

Stay pin Habilis HL
2465-06-22/EThis stay pin is used in combination with the Habilis window stay
- solid
- wind-resistant
- the stay cannot slip off the pin on windy days
This stay pin is used in combination with the Habilis window stay
- solid
- wind-resistant
- the stay cannot slip off the pin on windy days
Specifications
Recommended Mounting Materials
- 4.0 x 30 mm screw: 2 pieces
- 4.0 x 30 mm screw: 2 pieces
Commercial information
Type Habilis HL
Use used in combination with the Habilis window stay
Safety information
SKG No
Police Hallmark False
CE Applicable False
Technical information
Product Length 50 mm
Product Width 18 mm
Product Height 27 mm
Direction of rotation outward-opening
Material Steel
Finish Galvanized
Assembly information
Including Mounting Material False
Assembly time 5 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 2 pieces
- 4.0 x 30 mm screw: 2 pieces
Logistic information
Product Weight 23 gr
Pieces per small package 50 piece
EAN small package 8713249082523
Weight small package 1.2 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 400 piece
EAN bulk package 8713249082530
Weight bulk package 9.73 kg
Dimensions bulk package 290 x 200 x 120 mm

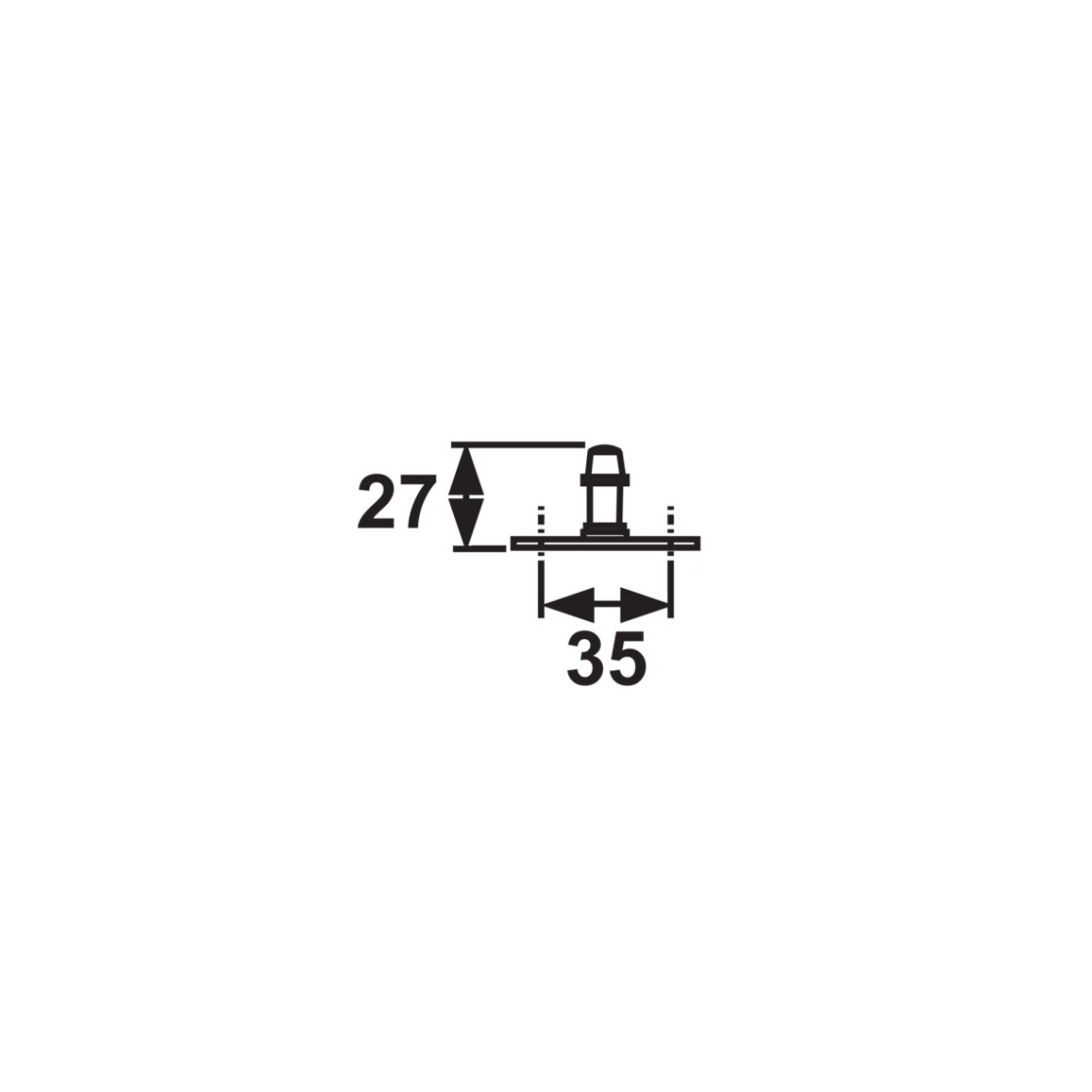

Technical drawings
