Stay pin Elite ESH

2466-17-22
arrow_selector
close

This stay pin is used in combination with the Elite window stay

window stay can be removed from the pin, making it possible to open the window fully
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 30 mm screw: 2 pieces
Commercial information
expand_more
Type Elite ESH
Use used in combination with the Elite window stay
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 50 mm
Product Width 25 mm
Product Height 37 mm
Direction of rotation outward-opening
Material Steel
Finish Galvanized
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 33 gr
Pieces per small package 30 piece
EAN small package 8713249047959
Weight small package 1.03 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 240 piece
EAN bulk package 8713249047966
Weight bulk package 8.51 kg
Dimensions bulk package 290 x 200 x 120 mm

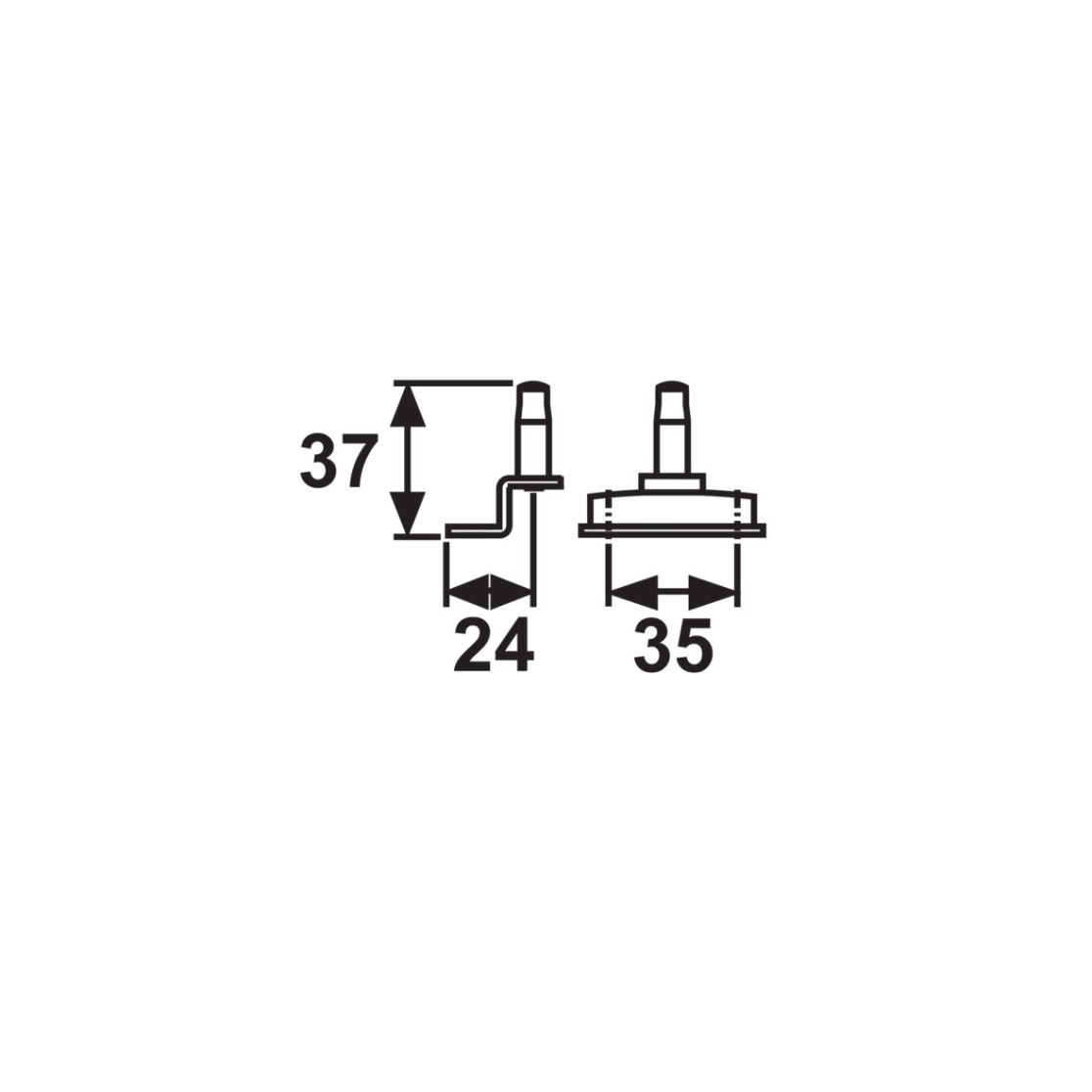

Technical drawings
Stay pin Elite ESH
24661722
