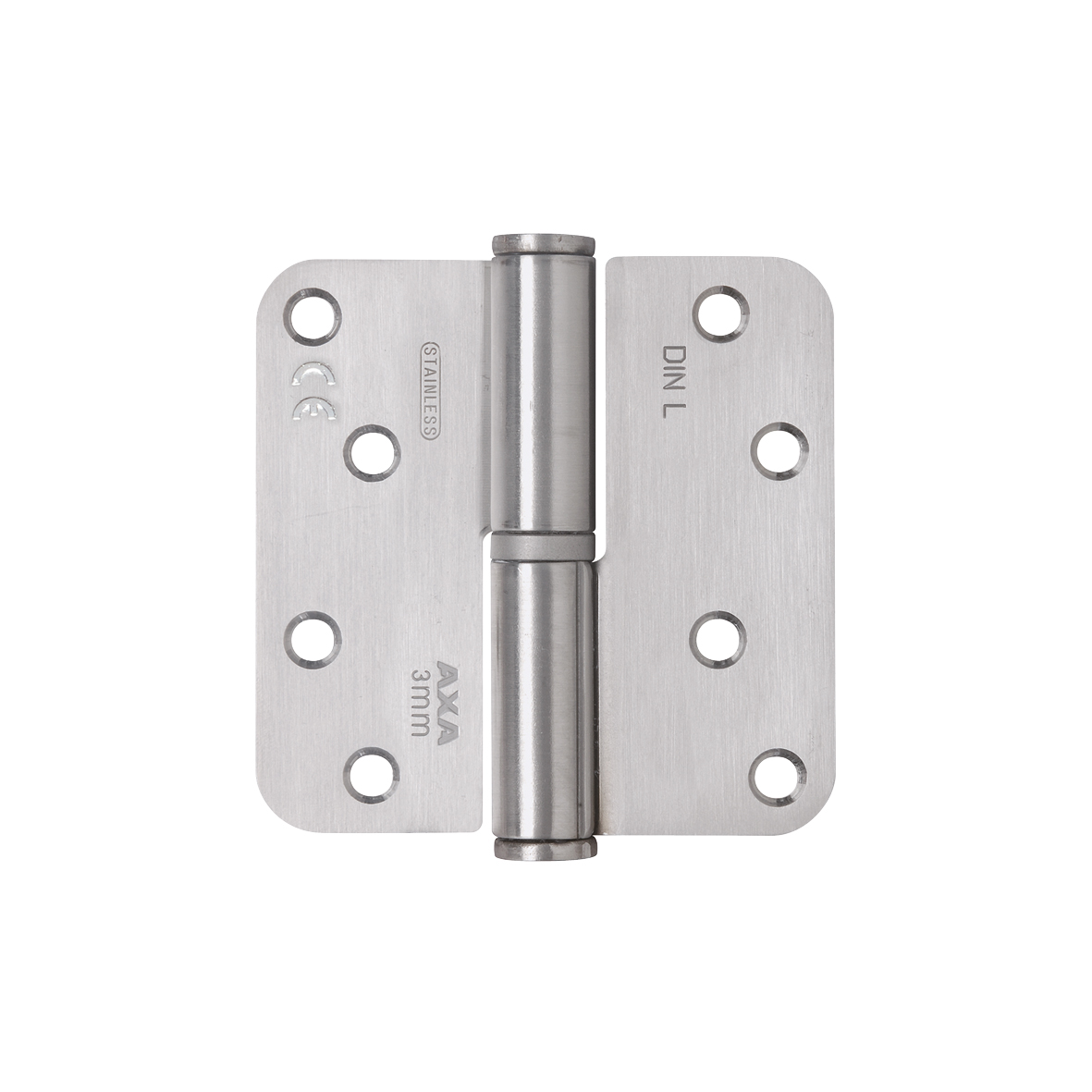

Split hinge ball-bearing

1203-35-81/E
arrow_selector
close

The AXA ball-bearing split hinge is smooth-running and has a high bearing capacity.

  • smooth-running
  • high bearing capacity
  • stainless steel
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 45 mm screw: 8 pieces
Commercial information
expand_more
Type ball-bearing
Use for doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 89 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 16 mm
Corner shape round corner
Bearing ball bolt
Direction of rotation outward and inward-opening
Direction of rotation DIN DIN left
Load bearing capacity 2 hinges 65 kg
Load bearing capacity 3 hinges 90 kg
Load bearing capacity 4 hinges 105 kg
Material Stainless steel
Finish Brushed
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 45 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 286 gr
Pieces per small package 6 piece
EAN small package 8713249191096
Weight small package 1.74 kg
Dimensions small package 116 x 68 x 62 mm
Pieces per bulk package 36 piece
EAN bulk package 8713249191102
Weight bulk package 10.63 kg
Dimensions bulk package 200 x 150 x 120 mm

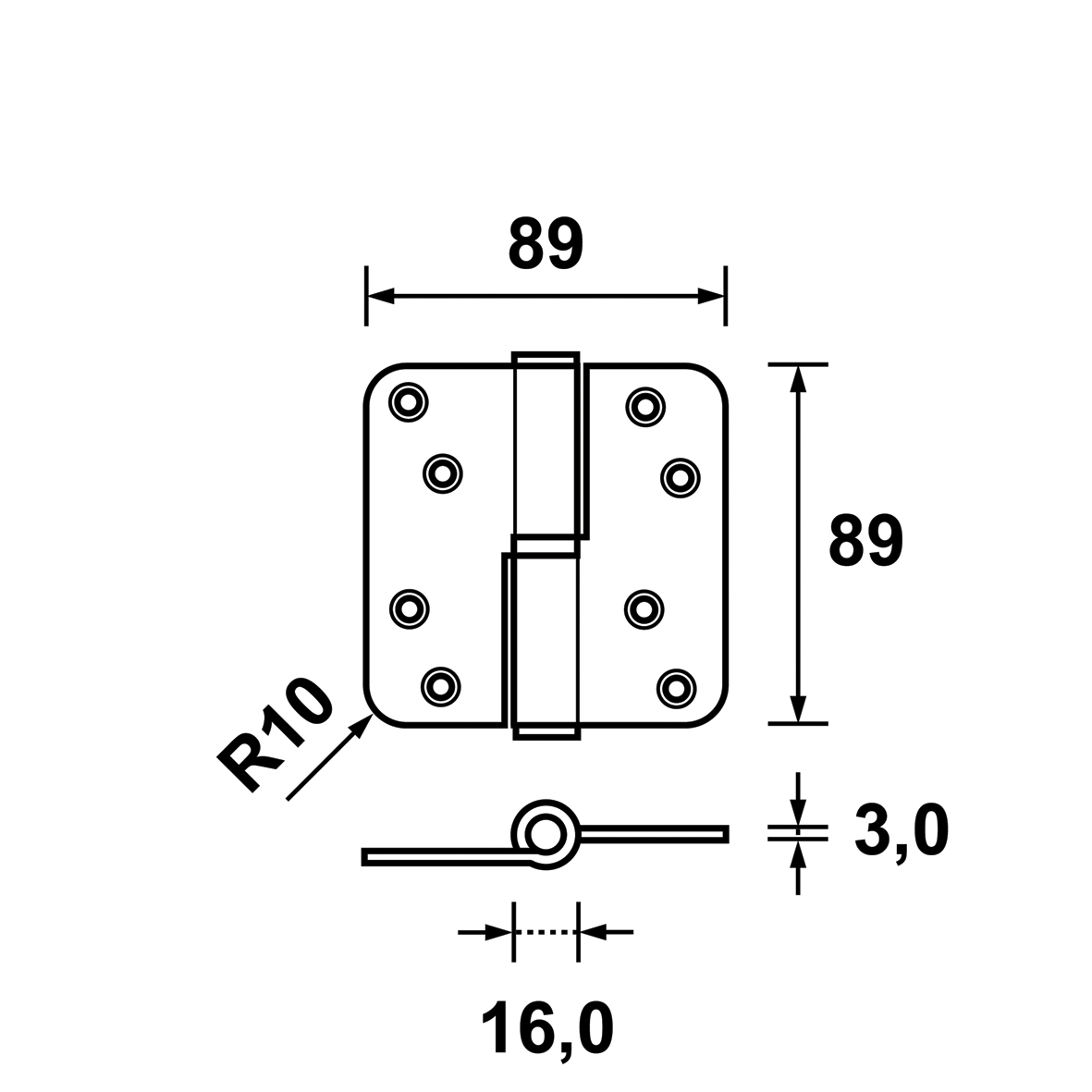

Technical drawings
Split hinge ball-bearing
12033581E

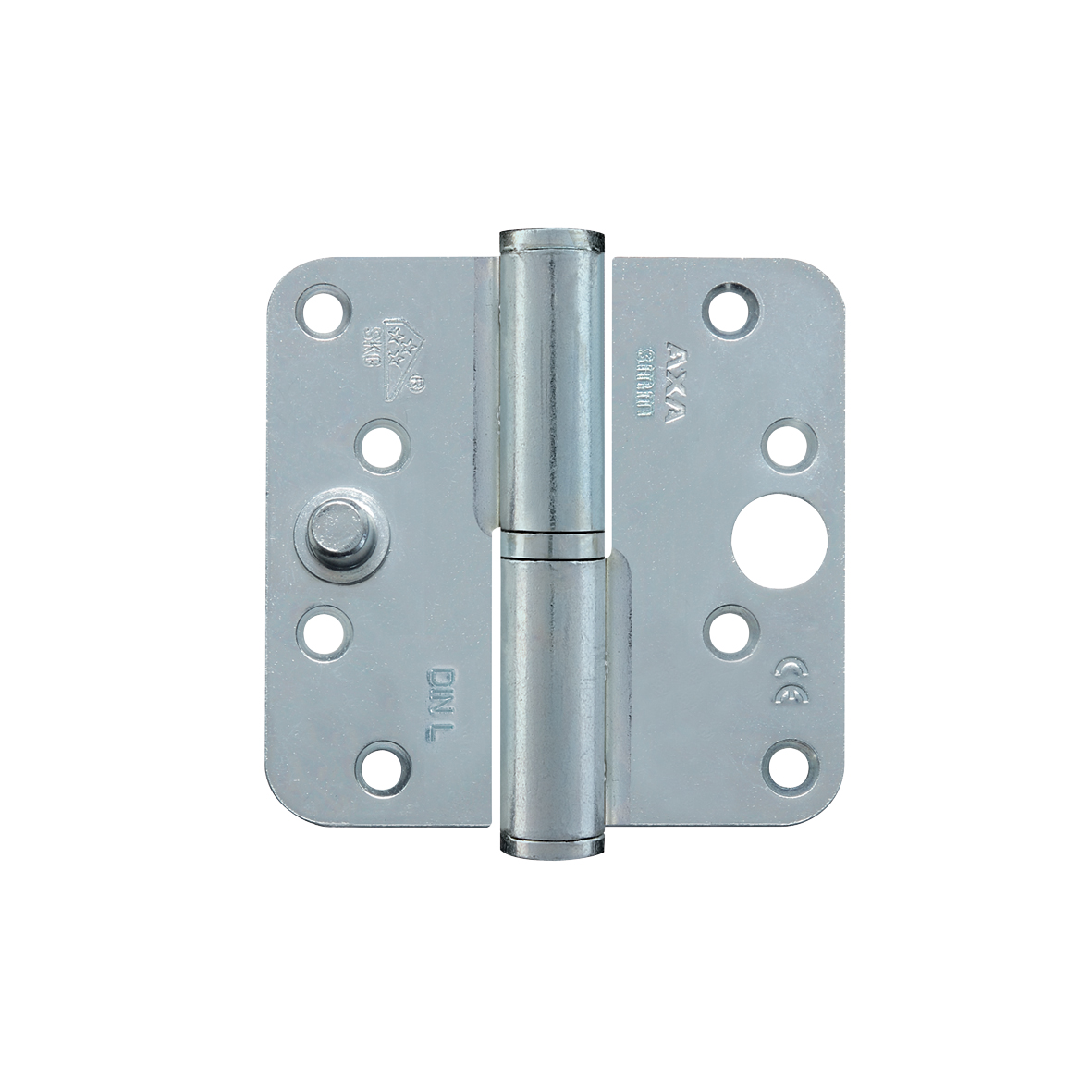

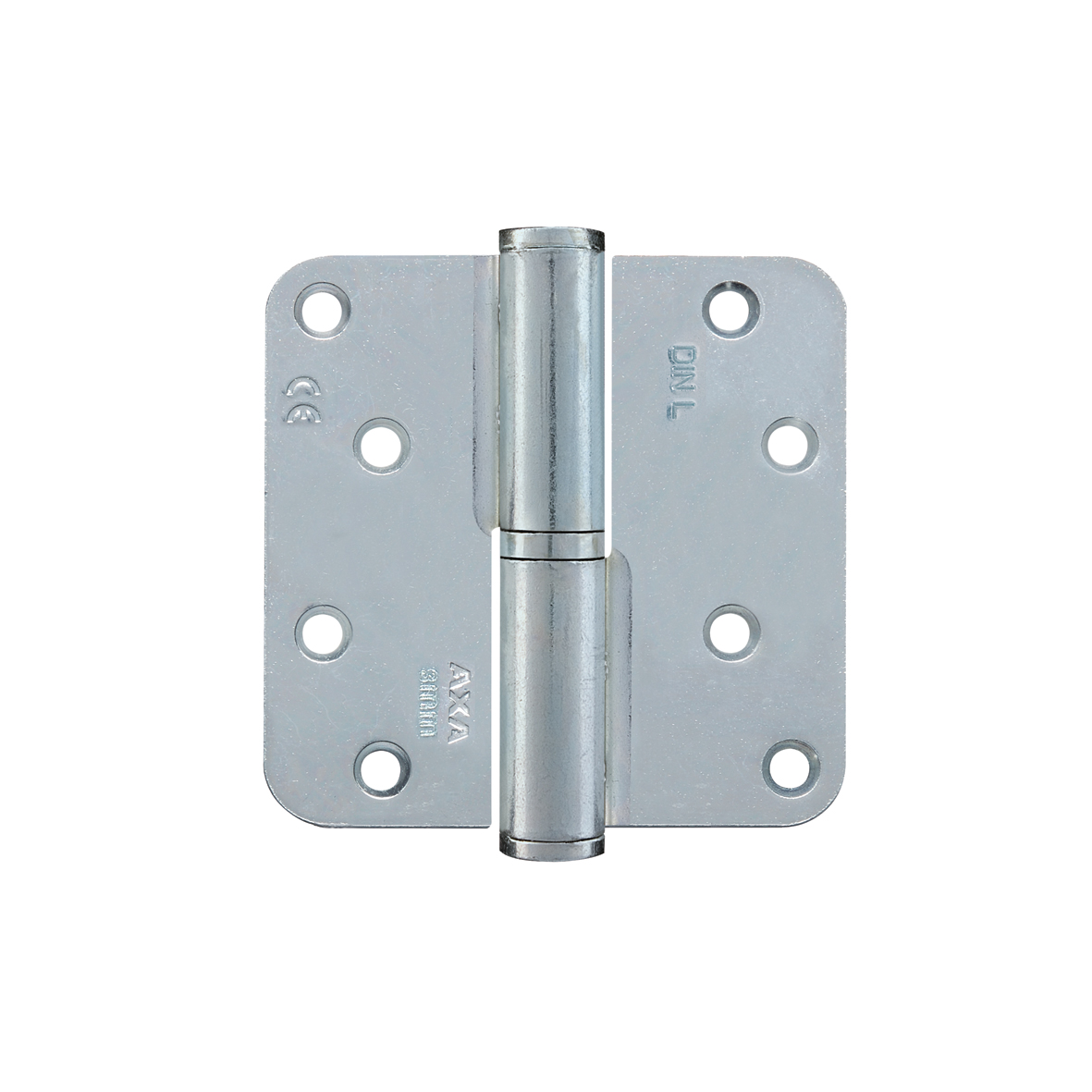

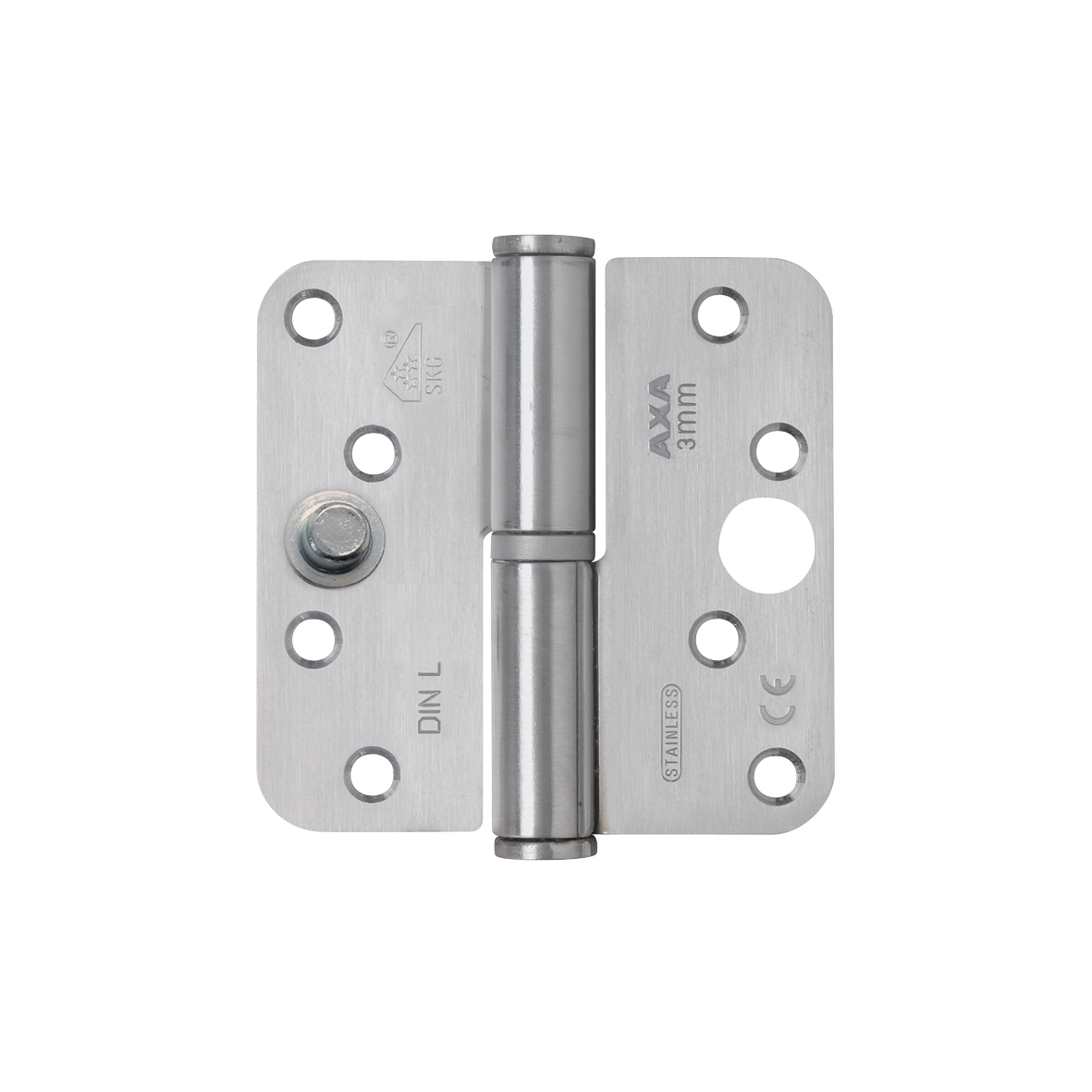

Alternative products
