Single securitycylinder Security extended 40-10

7213-02-08
arrow_selector
close

SKG 2

Police Hallmark

Reliable Security security cylinders for the entire home.

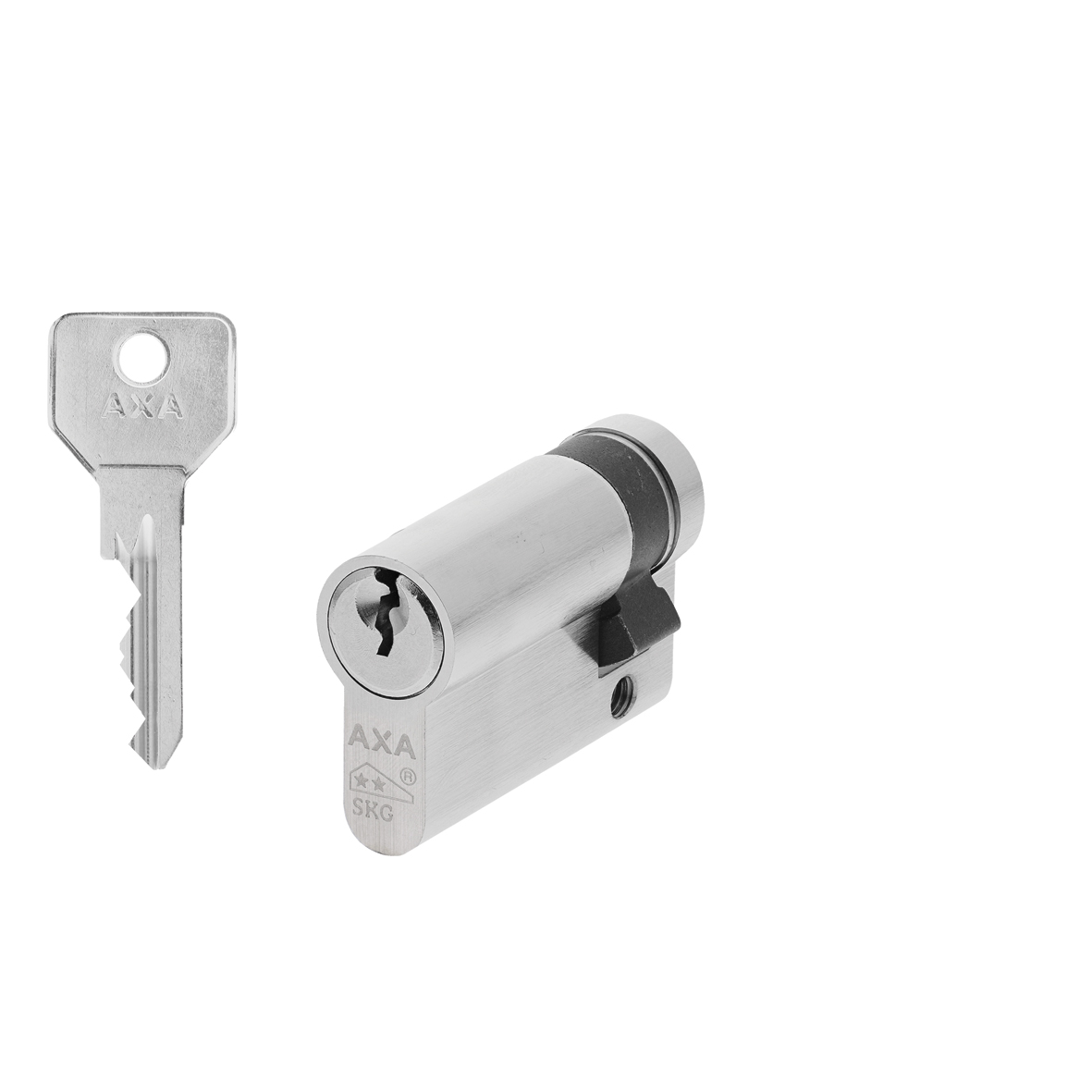

  • single brass nickel-plated cylinder
  • with anti-pick protection
  • with anti-drilling protection provided by hard-metal spindles
  • more than 30,000 different key combinations
  • with 3 brass nickel-plated keys per cylinder
  • complies with (PKVW) Police Hallmark for Safe Living and SKG3 (Façade Quality Institution hallmark)
  • complete with attachment materials
Specifications Downloads Technical drawings Associated products Alternative products
Commercial information
expand_more
Type Security extended 40-10
Use for exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 2
Police Hallmark True
CE certificate of conformity False
Technical information
expand_more
Product Length 50 mm
Product Width 17 mm
Product Height 33 mm
Number of Keys 3
Keyed alike False
Material Brass
Finish Nickel-plated
Assembly information
expand_more
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- M5 x 70 mm bolt: 1 piece
Logistic information
expand_more
Product Weight 183 gr
Pieces per small package 1 piece
EAN small package 8713249271545
Weight small package 0.217 kg
Dimensions small package 115 x 55 x 30 mm
Pieces per bulk package 12 piece
EAN bulk package 8713249271552
Weight bulk package 2.73 kg
Dimensions bulk package 200 x 150 x 120 mm

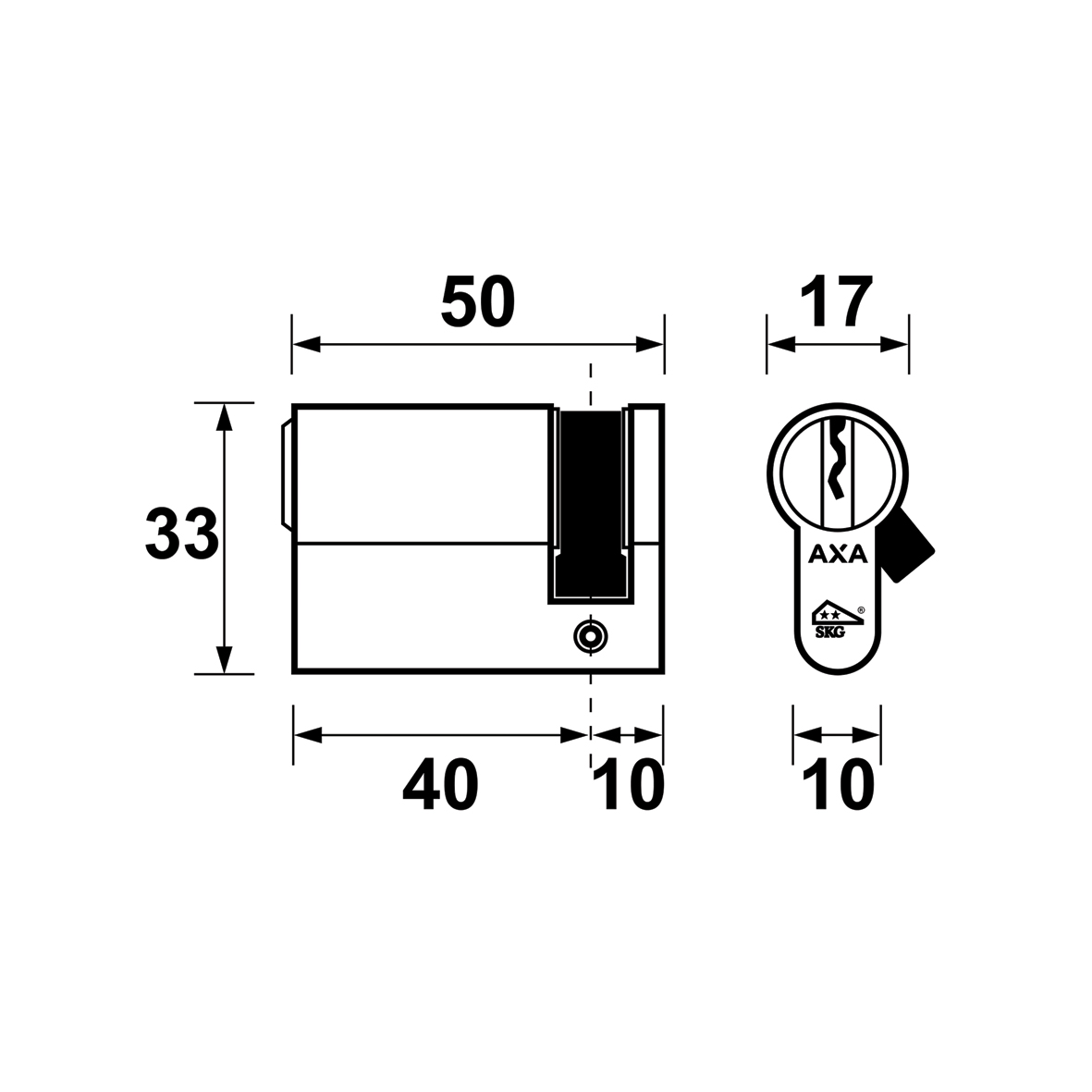

Technical drawings
Single securitycylinder Security extended 40-10
72130208
/** * Related Products Sections * * This section handles displaying related products in three categories: * 1. Associated Products - Products that are directly associated with this product * 2. Alternative Products - Products that can be used as alternatives to this product * 3. Similar Products - Products that are similar to this product * * Each category is displayed in its own slider section if products exist. * Product data is retrieved from product metadata and rendered using Twig templates. */

Associated products

Alternative products

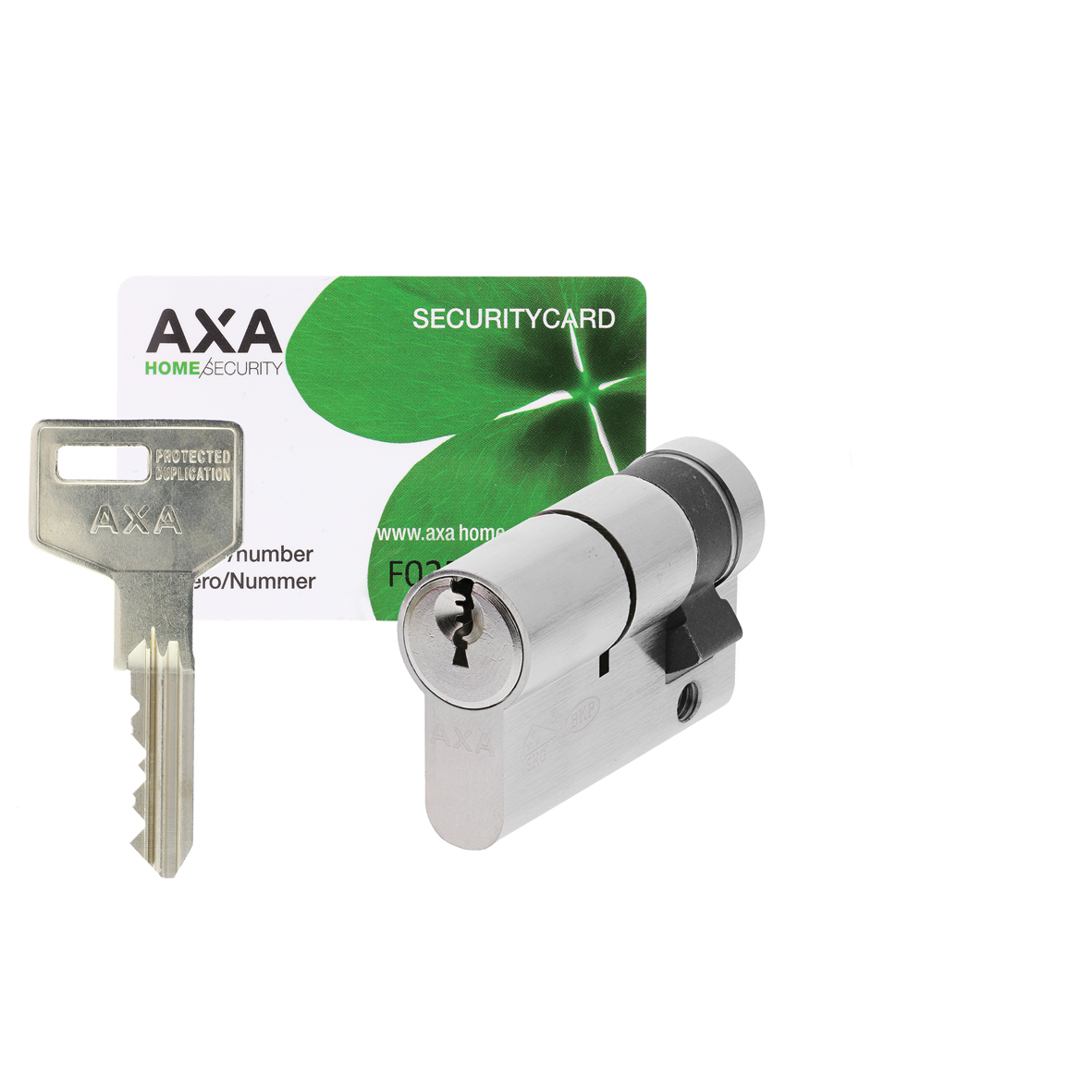

Single securitycylinder Xtreme Security 40-10
