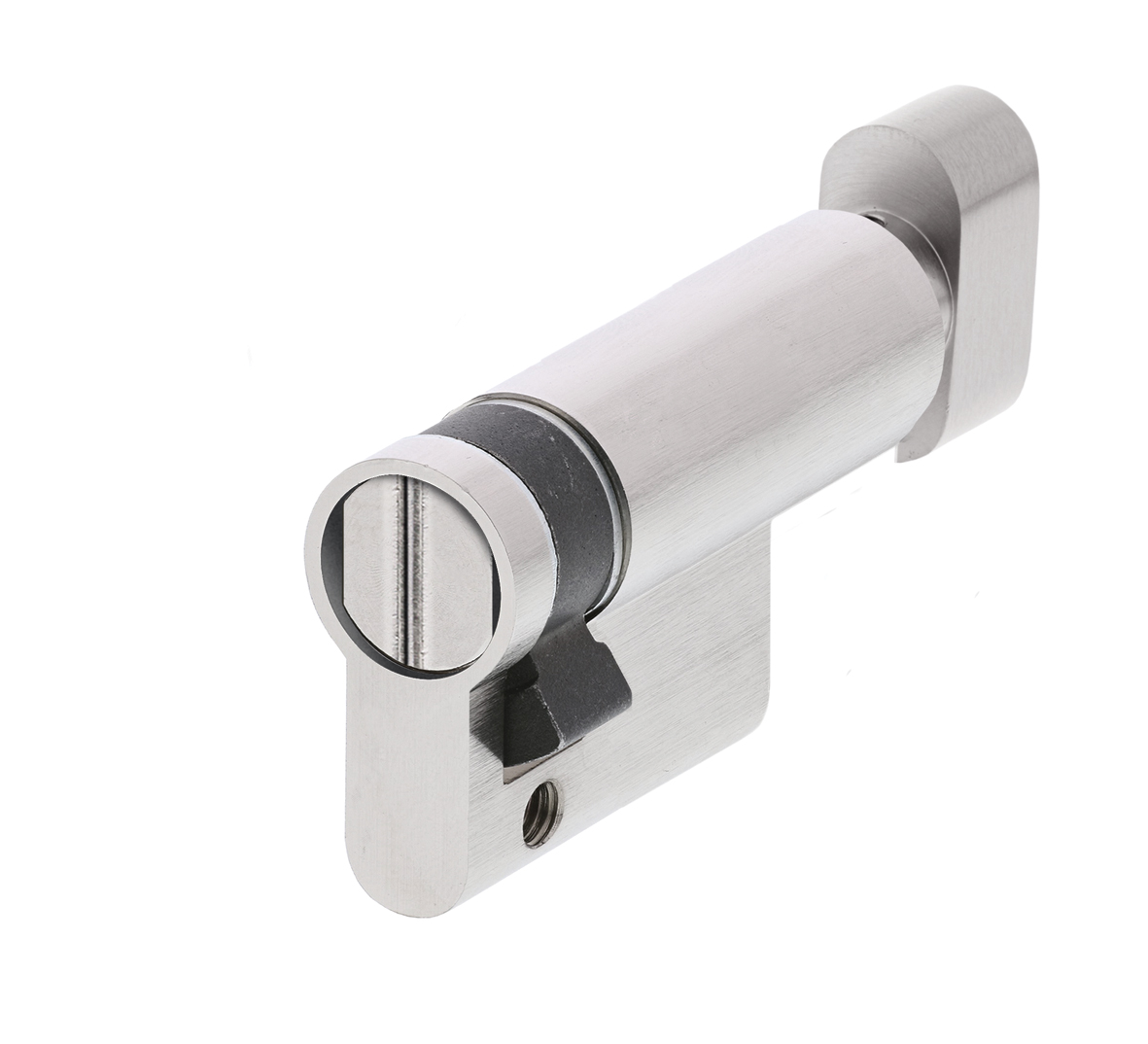

Single knobcylinder Security extended 55-10
7214-05-08Universal knob cylinder for interior doors.
- Knob cylinder
- nickel-plated
- keyed-alike
- with 3 nickel-plated brass keys
- complete with attachment materials
Universal knob cylinder for interior doors.
- Knob cylinder
- nickel-plated
- keyed-alike
- with 3 nickel-plated brass keys
- complete with attachment materials
Specifications
Recommended Mounting Materials
- M5 x 70 mm bolt: 1 piece
- M5 x 70 mm bolt: 1 piece
Commercial information
Type Security extended 55-10
Use for doors
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
Product Length 65 mm
Product Width 17 mm
Product Height 33 mm
Keyed alike False
Cylinder length knob side (knob cylinder) 55 mm
Material Brass
Finish Nickel-plated
Assembly information
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- M5 x 70 mm bolt: 1 piece
- M5 x 70 mm bolt: 1 piece
Logistic information
Product Weight 246 gr
Pieces per small package 1 piece
EAN small package 8713249272382
Weight small package 0.272 kg
Dimensions small package 115 x 55 x 30 mm
Pieces per bulk package 12 piece
EAN bulk package 8713249272399
Weight bulk package 3.39 kg
Dimensions bulk package 200 x 150 x 120 mm
Downloads
Main Image Environmental Product Declaration (EPD)

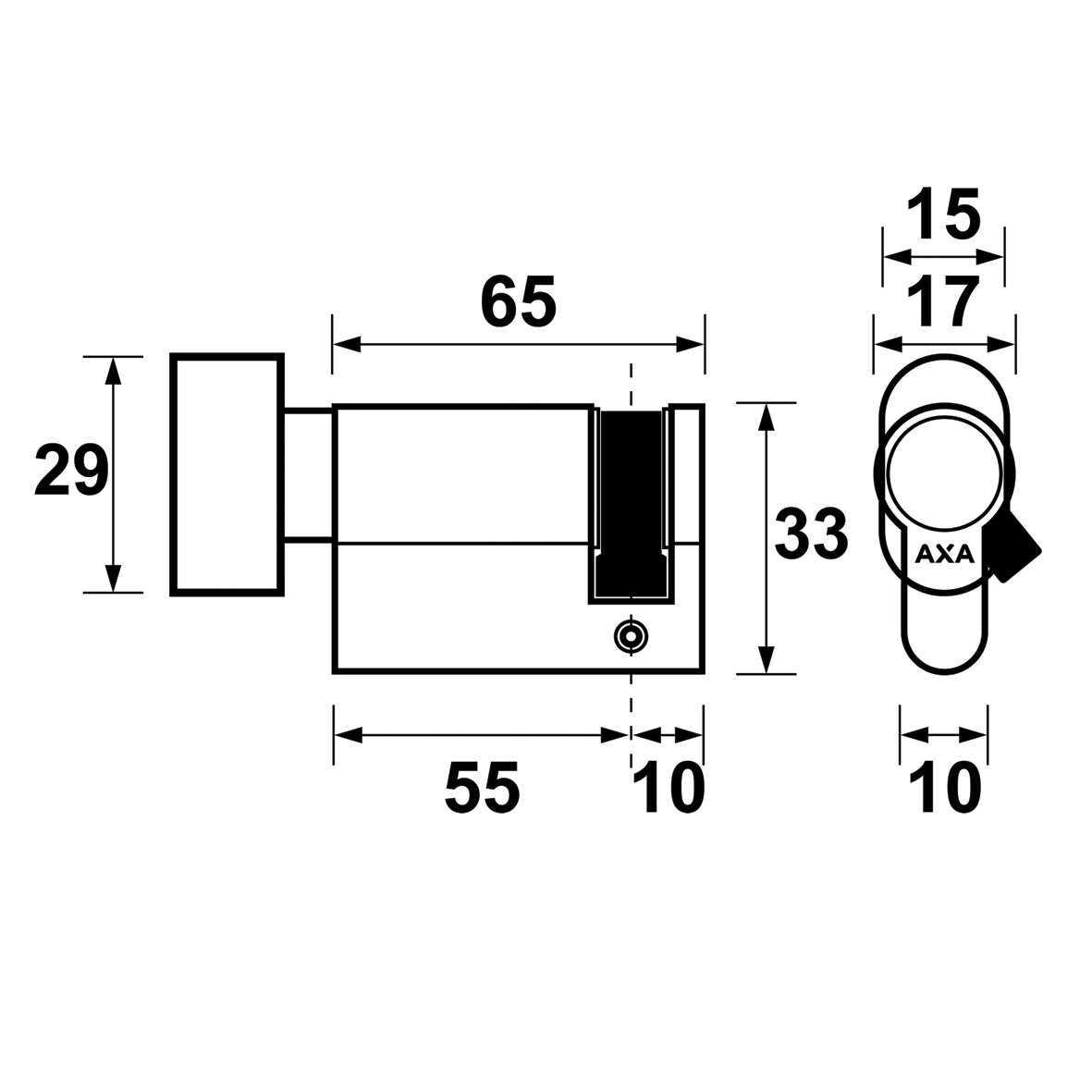

Technical drawings
