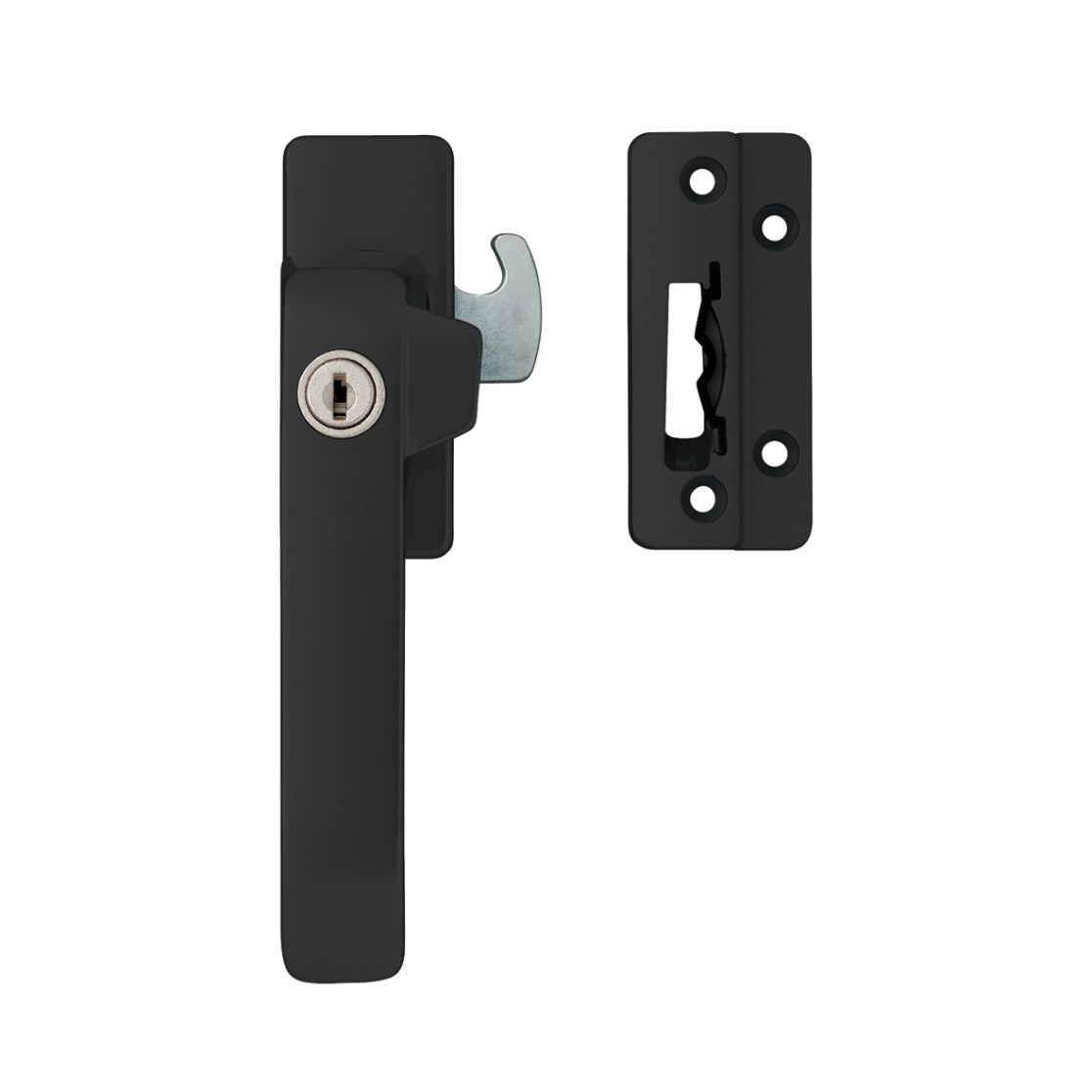

Security window fastener 3329

3329-61-38/BL

+

10
arrow_selector
close

SKG 1

Police Hallmark
  • Solid window fastener, sleek design and invisible attachment
  • optimal ease of use: supple operation, keyed-alike, just one key for the entire home
  • complete with a special surface-mounted striker with a rattle-free ventilation cam holder and fixings
  • child-proof: once locked, it cannot be opened by small children
  • with a cylinder lock for locking
  • complies with the Police Hallmark for Safe Living and SKG1
  • simple and quick installation, even on narrow windows
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 2 pieces
- 4.0 x 50 mm screw: 6 pieces
or
- 4.0 x 40 mm screw: 4 pieces
- 4.0 x 50 mm screw: 2 pieces
Commercial information
expand_more
Type 3329
Use for outward-opening casement windows and doors
Safety information
expand_more
Burglarproof True
SKG SKG 1
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 145 mm
Product Width 30 mm
Product Height 46 mm
Direction of rotation left outward-opening
Bolt type hook bolt
Bolt catcher surface-mounted striker
Locking mechanisme cylinder lock
Number of Keys 1
Keyed alike True
Material Aluminum
Finish Polished anodised F8, black
Material 2 zamac
Finish 2 Black lacquered
Assembly information
expand_more
Including Mounting Material True
Mounting length 150 mm
Required depth wood frame 33 mm
Window/door mounting width requirement 47 mm
Assembly time 15 min
Logistic information
expand_more
Product Weight 506 gr
Pieces per small package 1 piece
EAN small package 8713249263861
Weight small package 0.51 kg
Dimensions small package 215 x 95 x 55 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249263878
Weight bulk package 4.29 kg
Dimensions bulk package 390 x 200 x 120 mm
