Security window fastener 3329
3329-51-68/GE

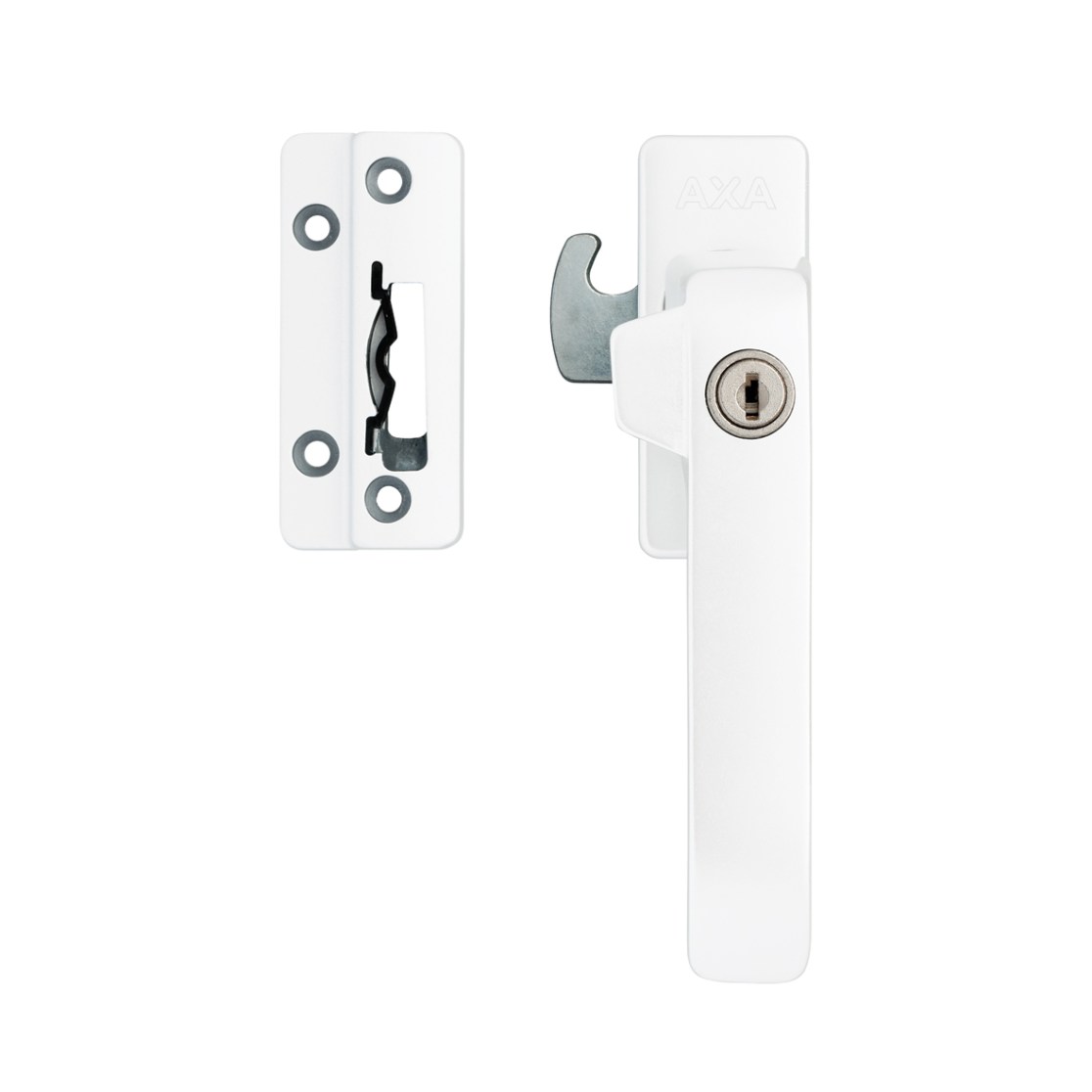

The AXA 3329 safety window fastener features a ventilation cam while a solid hook bolt provides increased burglar-resistance.
- Solid window fastener, sleek design and invisible attachment
- optimal ease of use: supple operation, keyed-alike, just one key for the entire home

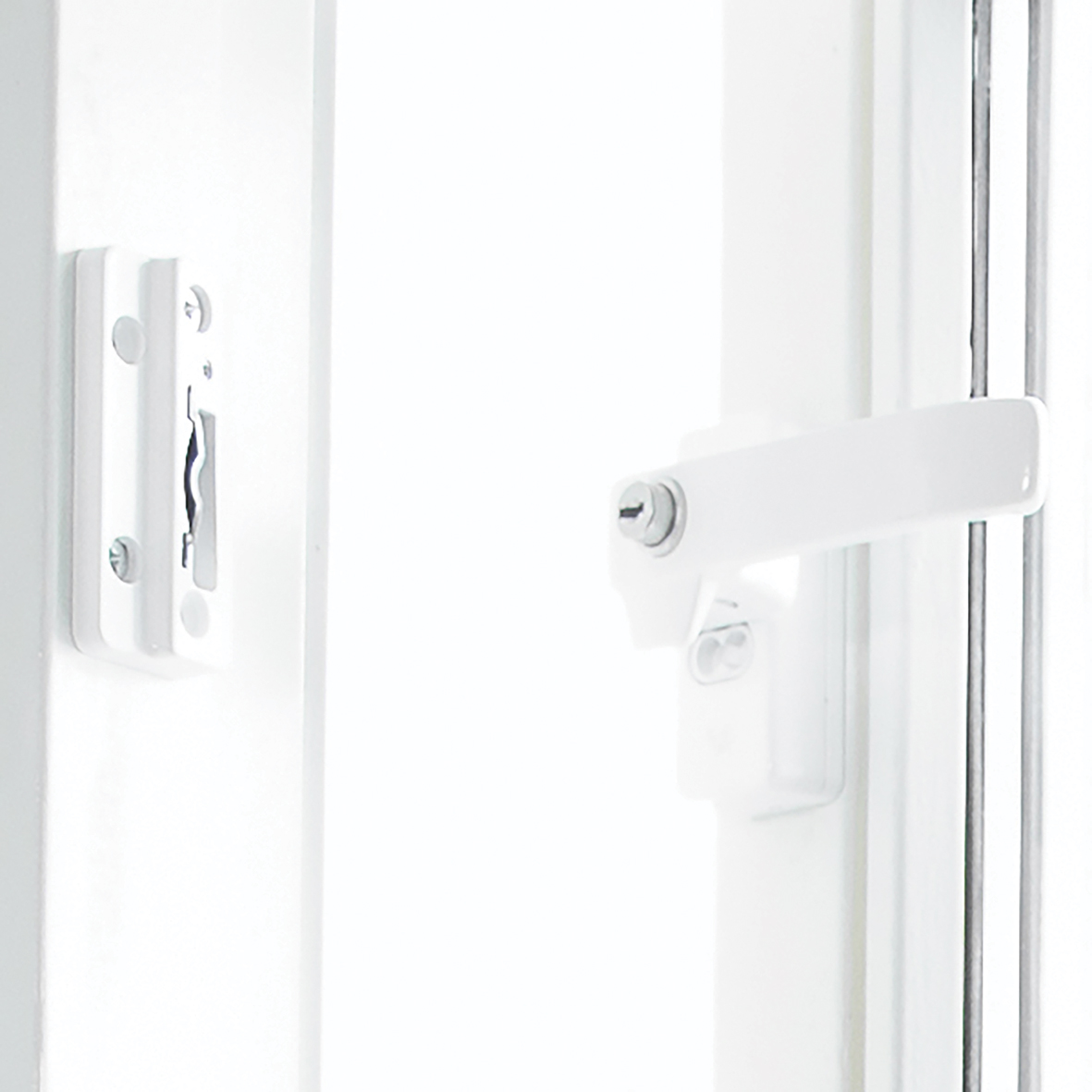

- complete with a special surface-mounted striker with a rattle-free ventilation cam holder and fixings
- child-proof: once locked, it cannot be opened by small children
- with a cylinder lock for locking
- complies with the Police Hallmark for Safe Living and SKG1
- simple and quick installation, even on narrow windows
+
4
The AXA 3329 safety window fastener features a ventilation cam while a solid hook bolt provides increased burglar-resistance.
- Solid window fastener, sleek design and invisible attachment
- optimal ease of use: supple operation, keyed-alike, just one key for the entire home
- complete with a special surface-mounted striker with a rattle-free ventilation cam holder and fixings
- child-proof: once locked, it cannot be opened by small children
- with a cylinder lock for locking
- complies with the Police Hallmark for Safe Living and SKG1
- simple and quick installation, even on narrow windows
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 2 pieces
- 4.0 x 50 mm screw: 6 pieces
or
- 4.0 x 40 mm screw: 4 pieces
- 4.0 x 50 mm screw: 2 pieces
- 4.0 x 40 mm screw: 2 pieces
- 4.0 x 50 mm screw: 6 pieces
or
- 4.0 x 40 mm screw: 4 pieces
- 4.0 x 50 mm screw: 2 pieces
Commercial information
Type 3329
Use for outward-opening casement windows and doors
Safety information
Burglarproof True
SKG SKG 1
Police Hallmark True
CE Applicable False
Technical information

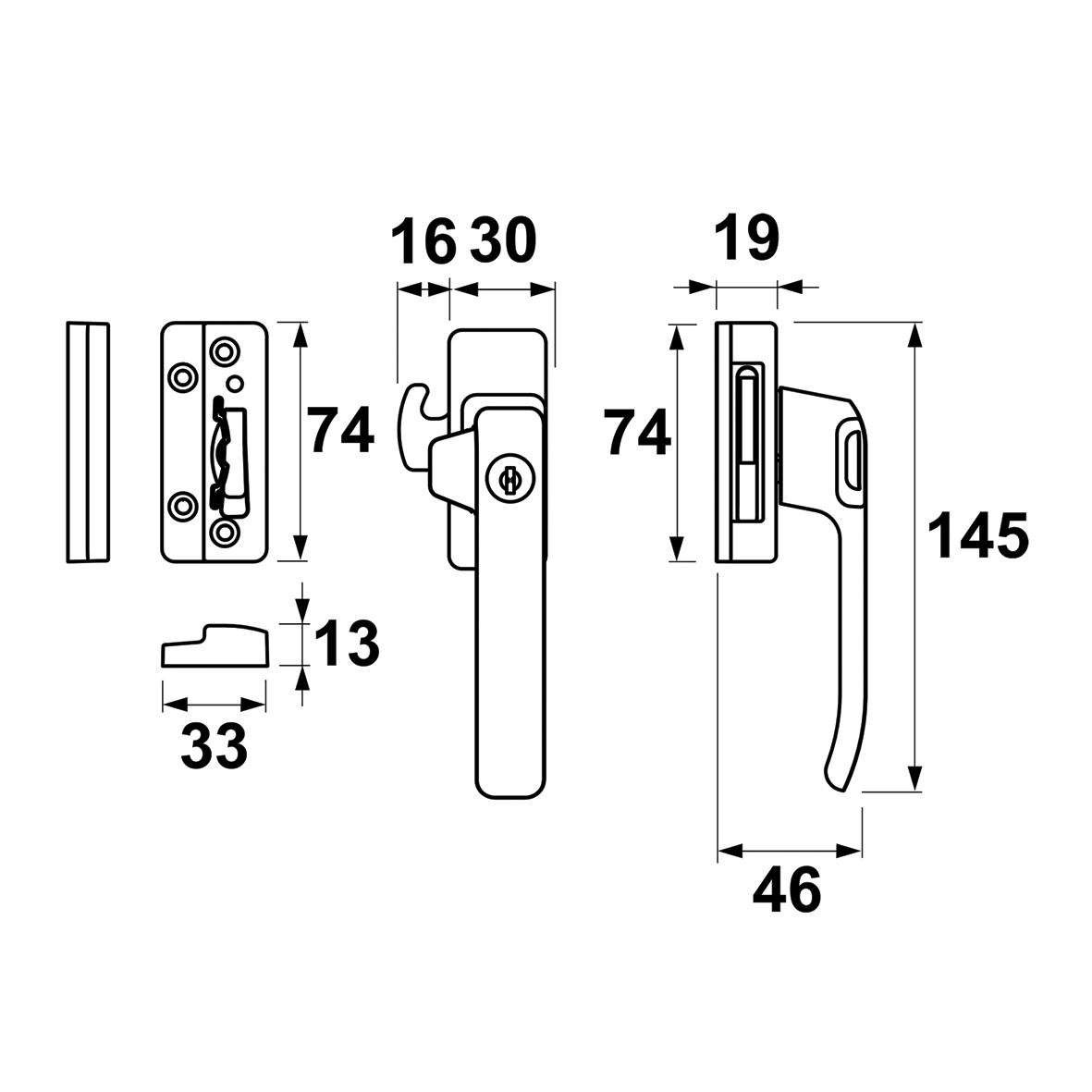

Product Length 145 mm
Product Width 30 mm
Product Height 46 mm
Direction of rotation right outward-opening
Bolt type hook bolt
Bolt catcher surface-mounted striker
Locking mechanisme cylinder lock
Number of Keys 1
Keyed alike True
Material Aluminum
Finish White lacquered
Material 2 zamac
Finish 2 White lacquered
Assembly information
Including Mounting Material True

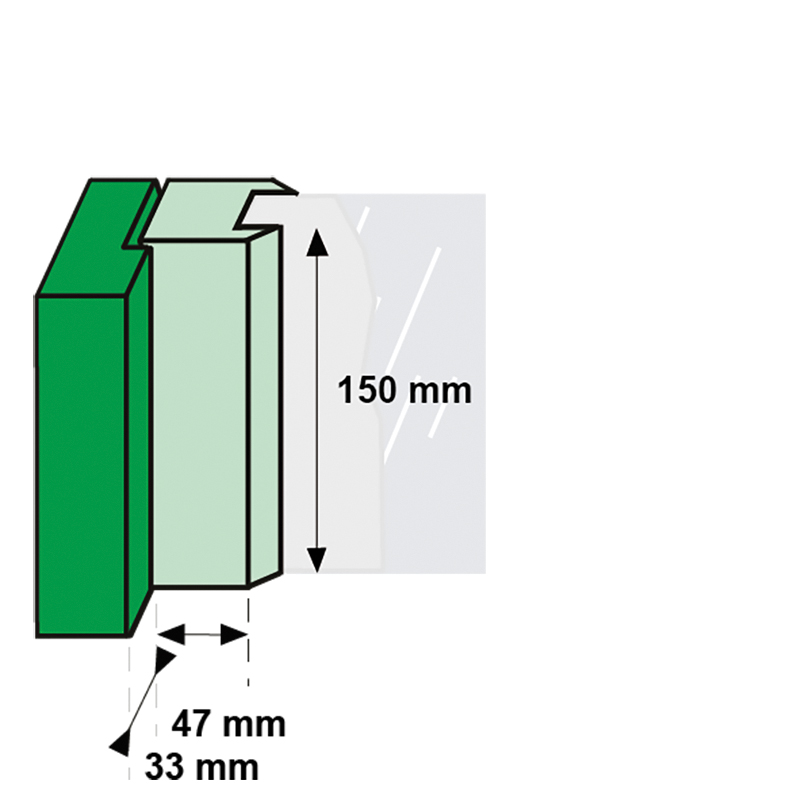

Mounting length 150 mm
Required depth wood frame 33 mm
Window/door mounting width requirement 47 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 2 pieces
- 4.0 x 50 mm screw: 6 pieces
or
- 4.0 x 40 mm screw: 4 pieces
- 4.0 x 50 mm screw: 2 pieces
- 4.0 x 40 mm screw: 2 pieces
- 4.0 x 50 mm screw: 6 pieces
or
- 4.0 x 40 mm screw: 4 pieces
- 4.0 x 50 mm screw: 2 pieces
Logistic information
Product Weight 476 gr
Pieces per small package 6 piece
EAN small package 8713249269580
Weight small package 2.96 kg
Dimensions small package 381 x 158 x 56 mm
Pieces per bulk package 36 piece
EAN bulk package 8713249269597
Weight bulk package 18.15 kg
Dimensions bulk package 390 x 320 x 180 mm
