Security window fastener 3319
3319-61-91/CP

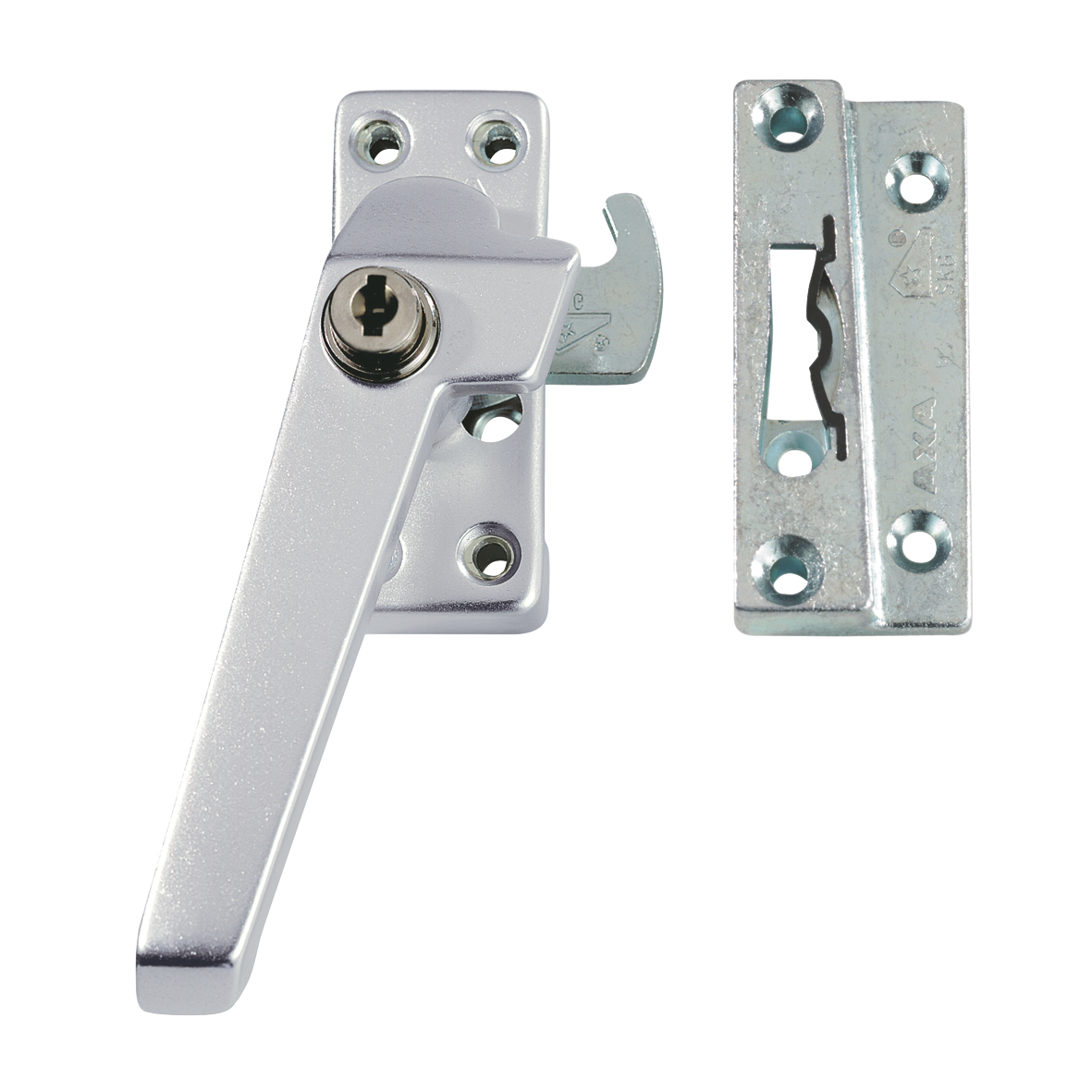

The popular AXA 3319 security window fastener features a ventilation cam while a sturdy hook bolt provides increased burglar-resistance.
- sturdy window fastener
- optimal ease of use: keyed-alike, just one key for the entire home
- complete with a special surface-mounted striker with a rattle-free ventilation cam holder and attachment materials
- with a separate washer plate if there is an aluminium draught strip in the groove and/or for windows with narrow frames
- child-proof: once locked, it cannot be opened by small children
- with a cylinder lock for locking
- complies with Police Hallmark for Safe Living and SKG1 (Faรงade Quality Institution hallmark)
- simple assembly
+
7
The popular AXA 3319 security window fastener features a ventilation cam while a sturdy hook bolt provides increased burglar-resistance.
- sturdy window fastener
- optimal ease of use: keyed-alike, just one key for the entire home
- complete with a special surface-mounted striker with a rattle-free ventilation cam holder and attachment materials
- with a separate washer plate if there is an aluminium draught strip in the groove and/or for windows with narrow frames
- child-proof: once locked, it cannot be opened by small children
- with a cylinder lock for locking
- complies with Police Hallmark for Safe Living and SKG1 (Faรงade Quality Institution hallmark)
- simple assembly
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Commercial information
Type 3319
Use for outward-opening casement windows and doors
Safety information
Burglarproof True
SKG SKG 1
Police Hallmark True
CE Applicable False

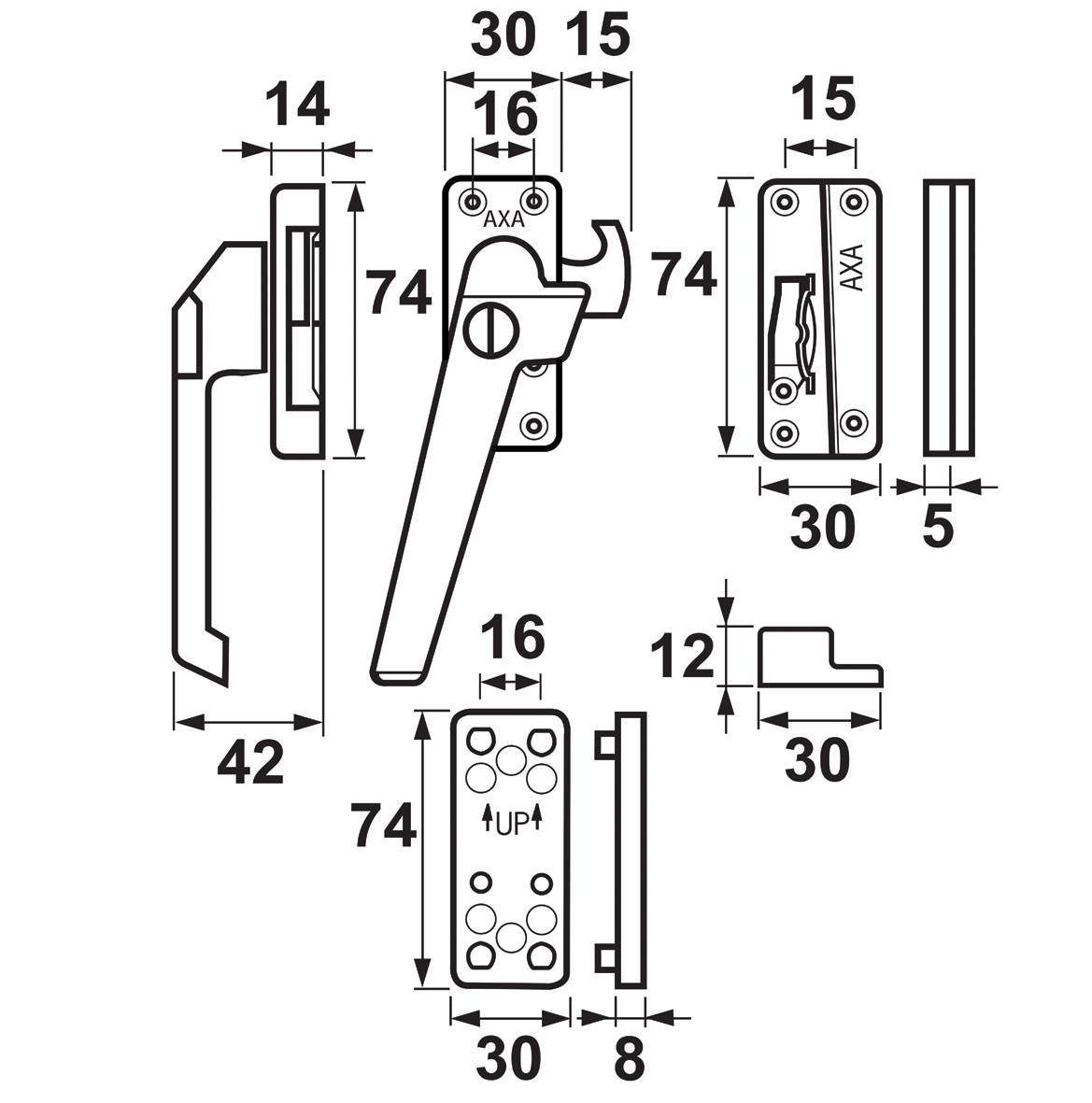

Technical information
Product Length 132 mm
Product Width 65 mm
Product Height 40 mm
Direction of rotation left outward-opening
Bolt type hook bolt
Bolt catcher surface-mounted striker
Locking mechanisme cylinder lock
Number of Keys 1
Keyed alike True
Material Aluminum
Finish Polished anodised F1, natural
Material 2 zamac
Finish 2 Galvanized
Assembly information
Including Mounting Material True

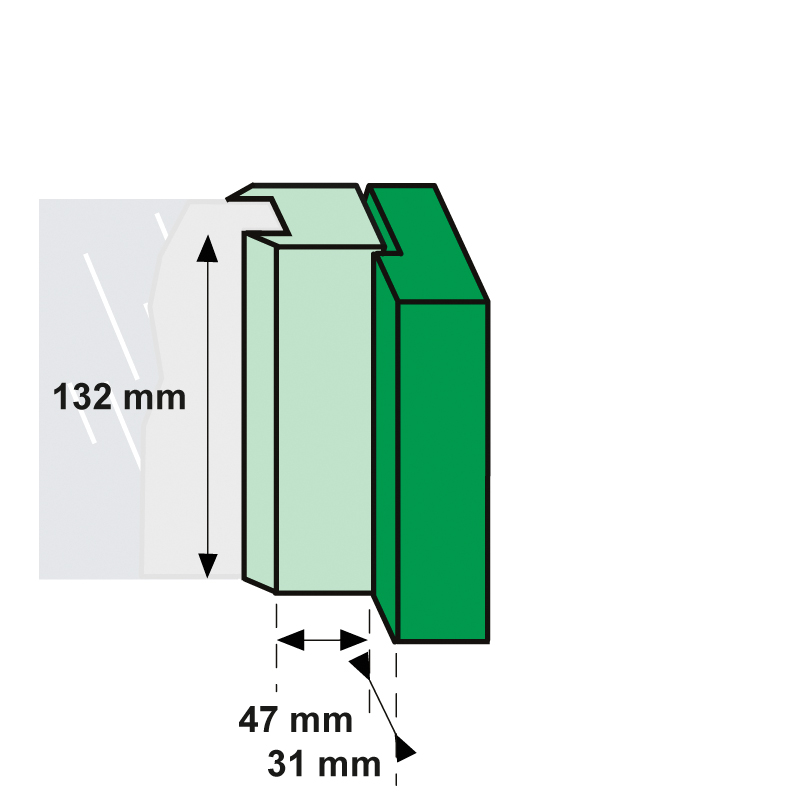

Mounting length 132 mm
Required depth wood frame 39 mm
Window/door mounting width requirement 47 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Logistic information
Pieces per small package 1 piece
EAN small package 8713249356112
Dimensions small package 205 x 85 x 60 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249356129
Dimensions bulk package 355 x 180 x 125 mm
