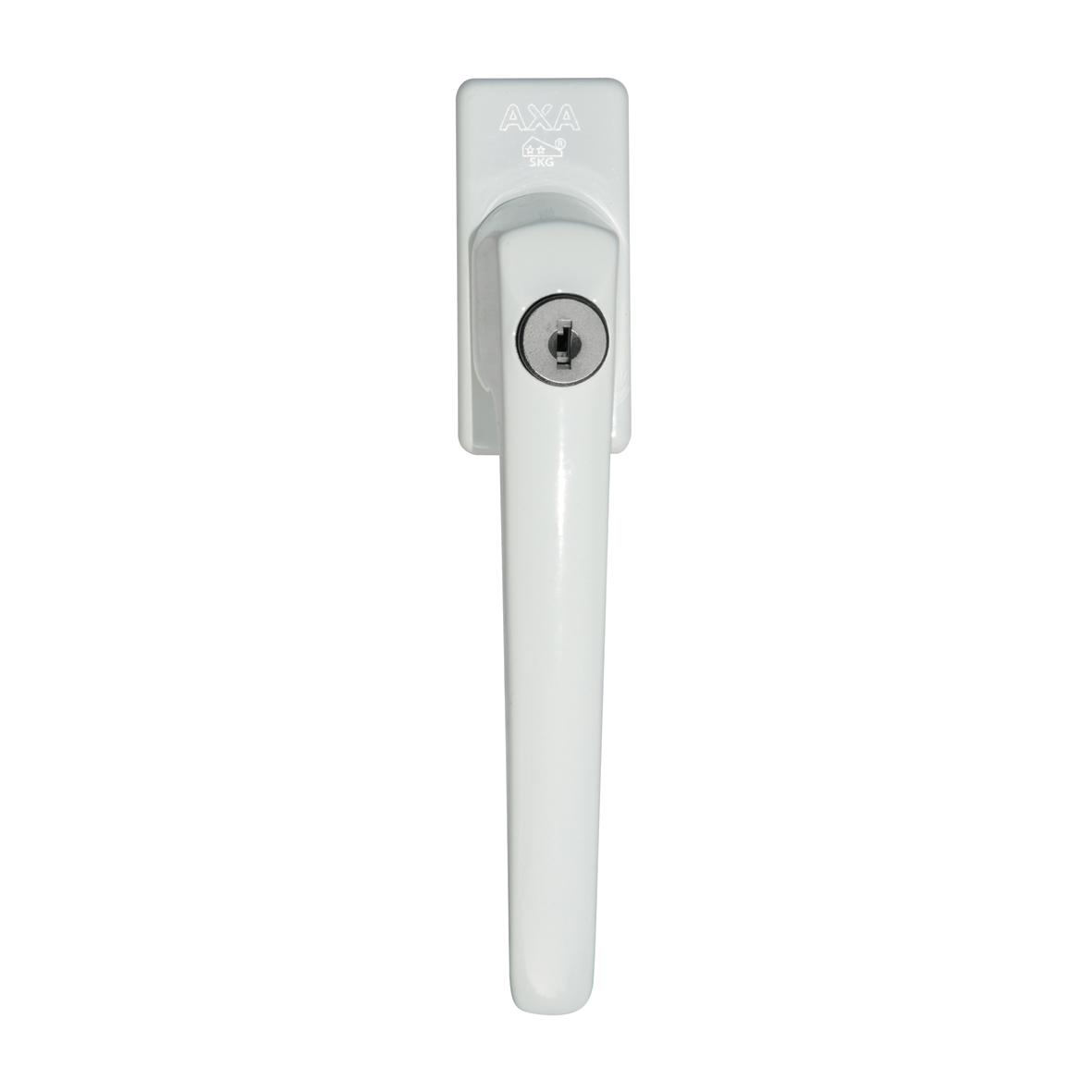

Security tilt-and-turn window handle L
3350-10-88/E
The AXA tilt-and-turn security window handle is lockable and guarantees the problem-free operation of tilt and turn windows.
- optimal ease of use: just one key for the entire home
- lockable
- no visible attachment points
- child-proof: once locked, it cannot be opened by small children
- complies with Police Hallmark for Safe Living and SKG2 (Façade Quality Institution hallmark)
- simple assembly
The AXA tilt-and-turn security window handle is lockable and guarantees the problem-free operation of tilt and turn windows.
- optimal ease of use: just one key for the entire home
- lockable
- no visible attachment points
- child-proof: once locked, it cannot be opened by small children
- complies with Police Hallmark for Safe Living and SKG2 (Façade Quality Institution hallmark)
- simple assembly
Specifications
Recommended Mounting Materials
- bolt M5 x 45 mm: 2 pieces
- bolt M5 x 45 mm: 2 pieces
Commercial information
Type L
Use for tilt and turn windows
Safety information
Burglarproof True
SKG SKG 2
Police Hallmark True
CE Applicable False
Technical information
Product Length 158 mm
Product Width 30 mm
Product Height 50 mm
Direction of rotation inward-opening
Locking mechanisme cylinder lock
Spindle dimension 7 x 32 mm
Number of Keys 1
Keyed alike True
Material Aluminum
Finish White lacquered
Assembly information
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- bolt M5 x 45 mm: 2 pieces
- bolt M5 x 45 mm: 2 pieces
Logistic information
Product Weight 204 gr
Pieces per small package 10 piece
EAN small package 8713249130620
Weight small package 2.15 kg
Dimensions small package 164 x 116 x 153 mm
Pieces per bulk package 60 piece
EAN bulk package 8713249130637
Weight bulk package 13.12 kg
Dimensions bulk package 390 x 320 x 180 mm
Downloads

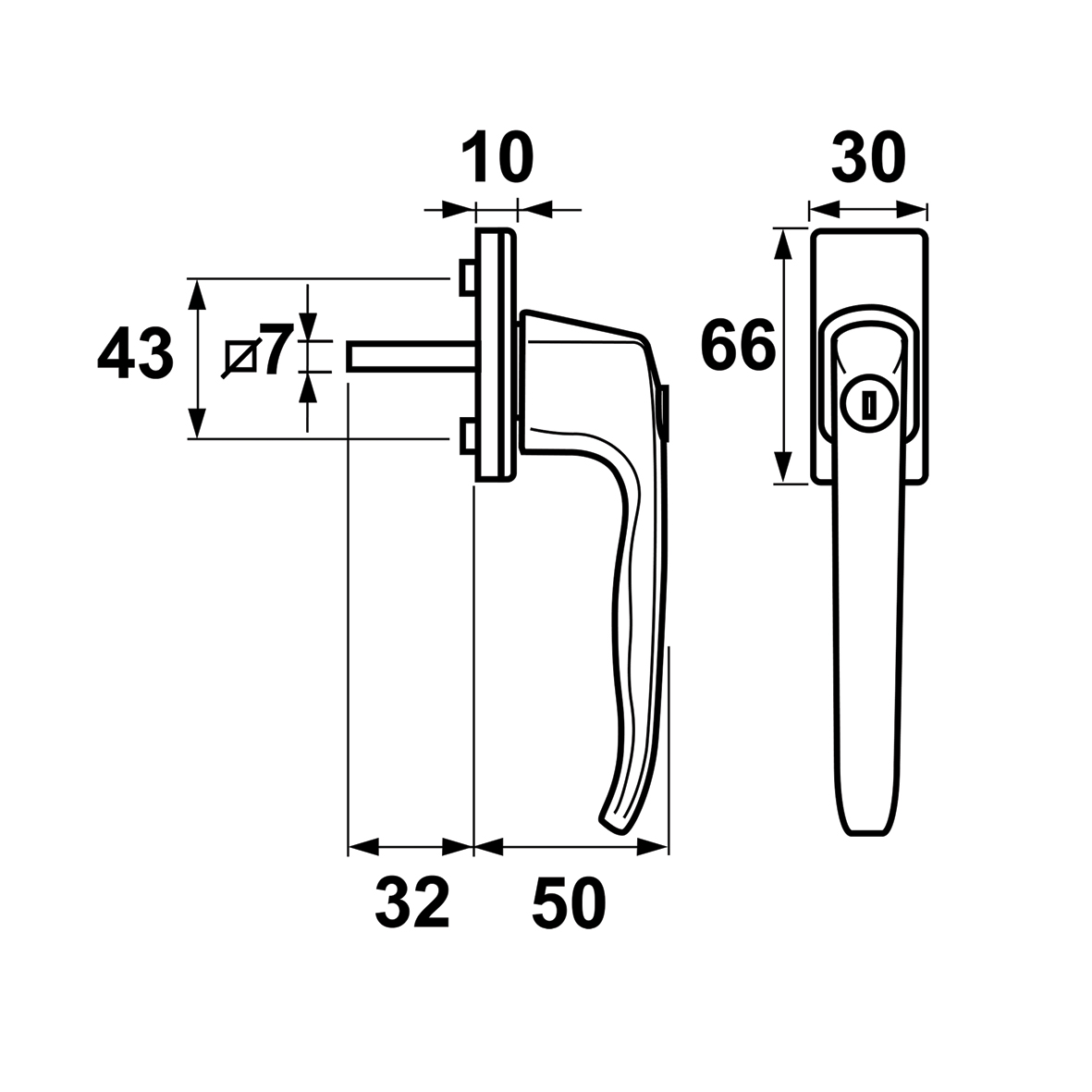

Main Image Environmental Product Declaration (EPD)Technical drawings
