Security split hinge ball-bearing

1202-28-23/V4
arrow_selector
close

SKG 3

Police Hallmark

The AXA Safety ball-bearing split hinge is smooth-running, burglar-resistant and has a high bearing capacity.

  • security model with built-in security pin
  • extra wide, especially for wide opening doors
  • smooth-running
  • complies with the Police Hallmark for Safe Living and SKG3
Specifications Downloads Technical drawings Alternative products
Commercial information
expand_more
Type ball-bearing
Use for wide opening exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE certificate of conformity True
Technical information
expand_more
Product Width 150 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 16 mm
Corner shape round corner
Bearing ball bolt
Direction of rotation outward-opening
Direction of rotation DIN DIN right outward-opening (4)
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 40 kg
Load bearing capacity 3 hinges 50 kg
Load bearing capacity 4 hinges 65 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 45 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 427 gr
Pieces per small package 4 piece
EAN small package 8713249095059
Weight small package 1.75 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 16 piece
EAN bulk package 8713249095066
Weight bulk package 7.16 kg
Dimensions bulk package 200 x 150 x 120 mm

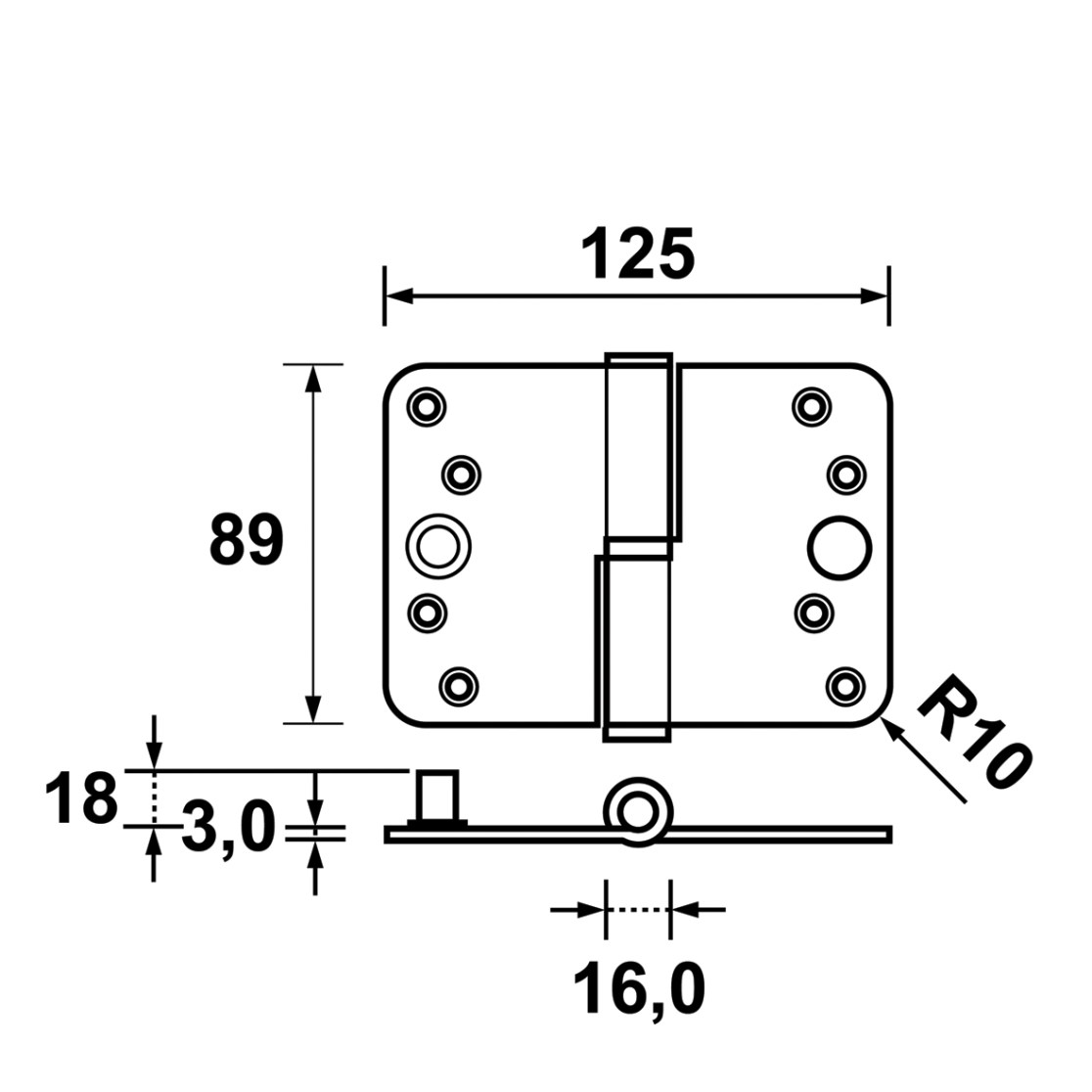

Technical drawings
Security split hinge ball-bearing
12022823V4
