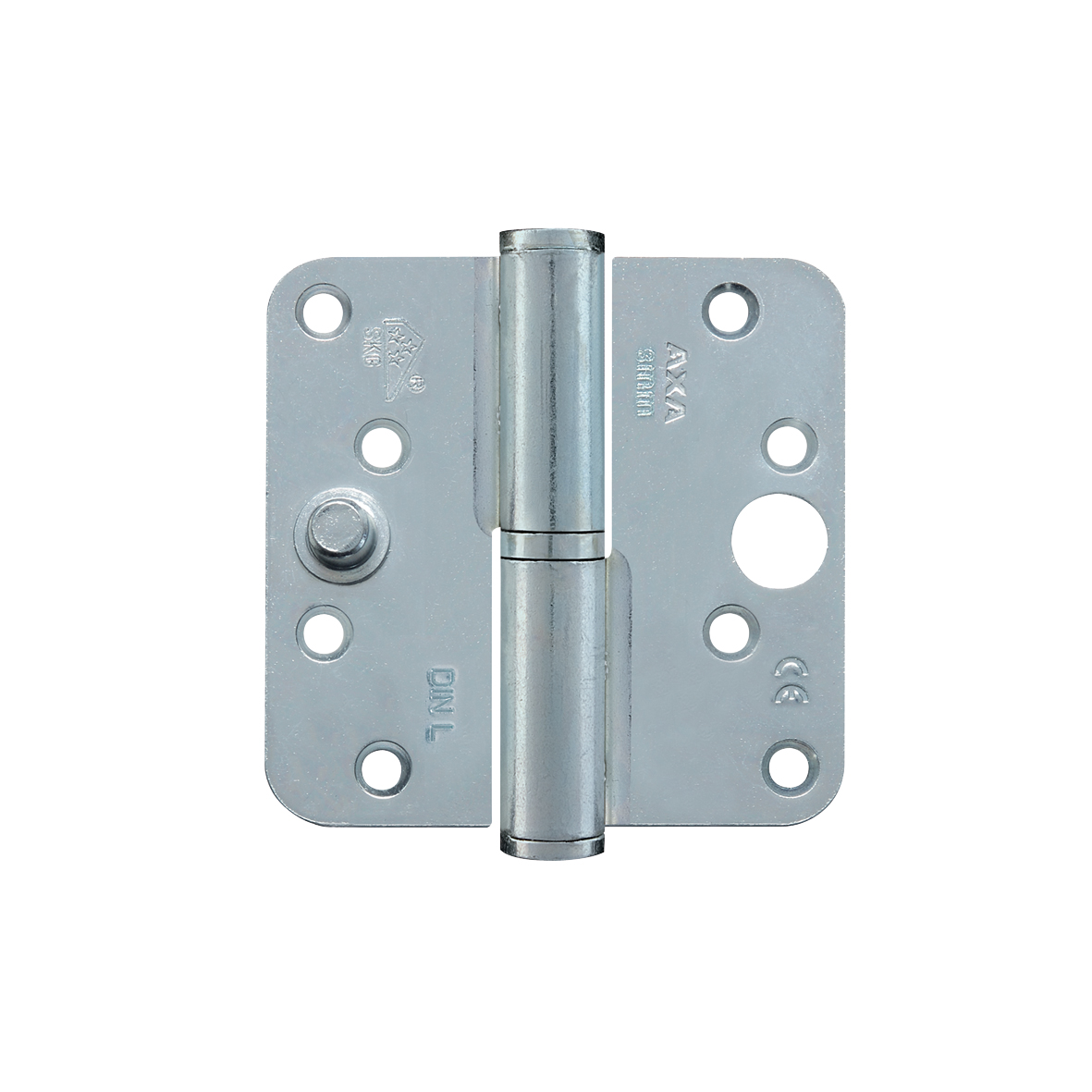

Security split hinge ball-bearing
1203-35-23/V4E
The AXA Safety ball-bearing split hinge is smooth-running, burglar-resistant and has a high bearing capacity.
- security model with built-in security pin
- smooth-running
- high bearing capacity
- complies with the Police Hallmark for Safe Living and SKG3
The AXA Safety ball-bearing split hinge is smooth-running, burglar-resistant and has a high bearing capacity.
- security model with built-in security pin
- smooth-running
- high bearing capacity
- complies with the Police Hallmark for Safe Living and SKG3
Specifications
Recommended Mounting Materials
- 4.0 x 45 mm screw: 8 pieces
- 4.0 x 45 mm screw: 8 pieces
Commercial information
Type ball-bearing
Use for exterior doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True

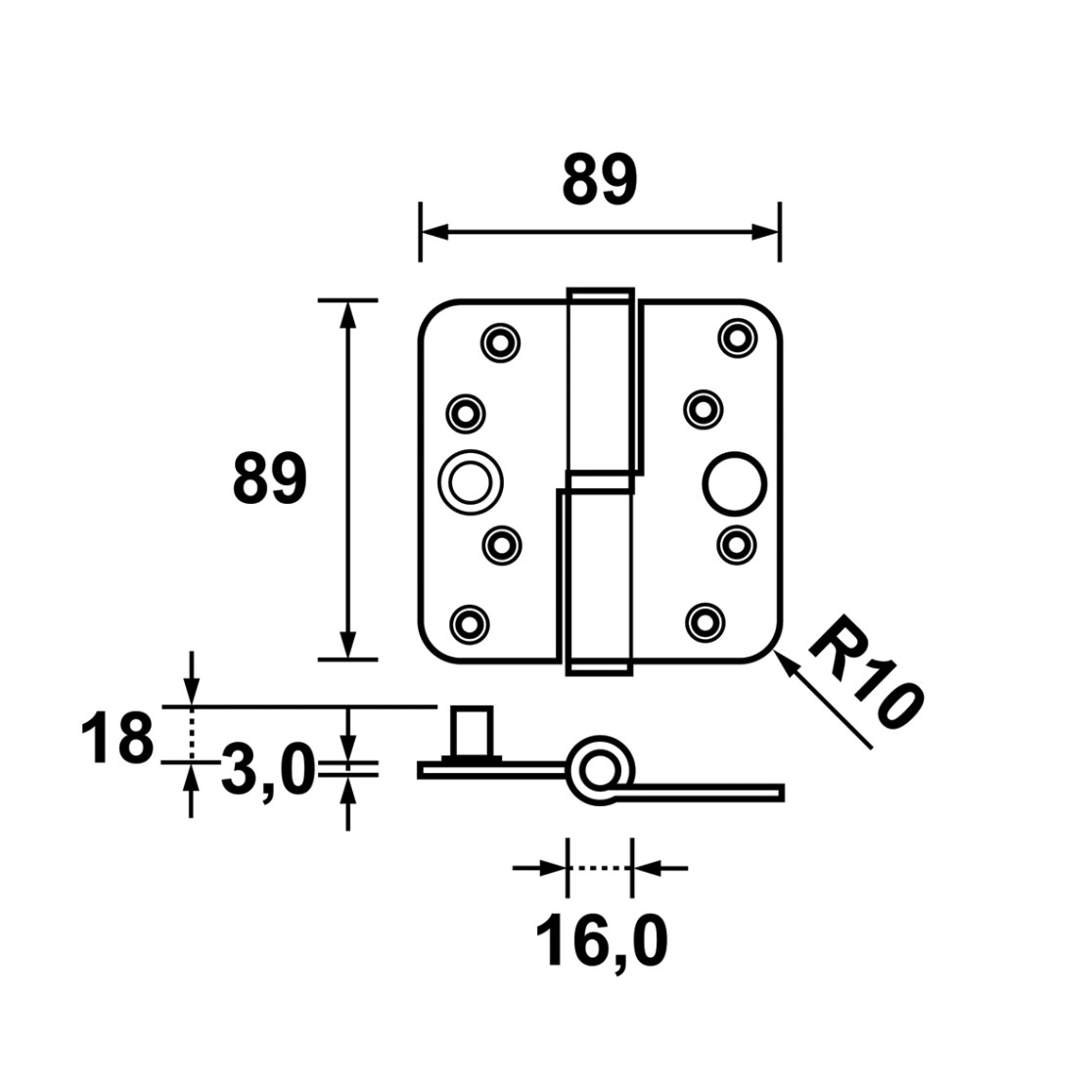

Technical information
Product Width 89 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 16 mm
Corner shape round corner
Bearing ball bolt
Direction of rotation outward-opening
Direction of rotation DIN DIN left outward-opening (3)
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 65 kg
Load bearing capacity 3 hinges 90 kg
Load bearing capacity 4 hinges 105 kg
Material Steel
Finish Topcoat galvanized
Assembly information
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 45 mm screw: 8 pieces
- 4.0 x 45 mm screw: 8 pieces
Logistic information
Product Weight 378 gr
Pieces per small package 4 piece
EAN small package 8713249084480
Weight small package 1.55 kg
Dimensions small package 116 x 68 x 62 mm
Pieces per bulk package 48 piece
EAN bulk package 8713249084497
Weight bulk package 6.34 kg
Dimensions bulk package 290 x 200 x 120 mm
