Security rosettes Edge Plus narrow core protection
6787-00-91/E
Reliable and stylish Edge Plus burglar-resistant security rosettes.
- sturdy and reliable
- with Self-aligning Cylinder Core Protection (SCP)
- possible to use on all doors with a thickness from 38 to 40 mm
- extended handle spindles and bolts are available for thicker doors
- complies with the Police Hallmark for Safe Living and SKG***
- complete with attachment materials
Reliable and stylish Edge Plus burglar-resistant security rosettes.
- sturdy and reliable
- with Self-aligning Cylinder Core Protection (SCP)
- possible to use on all doors with a thickness from 38 to 40 mm
- extended handle spindles and bolts are available for thicker doors
- complies with the Police Hallmark for Safe Living and SKG***
- complete with attachment materials
Specifications
Recommended Mounting Materials
- M6 x 50 mm bolt: 2 pieces
- M6 x 50 mm bolt: 2 pieces
Commercial information
Type Edge Plus narrow core protection
Use for exterior doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
Product Length 127 mm
Product Width 38 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Shape right
Material Aluminum
Finish Anodised F1, natural
Assembly information
Including Mounting Material True
Assembly time 15 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 2 pieces
- M6 x 50 mm bolt: 2 pieces
Logistic information
Pieces per small package 6 piece
EAN small package 8713249290034
Weight small package 76 kg
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 60 piece
EAN bulk package 8713249290041
Weight bulk package 448 kg
Dimensions bulk package 530 x 320 x 171 mm
Downloads

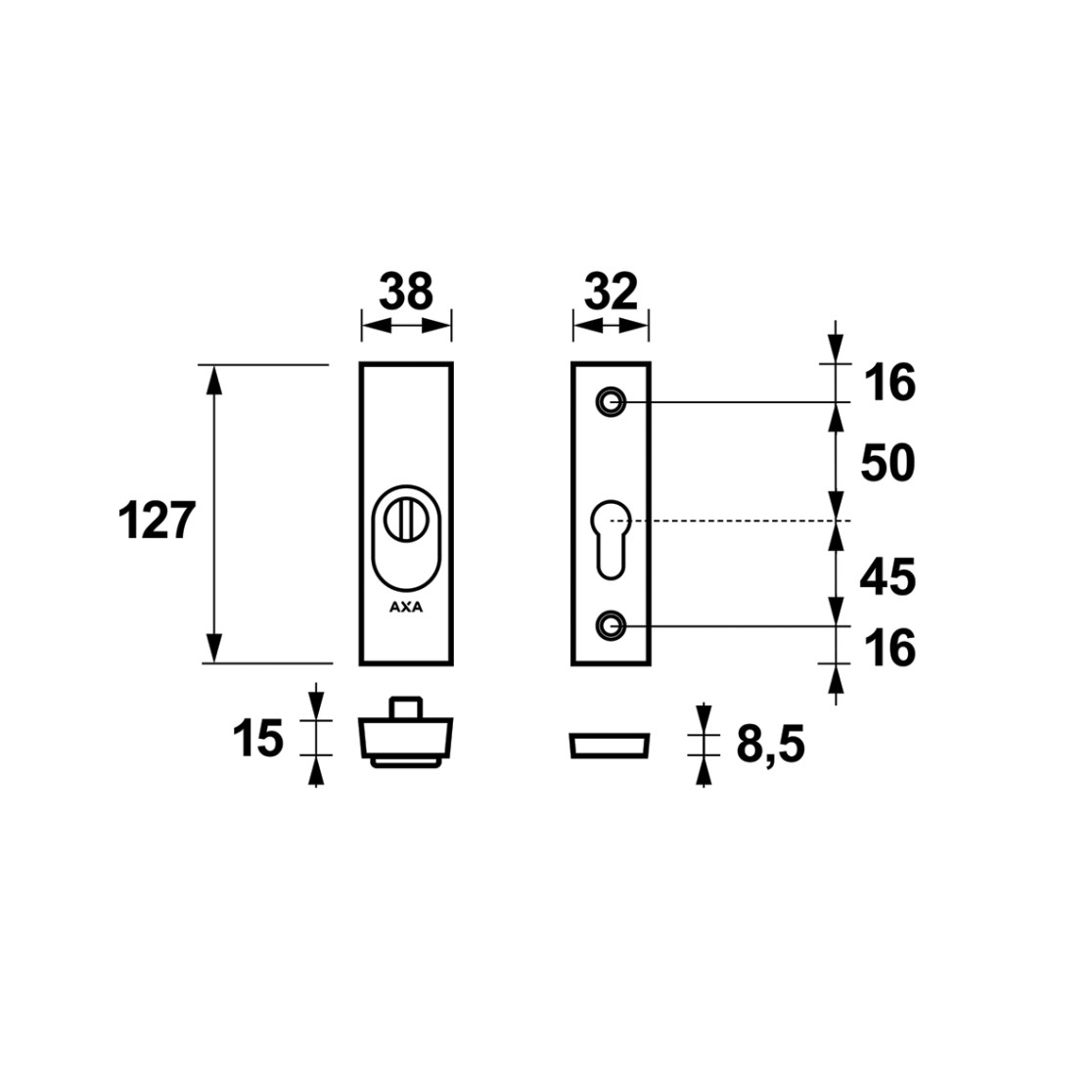

Main Image Brochure SKG Certificate Environmental Product Declaration (EPD)Technical drawings
