Security rim lock 3016

3016-00-98/G
arrow_selector
close

SKG 2

Police Hallmark

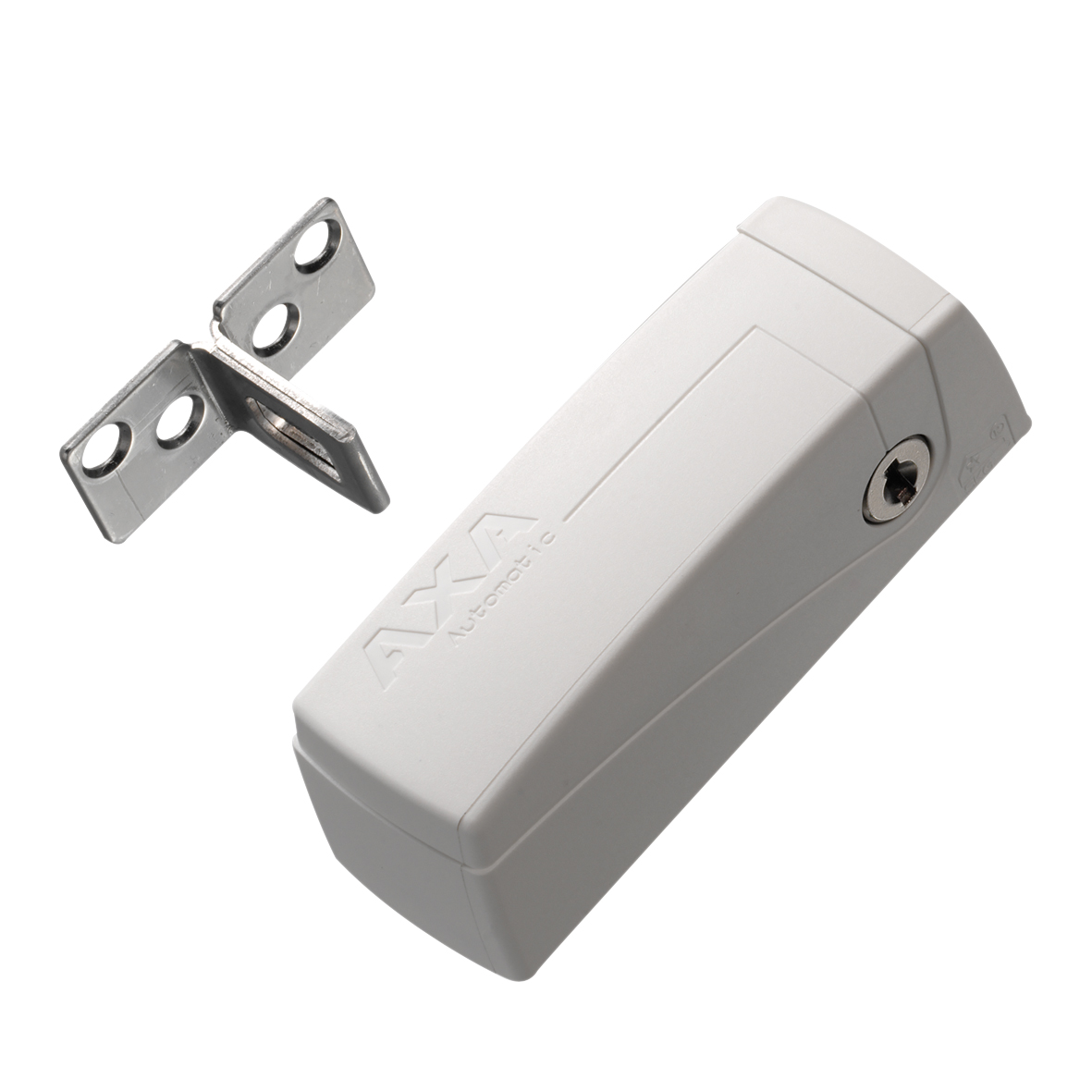

The strong AXA rim lock 3016 increases the burglar-resistance of different types of outward-opening windows.

  • automatic locking
  • optimal ease of use: keyed-alike, just one key for the entire home
  • complete with closing loop and attachment materials
  • complies with Police Hallmark for Safe Living and SKG2 (Façade Quality Institution hallmark)
  • simple assembly
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 5.0 x 60 mm screw: 2 pieces
Commercial information
expand_more
Type 3016
Use for outward-opening casement, hopper and top-hung windows and patio doors
Safety information
expand_more
Burglarproof True
SKG SKG 2
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 95 mm
Product Width 37 mm
Product Height 34 mm
Direction of rotation outward-opening
Bolt type hook bolt
Bolt catcher closing loop
Locking mechanisme cylinder lock
Number of Keys 1
Keyed alike True
Material Synthetic
Finish White
Material 2 zamac
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material True
Mounting length 95 mm
Required depth wood frame 37 mm
Window/door mounting width requirement 34 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 5.0 x 60 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 268 gr
Pieces per small package 1 piece
EAN small package 8713249106977
Weight small package 0.27 kg
Dimensions small package 94 x 68 x 57 mm
Pieces per bulk package 16 piece
EAN bulk package 8713249106984
Weight bulk package 4.5 kg
Dimensions bulk package 290 x 200 x 120 mm

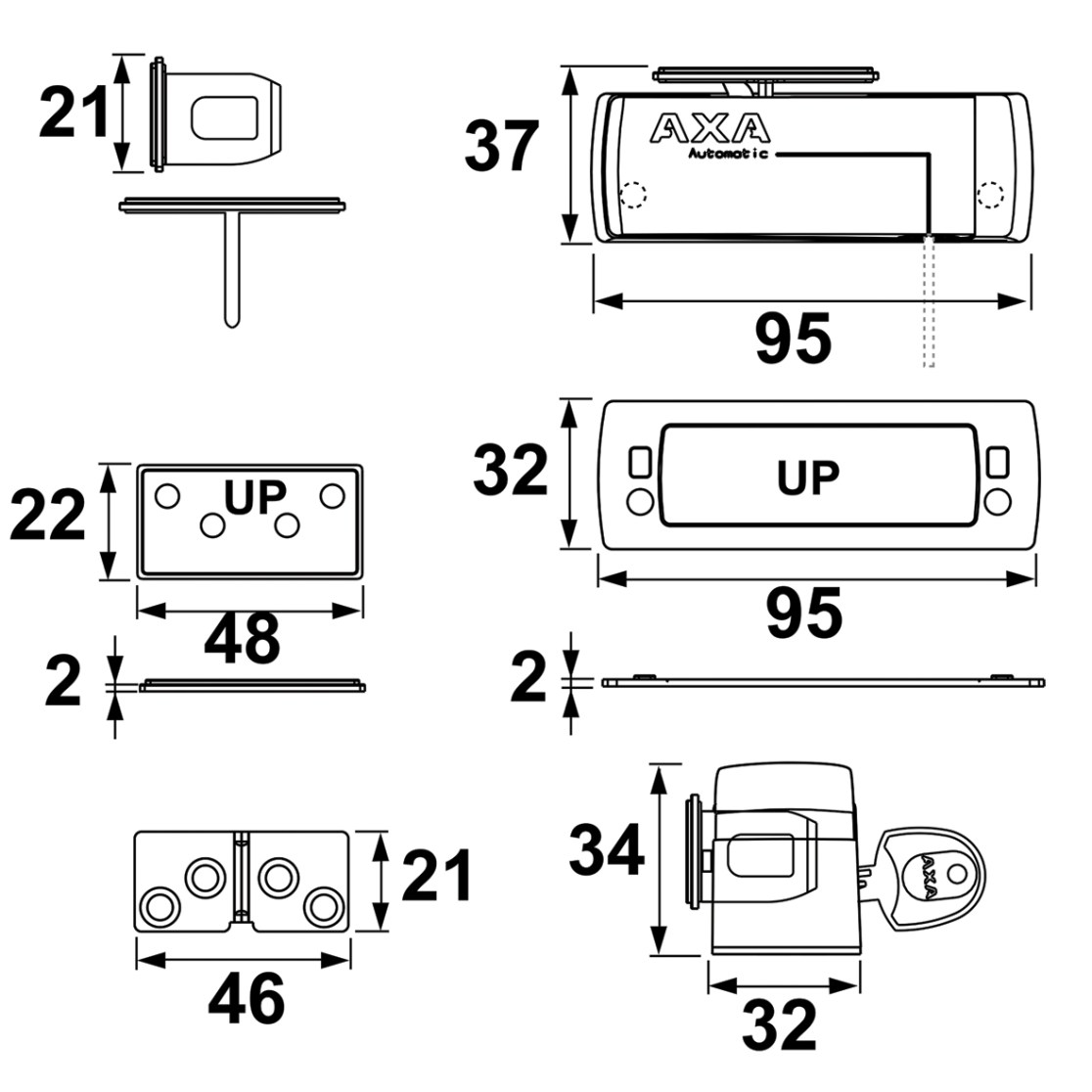

Technical drawings
