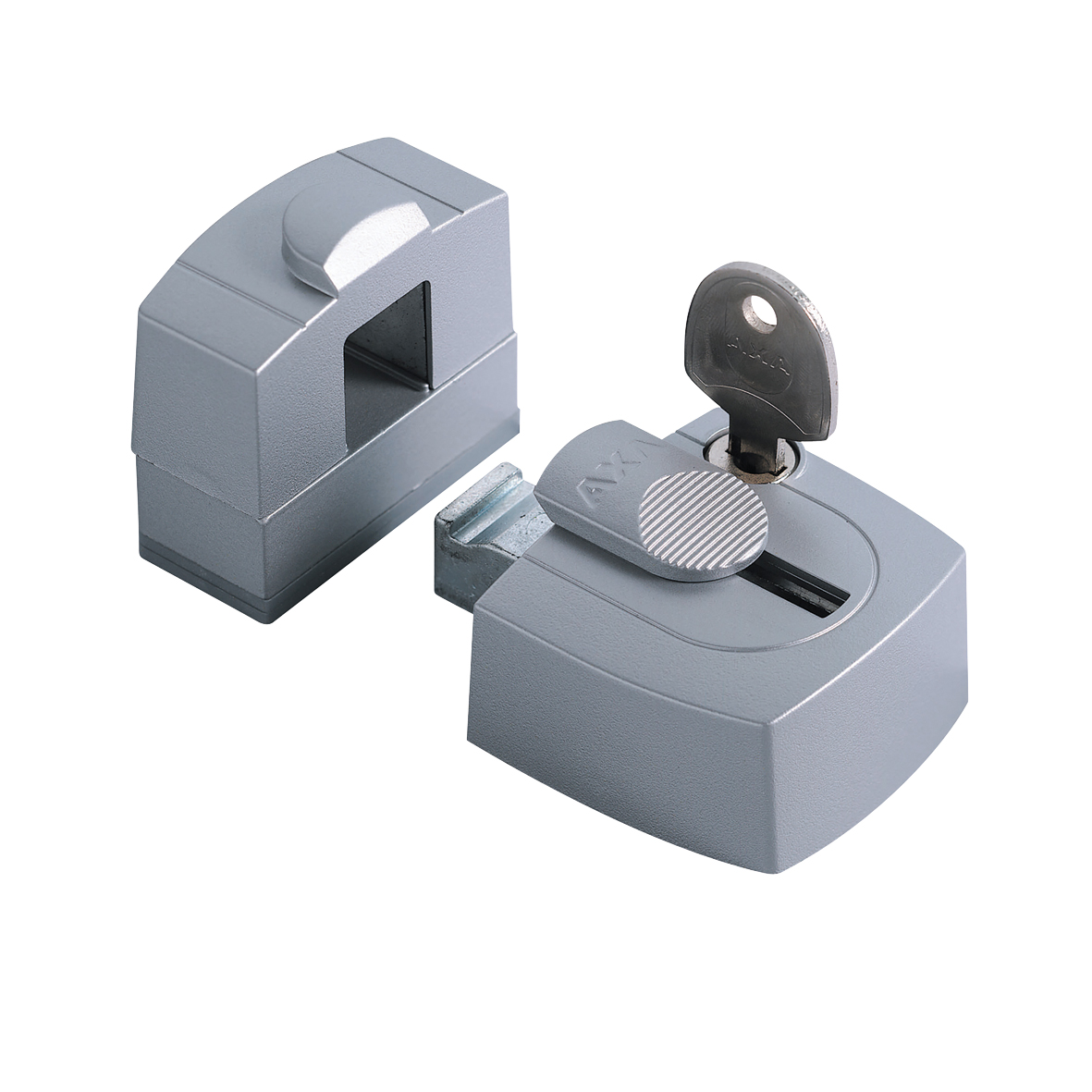

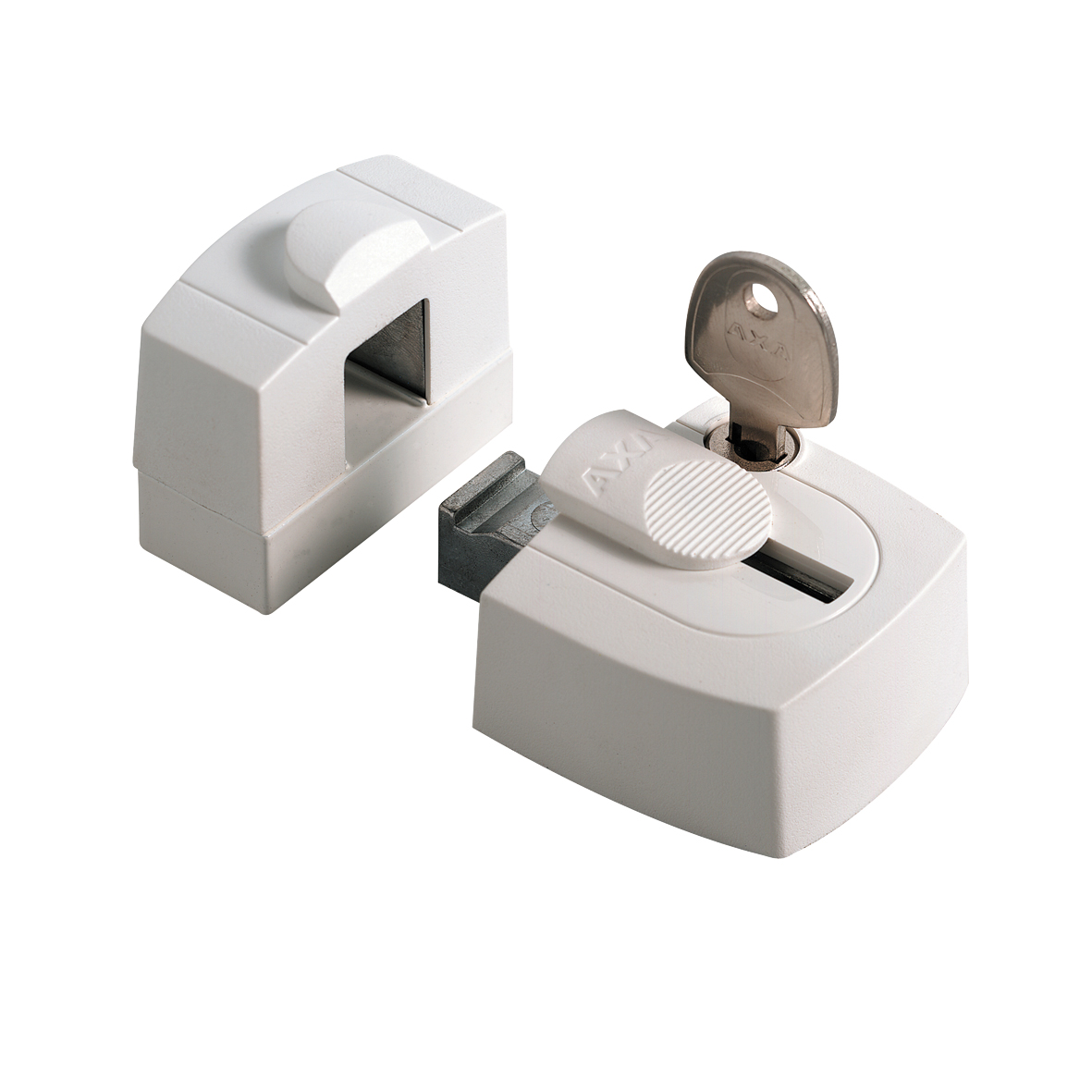

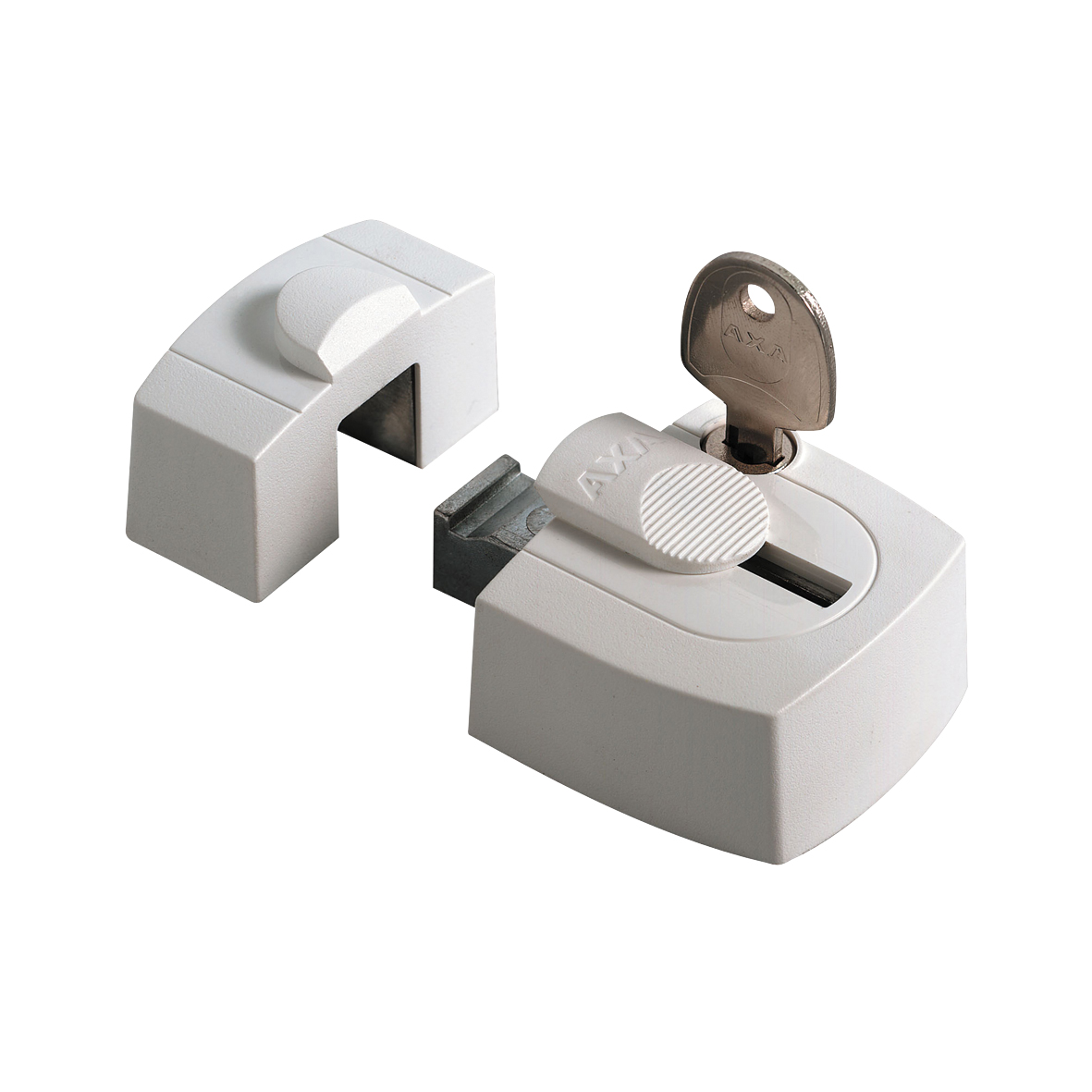

Security rim lock 3015

3015-00-98/G
arrow_selector
close

SKG 1

Police Hallmark

The handy AXA rim lock 3015 increases the burglar-resistance of different types of inward-opening windows.

  • lockable
  • optimal ease of use: keyed-alike, just one key for the entire home
  • complete with surface-mounted striker and attachment materials
  • complies with Police Hallmark for Safe Living and SKG1 (FaΓ§ade Quality Institution hallmark)
  • simple assembly
Specifications Downloads Technical drawings Associated products Alternative products
Commercial information
expand_more
Type 3015

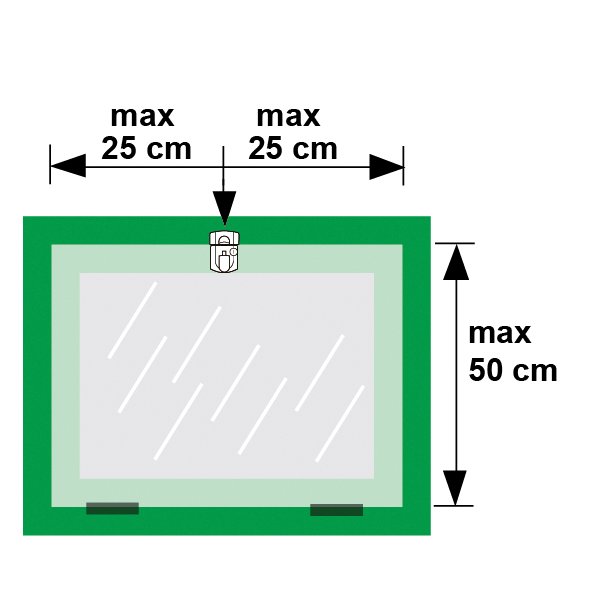

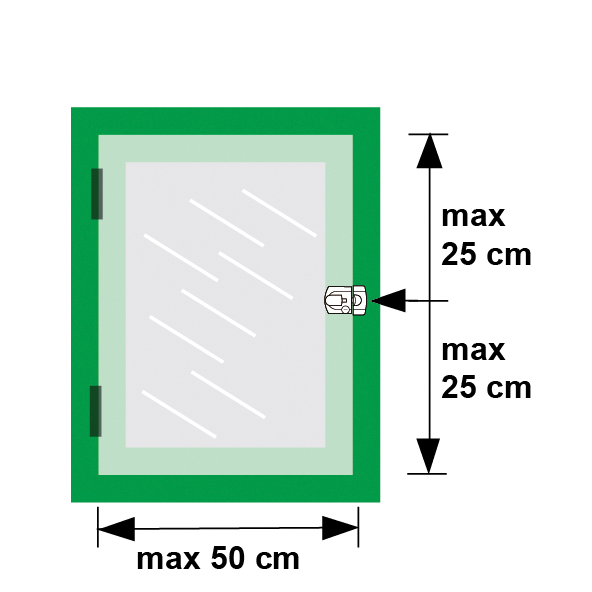

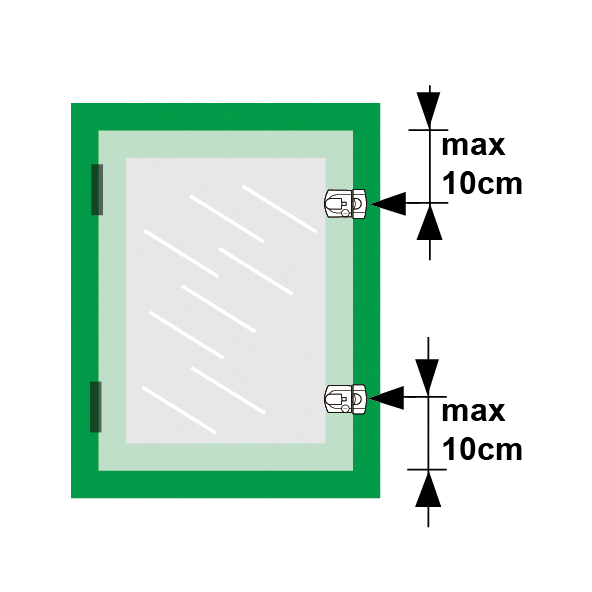

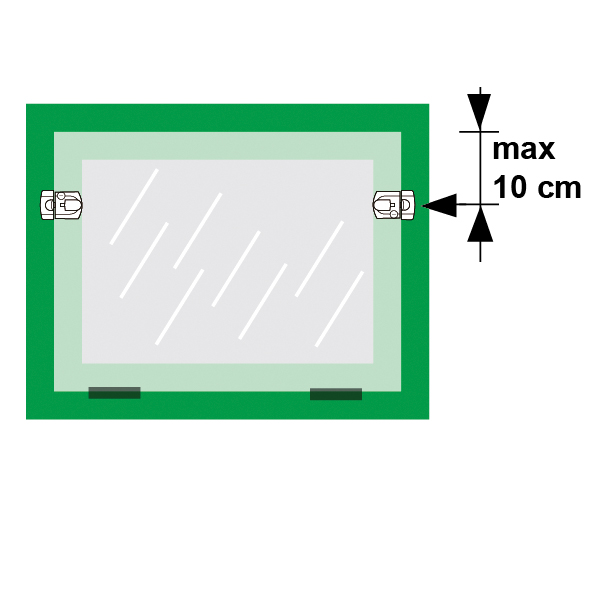

Use for inward-opening, wooden casement, tilt-and-turn and bottom-hung windows
Safety information
expand_more
Burglarproof True
SKG SKG 1
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 69 mm
Product Width 51 mm
Product Height 25 mm
Direction of rotation inward-opening
Bolt type hook bolt
Bolt catcher surface-mounted striker
Locking mechanisme cylinder lock
Number of Keys 1
Keyed alike True
Material Synthetic
Finish White
Material 2 zamac
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material True

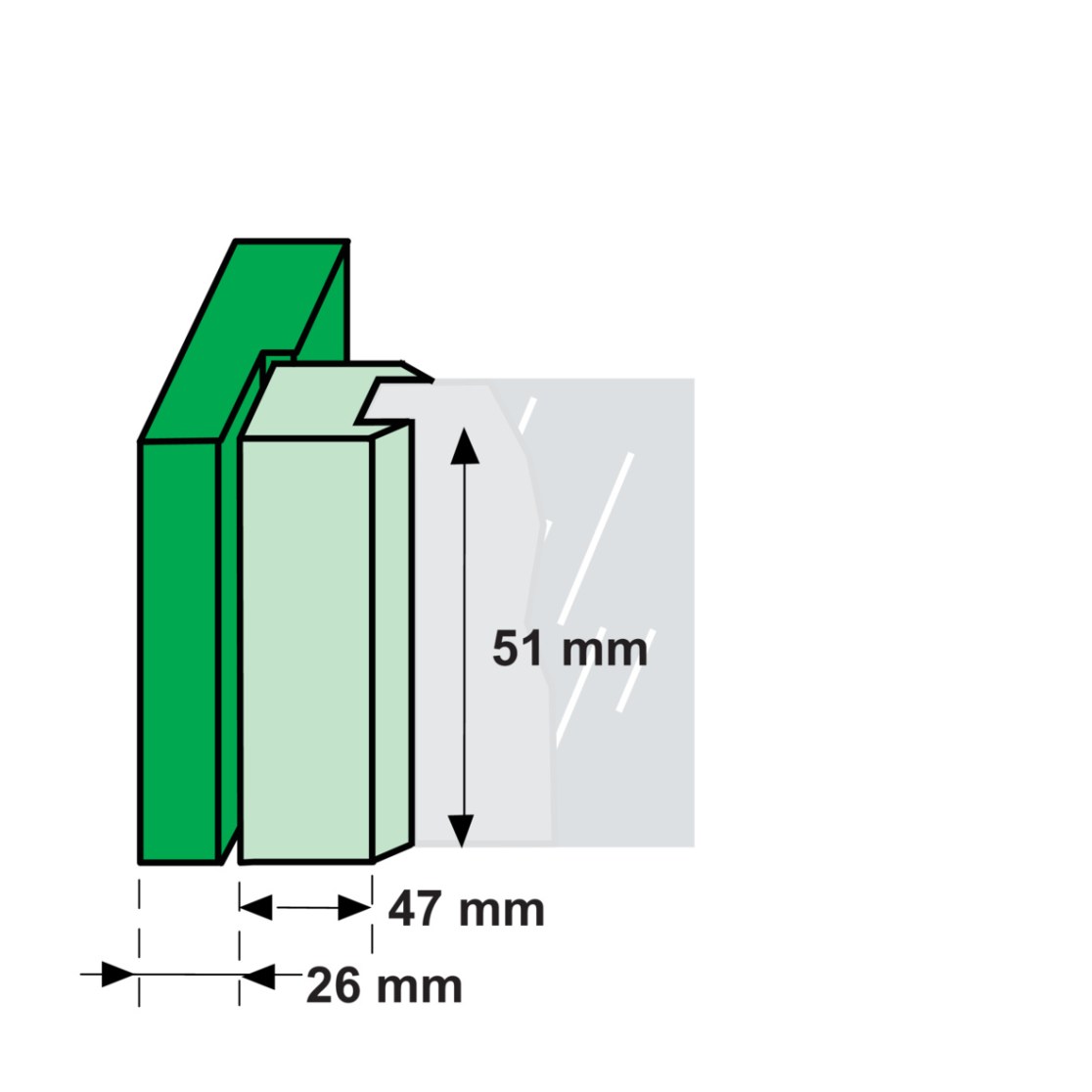

Mounting length 47 mm
Window/door mounting width requirement 47 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 5.0 x 80 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 307 gr
Pieces per small package 1 piece
EAN small package 8713249036885
Weight small package 0.31 kg
Dimensions small package 94 x 68 x 57 mm
Pieces per bulk package 16 piece
EAN bulk package 8713249051406
Weight bulk package 5.16 kg
Dimensions bulk package 290 x 200 x 120 mm

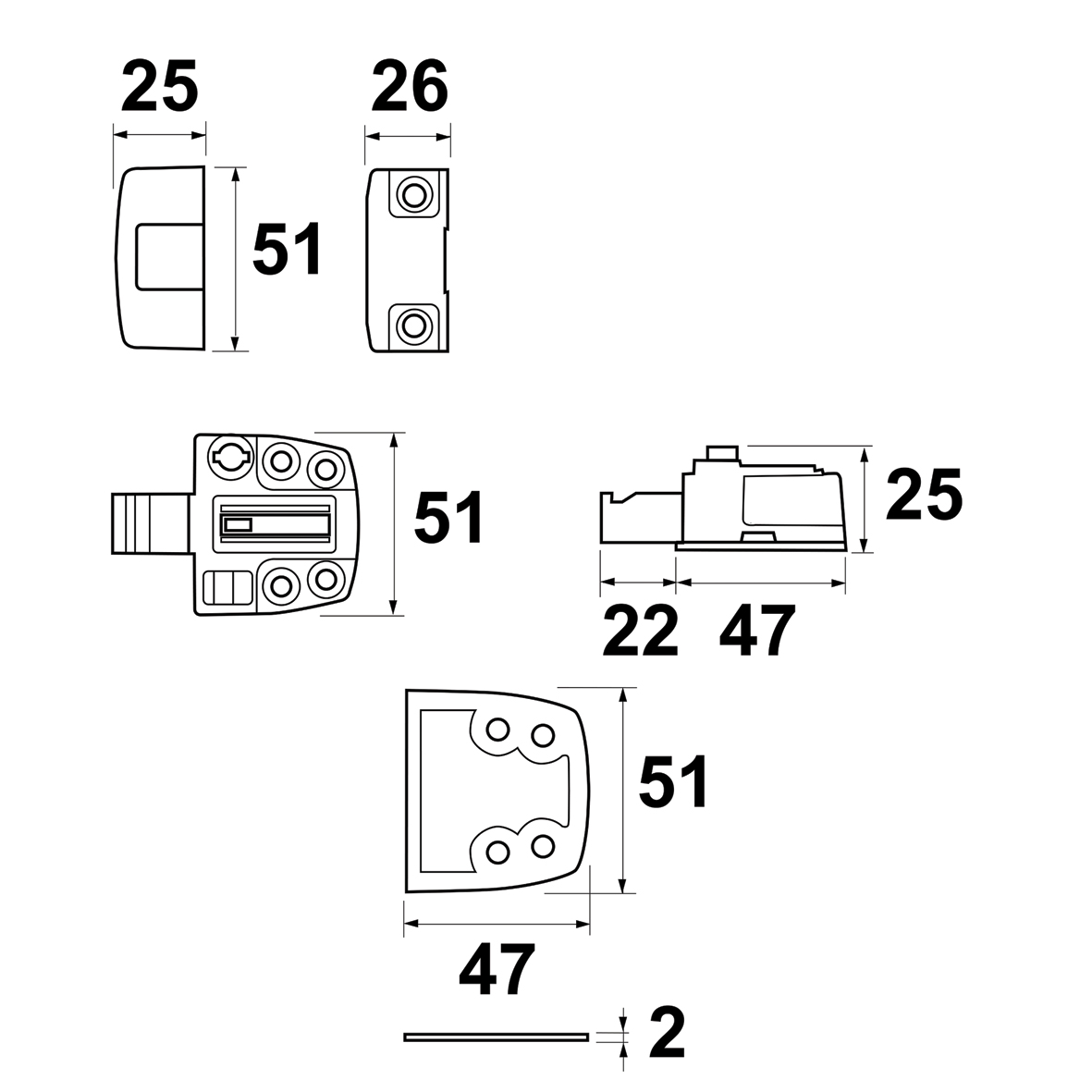

Technical drawings
Security rim lock 3015
30150098G
