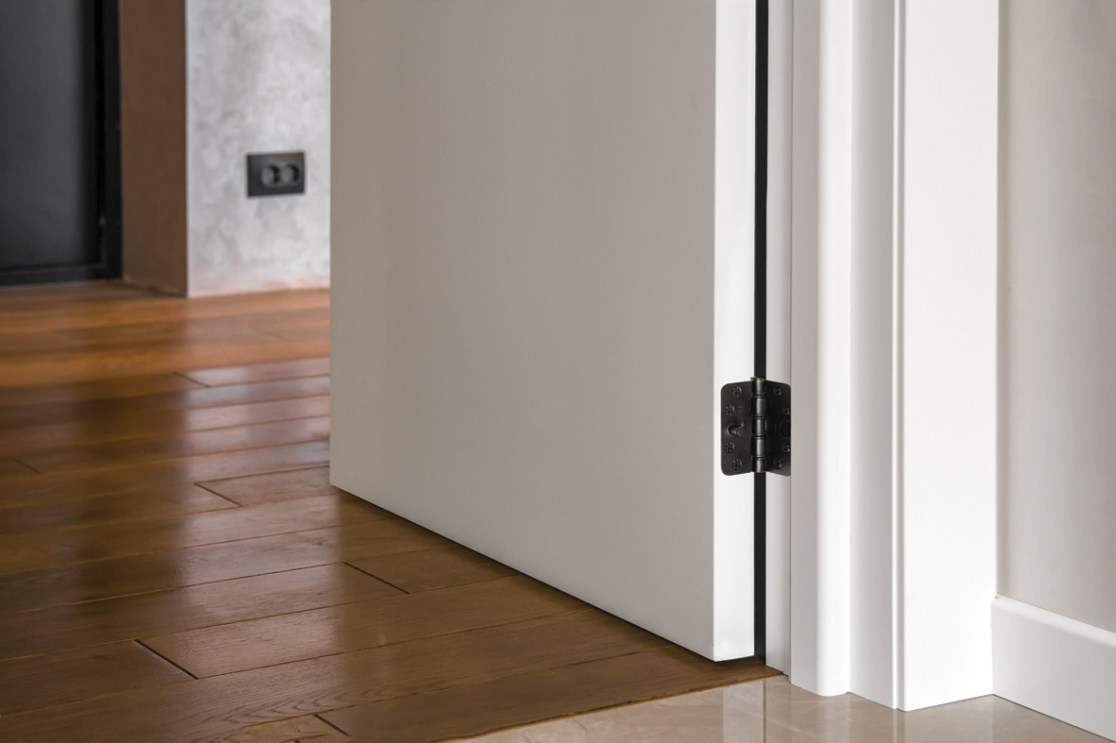

Security hinge Smart Easyfix

1687-09-56/VE
arrow_selector
close

SKG 3

Police Hallmark
  • security model with built-in anti-burglary pin
  • very smooth-running, silent, wear-resistant and self-lubricating, making black marks on the paintwork a thing of the past
  • high bearing capacity thanks to pressure distribution over two points
  • with distance from jamb limiter
  • with special, chamfered, self-aligning AXA-POM bearings. These bearings have a fixation collar that stops them from falling out of the hinge
  • the special star-shaped screw holes reduce the chance of screw breakage
  • complies with the Police Hallmark for Safe Living and SKG3
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Commercial information
expand_more
Type Smart Easyfix
Use for wide opening windows and exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True
Technical information
expand_more
Product Width 89 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 15 mm
Corner shape round corner
Bearing AXApom synthetic bearing
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 85 kg
Load bearing capacity 3 hinges 125 kg
Load bearing capacity 4 hinges 145 kg
Material Steel
Finish Black lacquered
Assembly information
expand_more
Including Mounting Material False
Logistic information
expand_more
Product Weight 248 gr
Pieces per small package 6 piece
EAN small package 8713249259147
Weight small package 1.53 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 48 piece
EAN bulk package 8713249259154
Weight bulk package 12.43 kg
Dimensions bulk package 290 x 200 x 120 mm
