Security hinge Smart Easyfix
1687-09-23/7V

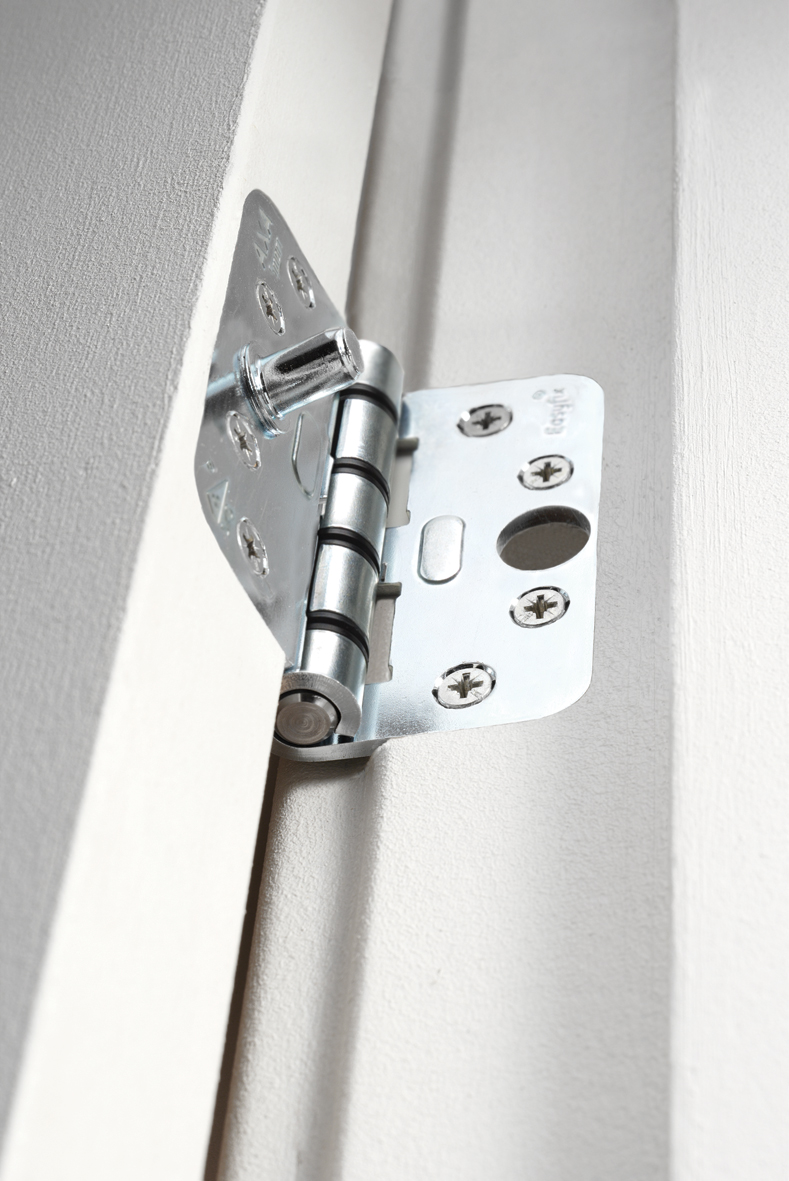

The AXA Smart Easyfix® security hinge is a smooth-running, burglar-resistant hinge with high bearing capacity and hard-wearing plastic bearings.
- security model with built-in security pin
- very smooth-running, silent, hard-wearing and self-lubricating, making black marks on the paintwork a thing of the past
- high bearing capacity thanks to pressure distribution over two points
- with gap limiter
- with special, chamfered, self-aligning AXA-POM bearings. These bearings have a fixation collar that stops them from falling out of the hinge
- the special star-shaped screw holes reduce the chance of screw breakage
- complies with the Police Hallmark for Safe Living and SKG3
The AXA Smart Easyfix® security hinge is a smooth-running, burglar-resistant hinge with high bearing capacity and hard-wearing plastic bearings.
- security model with built-in security pin
- very smooth-running, silent, hard-wearing and self-lubricating, making black marks on the paintwork a thing of the past
- high bearing capacity thanks to pressure distribution over two points
- with gap limiter
- with special, chamfered, self-aligning AXA-POM bearings. These bearings have a fixation collar that stops them from falling out of the hinge
- the special star-shaped screw holes reduce the chance of screw breakage
- complies with the Police Hallmark for Safe Living and SKG3
Specifications
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Commercial information
Type Smart Easyfix
Use for windows and exterior doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True

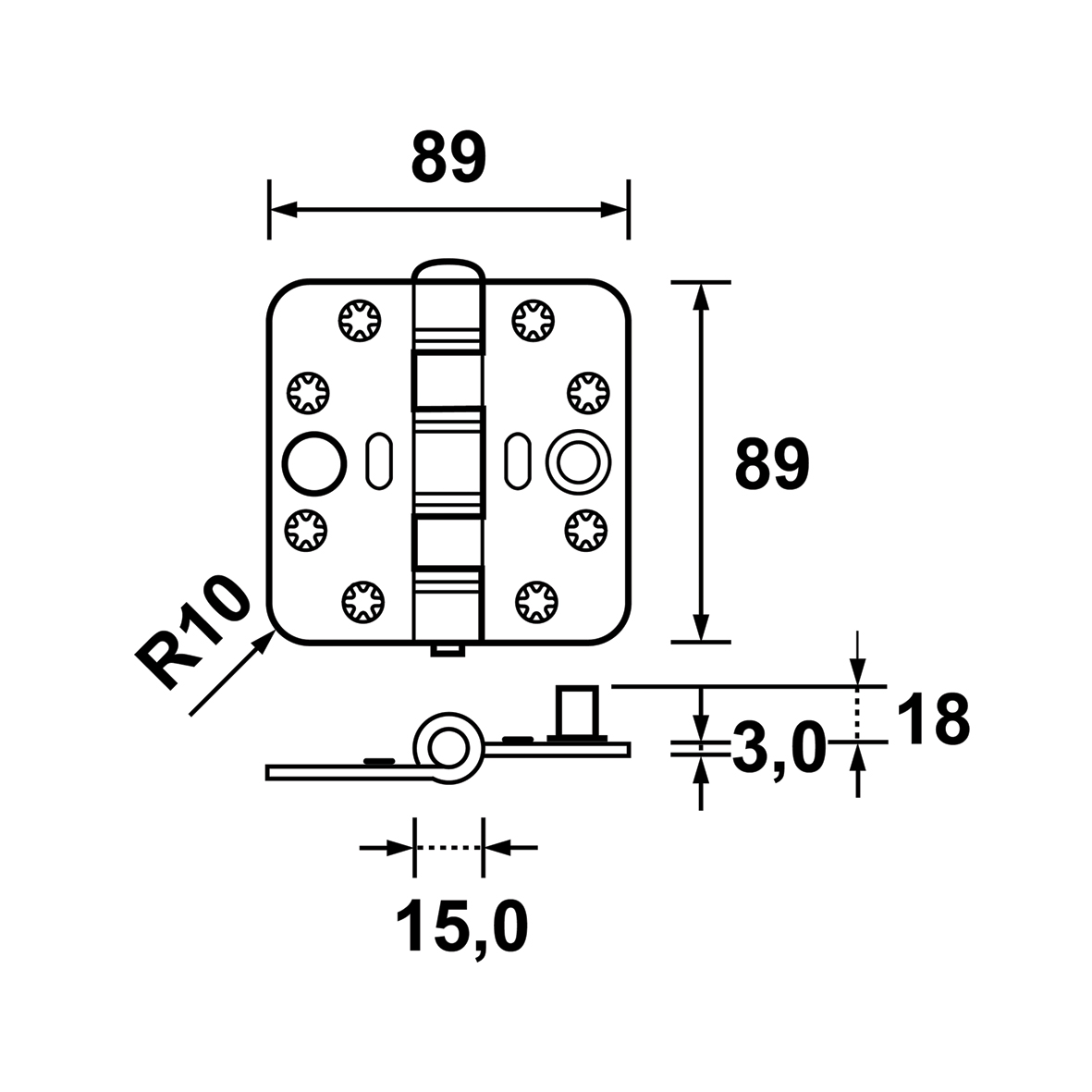

Technical information
Product Width 89 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 15 mm
Corner shape round corner
Bearing AXApom synthetic bearing
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 85 kg
Load bearing capacity 3 hinges 125 kg
Load bearing capacity 4 hinges 145 kg
Material Steel
Finish Topcoat galvanized
Assembly information
Including Mounting Material False
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Logistic information
Product Weight 248 gr
Pieces per bulk package 50 piece
EAN bulk package 8713249165974
Weight bulk package 12.63 kg
Dimensions bulk package 390 x 200 x 120 mm
