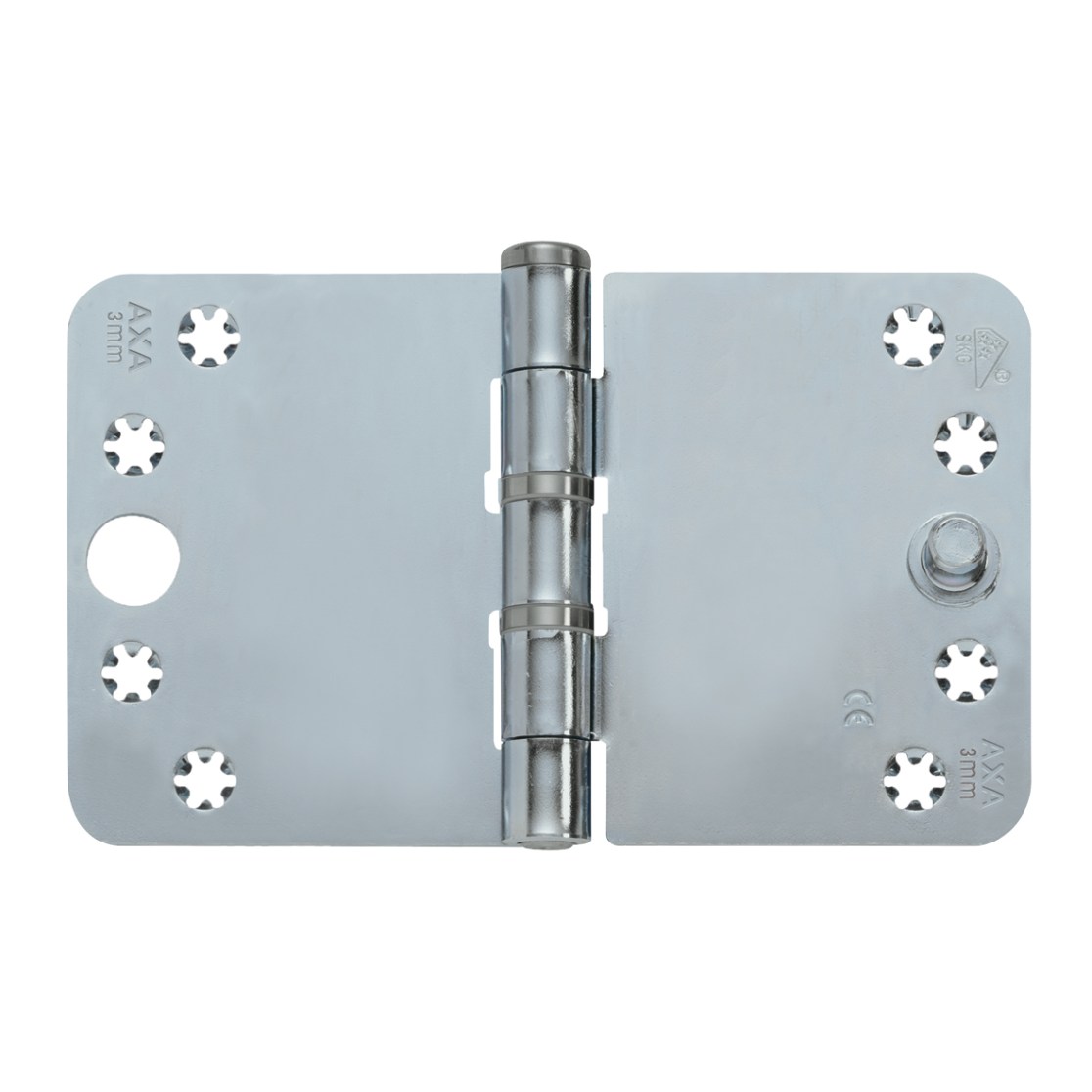

Security hinge Smart Easyfix

1687-12-23/7V
arrow_selector

SKG 3

Police Hallmark

  • security model with built-in security pin
  • very smooth-running, silent, hard-wearing and self-lubricating, making black marks on the paintwork a thing of the past
  • high bearing capacity thanks to pressure distribution over two points
  • with gap limiter
  • with special, chamfered, self-aligning AXA-POM bearings. These bearings have a fixation collar that stops them from falling out of the hinge
  • the special star-shaped screw holes reduce the chance of screw breakage
  • complies with the Police Hallmark for Safe Living and SKG3

Specifications

Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
Commercial information
expand_more
Type Smart Easyfix
Use for windows and exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True
Technical information
expand_more
Product Width 125 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 15 mm
Corner shape round corner
Bearing AXApom synthetic bearing
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 3 hinges 80 kg
Load bearing capacity 4 hinges 90 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Logistic information
expand_more
Product Weight 326 gr
Pieces per bulk package 25 piece
EAN bulk package 8713249245904
Weight bulk package 8.34 kg
Dimensions bulk package 290 x 200 x 120 mm

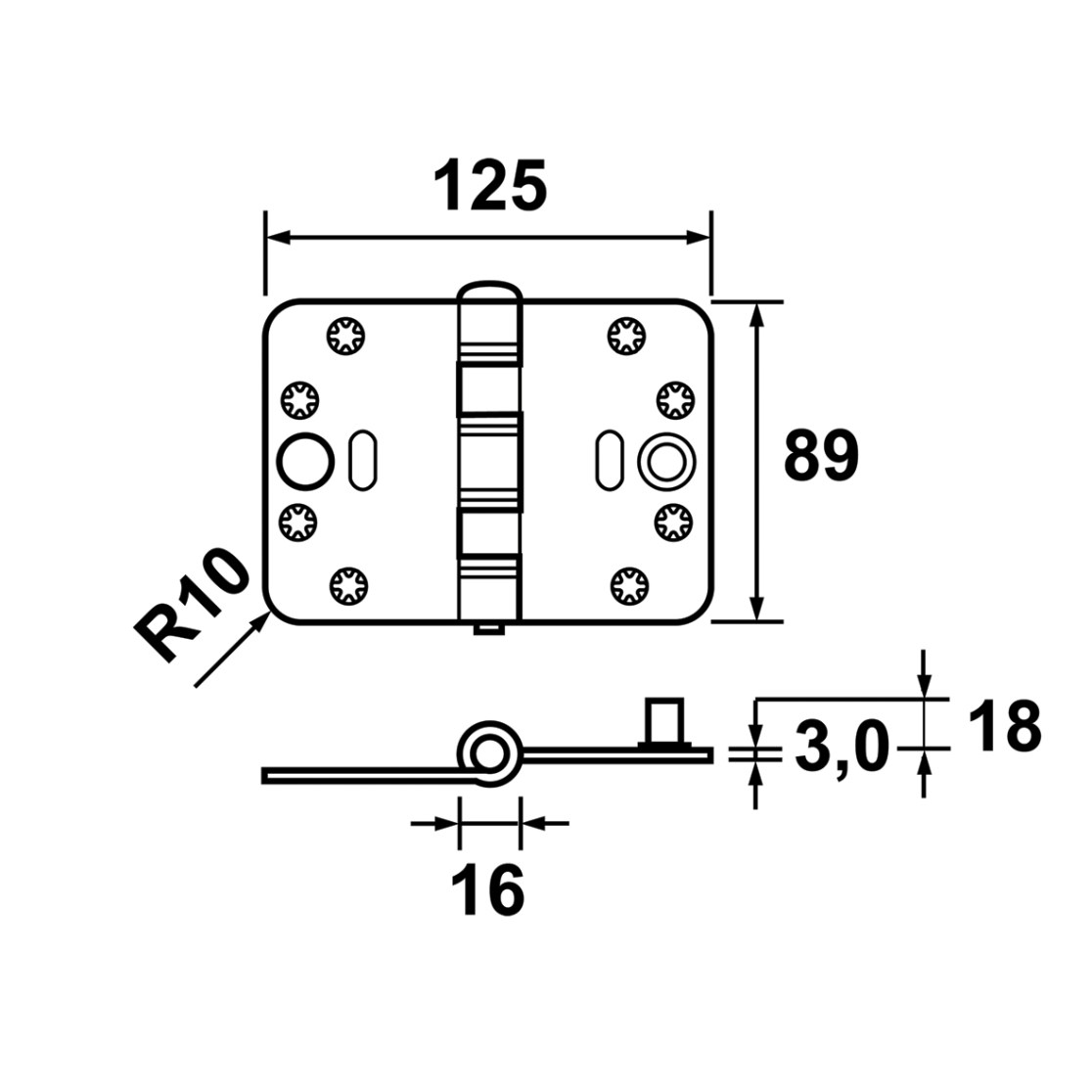

Technical drawings
