Security hinge Smart disc bearing

1647-15-23/7V
arrow_selector
close

SKG 3

Police Hallmark
  • security model with built-in security pin
  • extra wide, especially for wide opening doors
  • high bearing capacity
  • very smooth-running thanks to special water and dirt resistant disc bearings
  • the special star-shaped screw holes reduce the chance of screw breakage
  • complies with the Police Hallmark for Safe Living and SKG3
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
Commercial information
expand_more
Type Smart disc bearing
Use for windows and exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True
Technical information
expand_more
Product Width 150 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 14 mm
Corner shape round corner
Bearing disc bearing
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 50 kg
Load bearing capacity 3 hinges 60 kg
Load bearing capacity 4 hinges 70 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Logistic information
expand_more
Product Weight 398 gr
Pieces per bulk package 25 piece
EAN bulk package 8713249209586
Weight bulk package 10.14 kg
Dimensions bulk package 290 x 200 x 120 mm

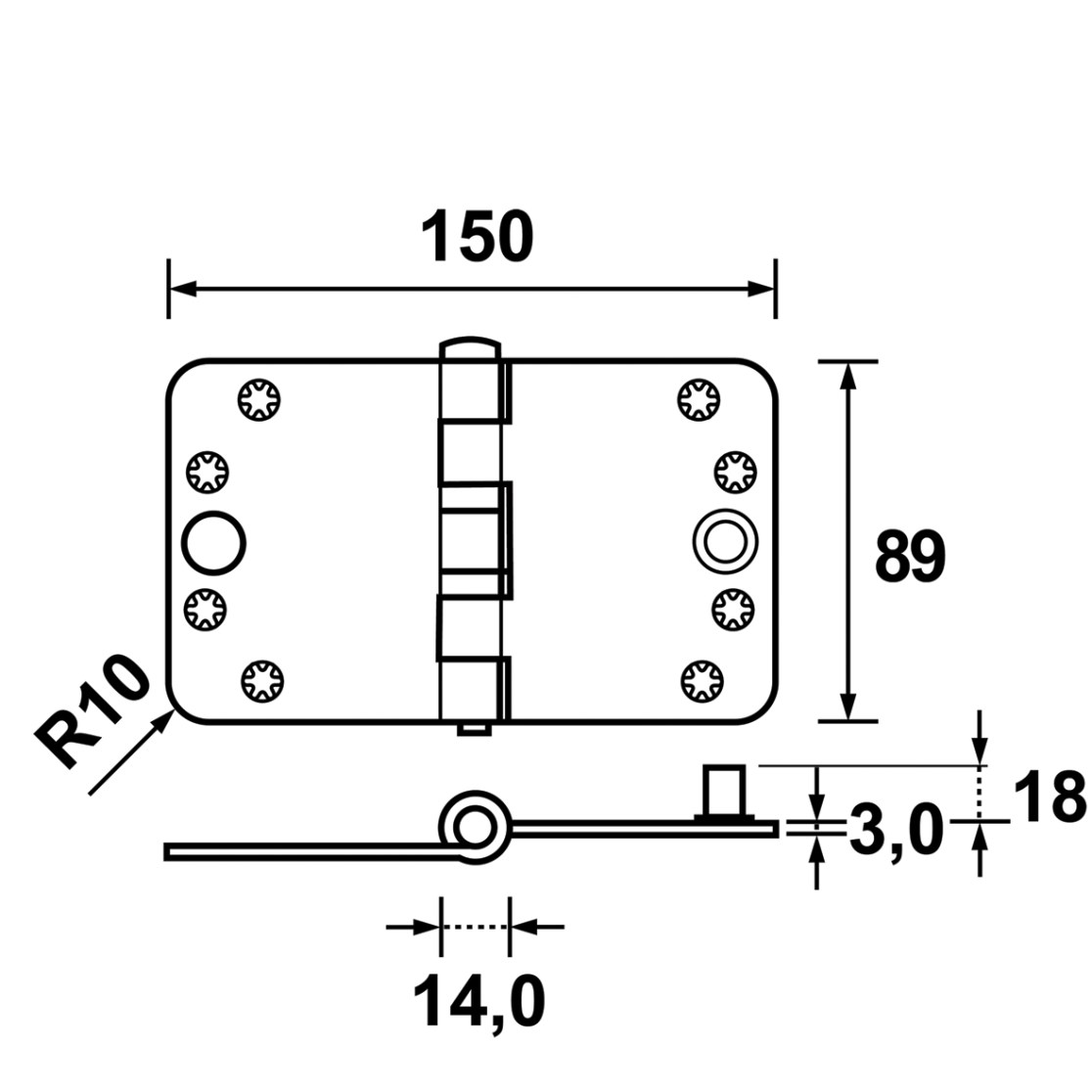

Technical drawings
