Security hinge Smart bearing-free
1617-09-81/VE

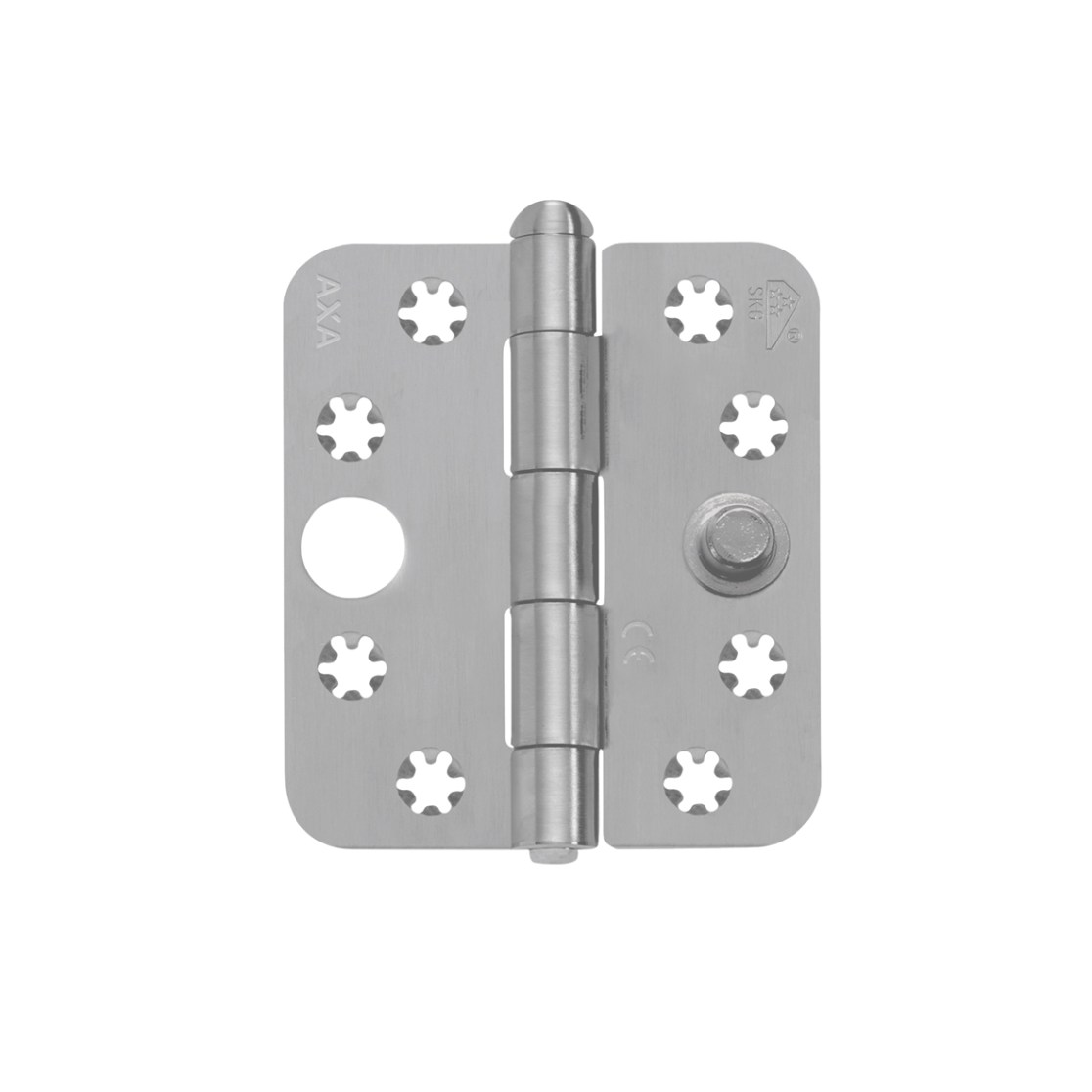

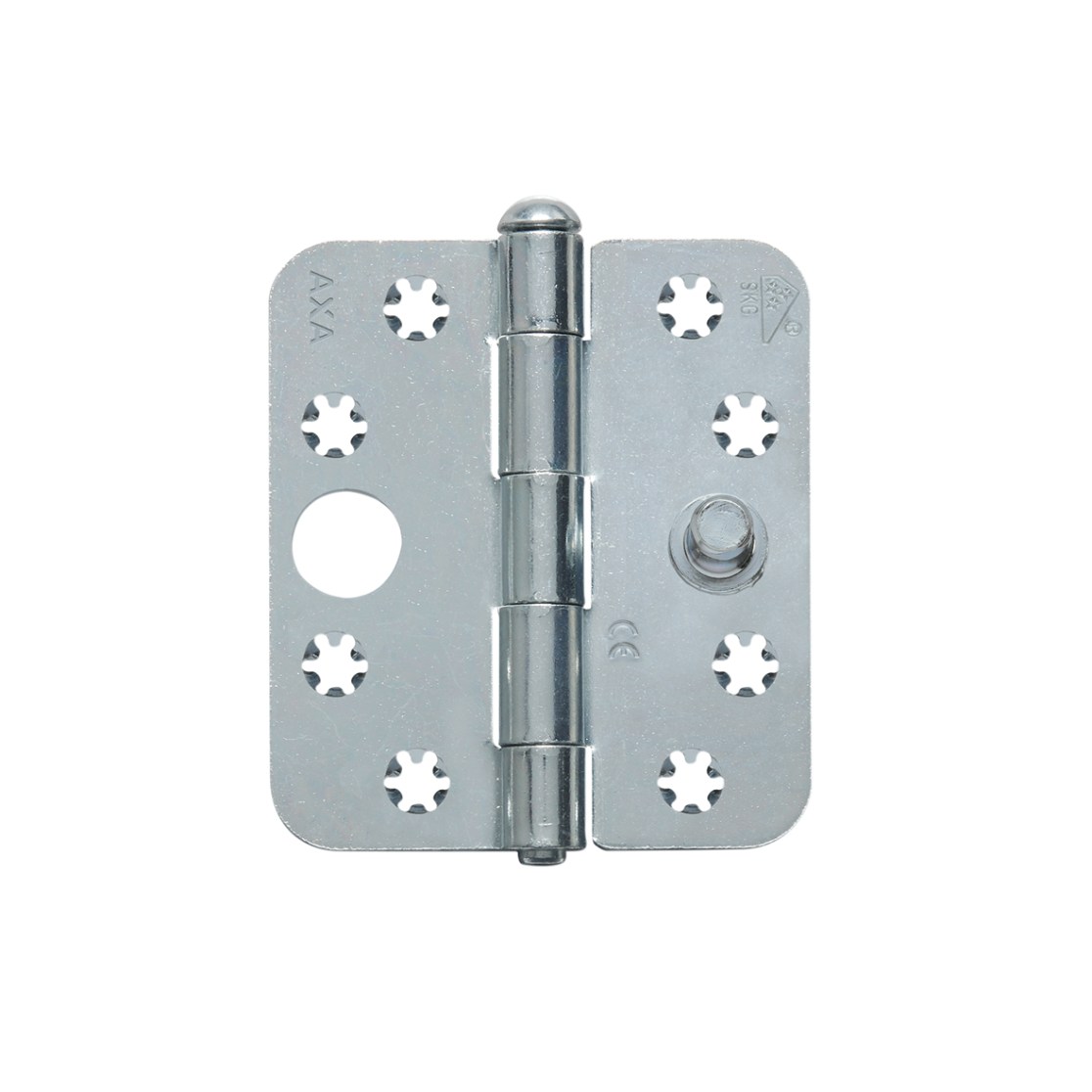

The AXA Smart bearing-free security hinge is a burglar-resistant hinge with a high bearing capacity.
- security model with built-in security pin
- smooth-running
- high bearing capacity
- the special star-shaped screw holes reduce the chance of screw breakage
- stainless steel
- complies with the Police Hallmark for Safe Living and SKG3



The AXA Smart bearing-free security hinge is a burglar-resistant hinge with a high bearing capacity.
- security model with built-in security pin
- smooth-running
- high bearing capacity
- the special star-shaped screw holes reduce the chance of screw breakage
- stainless steel
- complies with the Police Hallmark for Safe Living and SKG3
Specifications
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Commercial information
Type Smart bearing-free
Use for windows and exterior doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True

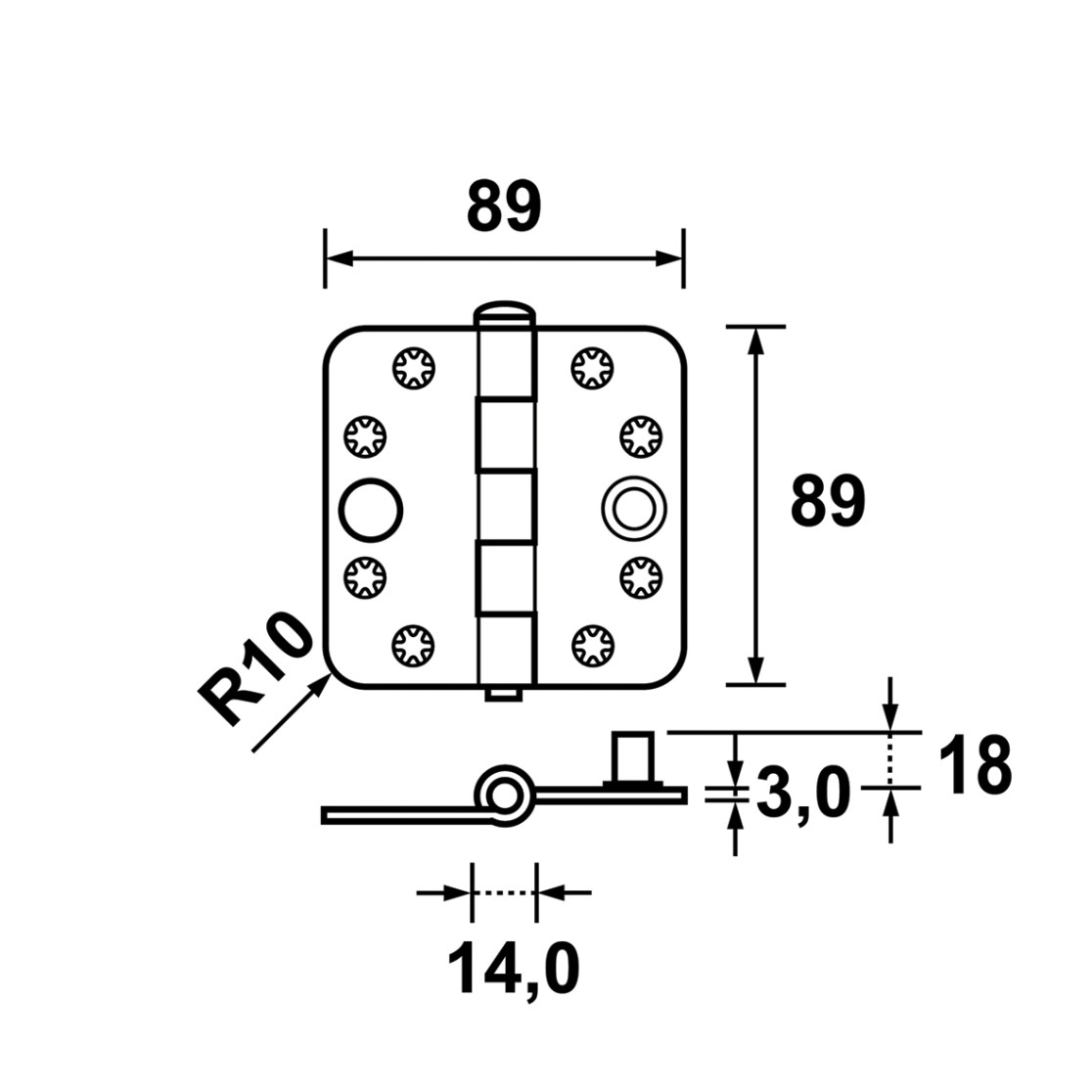

Technical information
Product Width 89 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 14 mm
Corner shape round corner
Bearing bearing-free
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 55 kg
Load bearing capacity 3 hinges 70 kg
Load bearing capacity 4 hinges 90 kg
Material Stainless steel
Finish Brushed
Assembly information
Including Mounting Material False
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Logistic information
Product Weight 264 gr
Pieces per small package 6 piece
EAN small package 8713249133775
Weight small package 1.63 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 48 piece
EAN bulk package 8713249191782
Weight bulk package 6.75 kg
Dimensions bulk package 290 x 200 x 120 mm
