Security hinge Smart bearing-free

1617-08-23/7V
arrow_selector
close

SKG 3

Police Hallmark
  • security model with built-in security pin
  • smooth-running
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Commercial information
expand_more
Type Smart bearing-free
Use for windows and exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True
Technical information
expand_more
Product Width 80 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 14 mm
Corner shape round corner
Bearing bearing-free
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 65 kg
Load bearing capacity 3 hinges 80 kg
Load bearing capacity 4 hinges 100 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Logistic information
expand_more
Product Weight 235 gr
Pieces per bulk package 50 piece
EAN bulk package 8713249210636
Weight bulk package 11.98 kg
Dimensions bulk package 390 x 200 x 120 mm

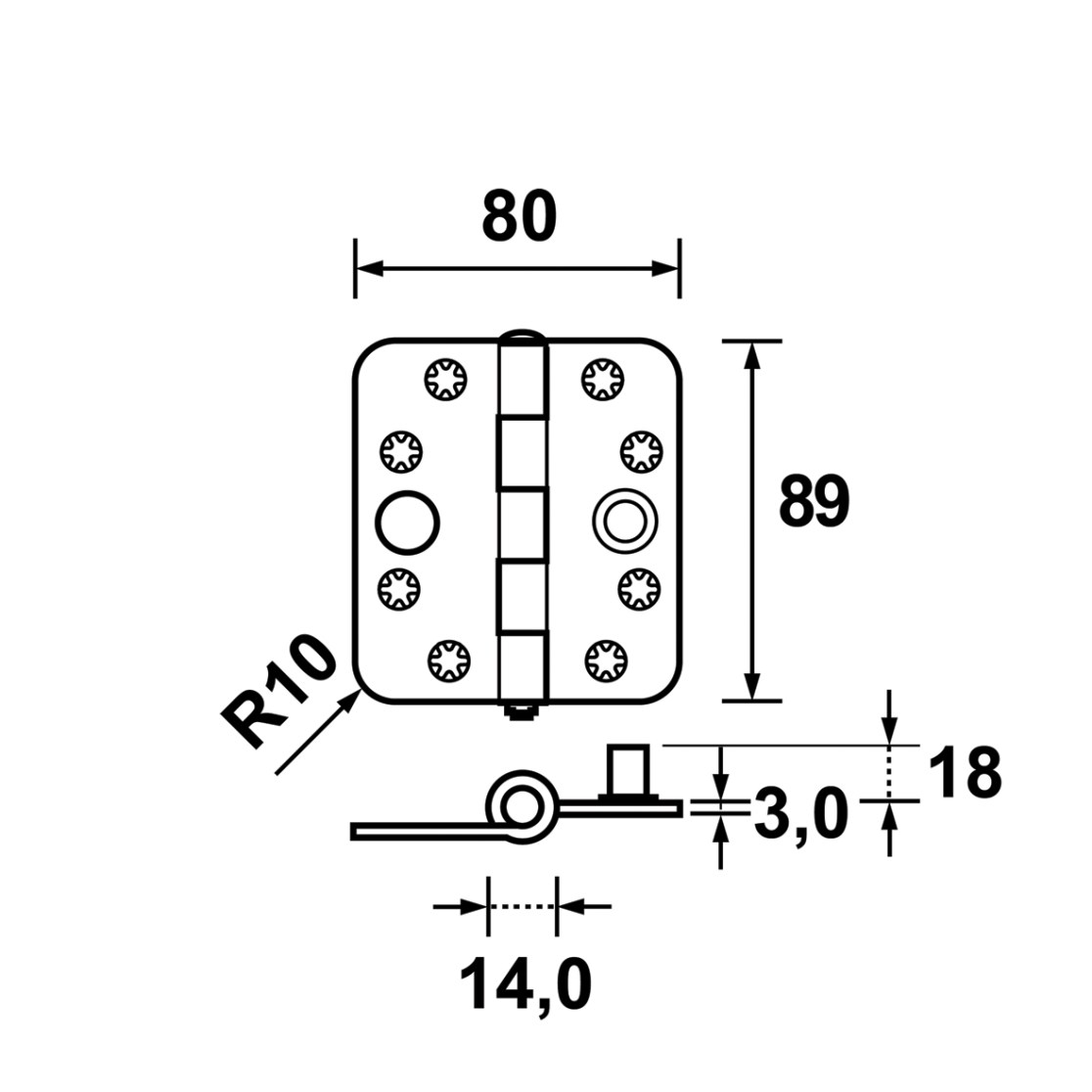

Technical drawings
