Security hinge Smart ball bearing

1667-09-23/VE
arrow_selector

SKG 3

Police Hallmark

  • security model with built-in security pin
  • with ball bearings
  • smooth-running
  • high bearing capacity
  • the special star-shaped screw holes reduce the chance of screw breakage

Specifications

Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Commercial information
expand_more
Type Smart ball bearing
Use for windows and exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True
Technical information
expand_more
Product Width 89 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 14 mm
Corner shape round corner
Bearing ball-bearing
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 70 kg
Load bearing capacity 3 hinges 85 kg
Load bearing capacity 4 hinges 105 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Logistic information
expand_more
Product Weight 260 gr
Pieces per small package 6 piece
EAN small package 8713249190662
Weight small package 1.6 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 48 piece
EAN bulk package 8713249190679
Weight bulk package 13 kg
Dimensions bulk package 290 x 200 x 120 mm

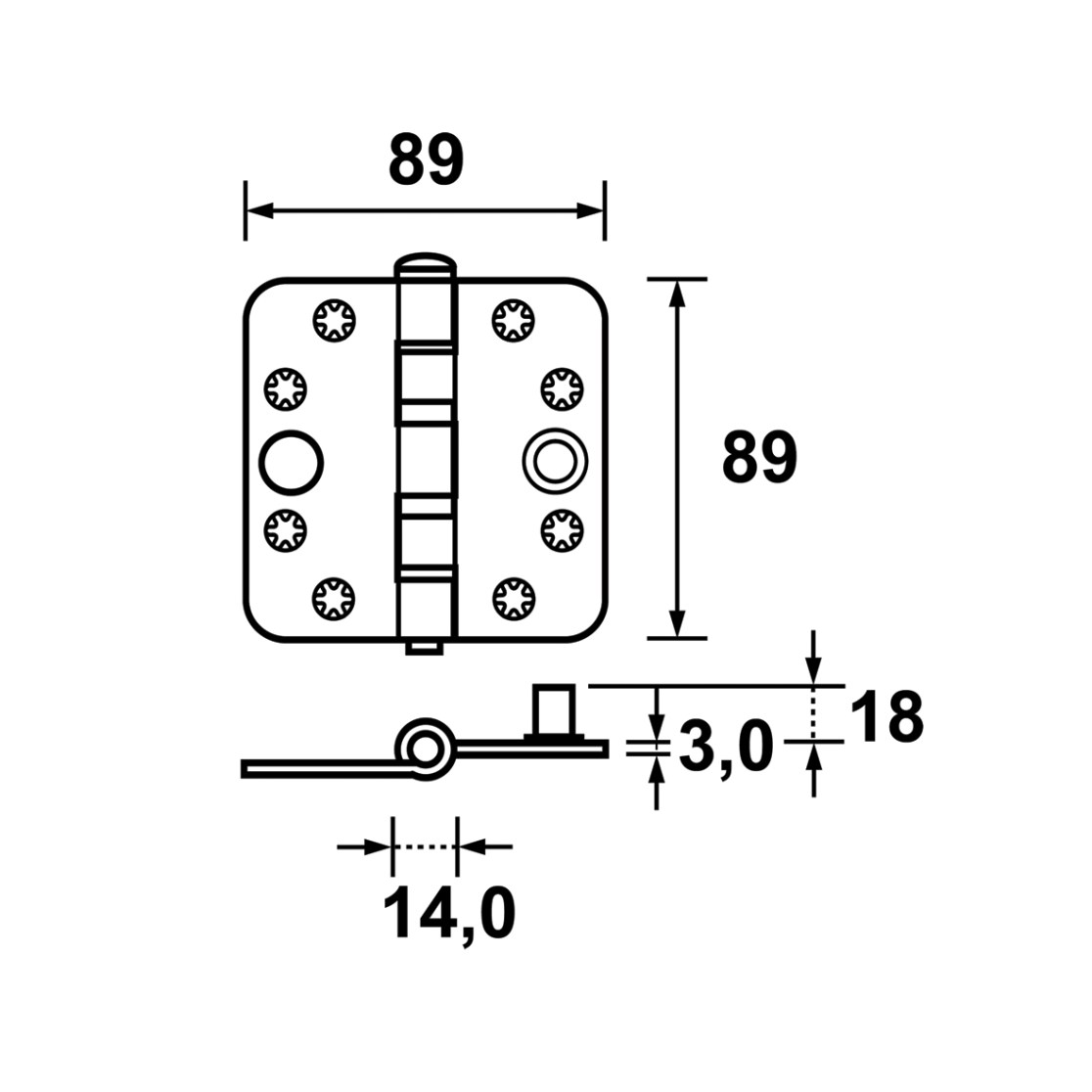

Technical drawings
