Security hinge Heavy Duty disc bearing

1847-17-23/V
arrow_selector
close

SKG 3

Police Hallmark

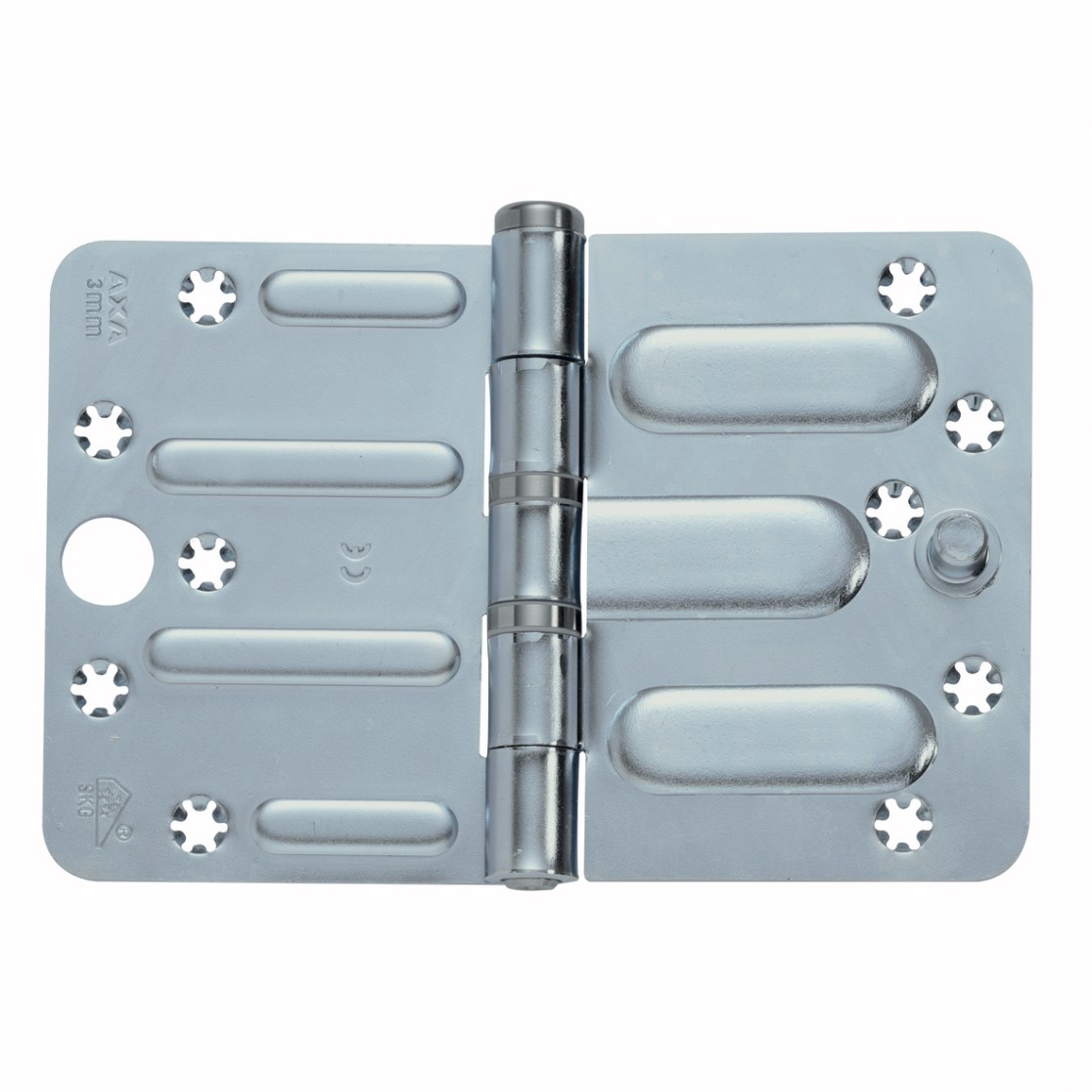

The AXA Heavy Duty disc bearing hinge is a smooth-running, burglar-resistant hinge with very high bearing capacity and special, low-maintenance water and dirt-resistant disc bearings.

  • security model with built-in security pin
  • extra wide, especially for wide opening doors
  • very high bearing capacity
  • very smooth-running thanks to special water and dirt resistant disc bearings
  • the special star-shaped screw holes reduce the chance of screw breakage
  • complies with the Police Hallmark for Safe Living and SKG3
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
Commercial information
expand_more
Type Heavy Duty disc bearing
Use for heavy exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True
Technical information
expand_more
Product Width 175 mm
Product Height 114 mm
Thickness 3 mm
Diameter knuckle 17 mm
Corner shape round corner
Bearing disc bearing
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 3 hinges 60 kg
Load bearing capacity 4 hinges 90 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 600 gr
Pieces per small package 3 piece
EAN small package 8713249125411
Weight small package 1.86 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 12 piece
EAN bulk package 8713249125428
Weight bulk package 7.58 kg
Dimensions bulk package 200 x 150 x 120 mm

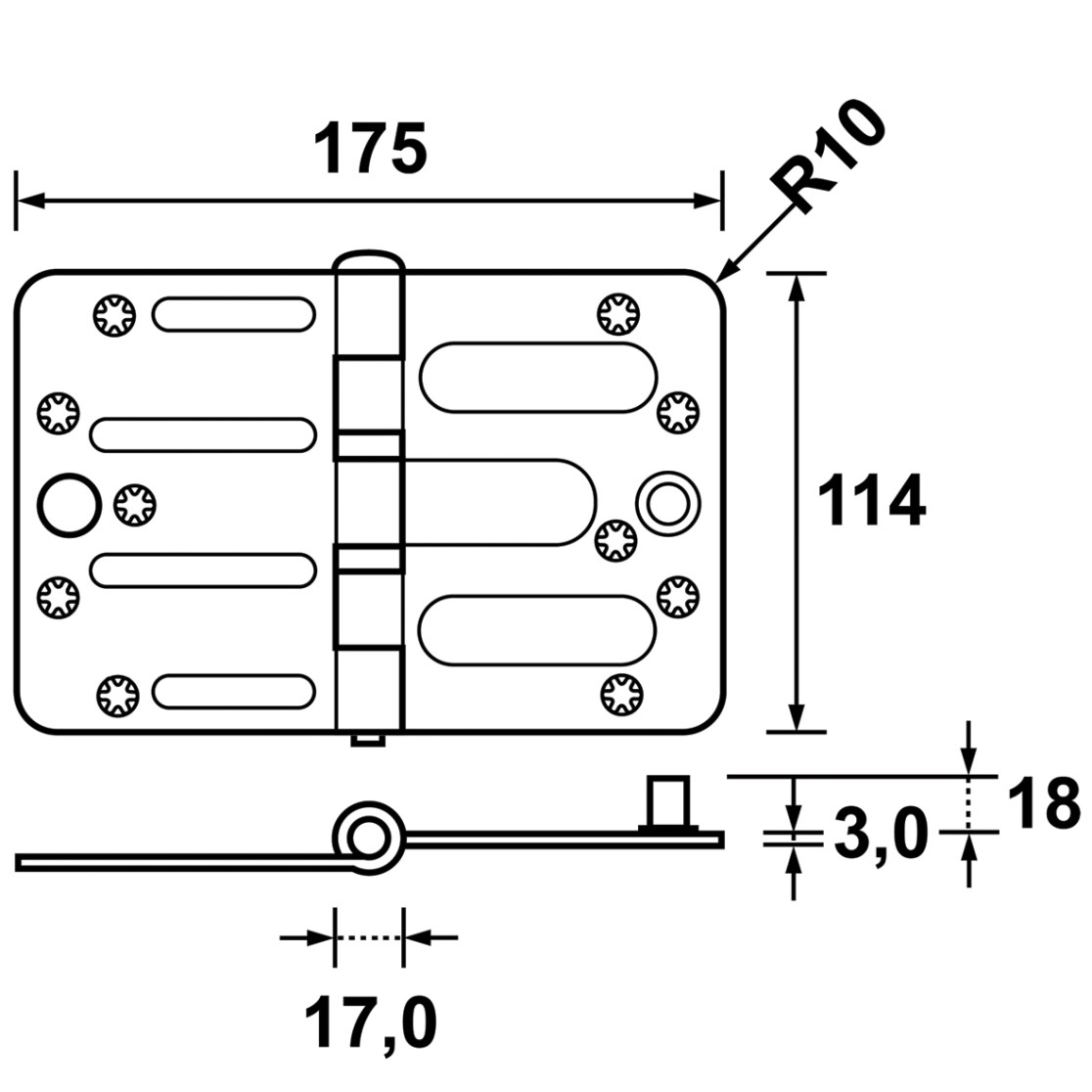

Technical drawings
