Security hinge bearing-free

1113-24-23/VE
arrow_selector
close

SKG 2

Police Hallmark

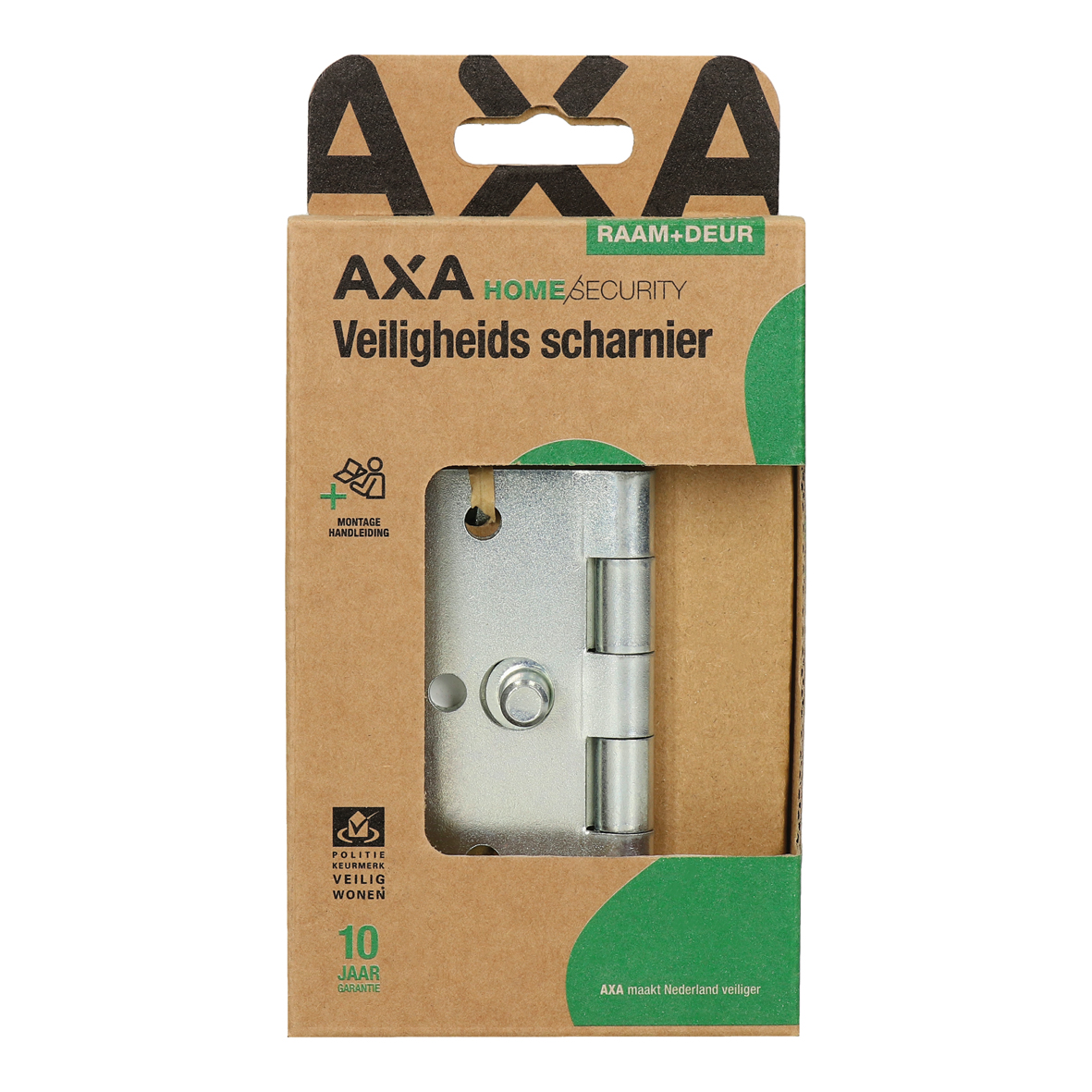

The AXA bearing-free security hinge is smooth-running and burglar resistant.

  • security model with built-in security pin
  • smooth-running
  • complies with Police Hallmark for Safe Living and SKG2 (Façade Quality Institution hallmark)
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Commercial information
expand_more
Type bearing-free
Use for windows
Safety information
expand_more
Burglarproof True
SKG SKG 2
Police Hallmark True
CE Applicable True
Technical information
expand_more
Product Width 76 mm
Product Height 76 mm
Thickness 2 mm
Diameter knuckle 10 mm
Corner shape right angle
Bearing bearing-free
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 20 kg
Load bearing capacity 3 hinges 30 kg
Load bearing capacity 4 hinges 40 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Logistic information
expand_more
Product Weight 129 gr
Pieces per small package 15 piece
EAN small package 8713249109190
Weight small package 1.97 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 60 piece
EAN bulk package 8713249109206
Weight bulk package 8.04 kg
Dimensions bulk package 200 x 150 x 120 mm

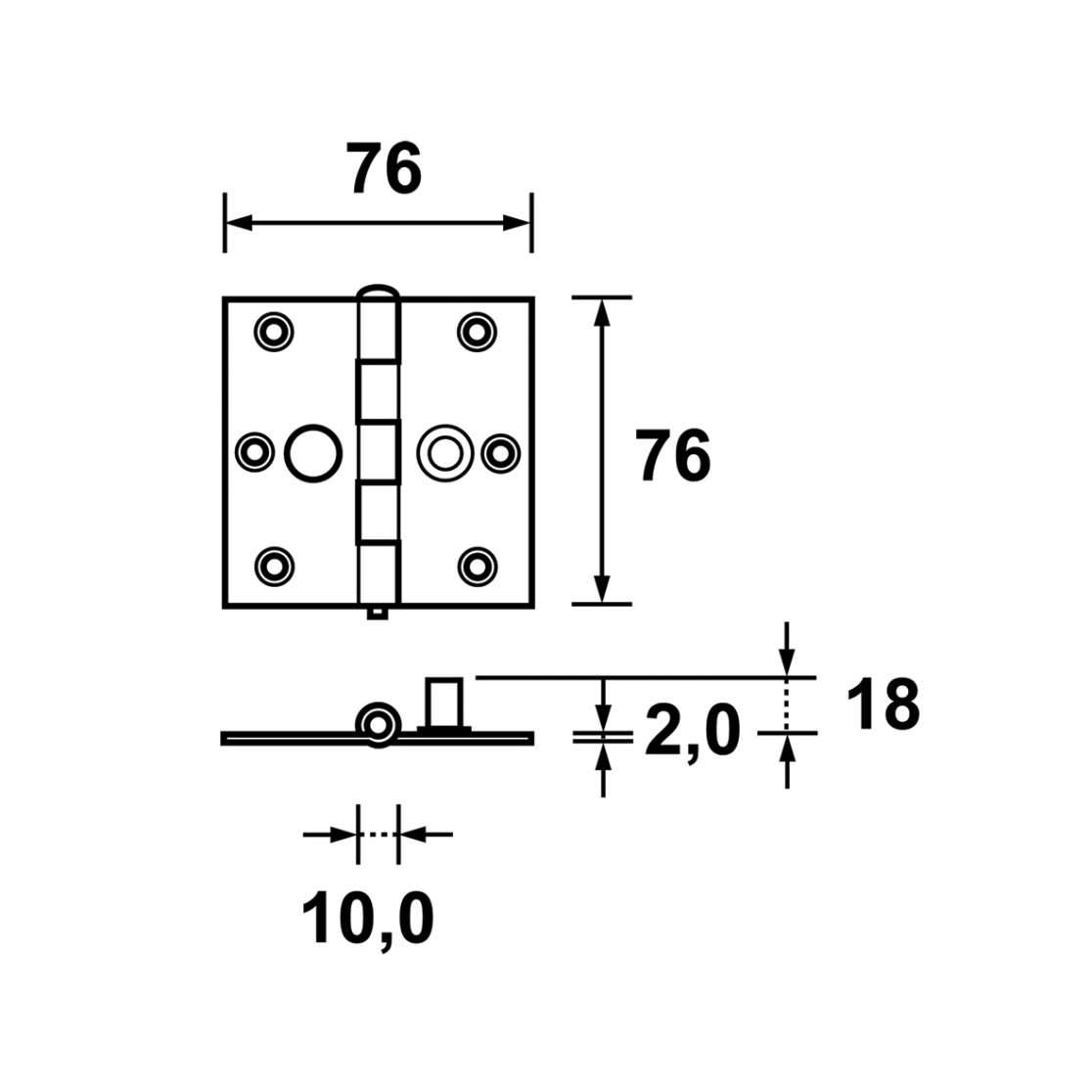

Technical drawings
