Security hinge ball bearing (2x)

1543-24-23/VCP2
arrow_selector
close

SKG 2

Police Hallmark

The AXA security ball bearing hinge is a smooth-running, burglar-resistant hinge.

  • security model with built-in security pin
  • smooth-running
  • complies with the Police Hallmark for Safe Living and SKG2
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Commercial information
expand_more
Type ball bearing (2x)
Use for windows
Safety information
expand_more
Burglarproof True
SKG SKG 2
Police Hallmark True
CE Applicable True
Technical information
expand_more
Product Width 76 mm
Product Height 76 mm
Thickness 2.4 mm
Diameter knuckle 10.8 mm
Corner shape round corner
Bearing ball-bearing
Direction of rotation outward-opening
Security pin size 13 mm
Diameter security pin 8 mm
Load bearing capacity 2 hinges 25 kg
Load bearing capacity 3 hinges 35 kg
Load bearing capacity 4 hinges 45 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249353746
Dimensions small package 165 x 85 x 56 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249353753
Dimensions bulk package 225 x 175 x 120 mm

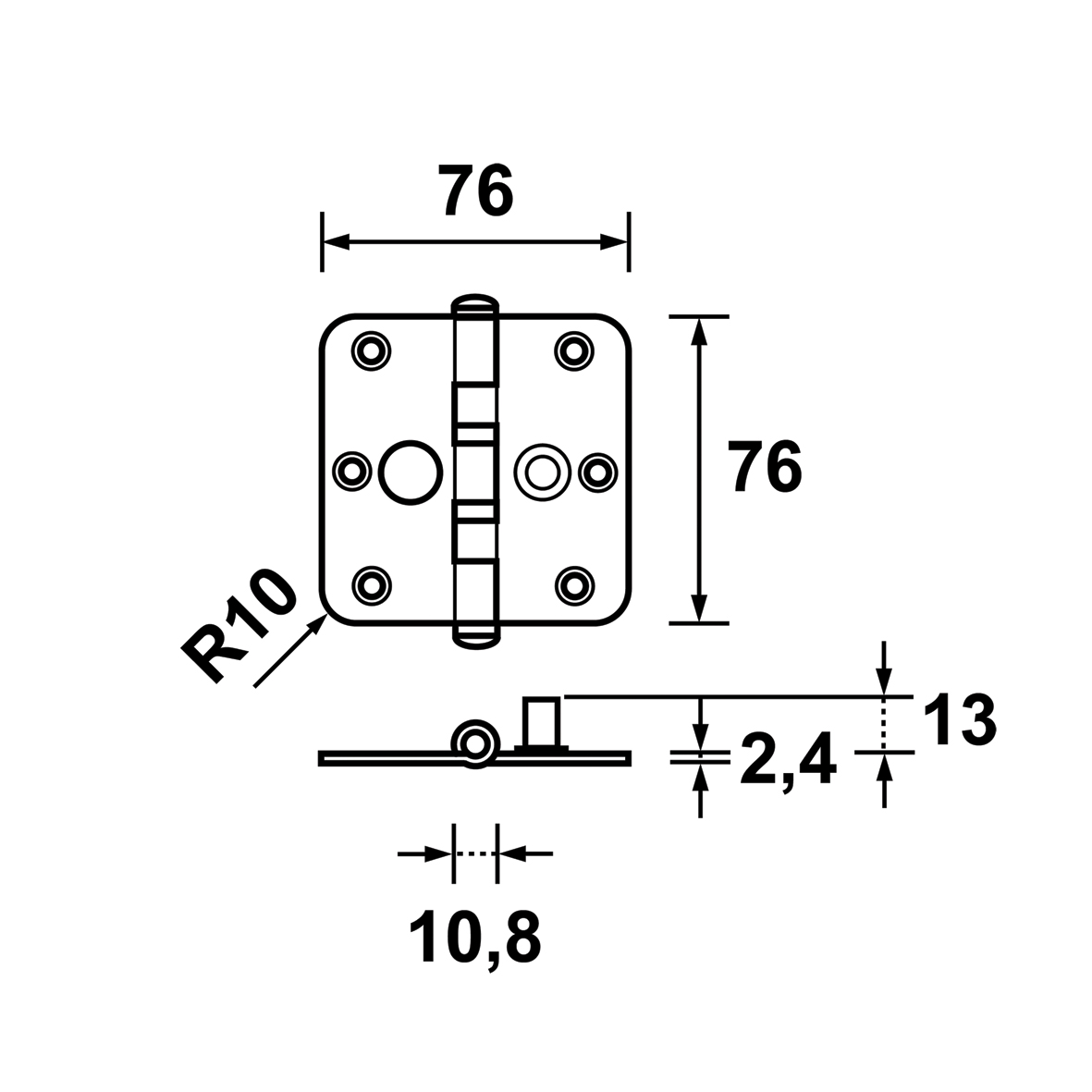

Technical drawings
Security hinge ball bearing (2x)
15432423VCP2
