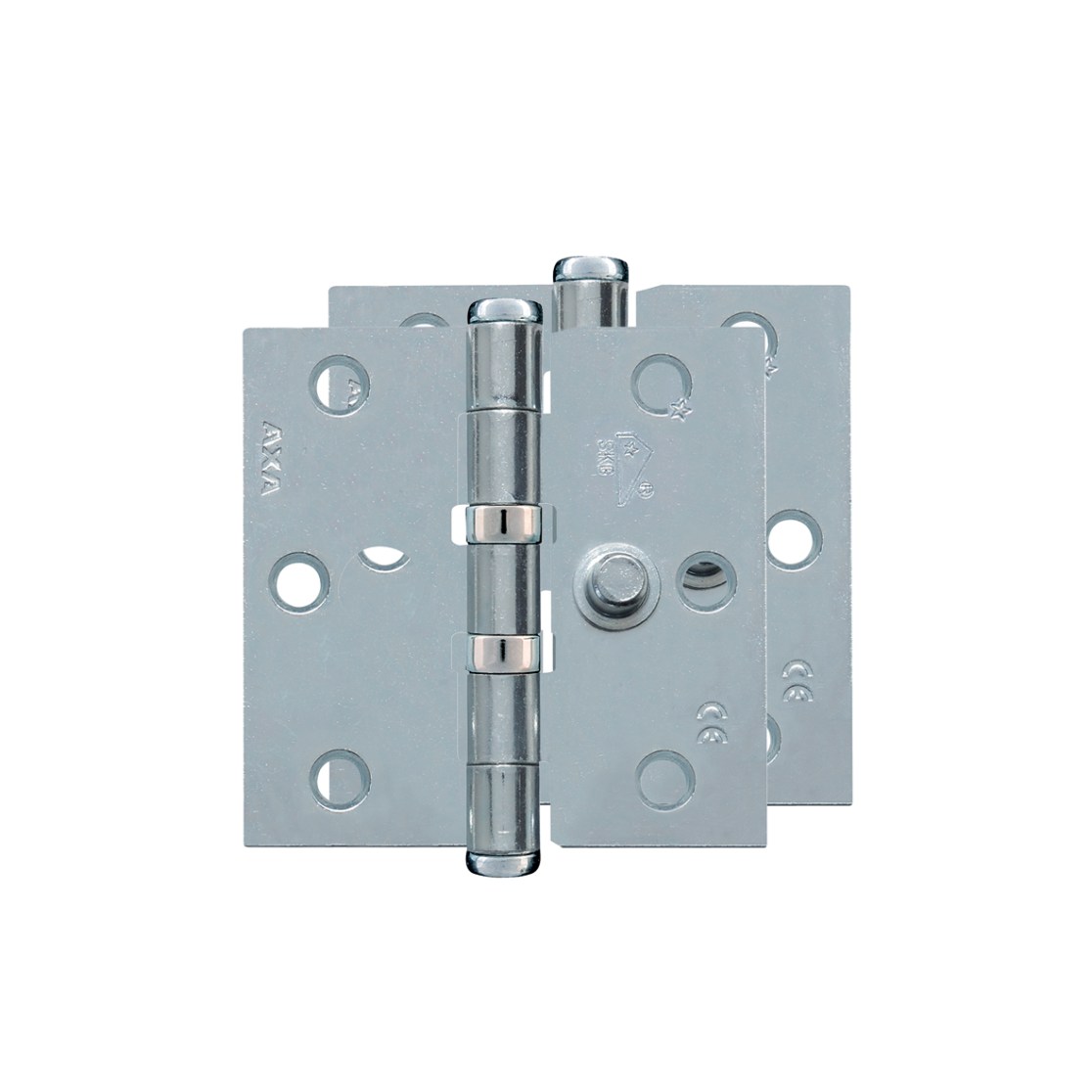

Security hinge ball bearing (2x)
1541-24-23/BLV2
The AXA security ball bearing hinge is a smooth-running, burglar-resistant hinge.
- security model with built-in security pin
- smooth-running
- complies with the Police Hallmark for Safe Living and SKG3
The AXA security ball bearing hinge is a smooth-running, burglar-resistant hinge.
- security model with built-in security pin
- smooth-running
- complies with the Police Hallmark for Safe Living and SKG3
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
- 4.0 x 40 mm screw: 6 pieces
Commercial information
Type ball bearing (2x)
Use for windows
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True
Technical information
Product Width 76 mm
Product Height 76 mm
Thickness 2.4 mm
Diameter knuckle 10.8 mm
Corner shape right angle
Bearing ball-bearing
Direction of rotation outward-opening
Security pin size 13 mm
Diameter security pin 8 mm
Load bearing capacity 2 hinges 25 kg
Load bearing capacity 3 hinges 35 kg
Load bearing capacity 4 hinges 45 kg
Material Steel
Finish Topcoat galvanized
Assembly information
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
- 4.0 x 40 mm screw: 6 pieces
Logistic information
Product Weight 348 gr
Pieces per small package 1 piece
EAN small package 8713249239231
Dimensions small package 215 x 95 x 47 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249239248
Weight bulk package 2.98 kg
Dimensions bulk package 290 x 200 x 120 mm
Downloads

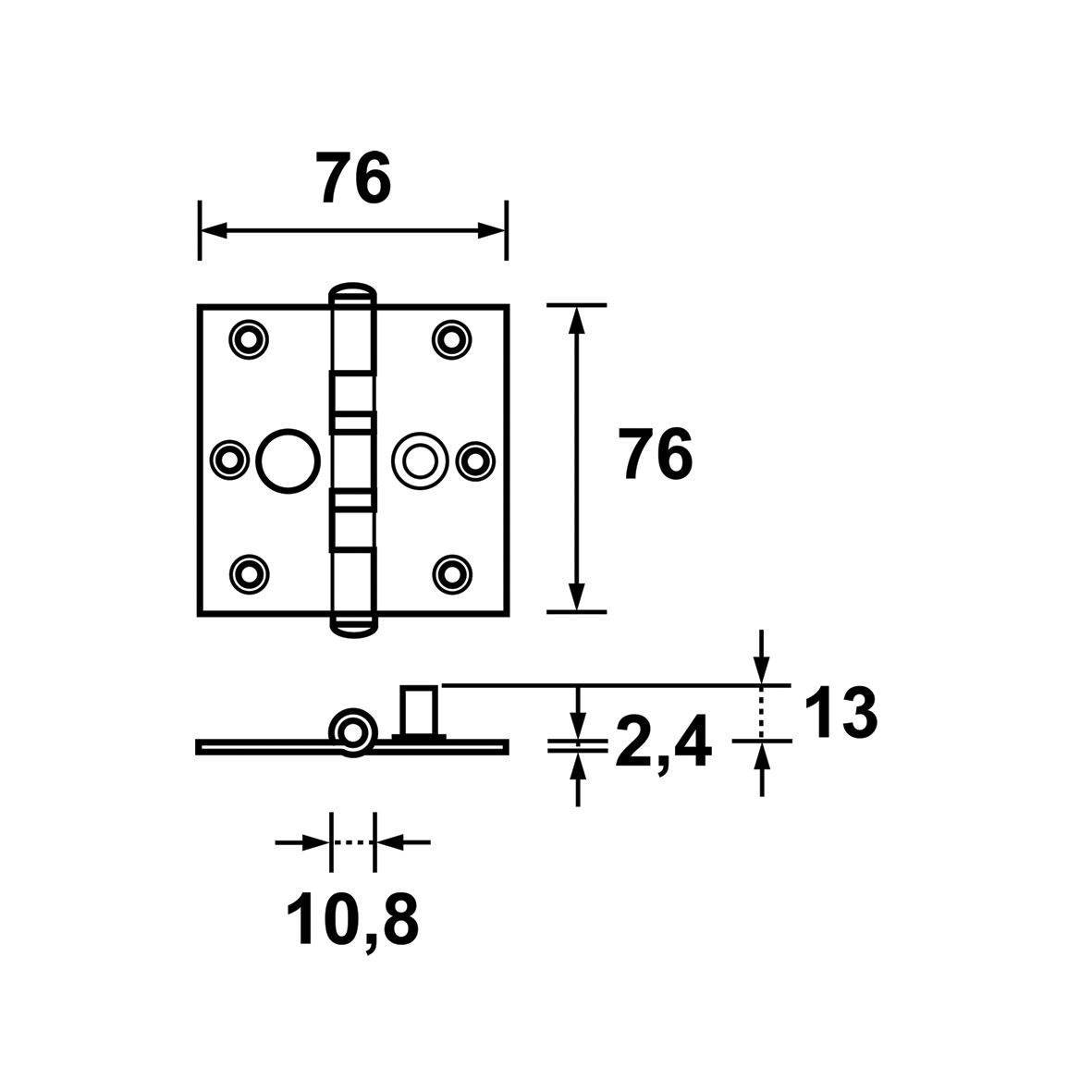

Main Image Environmental Product Declaration (EPD)Technical drawings
