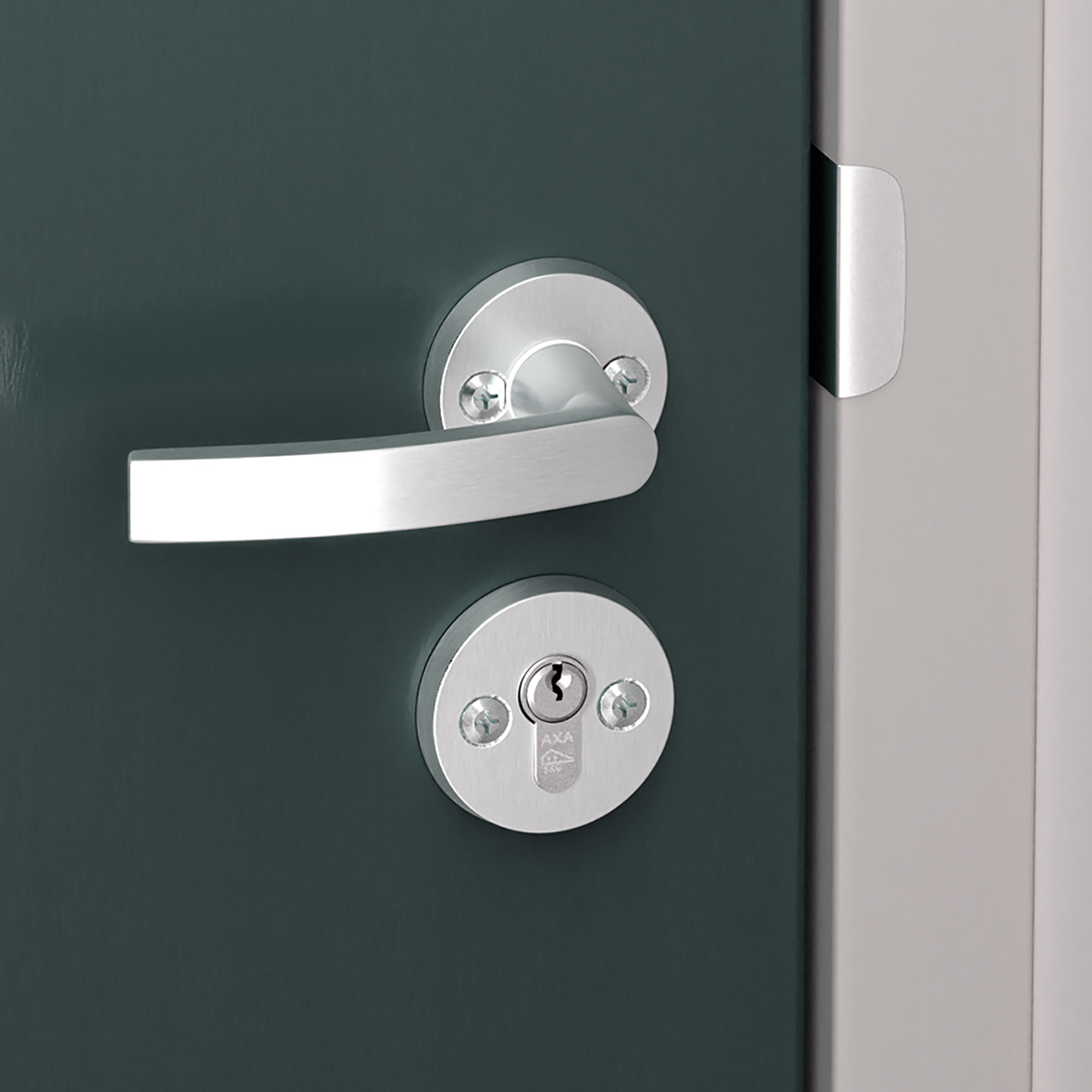

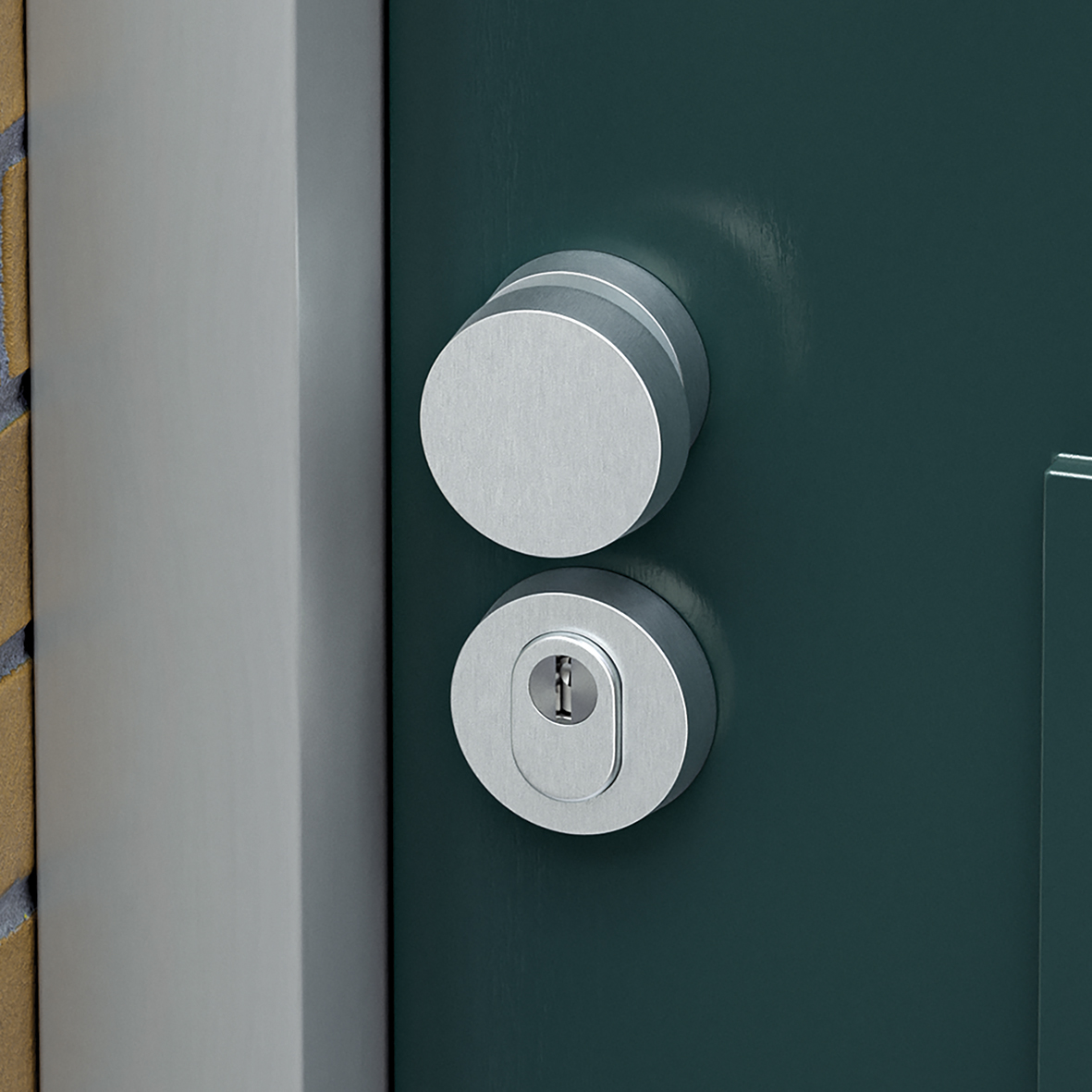

Security fitting round Plus rosettes PC handle Blok round knob core protection
6615-80-11/KS
Reliable and stylish Plus burglar-resistant security rosettes fittings.
- sturdy and reliable, handle directly on rosette specially made for intensive use
- with Self-aligning Cylinder Core Protection (SCP)
- finely polished and less sensitive to scratches
- spring-supported handle, prevents dropping handles due to limp lock spring
- seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
- possible to use on all doors with a thickness from 38 to 42 mm
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
+
3
Reliable and stylish Plus burglar-resistant security rosettes fittings.
- sturdy and reliable, handle directly on rosette specially made for intensive use
- with Self-aligning Cylinder Core Protection (SCP)
- finely polished and less sensitive to scratches
- spring-supported handle, prevents dropping handles due to limp lock spring
- seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
- possible to use on all doors with a thickness from 38 to 42 mm
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
Specifications
Recommended Mounting Materials
- M5 x 50 mm bolt: 2 pieces
- M6 x 55 mm bolt: 2 pieces
- 8 x 75 mm exchangeable shank: 1 piece
- M5 x 50 mm bolt: 2 pieces
- M6 x 55 mm bolt: 2 pieces
- 8 x 75 mm exchangeable shank: 1 piece
Commercial information
Type round Plus rosettes PC handle Blok round knob core protection
Use for front doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
Thickness outside 15 mm
Thickness inside 8.5 mm
Direction of rotation inward-opening
Shape round
Outside handle-Pusher-Knob type Round-knob
Inside handle type handle Block
Handle length 127 mm
Handle depth 41 mm
Handle assembly grub screw fix
Spring supported handle True
Spindle dimension 8 x 75 mm
Diameter knob 62 mm
Diameter rosette 62 mm
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M5 x 50 mm bolt: 2 pieces
- M6 x 55 mm bolt: 2 pieces
- 8 x 75 mm exchangeable shank: 1 piece
- M5 x 50 mm bolt: 2 pieces
- M6 x 55 mm bolt: 2 pieces
- 8 x 75 mm exchangeable shank: 1 piece
Logistic information
Product Weight 690 gr
Pieces per small package 1 piece
EAN small package 8713249332451
Weight small package 0.821 kg
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 5 piece
EAN bulk package 8713249332468
Weight bulk package 4.36 kg
Dimensions bulk package 320 x 265 x 157 mm
