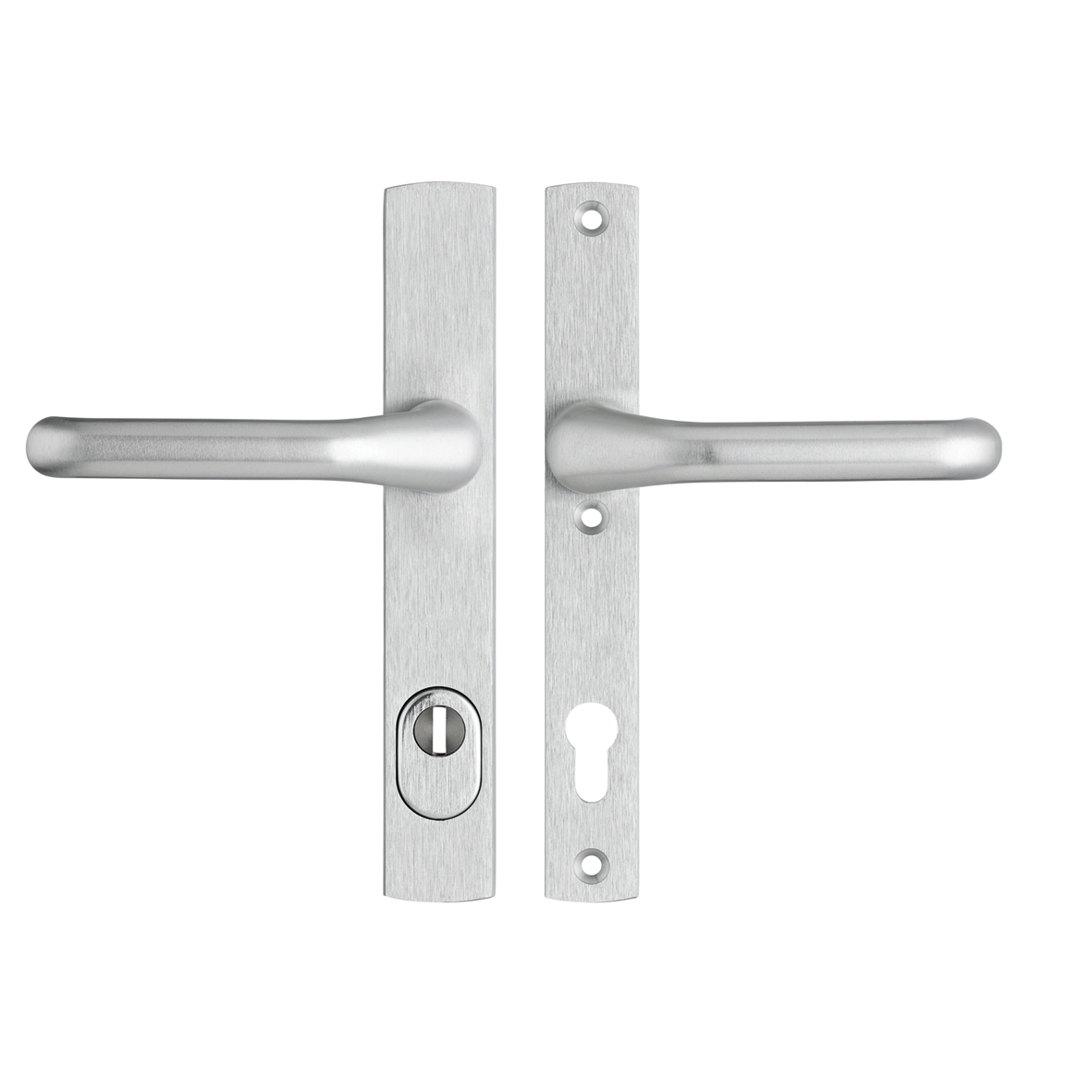

Security fitting Premium narrow handle Flow PC92 core protection

6762-63-11/92

+

4
arrow_selector
close

SKG 3

bronze

Police Hallmark

Reliable and stylish AXA Premium burglar-resistant security fittings for intensive use

  • sturdy and reliable, handle directly on escutcheon plate specially made for intensive use
  • with Self-adjusting Cylinder Core Protection (ZKB) + with anti-drilling protection for threaded bushes and vulnerable lock parts
  • finely polished and less sensitive to scratches
  • spring-supported handle, prevents dropping handles due to limp lock spring
  • round shapes for optimal run-off stops moisture from affecting paintwork.
  • seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • universally usable on doors with a thickness of 38 to 67 mm
  • complies with the Police Hallmark for Safe Living, SKG3 and EN 1906
  • complete with attachment materials
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- 8 x 120 mm spindle: 1 piece
Commercial information
expand_more
Type Premium narrow handle Flow PC92 core protection
Use for back doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Security class (EN 1906) 3
Technical information
expand_more
Product Length 242 mm
Product Width 38 mm
Product Width 2 32 mm
Thickness outside 15 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Outside handle-Pusher-Knob type handle Flow
Inside handle type handle Flow
Handle type Flow
Handle length 147 mm
Handle depth 69 mm
Handle assembly handle integrated in backplate/rosettes
Spring supported handle True
Spindle dimension 8 x 120 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- 8 x 120 mm spindle: 1 piece
Logistic information
expand_more
Product Weight 1055 gr
Pieces per small package 1 piece
EAN small package 8713249245584
Weight small package 1.265 kg
Dimensions small package 275 x 160 x 97 mm
Pieces per bulk package 4 piece
EAN bulk package 8713249245591
Weight bulk package 5.38 kg
Dimensions bulk package 330 x 280 x 205 mm

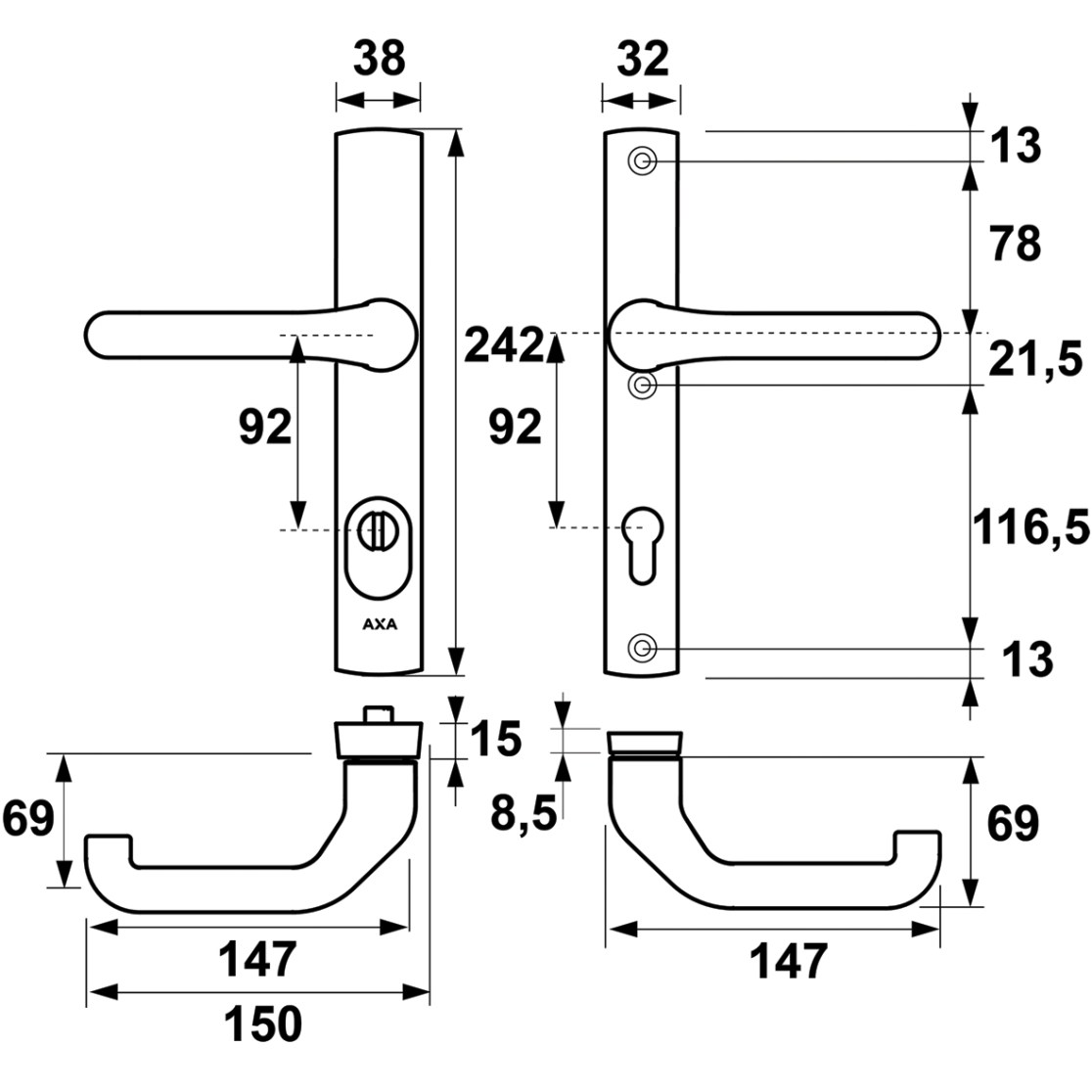

Technical drawings

Associated products

Set spindle+bolts 160x8mm M6x100 (3x) Premium

6961-60-23/E

Set spindle+bolts 150x8mm M6x90 (3x) Premium

6961-59-23/E

Set spindle+bolts 130x8mm M6x70 (3x) Premium

6961-37-57/E

Set spindle+bolts 130x8mm M6x70 (3x) Premium

6961-37-23/E

Alternative products

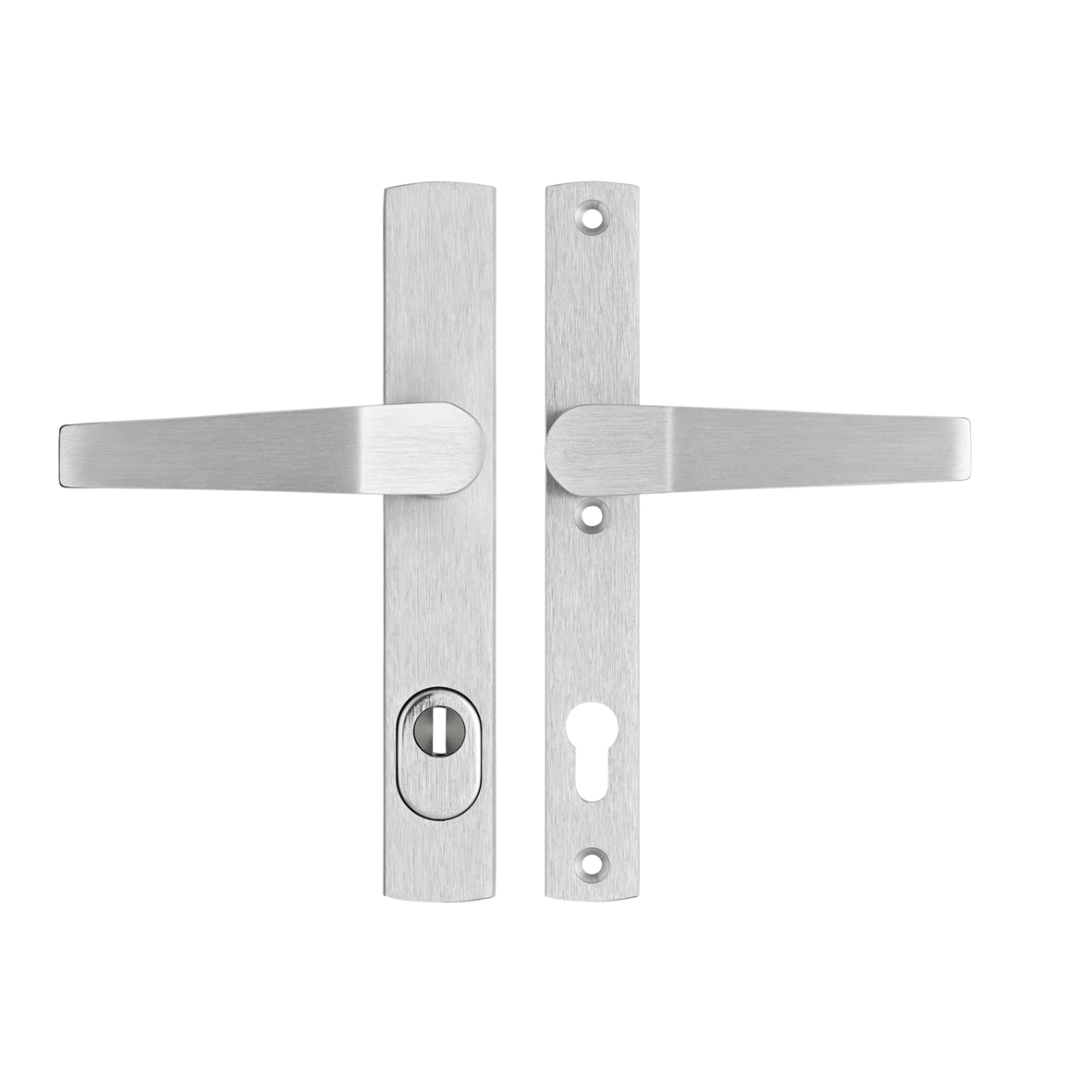

Security fitting Premium narrow handle Arrow PC92 core protection

6762-60-11/92

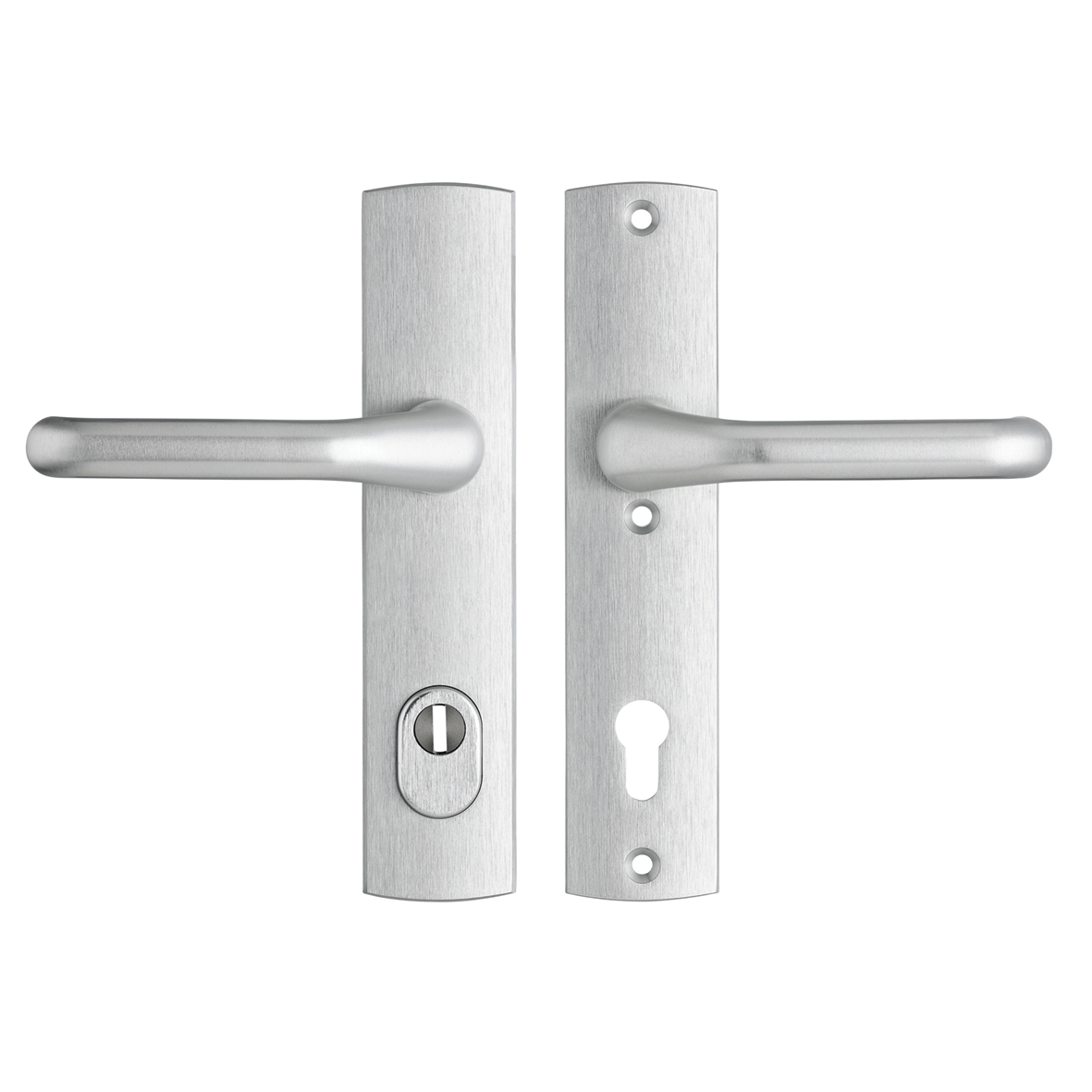

Security fitting Premium handle Flow PC92 core protection

6662-63-11/92

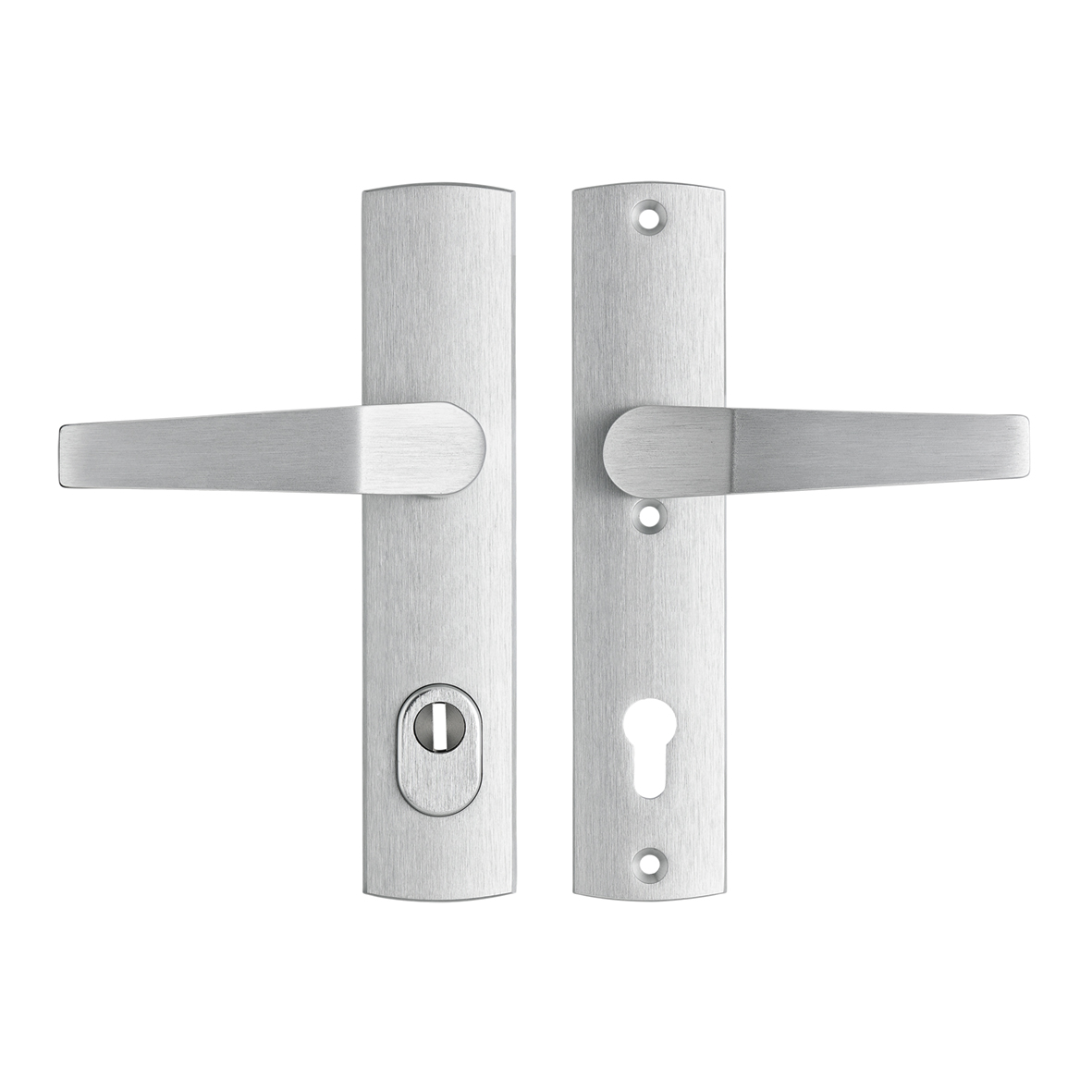

Security fitting Premium handle Arrow PC92 core protection
