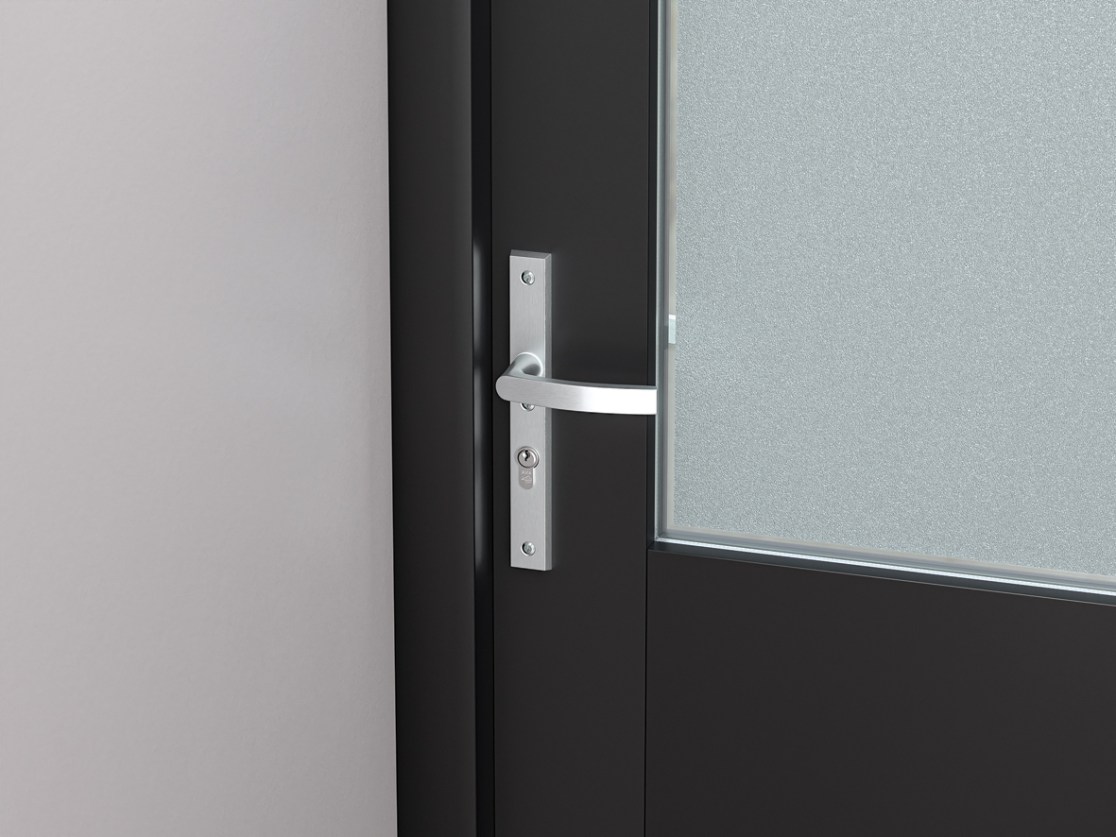

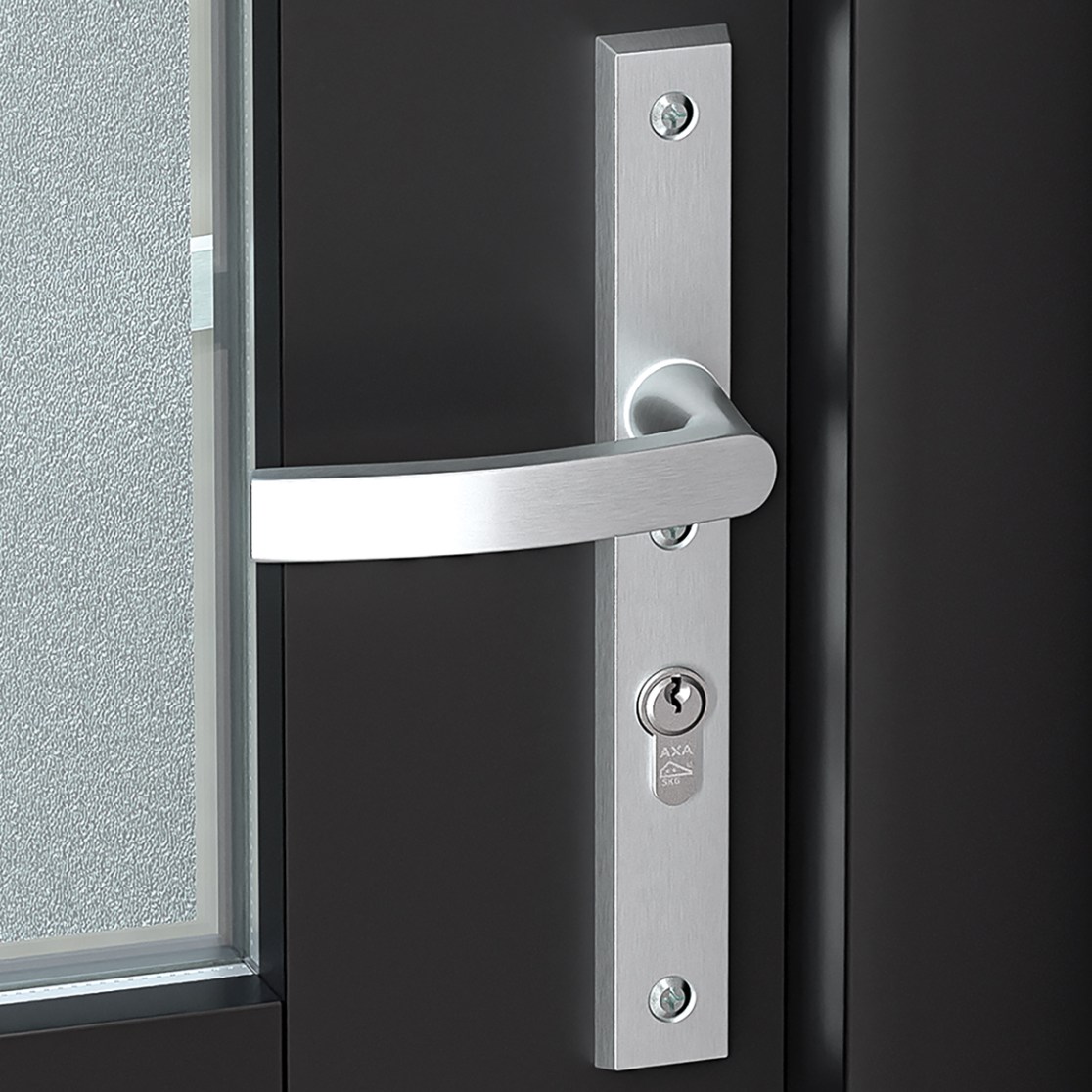

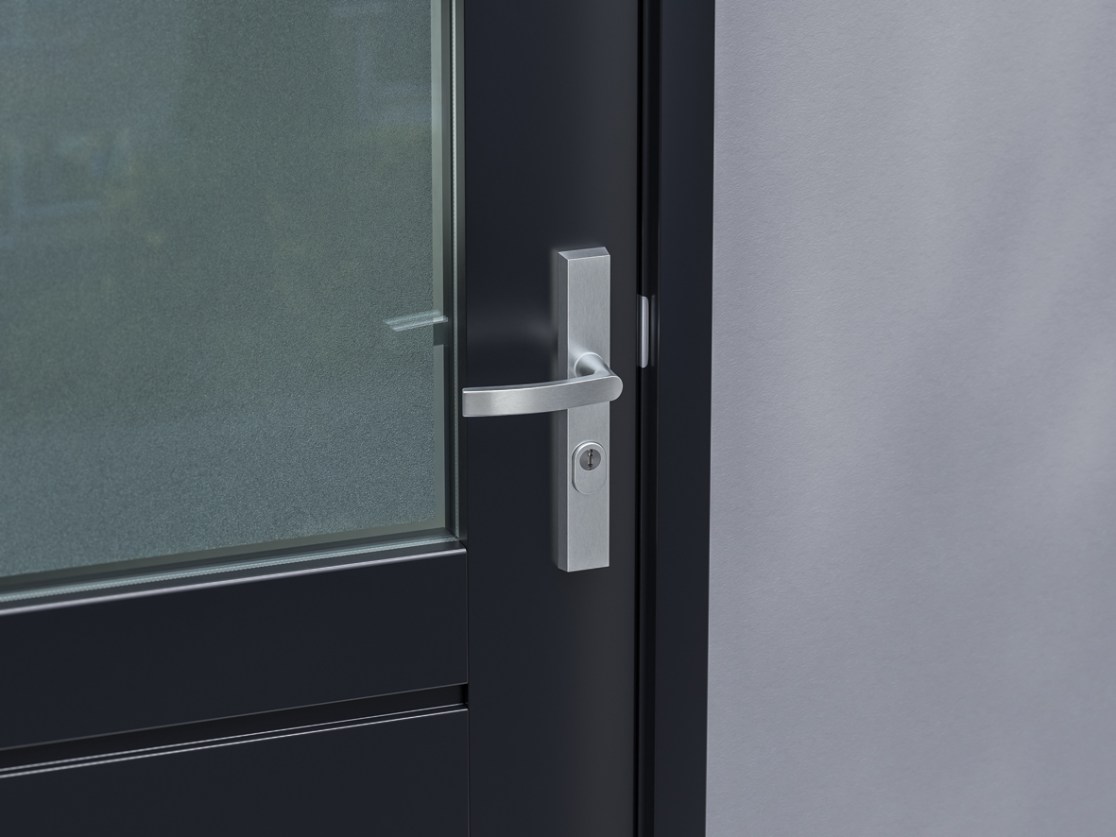

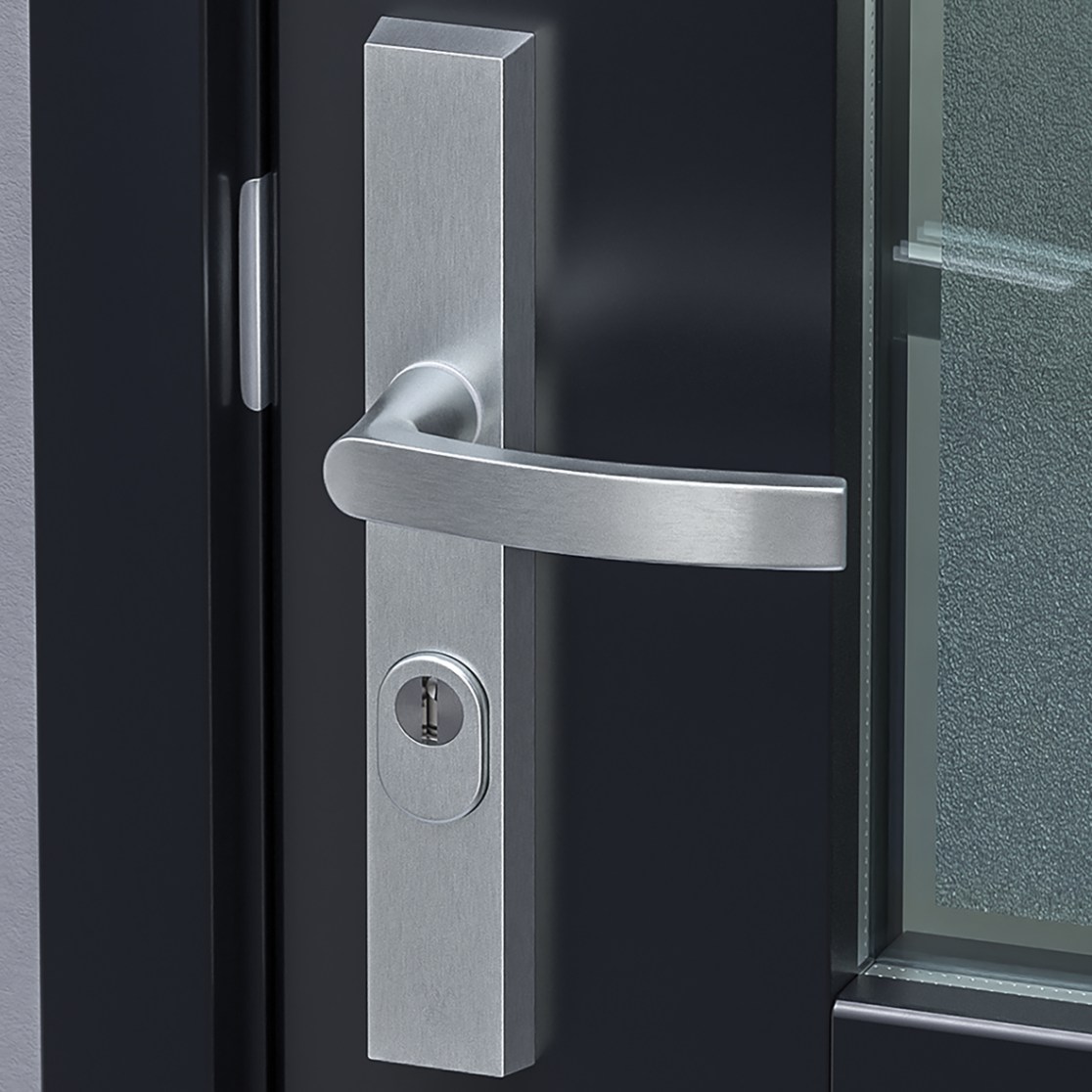

Security fitting Edge Plus narrow handle Block PC72 core protection

6767-10-11/72K

+

4
arrow_selector
close

SKG 3

bronze

Police Hallmark
  • sturdy and reliable
  • with Self-aligning Cylinder Core Protection (SCP)
  • possible to use on all doors with a thickness from 38 to 54 mm
  • extended handle spindles and bolts are available for thicker doors
  • a seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • larger shield size usually completely covers the imprint of the old shield
  • complies with the Police Hallmark for Safe Living and SKG3
  • complete with attachment materials
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Commercial information
expand_more
Type Edge Plus narrow handle Block PC72 core protection
Use for back doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Product Length 252 mm
Product Width 38 mm
Product Width 2 32 mm
Thickness outside 15 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape right
Outside handle-Pusher-Knob type handle Block
Inside handle type handle Block
Handle type Block
Handle length 125 mm
Handle depth 60 mm
Handle assembly grub screw fix
Spring supported handle False
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 20 min
Logistic information
expand_more
Product Weight 875 gr
Pieces per small package 1 piece
EAN small package 8713249322995
Weight small package 1.02 kg
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 10 piece
EAN bulk package 8713249323008
Weight bulk package 10.6 kg
Dimensions bulk package 530 x 320 x 171 mm
