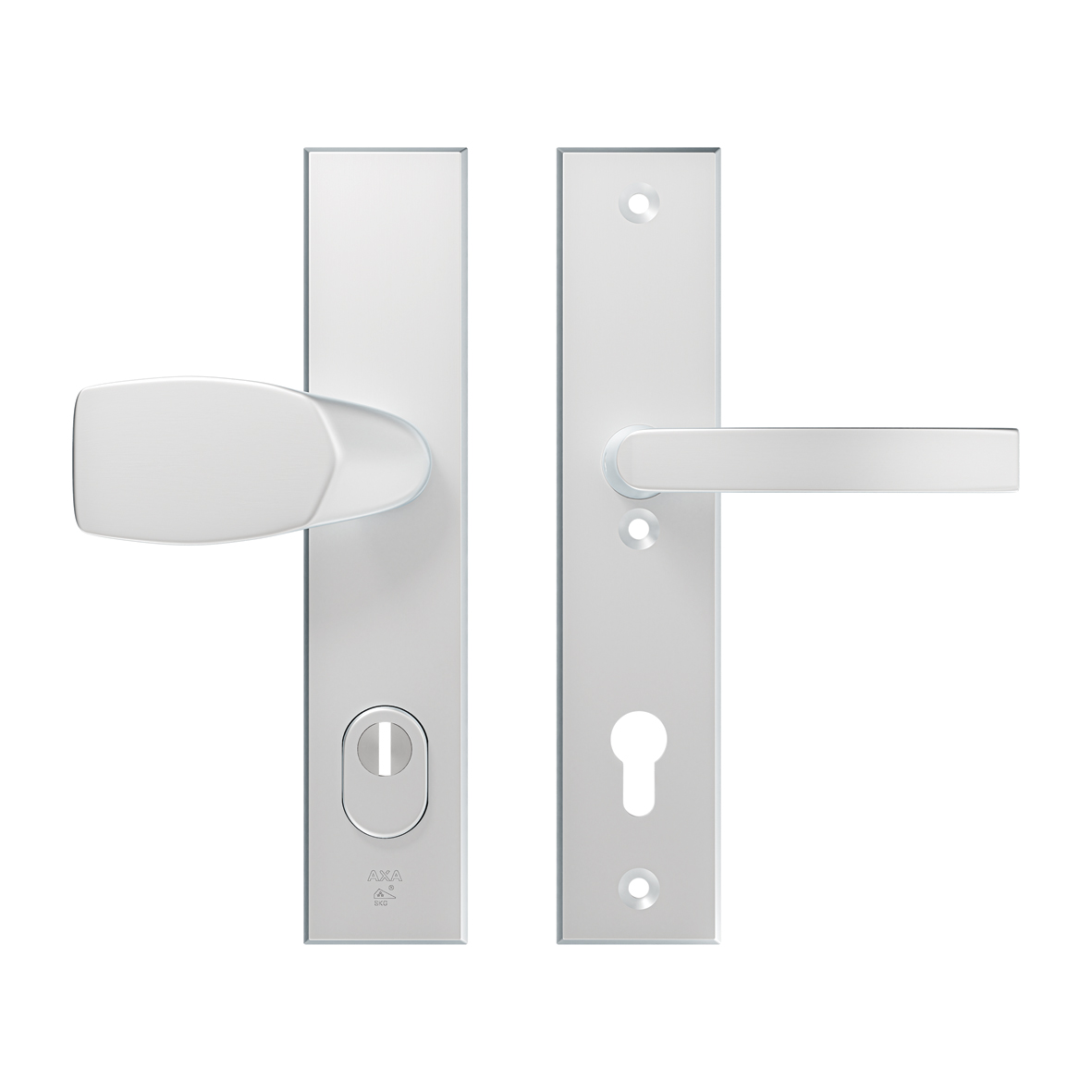

Security fitting Edge Plus handle Wing+Blok PC92 core protection
6667-39-91/92K
Reliable and stylish Edge Plus burglar-resistant security fittings.
- sturdy and reliable
- with Self-aligning Cylinder Core Protection (SCP)

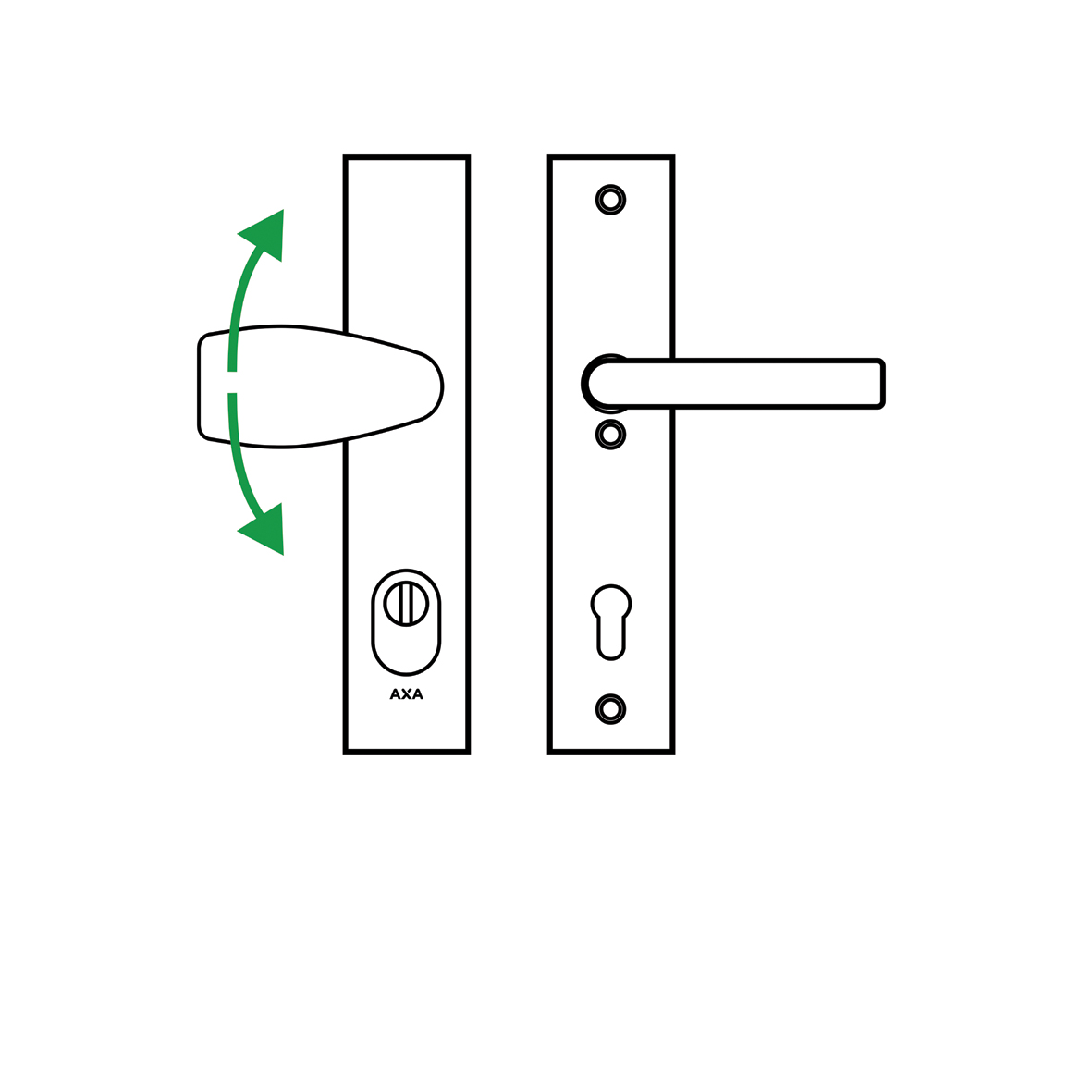

- for both left and right-opening doors (the knob-handle is reversible and usable)
- possible to use on all doors with a thickness from 35-43 and 54-58 mm
- extended handle spindles and bolts are available for thicker doors
- a seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
- larger shield size usually completely covers the imprint of the old shield
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
+
3
Reliable and stylish Edge Plus burglar-resistant security fittings.
- sturdy and reliable
- with Self-aligning Cylinder Core Protection (SCP)
- for both left and right-opening doors (the knob-handle is reversible and usable)
- possible to use on all doors with a thickness from 35-43 and 54-58 mm
- extended handle spindles and bolts are available for thicker doors
- a seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
- larger shield size usually completely covers the imprint of the old shield
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
Specifications
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Commercial information
Type Edge Plus handle Wing+Blok PC92 core protection
Use for front doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
Product Length 252 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape right
Suitable for door thickness 35 - 43 mm
Suitable for door thickness 54 - 58 mm
Outside handle-Pusher-Knob type handle Wing
Inside handle type handle Block
Handle length 125 mm
Handle depth 60 mm
Handle assembly grub screw fix
Spring supported handle False
Spindle dimension 8 x 110 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Anodised F1, natural
Assembly information
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Logistic information
Product Weight 1114 gr
Pieces per small package 1 piece
EAN small package 8713249284262
Weight small package 1.25 kg
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 10 piece
EAN bulk package 8713249284279
Weight bulk package 12.94 kg
Dimensions bulk package 530 x 320 x 171 mm
