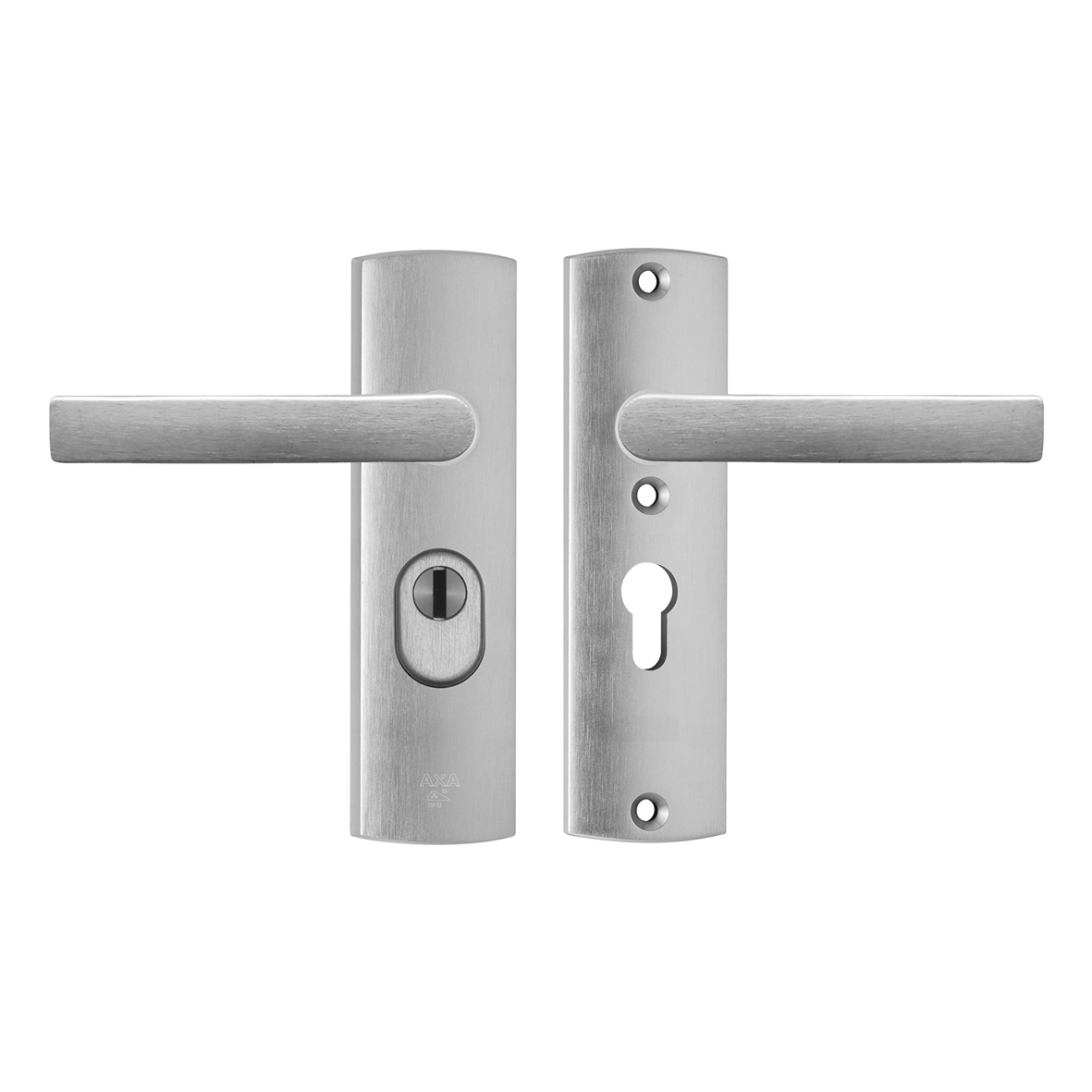

Security fitting Curve Plus short handle Blok PC55 core protection
6675-10-11/55K
Reliable and stylish Curve Plus burglar-resistant security fittings.
- sturdy and reliable
- with Self-aligning Cylinder Core Protection (ZKB)
- finely polished and less sensitive to scratches
- round shapes for optimal run-off stops moisture from affecting paintwork.
- seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
- universally usable on doors with a thickness of 35-43 and 54-58 mm
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
+
4
Reliable and stylish Curve Plus burglar-resistant security fittings.
- sturdy and reliable
- with Self-aligning Cylinder Core Protection (ZKB)
- finely polished and less sensitive to scratches
- round shapes for optimal run-off stops moisture from affecting paintwork.
- seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
- universally usable on doors with a thickness of 35-43 and 54-58 mm
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
Specifications
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
- M6 x 50 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Commercial information
Type Curve Plus short handle Blok PC55 core protection
Use for back doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information

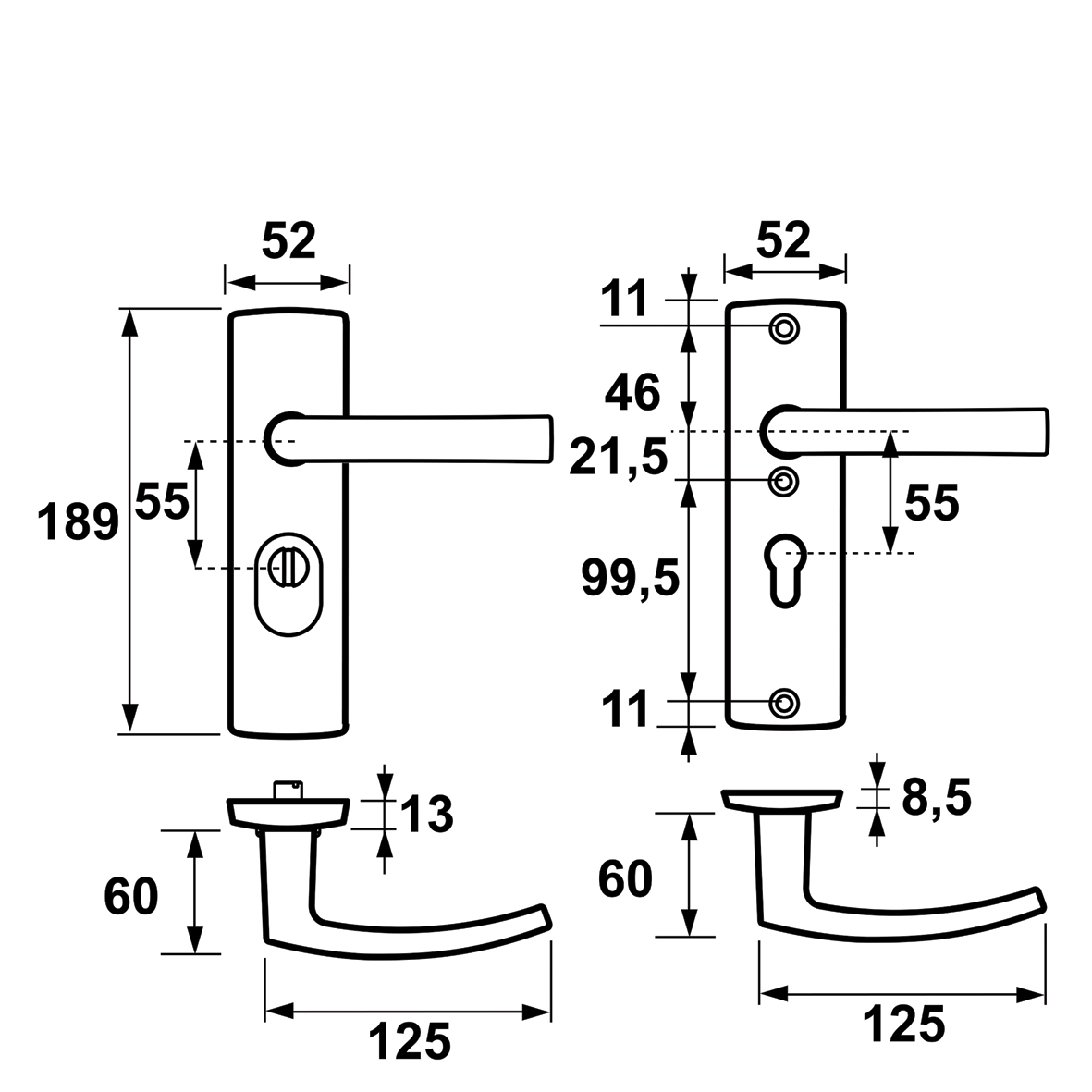

Product Length 189 mm
Product Width 52 mm
Thickness outside 13 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Suitable for door thickness 35 - 43 mm
Suitable for door thickness 54 - 58 mm
Outside handle-Pusher-Knob type handle Wing
Inside handle type handle Block
Handle type Block
Handle length 125 mm
Handle depth 60 mm
Handle assembly grub screw fix
Spring supported handle False
Spindle dimension 8 x 110 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
- M6 x 50 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Logistic information
Product Weight 878 gr
Pieces per small package 1 piece
EAN small package 8713249240831
Weight small package 0.954 kg
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 10 piece
EAN bulk package 8713249240848
Weight bulk package 10.17 kg
Dimensions bulk package 530 x 320 x 171 mm
Downloads
Main Image SKG Certificate Environmental Product Declaration (EPD)Technical drawings
