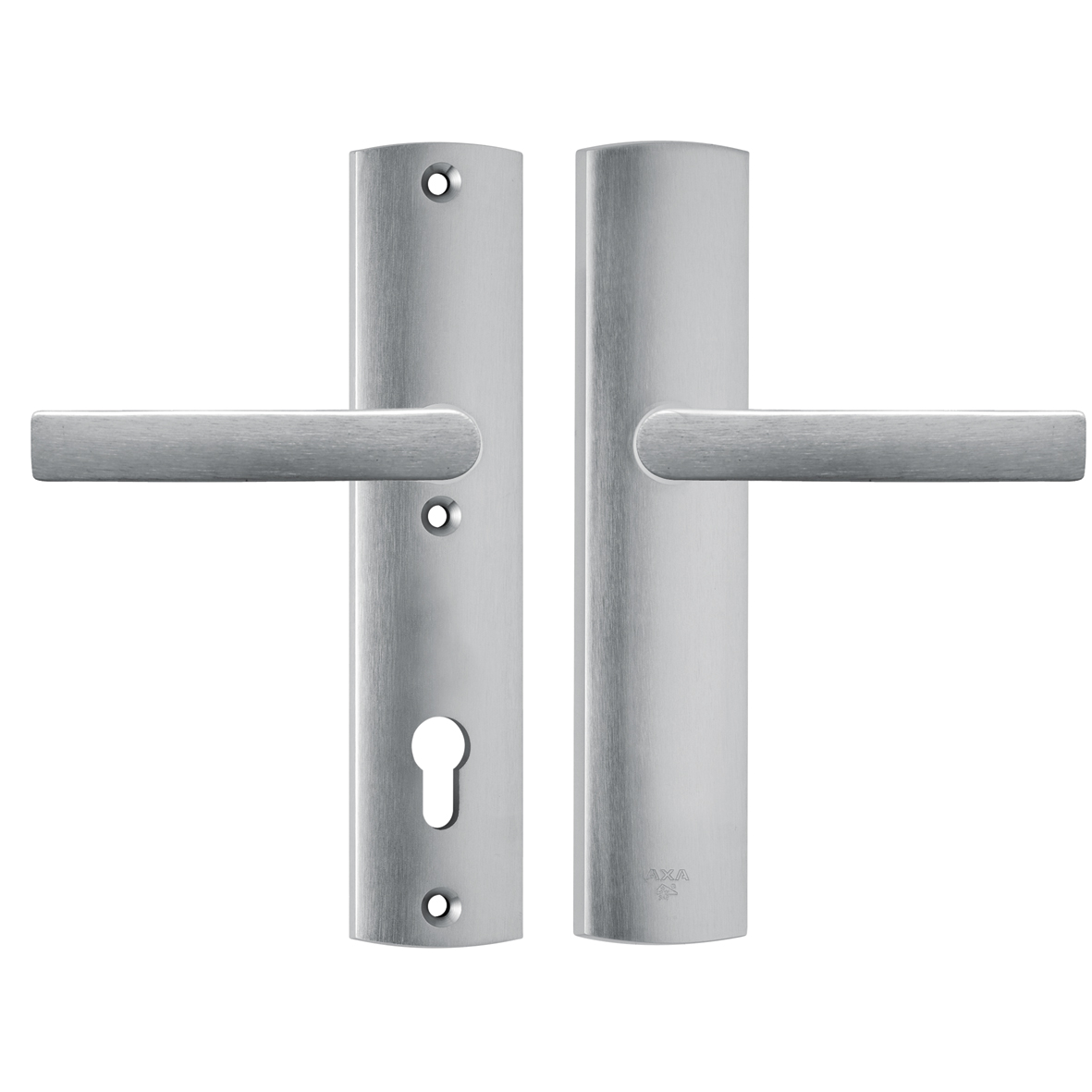

Security fitting Curve handle Blok blind-inside PC92
6660-12-11/92K
Reliable and stylish Curve burglar-resistant security fittings.
- sturdy and reliable
- finely polished and less sensitive to scratches
- round shapes for optimal run-off stops moisture from affecting paintwork.
- universally usable on doors with a thickness of 35-43 and 54-58 mm
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
Reliable and stylish Curve burglar-resistant security fittings.
- sturdy and reliable
- finely polished and less sensitive to scratches
- round shapes for optimal run-off stops moisture from affecting paintwork.
- universally usable on doors with a thickness of 35-43 and 54-58 mm
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
Specifications
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Commercial information
Type Curve handle Blok blind-inside PC92
Use for back doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze

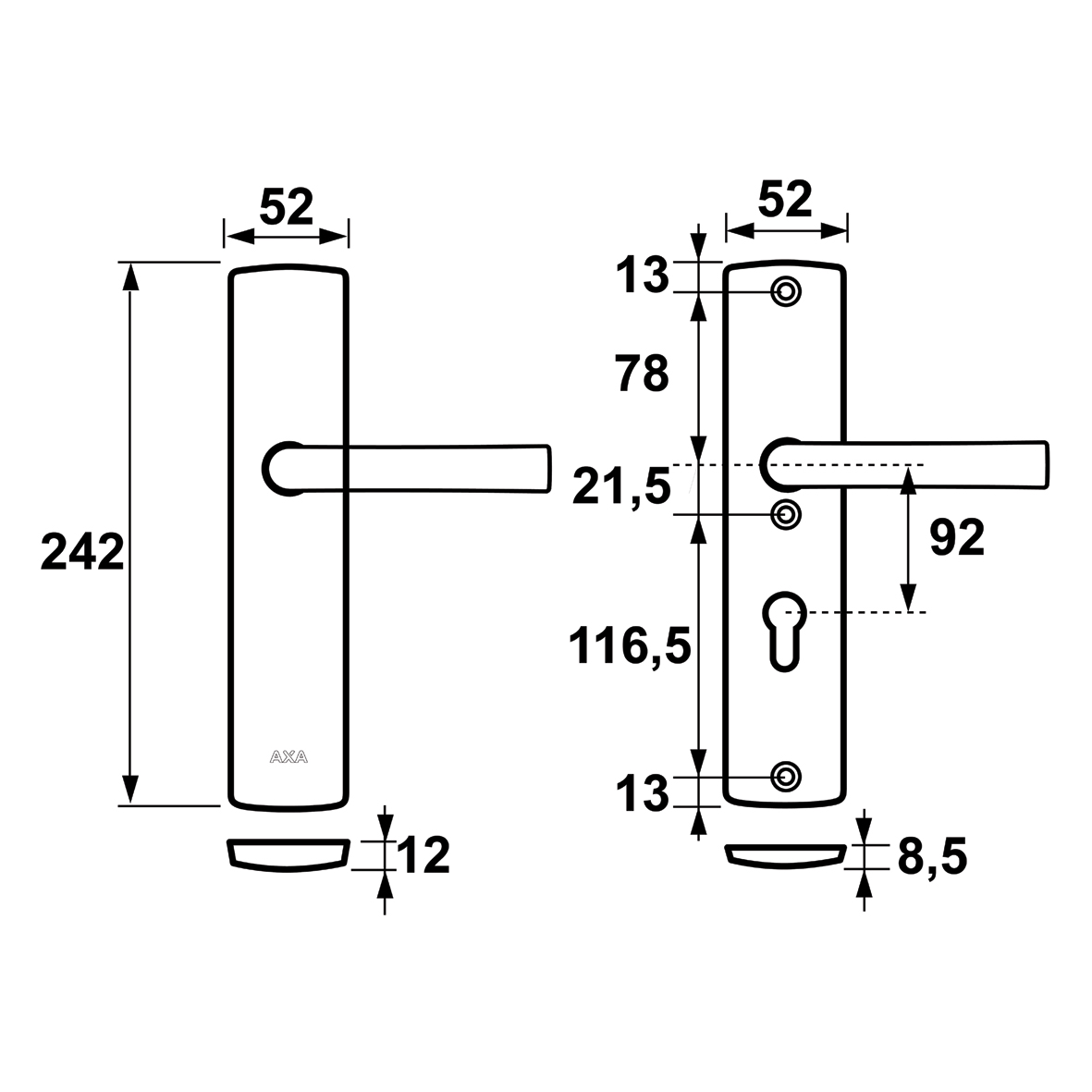

Technical information
Product Length 242 mm
Product Width 52 mm
Thickness outside 13 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Suitable for door thickness 35 - 43 mm
Suitable for door thickness 54 - 58 mm
Handle length 125 mm
Handle depth 60 mm
Handle assembly grub screw fix
Spring supported handle False
Spindle dimension 8 x 110 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Logistic information
Pieces per small package 1 piece
EAN small package 8713249333519
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 10 piece
EAN bulk package 8713249333526
Dimensions bulk package 530 x 320 x 171 mm
Downloads
Main Image SKG Certificate Environmental Product Declaration (EPD)Technical drawings
