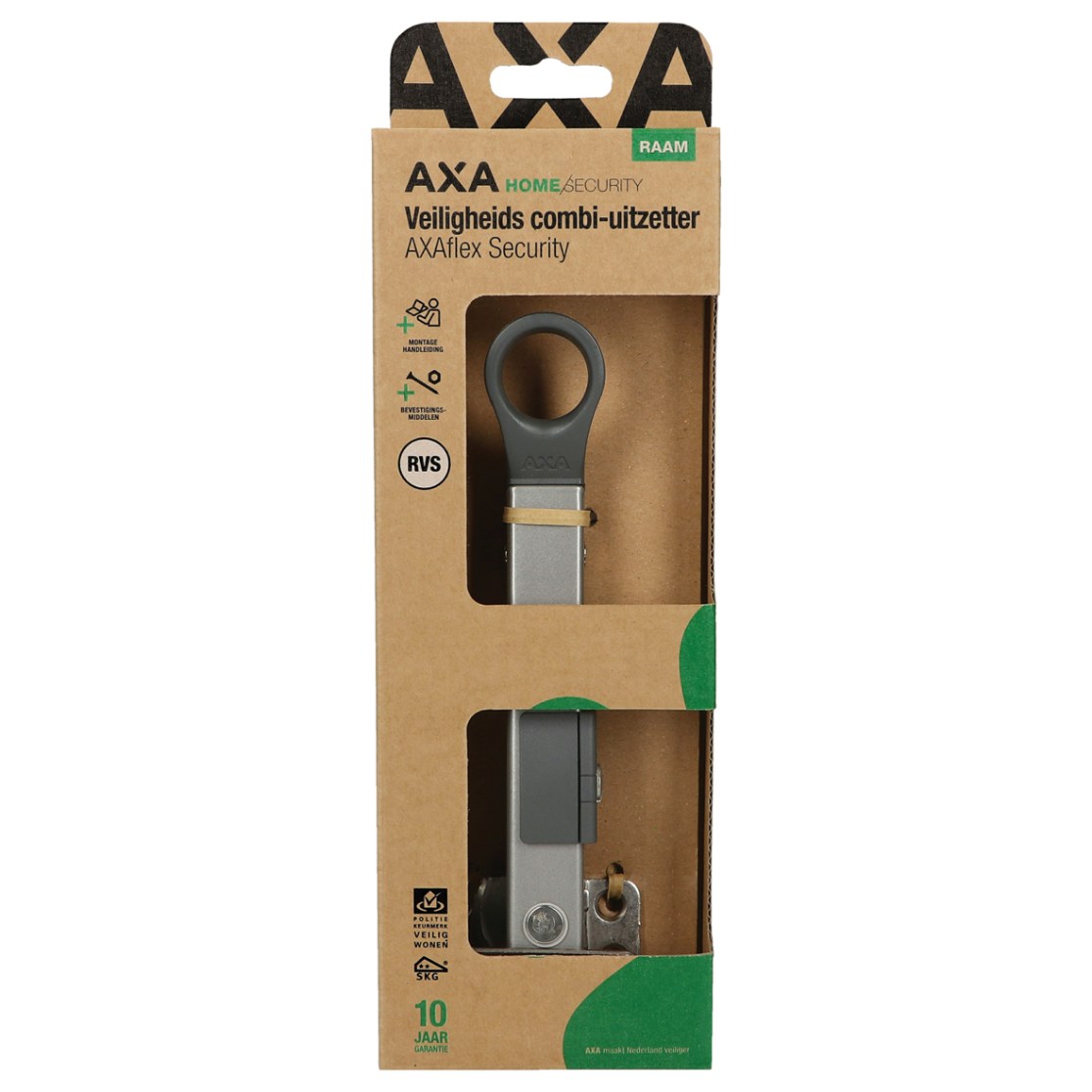

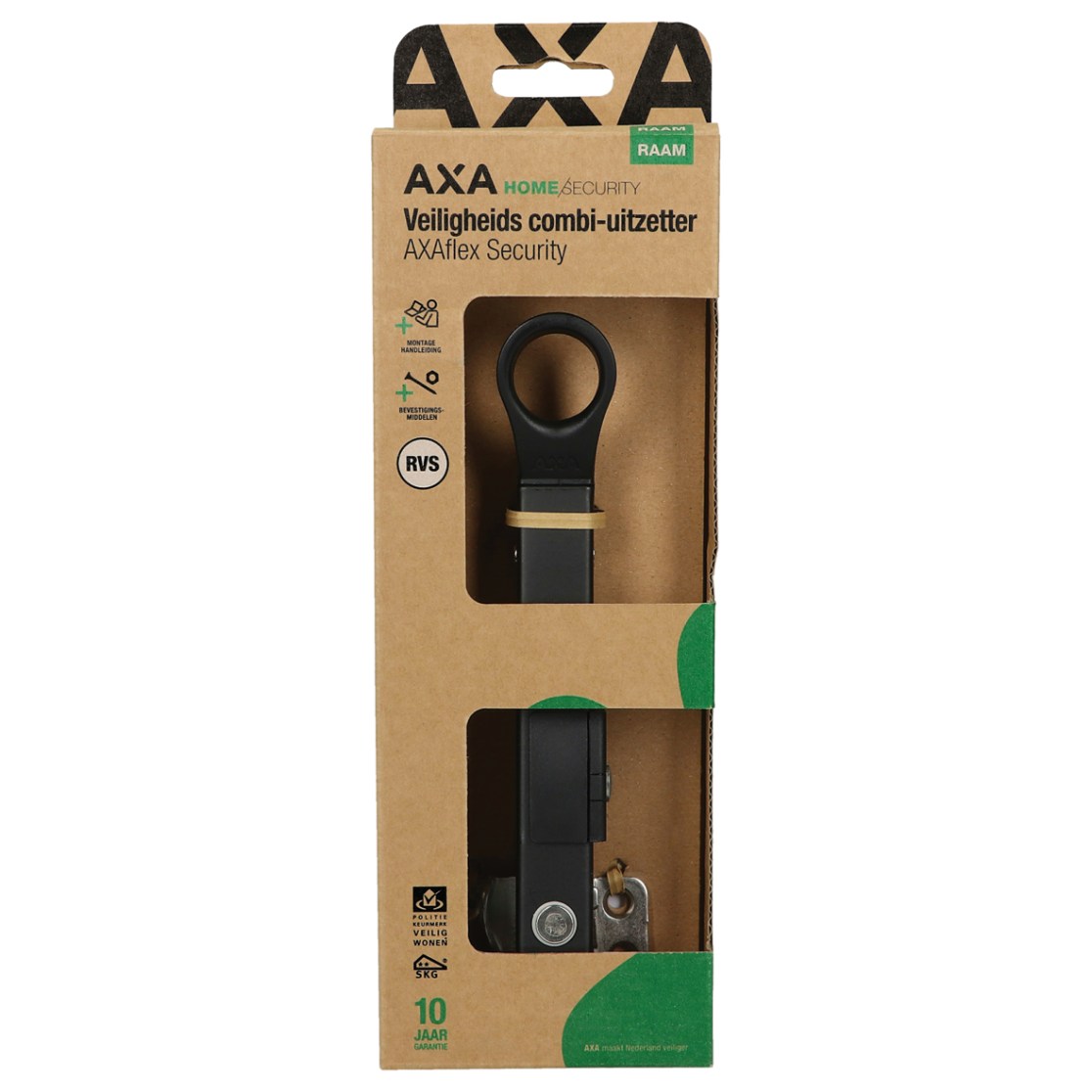

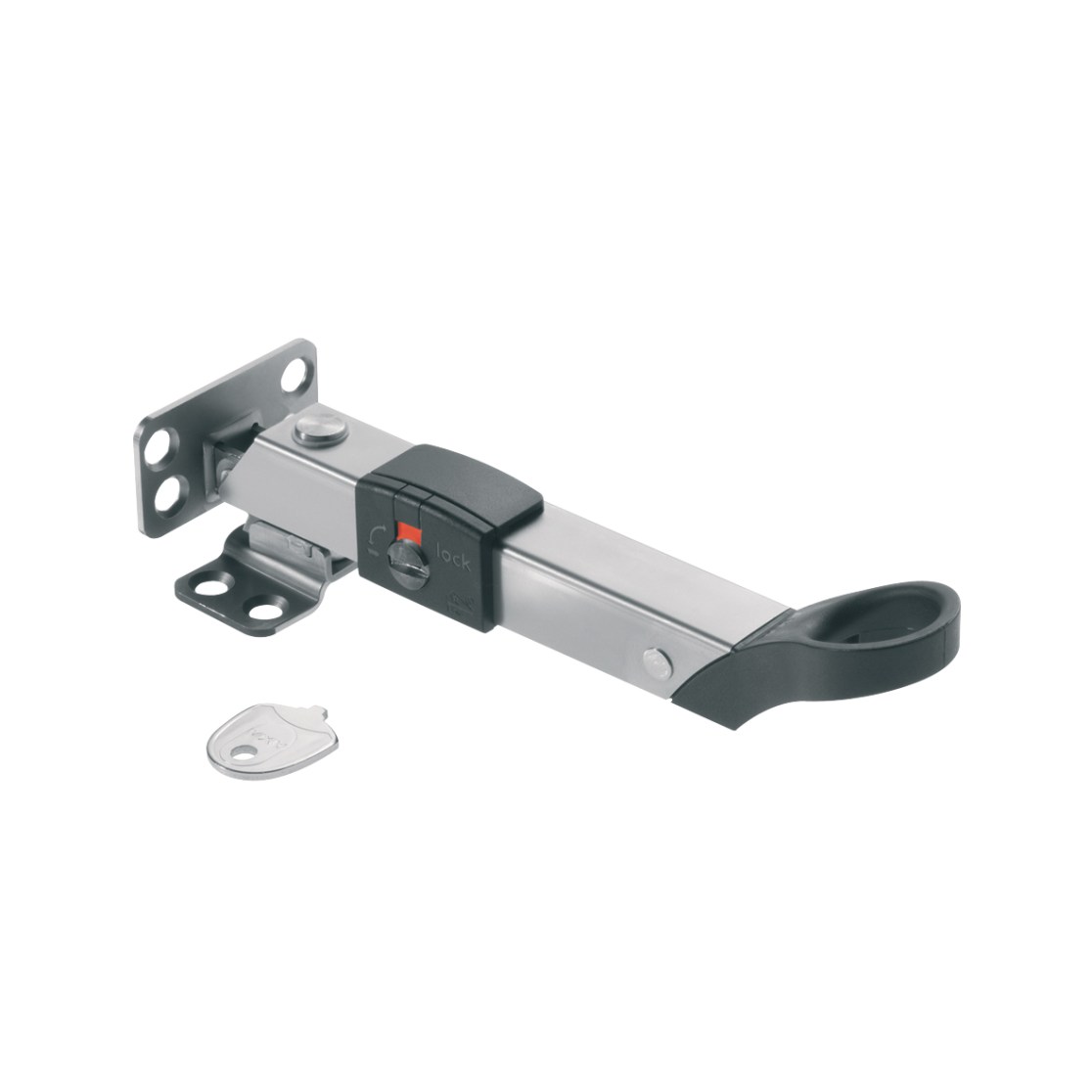

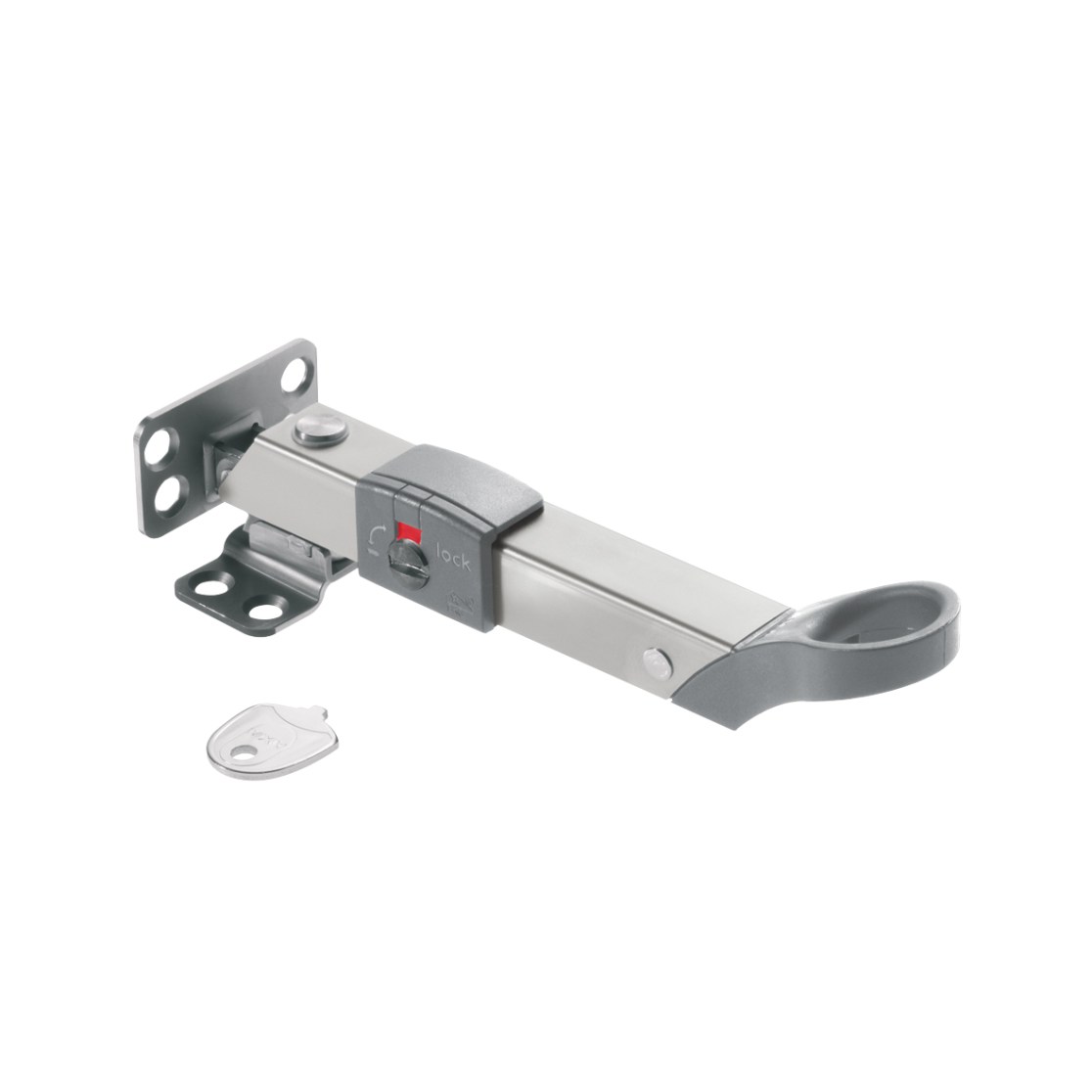

Security combi window stay AXAflex Security
2660-20-81/CP
The AXAflex Security combi window stay is burglar-resistant and makes it possible to use hopper windows for ventilation purposes.
- security window stay and closer in one
- variable with three preferred positions for optimal ventilation
- lockable and readable via red-and-white indicator
- maximum ventilation opening 160 mm
- rotatable
- complies with the Police Hallmark for Safe Living and SKG2
+
11
The AXAflex Security combi window stay is burglar-resistant and makes it possible to use hopper windows for ventilation purposes.
- security window stay and closer in one
- variable with three preferred positions for optimal ventilation
- lockable and readable via red-and-white indicator
- maximum ventilation opening 160 mm
- rotatable
- complies with the Police Hallmark for Safe Living and SKG2
Specifications
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 40 mm screw: 8 pieces
Commercial information
Type AXAflex Security
Use for skylights, hopper windows and top-hung windows
Safety information
Burglarproof True
SKG SKG 2
Police Hallmark True
CE Applicable False
Technical information
Product Length 182 mm
Product Width 67 mm
Product Height 54 mm
Direction of rotation turning upwards
Maximum gap width 160 mm
Maximum height vertical position 160 mm
Rotatable to the right
Operation variable with 3 preferred positions for optimal ventilation

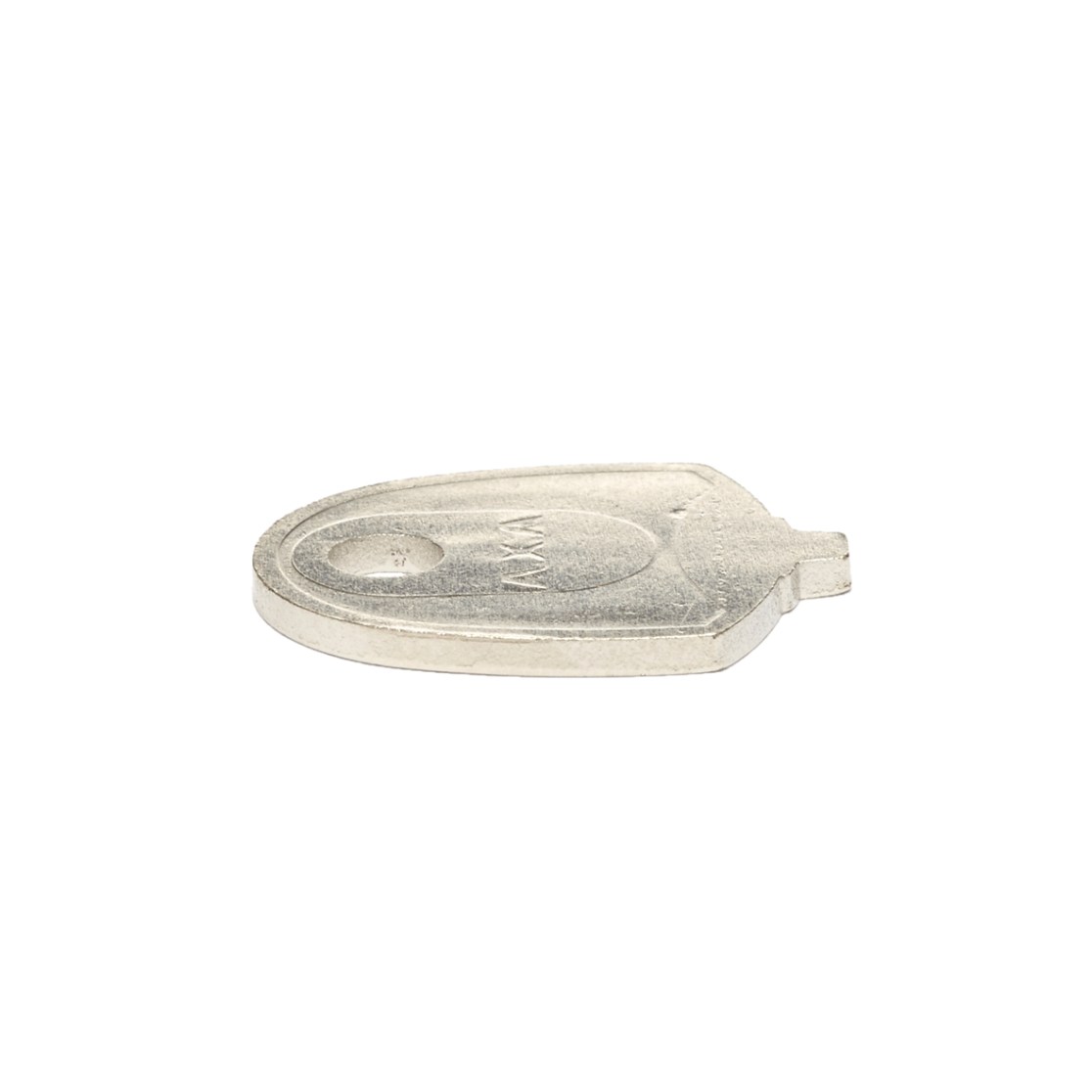

Number of Keys 1
Material Stainless steel
Finish Brushed
Material 2 Synthetic
Finish 2 Black
Assembly information
Including Mounting Material True

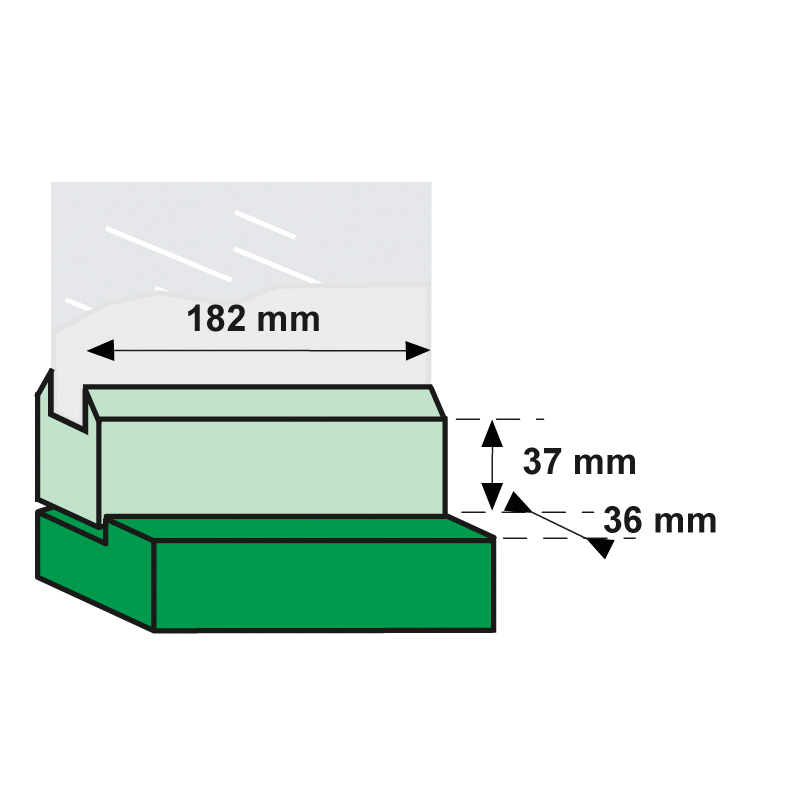

Mounting length 182 mm
Required depth wood frame 36 mm
Window/door mounting width requirement 37 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 40 mm screw: 8 pieces

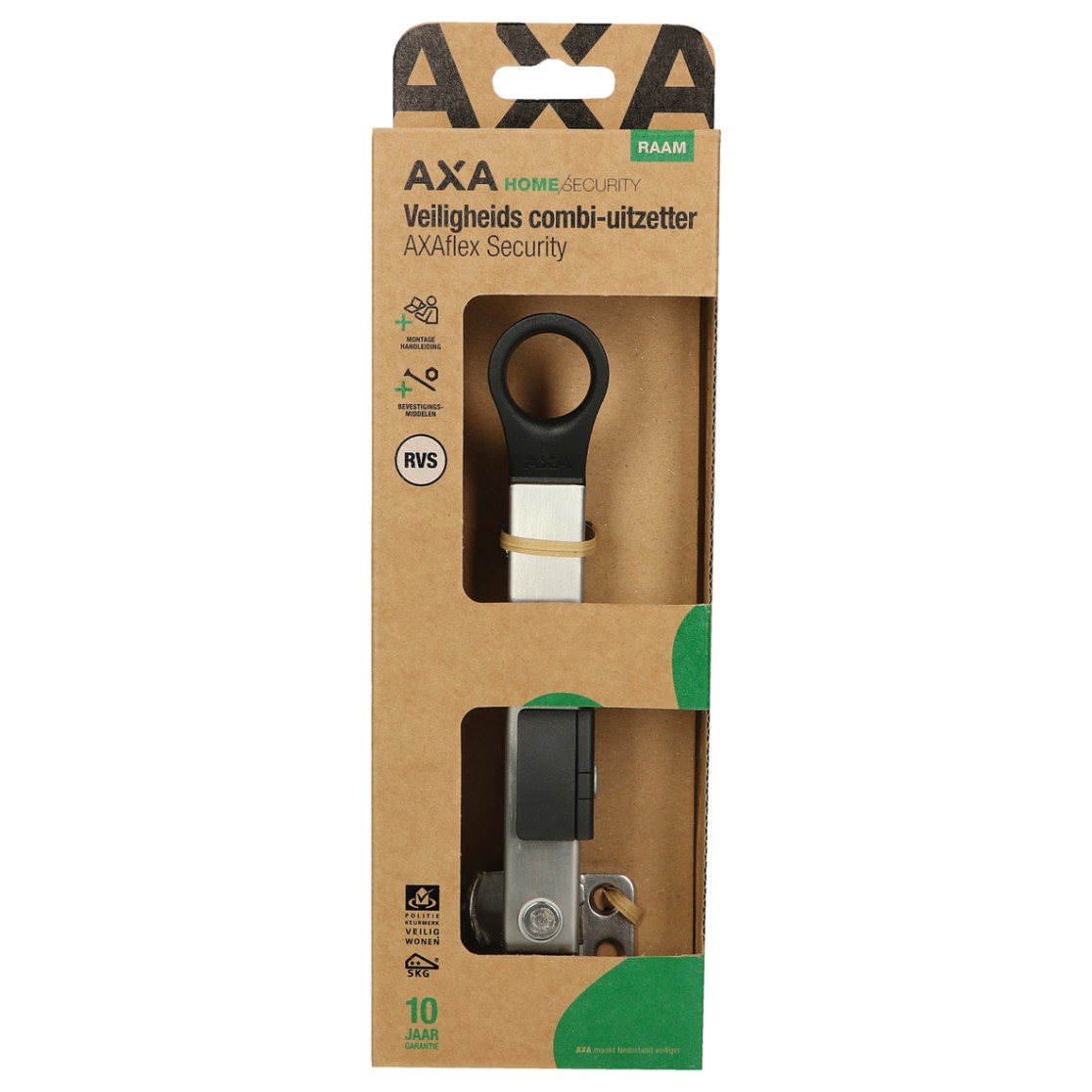

Logistic information
Pieces per small package 1 piece
EAN small package 8713249354804
Weight small package 0.306 kg
Dimensions small package 265 x 85 x 45 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249354811
Weight bulk package 2.02 kg
Dimensions bulk package 275 x 175 x 140 mm

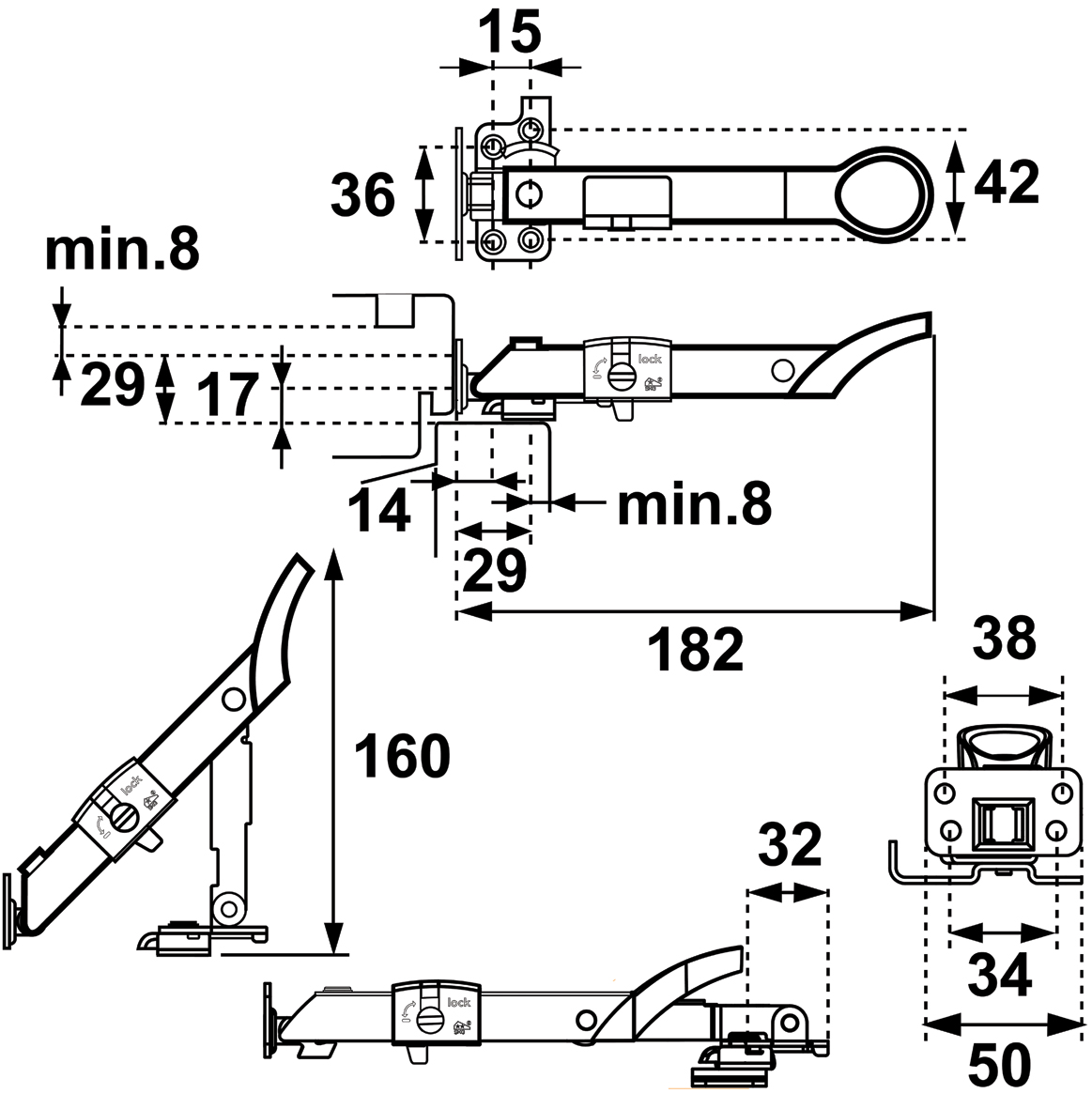

Technical drawings
