Security backplates Oval Plus narrow Comfort PC72 core protection
Security backplates Oval Plus narrow Comfort PC72 core protection
6758-10-91/72
SKG 3
close
bronze
close
Police Hallmark
close
Reliable and stylish Oval Plus Comfort burglar-resistant security fittings.
sturdy and reliable
with Self-aligning Cylinder Core Protection (SCP)
possible to use on all doors with a thickness from 38 to 40 mm
a seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
larger shield size usually completely covers the imprint of the old shield
extended handle spindles and bolts are available for thicker doors
complies with the Police Hallmark for Safe Living and SKG3
complete with attachment materials
https://www.youtube.com/embed/TUMzXtgvF98
close
SKG 3
close
bronze
close
Police Hallmark
close
Reliable and stylish Oval Plus Comfort burglar-resistant security fittings.
sturdy and reliable
with Self-aligning Cylinder Core Protection (SCP)
possible to use on all doors with a thickness from 38 to 40 mm
a seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
larger shield size usually completely covers the imprint of the old shield
extended handle spindles and bolts are available for thicker doors
complies with the Police Hallmark for Safe Living and SKG3
complete with attachment materials
Specifications
Downloads

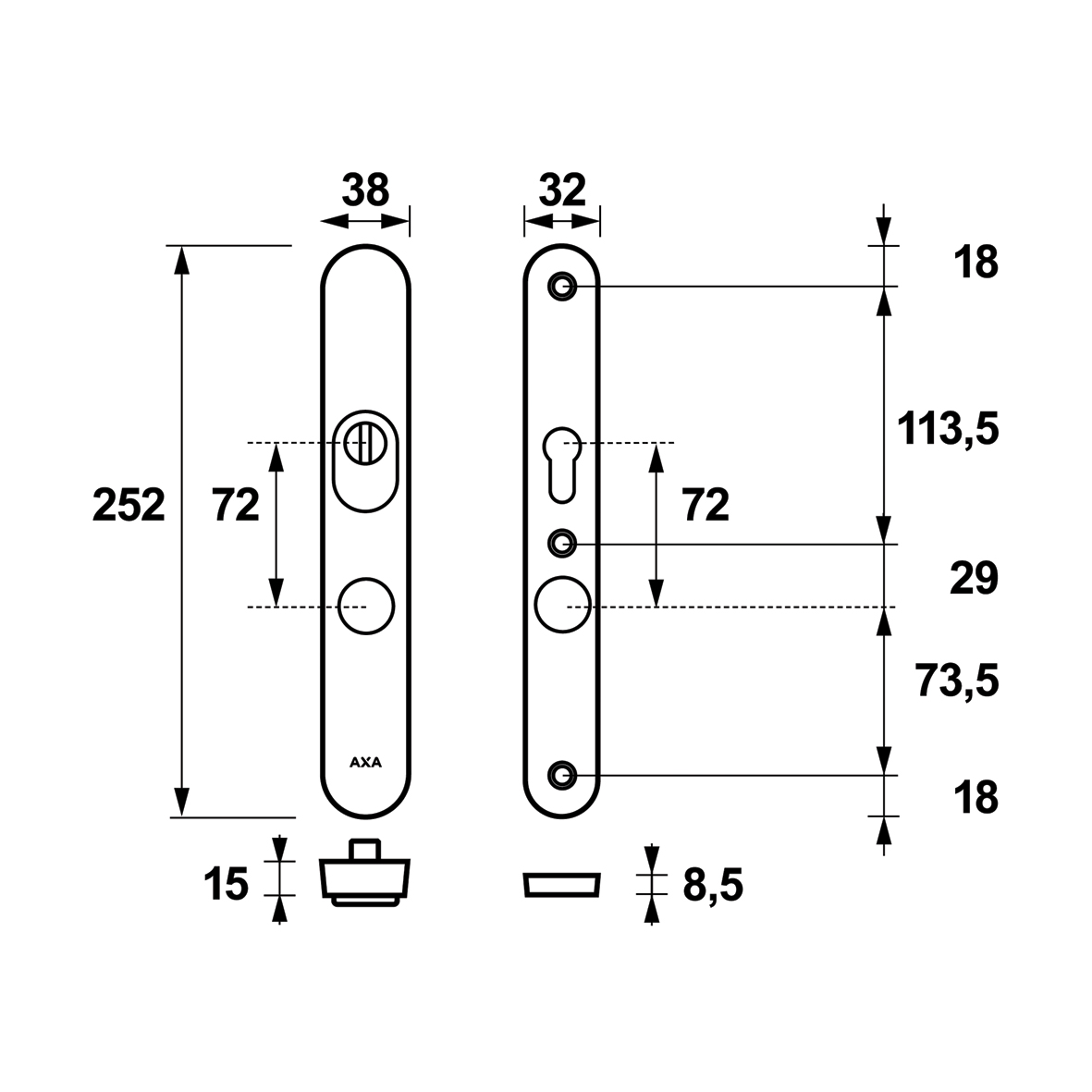

Technical drawings
Associated products
Alternative products
Specifications
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
Commercial information
expand_more
Type
Oval Plus narrow Comfort PC72 core protection
Use
for back doors
Safety information
expand_more
Burglarproof
True
SKG
SKG 3
Police Hallmark
True
CE Applicable
False
Cradle to Cradle certification
bronze
Technical information
expand_more
Product Length
252 mm
Product Width
38 mm
Product Width 2
32 mm
Thickness outside
15 mm
Thickness inside
8.5 mm
Direction of rotation
outward and inward-opening
Shape
oval
Heart to heart size type
handle hole - Euro profile hole (PC)
Material
Aluminum
Finish
Anodised F1, natural
Assembly information
expand_more
Including Mounting Material
True
Assembly time
15 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
Logistic information
expand_more
Pieces per small package
1 piece
EAN small package
8713249286150
Dimensions small package
257 x 30 x 55 mm
Pieces per bulk package
12 piece
EAN bulk package
8713249286167
Dimensions bulk package
290 x 200 x 120 mm
Downloads
Main Image
download

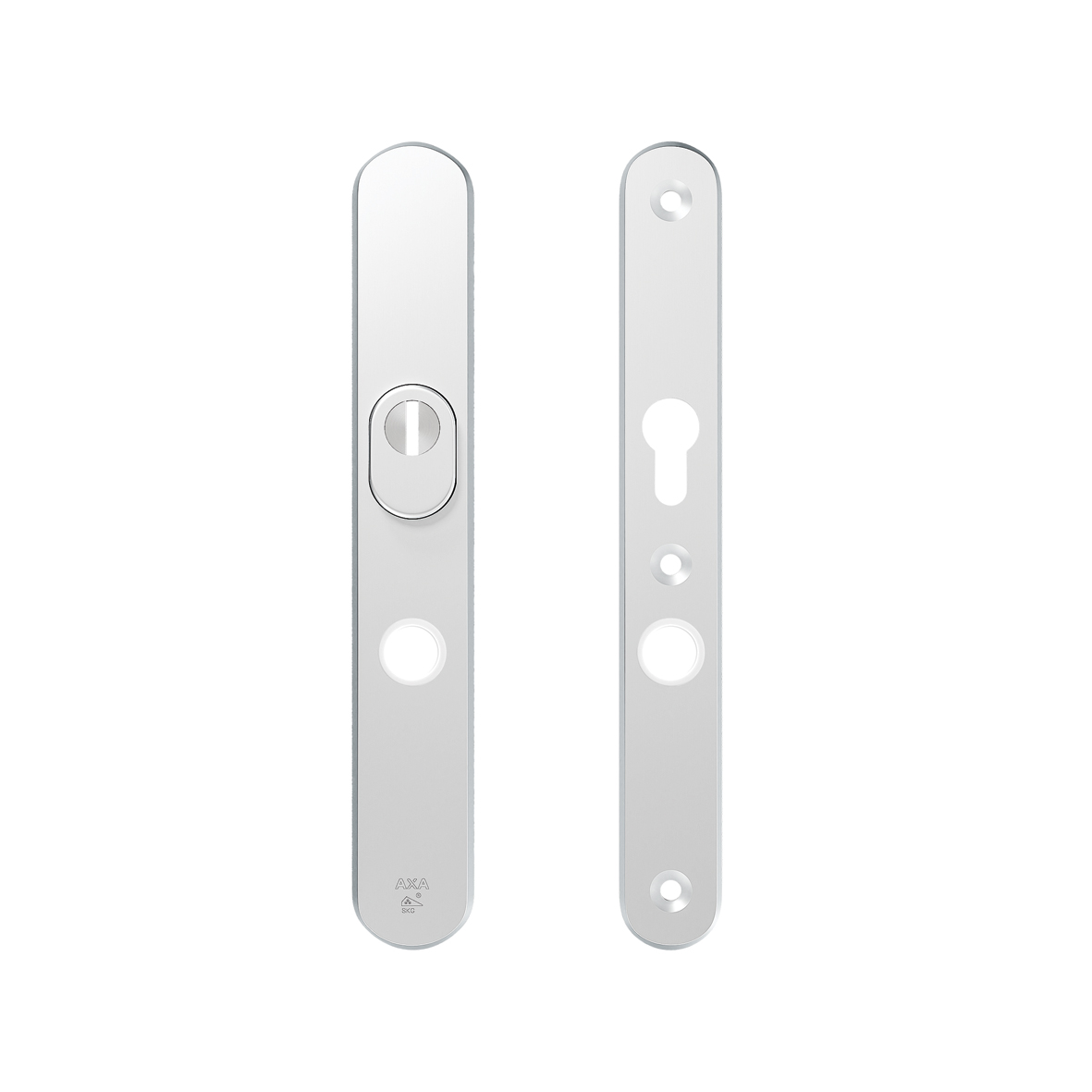

Photo 6758109172 Oval Plus narrow Security backplates Comfort PC72 core protection 8713249286150
Brochure
download
Brochure AXA Plus serie veiligheidsbeslag
Installation Manual
download
Installation manual AXA Edge and Oval Plus Security fittings
SKG Certificate
download
AXA Security fitting and backplates narrow SKG-IKOB certificate 423.633.02
Environmental Product Declaration (EPD)
download
Environmental Product Declaration doorhandles, window handles and door fittings
