Security backplates Edge Plus short PC72 core protection

6677-10-91/72
arrow_selector
close

SKG 3

bronze

Police Hallmark

Reliable and stylish Edge Plus burglar-resistant security fittings.

  • sturdy and reliable
  • with Self-aligning Cylinder Core Protection (SCP)
  • possible to use on all doors with a thickness from 38 to 40 mm
  • extended handle spindles and bolts are available for thicker doors
  • a seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • larger shield size usually completely covers the imprint of the old shield
  • complies with the Police Hallmark for Safe Living and SKG3
  • complete with attachment materials
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
Commercial information
expand_more
Type Edge Plus short PC72 core protection
Use for back doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Product Length 194 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape right
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 15 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249285993
Dimensions small package 257 x 30 x 55 mm
Pieces per bulk package 12 piece
EAN bulk package 8713249286006
Dimensions bulk package 290 x 200 x 120 mm

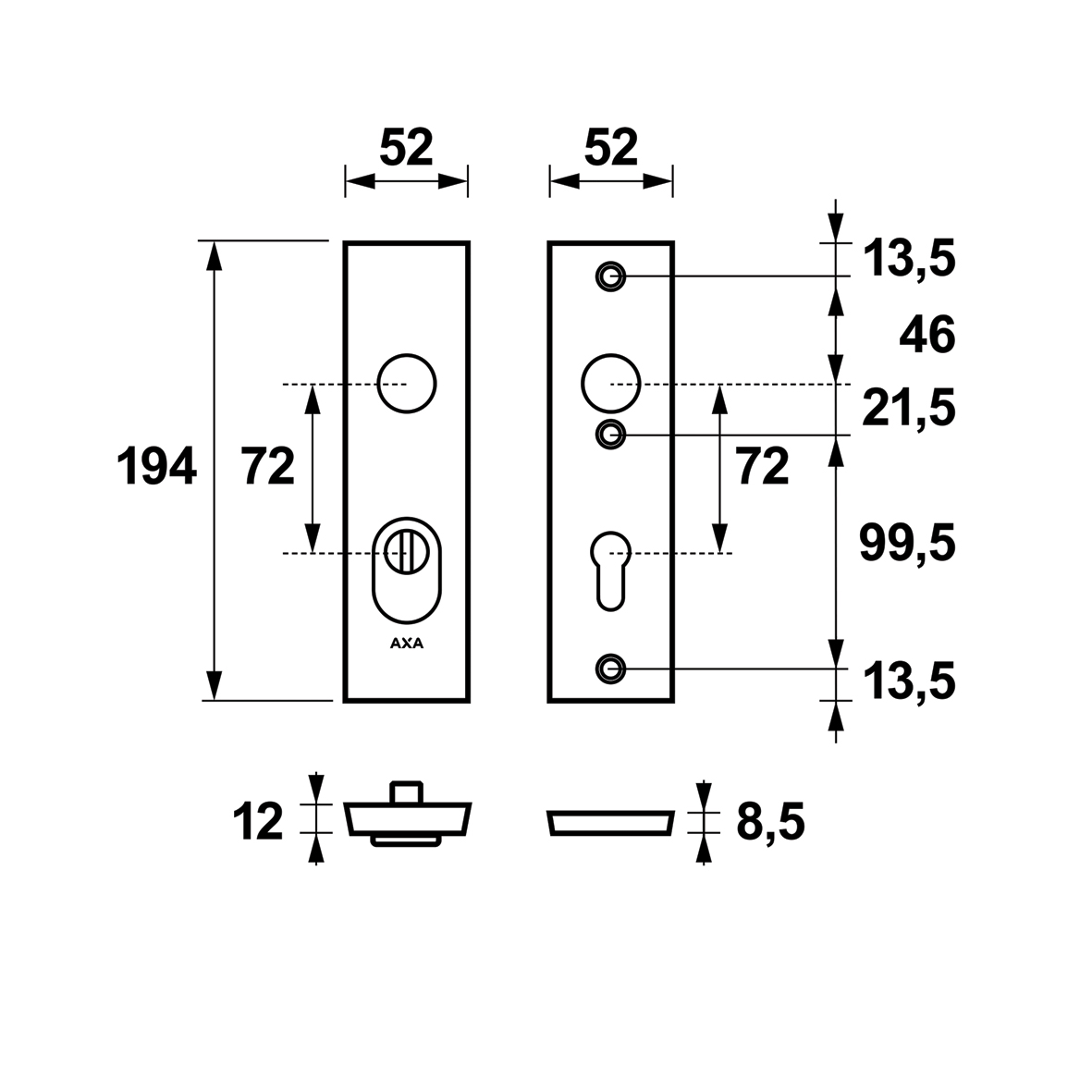

Technical drawings
Security backplates Edge Plus short PC72 core protection
6677109172
